Description

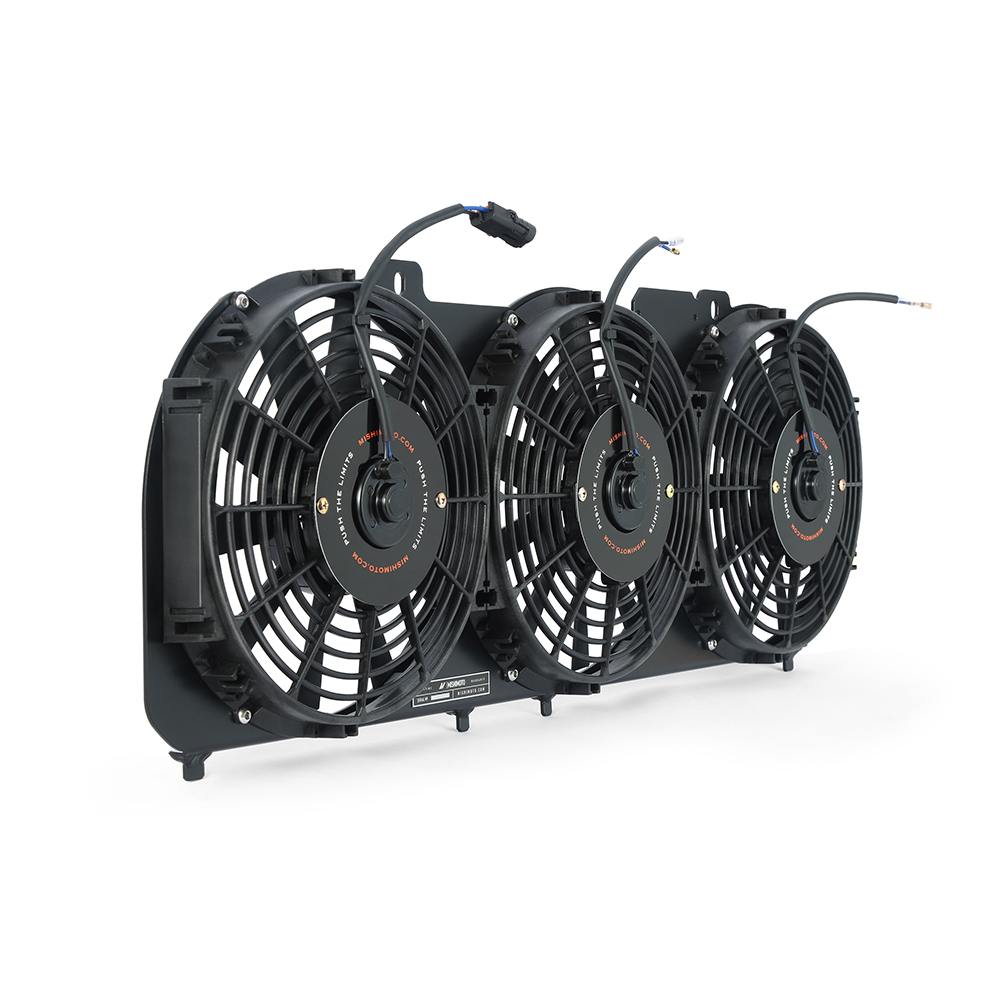

The Mishimoto MMFS-XJ-89BK is a purpose-built performance aluminum fan shroud engineered specifically for the 1989-2001 Jeep Cherokee XJ 4.0L. Instead of relying on the stock engine-driven fan that saps horsepower and only moves air in proportion to engine speed, this shroud houses three Mishimoto high-flow 10-inch electric slim fans, each capable of a constant 950 CFM regardless of how fast the engine is turning. This black powder-coated shroud is the without-fan-controller configuration, giving XJ owners a straightforward, direct-fit upgrade to their cooling system.
By eliminating the heavy mechanical fan, this Mishimoto cooling upgrade reduces rotating mass and frees up power that would otherwise be spent spinning the stock fan. One of the three electric fans replaces the stock A/C fan, while the remaining two are dedicated to cooling the radiator, and the lightweight aluminum shroud itself covers more of the radiator core than the factory shroud so the entire radiator benefits from the increased airflow. In Mishimoto’s own testing, this fan shroud moved air 41.9% better than the stock fan shroud at idle and 22% better than the stock fans at 2,500 RPM, translating directly into more consistent cooling whether you’re crawling rocks at low speed or cruising the highway.
Vehicle Applications
This fan shroud is a specific fit for the 1989-2001 Jeep Cherokee XJ 4.0L and covers a wide span of XJ trims across those model years. It fits the Cherokee Base (1989-1994), Briarwood (1991-1992), Laredo (1989-1992), and Pioneer (1989-1990), along with the Limited (1989-1992 and 1998-2001), Country (1993-1997), Classic (1996 and 1998-2001), SE (1994-2001), and Sport (1989-2001). An included A/C fan jumper harness ensures proper A/C function specifically on 1997-2001 models, and the shroud is compatible with both the stock radiator and the Mishimoto radiator.
Features
- Direct-fit design for the 1989-2001 Jeep Cherokee XJ 4.0L

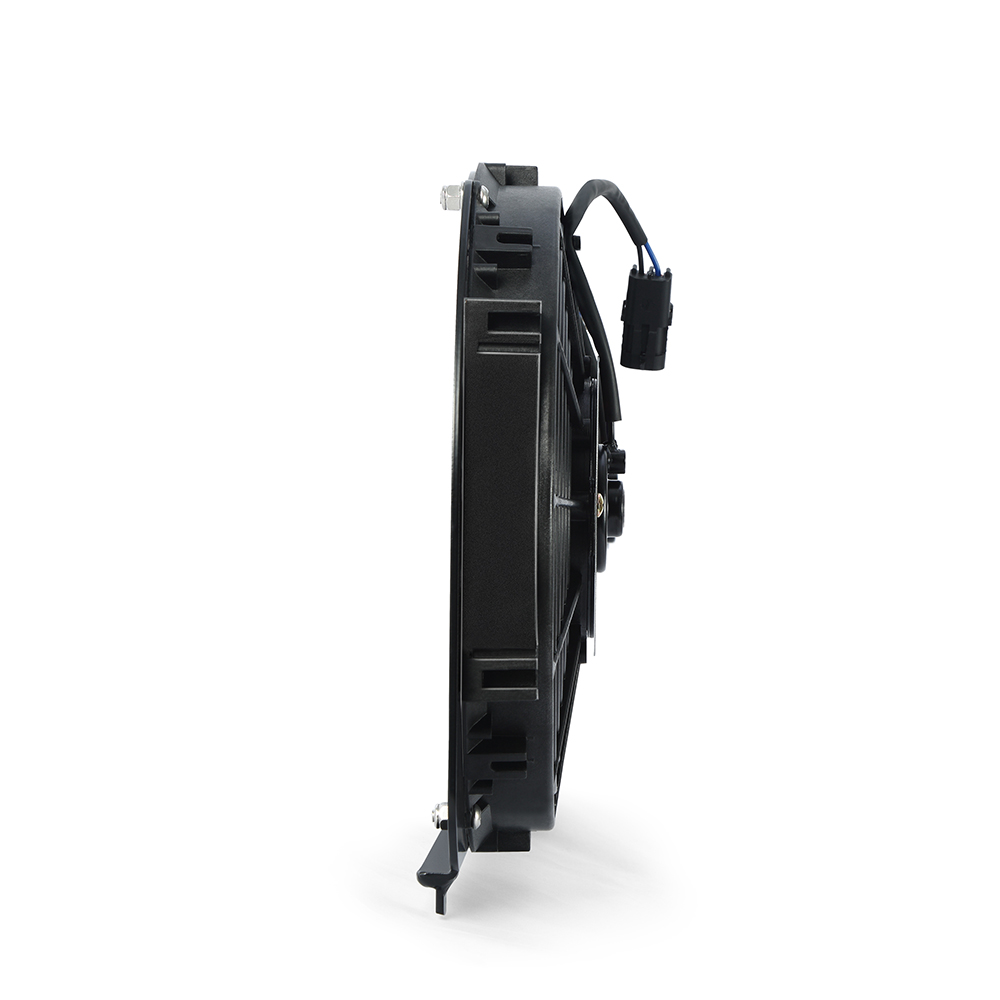

- Includes three Mishimoto high-flow 10-inch slim electric fans, each rated at 950 CFM
- Increases airflow through the radiator by 41.9% over stock at idle and 22% over stock at 2,500 RPM
- Eliminates the heavy mechanical fan to improve low-speed airflow and reduce rotating mass
- Lightweight aluminum shroud improves airflow coverage across the entire radiator core

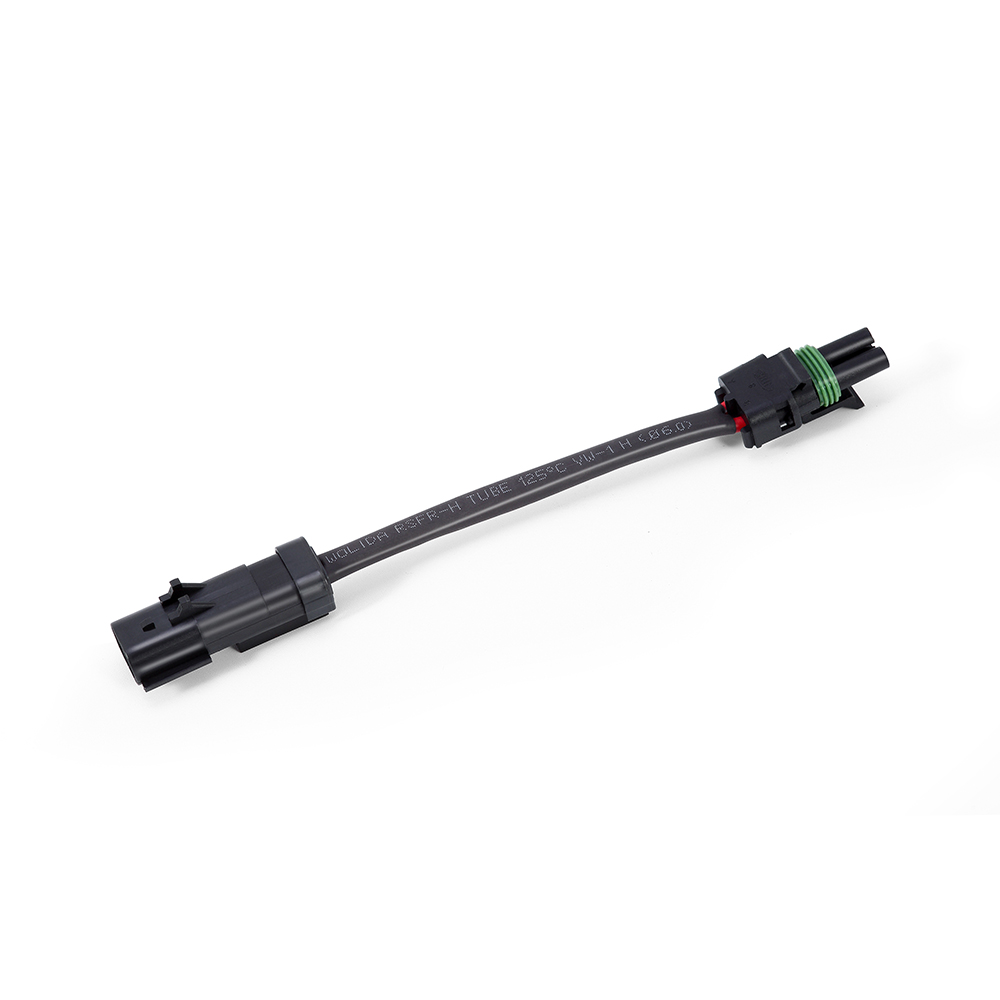

- Retains proper stock A/C fan control, with an included A/C fan jumper harness for 1997-2001 models
- Durable, scratch-resistant black powder-coated finish
- Fans can be activated manually with a switch (sold separately) or with the optional Mishimoto MMFAN-CNTL-U adjustable fan controller, which mounts on the shroud and activates the fans anywhere from 150F to 240F
- Kit includes a wiring harness, a push-in radiator probe temperature sensor, an in-line 1/8-in NPT temperature sensor, an adjustable relay, foam weather strip, mounting hardware, and installation connectors
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-XJ-89BK
- Material: Plastic / Aluminum
- Finish: Powder Coated
- Color: Black
- Option: Black, Without Fan Controller
- Fan Quantity: 3
- Fan Diameter: 10 in
- CFM per Fan: 950
- Universal or Specific Fit: Specific
- Applications: 1989-2001 Jeep Cherokee XJ 4.0L
- Optional Fan Controller: Mishimoto MMFAN-CNTL-U (includes NPT and probe-type sensors)
Frequently Asked Questions
What vehicles does the Mishimoto MMFS-XJ-89BK fan shroud fit?
It is a specific fit for the 1989-2001 Jeep Cherokee XJ 4.0L, covering trims including Base (1989-1994), Briarwood (1991-1992), Country (1993-1997), Classic (1996, 1998-2001), Laredo (1989-1992), Limited (1989-1992, 1998-2001), Pioneer (1989-1990), SE (1994-2001), and Sport (1989-2001).
How many fans are included, and how much air does each one move?
The shroud includes three Mishimoto high-flow 10-inch slim electric fans, each capable of moving 950 CFM at a constant rate regardless of engine speed.
How much does this fan shroud improve airflow over the stock setup?
In Mishimoto’s testing, the shroud increased airflow by 41.9% over the stock fan shroud at idle and by 22% over the stock fans at 2,500 RPM.
Do I need anything extra to control the fans?
The fans can be activated manually with a switch, which is sold separately, or with the optional Mishimoto MMFAN-CNTL-U adjustable fan controller that mounts on the shroud and can be set to activate the fans anywhere from 150F to 240F.
Will this shroud work with my A/C on 1997-2001 models?
Yes, one of the three fans replaces the stock A/C fan, and an included A/C fan jumper harness ensures proper A/C function specifically on 1997-2001 models.
What is included in the kit?

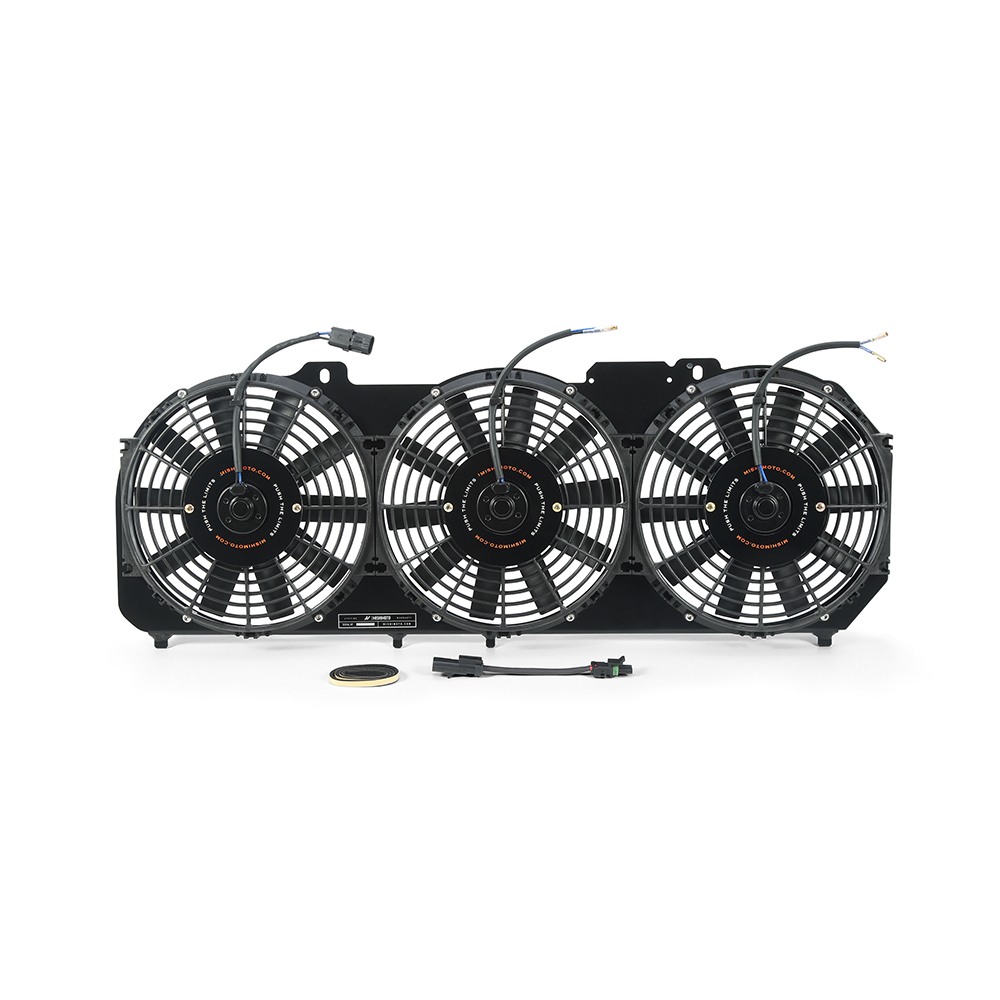

The kit includes the Mishimoto fan shroud, three high-flow 10-inch slim electric fans, a jumper harness for 1997-2001 models, a foam weather strip, an adjustable relay, a push-in radiator temperature probe, a 1/8-in NPT temperature sensor, a wiring harness, mounting hardware, and various wire connectors and terminals.
