Description

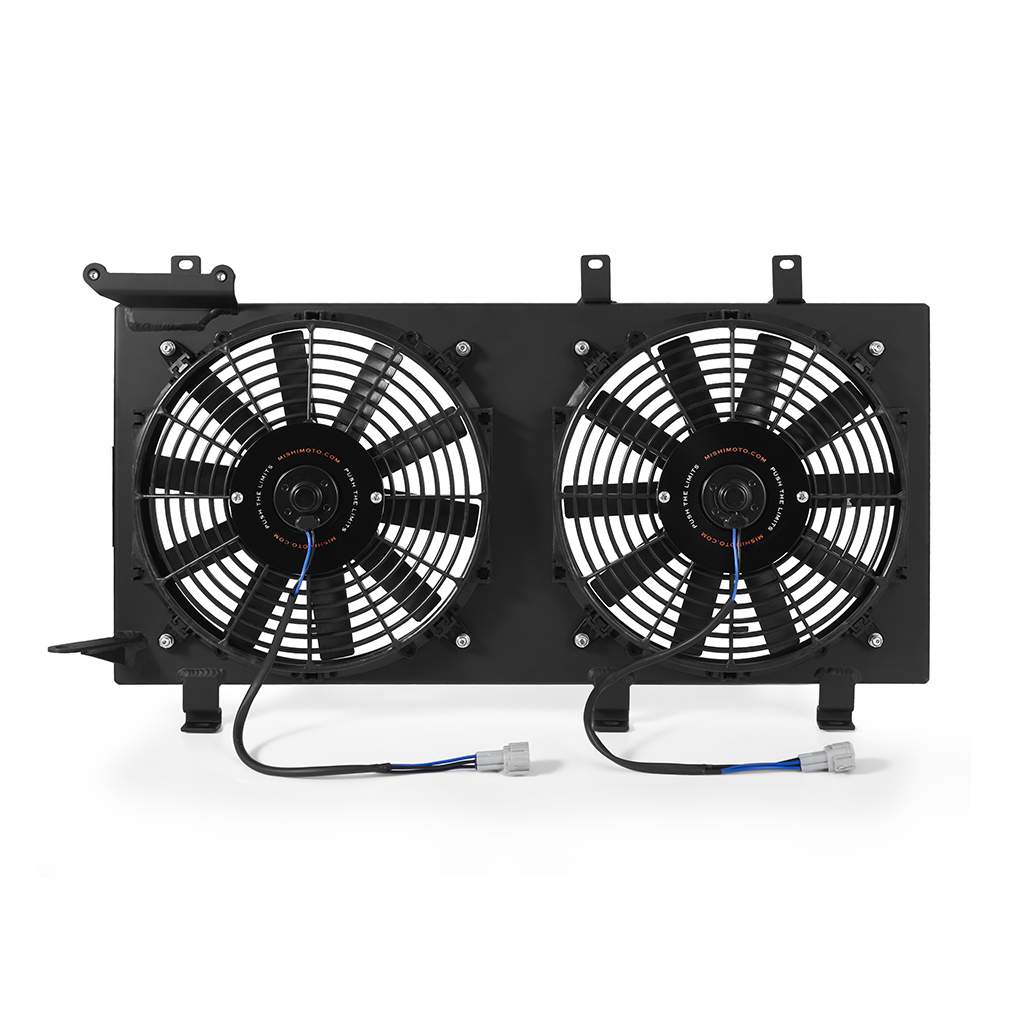

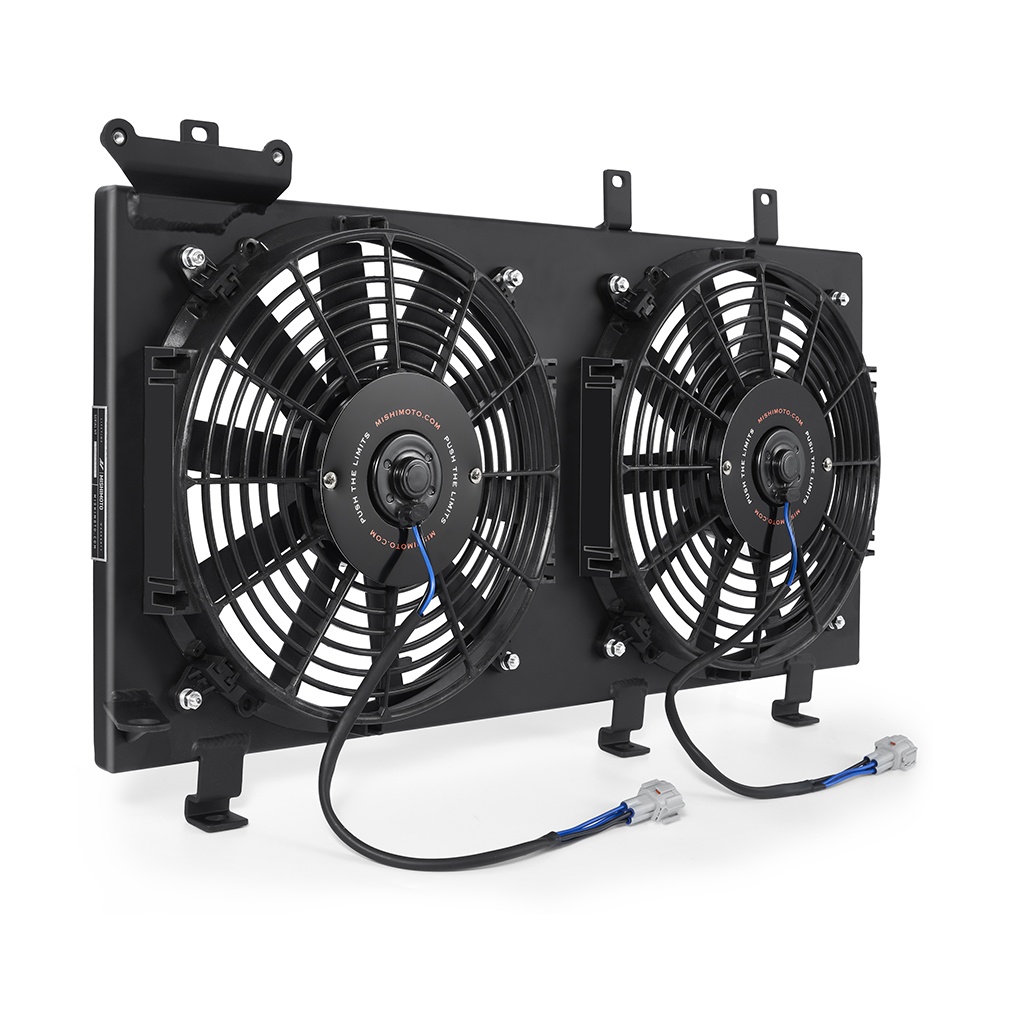

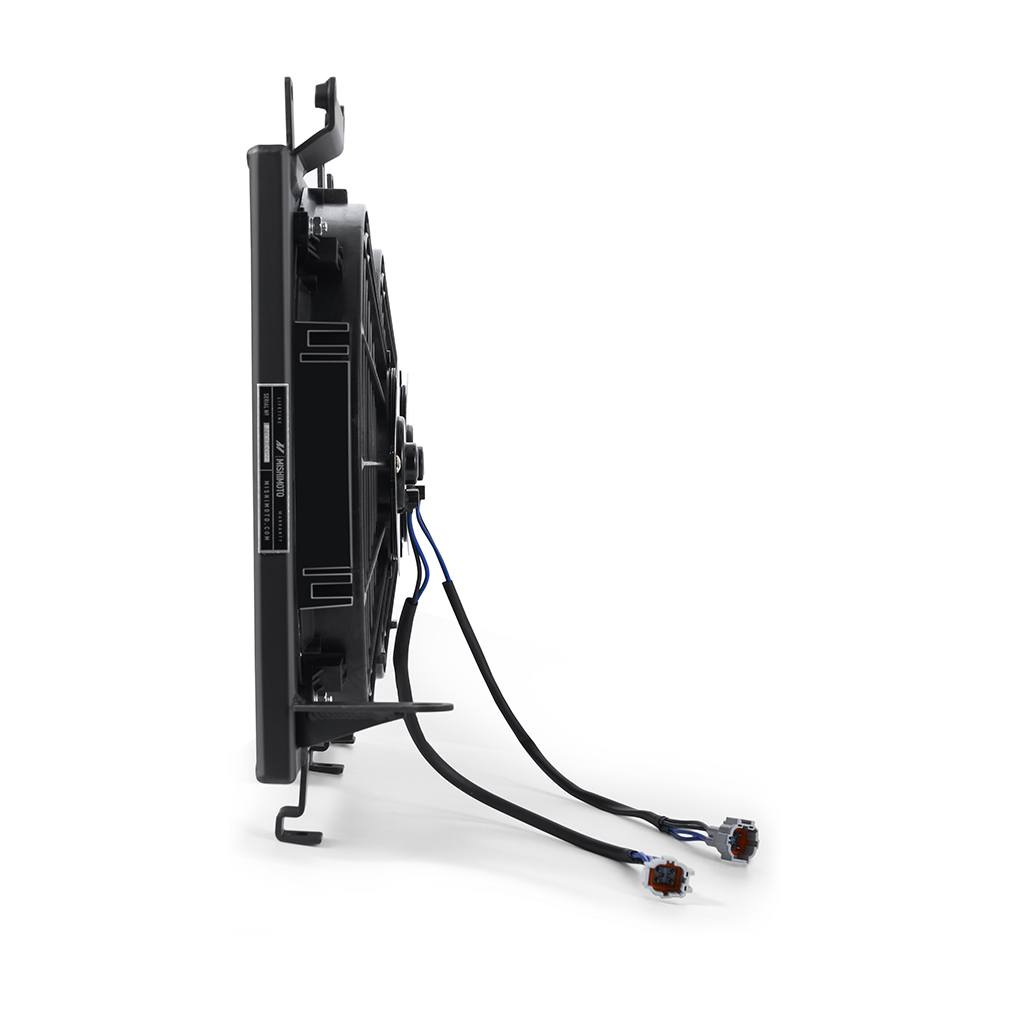

The Mishimoto MMFS-WRX-01PBK is a direct-fit, black powder-coated aluminum fan shroud engineered specifically for the Subaru WRX and STI flat-four engine bay. Built with pre-wired factory pigtails, this Cooling upgrade drops in as a true plug-and-play replacement without splicing into your body harness, and it arrives with two 12-inch Mishimoto slim electric fans already attached to the shroud.
Overheating from a failed fan can quickly lead to serious engine damage, which is why this Mishimoto fan shroud pairs two high-flow 12-inch fans, each rated at 1150 CFM, inside a lightweight, aircraft-quality TIG-welded aluminum housing. The result is a shroud that maximizes airflow through the engine bay to help pull down coolant temperatures, while its provisions for mounting the factory overflow bottle keep installation straightforward. Whether you’re replacing a tired factory fan setup or upgrading your cooling system, this Mishimoto shroud is designed to work with both the stock radiator and Mishimoto radiators alike.
Vehicle Applications
This fan shroud is a specific-fit part built for the Subaru Impreza WRX from 2002 through 2007, including the WRX Limited for 2006-2007 and the WRX TR for 2006-2007. STI owners are covered as well, with fitment for the Subaru Impreza WRX STI from 2004 through 2007 and the WRX STI Limited for 2007. It also fits the Saab 9-2X Aero for 2005-2006, giving Saab’s rebadged WRX a matching cooling upgrade.
Features
- Direct-fit, plug-and-play design with pre-wired factory pigtails eliminates splicing into the body harness
- Constructed from lightweight aircraft-quality TIG-welded aluminum with a black powder-coated finish
- Two 12-inch Mishimoto slim electric fans, each flowing 1150 CFM, come attached to the shroud
- Fits both the stock radiator and Mishimoto radiators
- Includes provisions for mounting the factory coolant overflow bottle
- Includes all mounting hardware
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-WRX-01PBK
- Material: Plastic/Aluminum
- Color: Black
- Finish: Powder Coated
- Length: 28.5 in
- Height: 15.7 in
- Width/Depth: 3.5 in
- Fan Quantity: Two
- Fan Diameter: 12 in (each)
- CFM (each fan): 1150
- Weight: 7.75 lbs
- Fit Type: Specific
- Engine Codes: EJ205, EJ255, EJ257
- Chassis Code: GD8
- Includes: Aluminum fan shroud, two 12-inch Mishimoto slim electric fans with stock-style connectors, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto fan shroud fit?
It fits the Subaru Impreza WRX from 2002-2007 (including WRX Limited and WRX TR for 2006-2007), the Subaru Impreza WRX STI from 2004-2007 (including WRX STI Limited for 2007), and the Saab 9-2X Aero for 2005-2006.
Does this fan shroud include the electric fans?
Yes, it includes two 12-inch Mishimoto slim electric fans, each flowing 1150 CFM, already attached to the shroud.
Will I need to splice into my wiring harness to install this shroud?
No, the kit includes pre-wired factory pigtails for a plug-and-play connection, eliminating the need to splice into the body harness.
Is this fan shroud compatible with my stock radiator?
Yes, this fan shroud is compatible with the stock overflow tank, fan plugs, and stock radiator, and it also fits Mishimoto radiators.
What finish does this fan shroud have?
This version features a black powder-coated finish.
What warranty comes with this Mishimoto fan shroud?
It is covered by the Mishimoto Lifetime Warranty.
