Description
The Mishimoto Direct-Fit Oil Cooler Kit, part number MMOC-BRZ-13TBK, is a black-finished, 19-row stacked bar-and-plate oil cooler built specifically to bolt into the front bumper of the Subaru BRZ and Scion FR-S platform, and it arrives with a thermostatic billet aluminum oil sandwich plate for added control over warm-up and operating temperature. This isn’t a universal cooler forced to fit — every bracket, line, and fitting is application-specific to this chassis.

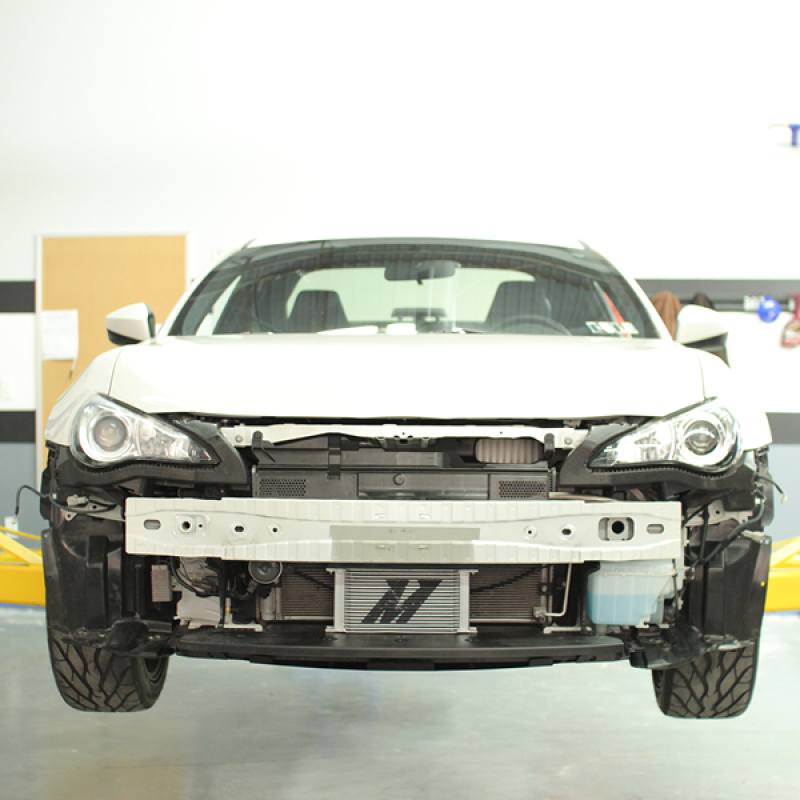

Regulating oil temperature is critical for engine durability, whether you’re lapping a road course or just enjoying a spirited mountain drive, and this Mishimoto oil cooler kit is engineered to substantially decrease oil temperatures on stock or modified 2.0L-equipped cars. The kit routes oil through a large front-mounted cooler for maximum airflow, using stainless steel braided oil lines with -10AN fittings for a secure, leak-resistant path from the engine to the cooler and back. The included thermostatic oil sandwich plate speeds fluid warm-up while still giving you extra oil temperature management once the engine is up to operating range, and CNC-machined aluminum spacers ensure the sandwich plate clears surrounding components. Pair it with a Mishimoto BRZ/FR-S performance aluminum radiator and silicone radiator hose kit for a more complete cooling upgrade.
Vehicle Applications
This Mishimoto oil cooler kit is a direct fit for the 2013–2016 Scion FR-S Base, along with the 2013–2020 Subaru BRZ lineup, including Base, Limited, and Sport-tech trims, the 2013–2019 Premium, the 2018–2020 Sport-tech RS, the 2018 and 2020 TS, and limited-run editions such as the 2015 Aozora Edition, 2015 Series.Blue, 2016 Series.HyperBlue, 2017 Series.Yellow, and 2019 Series.Gray. It also fits the 2017–2020 Toyota 86, covering the Base and 2018–2020 GT trims, the 2017 Special Edition, the 2019 TRD Special Edition, and the 2020 Hakone Edition. Applicable chassis codes are ZN6 and ZC6, with the FA20 engine code.
Features
- Direct-fit design for the Subaru BRZ, Scion FR-S, and Toyota 86 chassis
- 19-row stacked-plate (bar-and-plate) oil cooler for optimal fluid temperature reduction

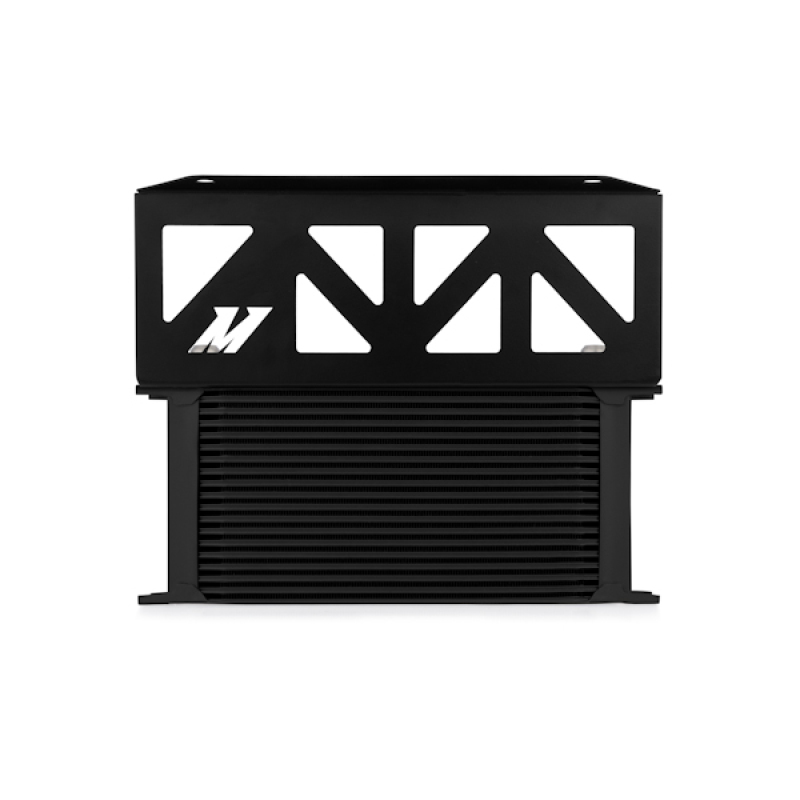

- Application-specific mounting brackets for a bolt-on install
- Premade stainless steel braided oil lines with durable -AN fittings

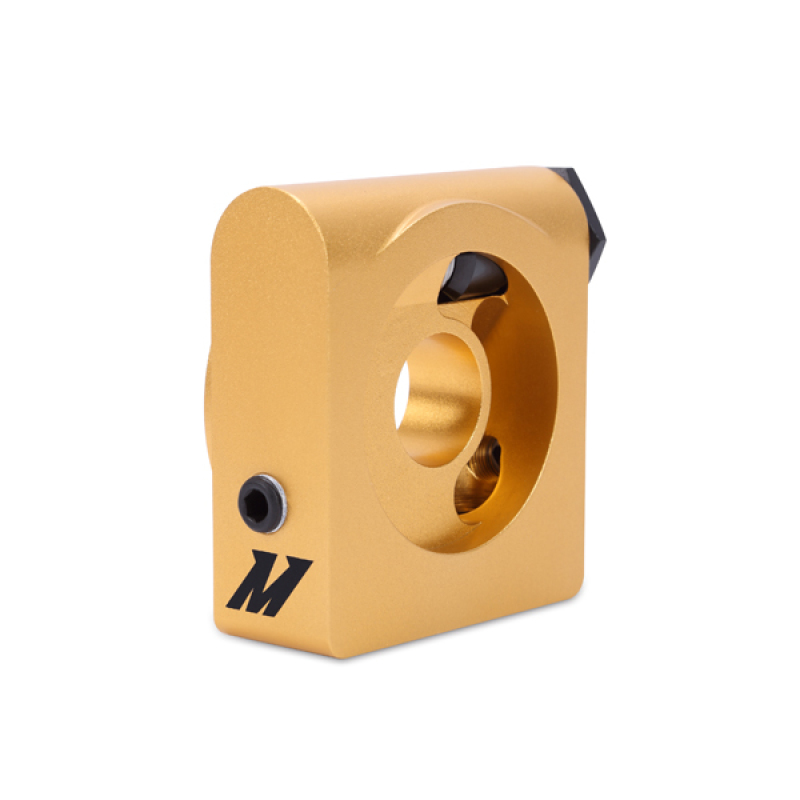

- Billet aluminum oil sandwich plate in thermostatic form for quicker warm-up and added temperature control
- CNC-machined aluminum spacers for the oil sandwich plate
- Increases oil capacity by .65 qt
- Black anodized cooler and core finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Color/Core Color: Black
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Height: 5.43 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male

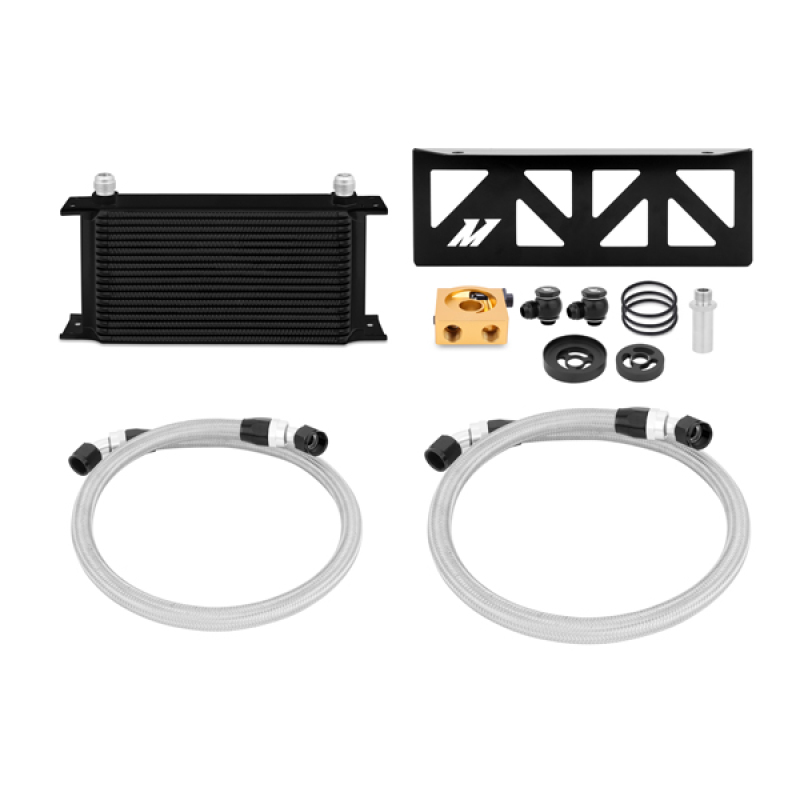

- Kit includes: application-specific mounting bracket, 19-row oil cooler, 3-ft stainless steel braided hose with -10AN fittings, 4-ft 2-in stainless steel braided hose with -10AN fittings, oil sandwich plate, 6061 aluminum CNC sandwich plate spacers (black), stainless steel sandwich plate adapter (M20), banjo fitting with bolt M20 x -10AN (black), 1/8-in NPT plugs, O-rings, mounting hardware set, and Mishimoto Lifetime Warranty
- Recommended torque for straight fittings and banjo bolts: 15–25 lb-ft; do not exceed 35 ft-lb maximum
Frequently Asked Questions
What vehicles does the Mishimoto MMOC-BRZ-13TBK oil cooler kit fit?
It is a direct fit for the 2013u20132016 Scion FR-S Base; the 2013u20132020 Subaru BRZ Base, Limited, and Sport-tech, the 2013u20132019 BRZ Premium, the 2018u20132020 BRZ Sport-tech RS, the 2018 and 2020 BRZ TS, plus the 2015 Aozora Edition, 2015 Series.Blue, 2016 Series.HyperBlue, 2017 Series.Yellow, and 2019 Series.Gray editions; and the 2017u20132020 Toyota 86 Base and 2018u20132020 GT, 2017 Special Edition, 2019 TRD Special Edition, and 2020 Hakone Edition. Applicable chassis codes are ZN6 and ZC6 with the FA20 engine code.
What does the Mishimoto oil cooler kit include?
The kit includes an application-specific mounting bracket, a 19-row oil cooler, a 3-ft stainless steel braided hose with -10AN fittings, a 4-ft 2-in stainless steel braided hose with -10AN fittings, an oil sandwich plate, 6061 aluminum CNC sandwich plate spacers in black, a stainless steel sandwich plate adapter (M20), a banjo fitting with bolt (M20 x -10AN, black), 1/8-in NPT plugs, O-rings, a mounting hardware set, and the Mishimoto Lifetime Warranty.
Does this kit use a thermostatic oil sandwich plate?
Yes, this option includes the billet aluminum oil sandwich plate in thermostatic form, which allows for quicker fluid warm-up along with additional oil temperature control.
How many rows does the Mishimoto oil cooler core have?
The oil cooler is a 19-row stacked-plate, bar-and-plate design finished in black.
What is the core size of this Mishimoto oil cooler?
The core measures 5.43 in in height, 1.97 in in thickness, and 11 in in width, with AN Flare male inlet and outlet fittings.
What warranty comes with the Mishimoto Direct-Fit Oil Cooler Kit?
This kit is backed by the Mishimoto Lifetime Warranty.
