Mishimoto Camaro 2.0T Baffled Oil Catch Can System 2016-2023

Description

The Mishimoto MMBCC-CAM4-16SBE is a combined PCV and CCV Baffled Oil Catch Can System built specifically for the 2016-2023 Chevrolet Camaro 2.0T LTG engine. Instead of choosing between a PCV can or a CCV can, this kit bundles both into one application-specific system, using a patent-pending PCV adapter to tap into the hidden PCV valve inside the valve cover for a level of oil blow-by control that a single catch can setup can’t match.

Every car engine produces blow-by, and on a turbocharged engine like the Camaro’s 2.0T, that unfiltered vapor can coat the intake, charge pipes, and turbocharger compressor with oil residue over time. This Mishimoto system routes both the PCV and CCV circuits through dual billet 6061 aluminum catch cans, each equipped with a 50-micron bronze filter and an internal air diverter that increases turbulence to improve oil separation. Because the cans are unheated, they allow blow-by to condense fully, capturing low-octane oil vapor and contaminated fuel vapor and holding it in the can rather than routing it back into the oil pan. For anyone researching engine parts, parts of a car engine, or how the components of an automobile engine work together to manage blow-by, this catch can system is a practical, functional upgrade that helps maintain proper octane levels, reduce potential detonation, and cut down on carbon build-up on the intake valves.

Vehicle Applications

This Mishimoto catch can system is a direct fit for the Chevrolet Camaro 2.0T, covering the Camaro LT from 2016-2023 and the Camaro LS from 2017-2023. It uses application-specific mounting brackets and pre-molded silicone hoses with OEM-style quick-disconnect fittings, so installation requires no cutting or modification to the vehicle.

Features

• Direct fit for the 2016-2023 Chevrolet Camaro 2.0T
• Installs in under 1 hour
• Patent-pending PCV adapter allows for proper connection into the engine’s PCV system
• Cans mount in line with the PCV system and CCV system to separate oil from air using 50-micron bronze filters
• Helps maintain proper octane levels to reduce potential detonation
• Reduces carbon build-up on the intake valves

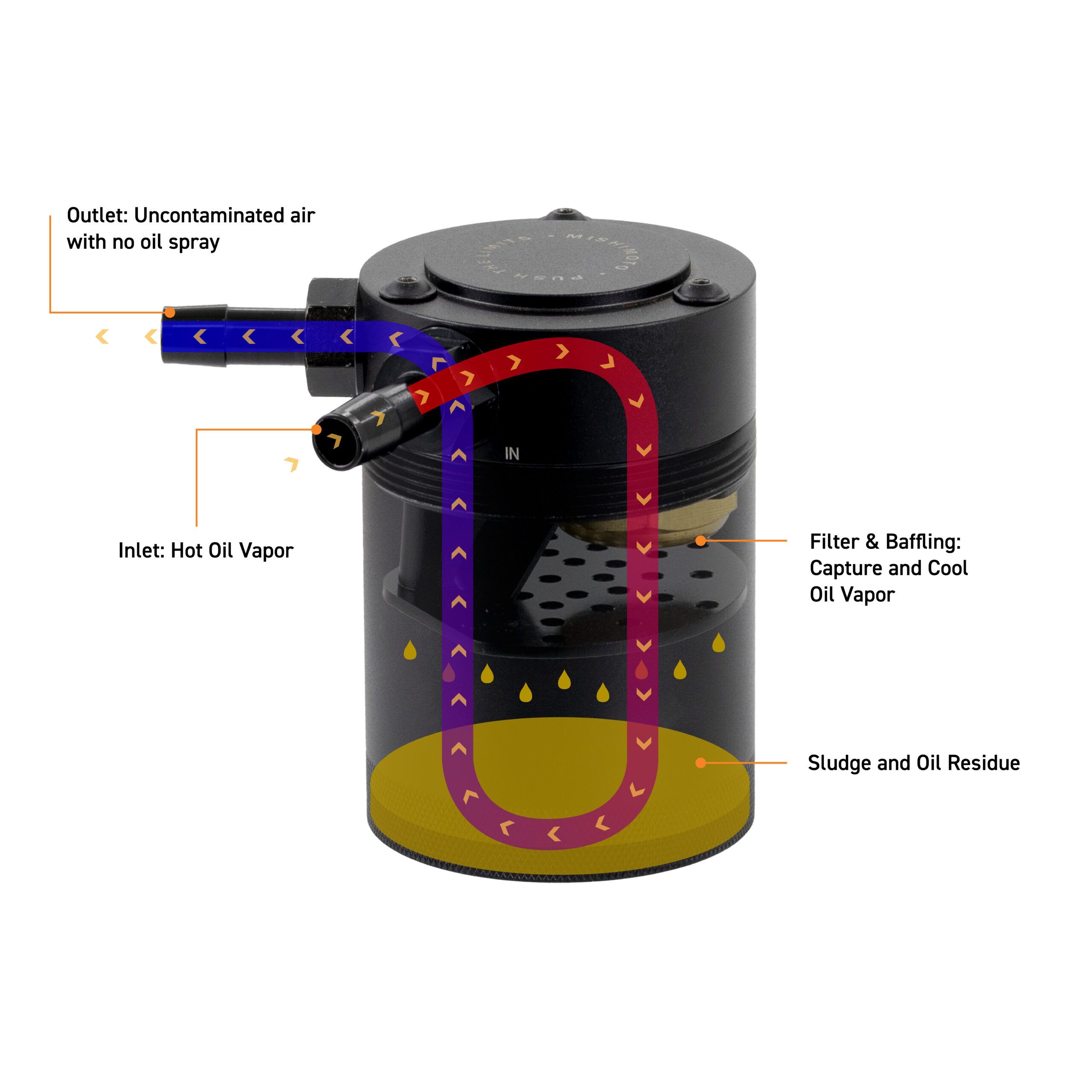

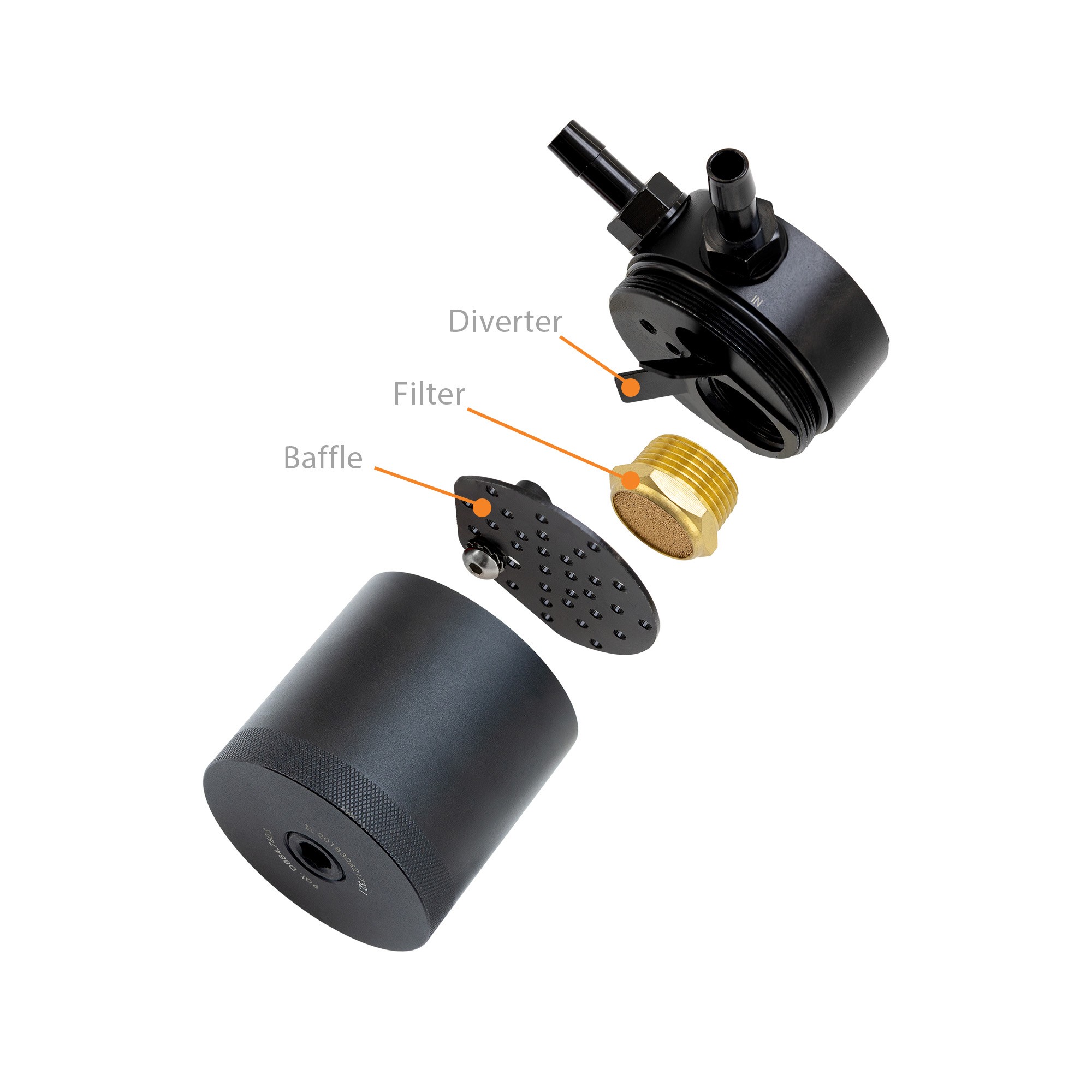

• Internal air diverter increases air turbulence to improve oil separation
• Application-specific brackets mount the cans in a serviceable location near the main fuse box

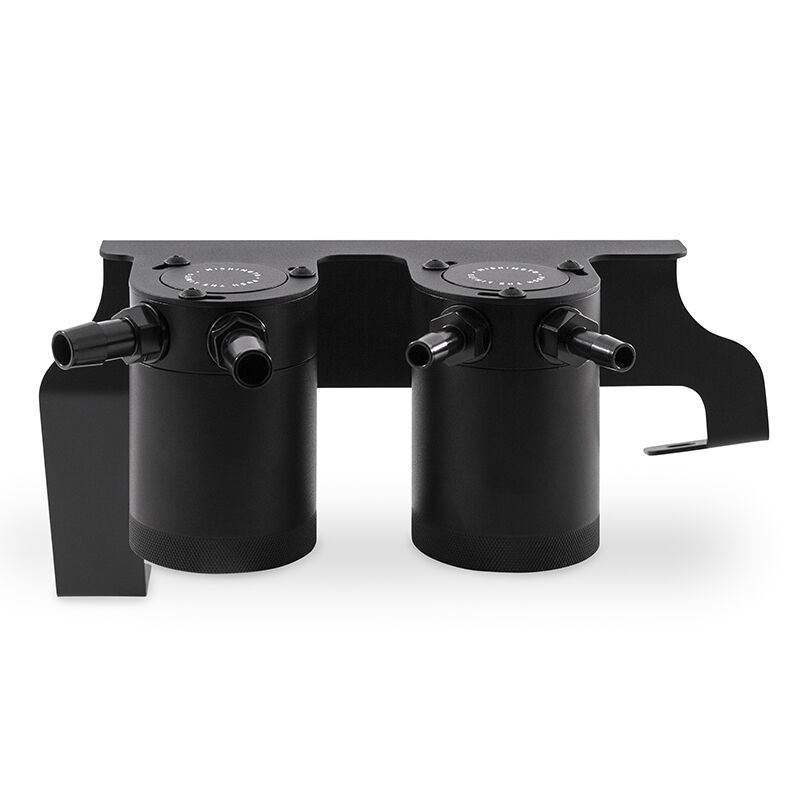

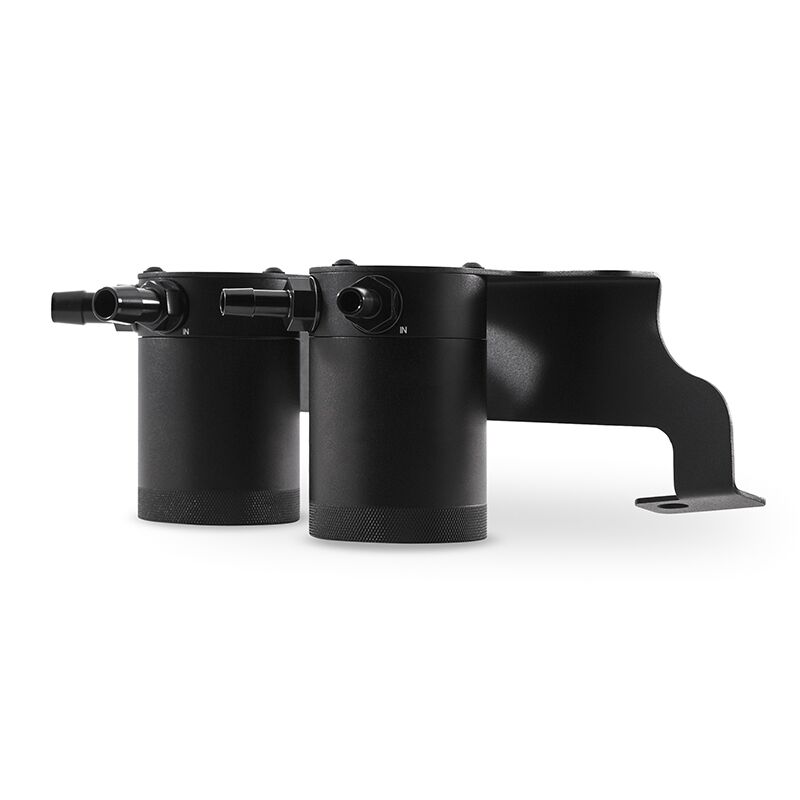

• Billet 6061 aluminum sealed cans that mount side-by-side under the hood

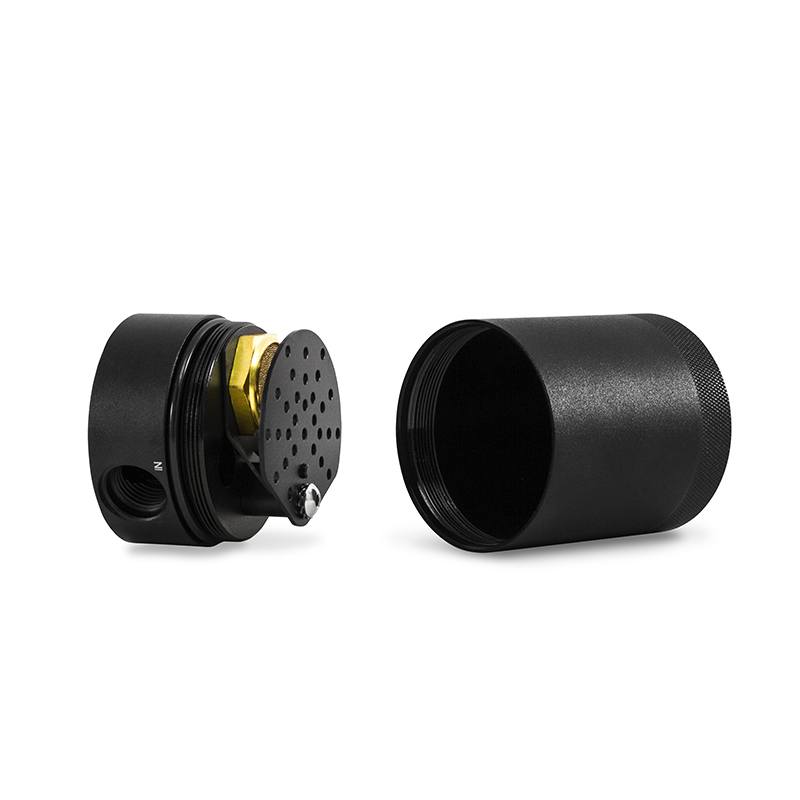

• Filters and cans are fully serviceable
• Catch cans have a 2 oz. capacity for longer servicing intervals

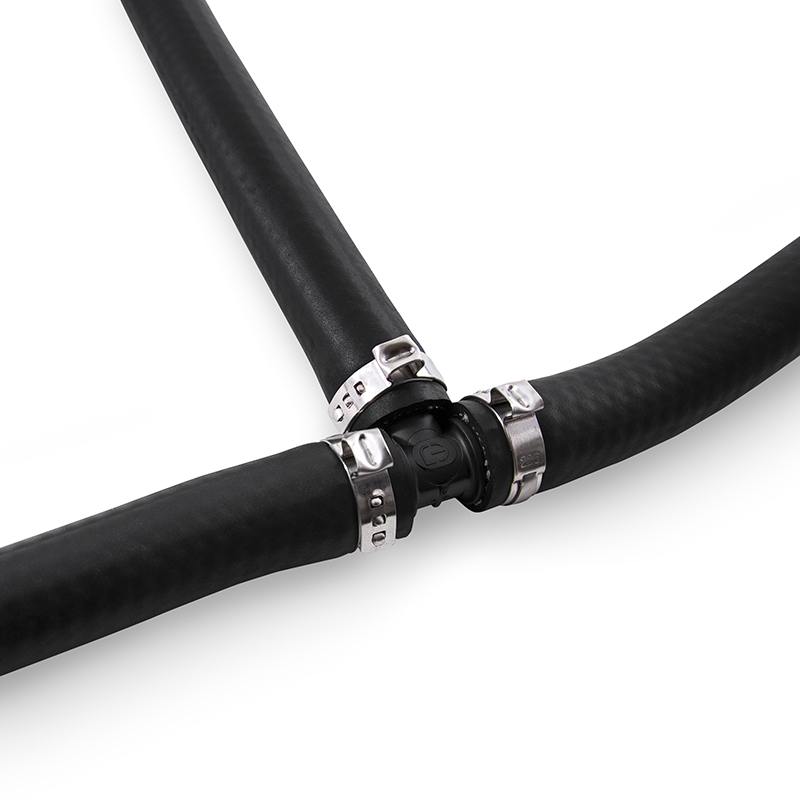

• Application-specific pre-molded silicone hoses
• Hoses include OEM-style quick-disconnect fittings and special tools to remove original fittings without damage

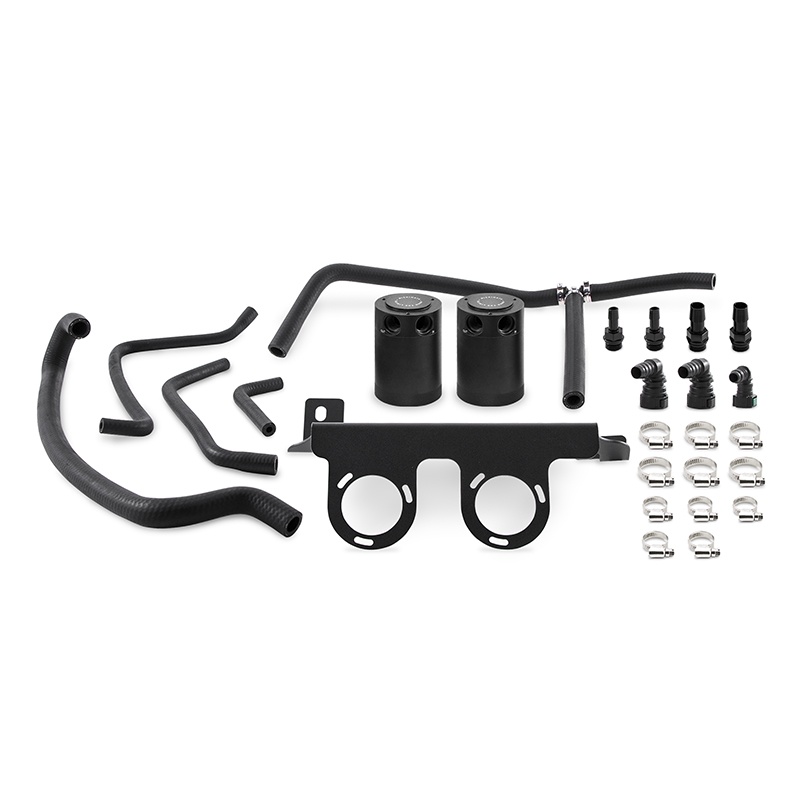

• Includes all mounting and installation hardware
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Color: Black
• Finish: Anodized
• Can Material: 6061-T6 Billet Aluminum
• Can Type: Twist Off
• Can Finish: Anodized
• Can Outside Diameter: 2.5 in
• Height: 3.7 in
• Inlet Port Inside Diameter: 0.6 in
• Outlet Port Inside Diameter: 0.6 in
• Maximum Can Capacity: 2 oz. per can
• Interior Baffle: Yes
• Mounting Bracket Included: Yes
• Hose Included: Yes
• Drain Plug Included: Yes
• Patent Nos: US ZL 202120175368.7, US ZL 201830621732.1, US D884,760
• Warranty: Mishimoto Lifetime Warranty
