Description
The Mishimoto MMBCC-F27T-15SBE is a dual-can, baffled catch can kit purpose-built for the 2015-2017 Ford F-150 2.7L EcoBoost, engineered to intercept blow-by before it can coat the intake valves in carbon. Machined from 6061-T6 billet aluminum and finished with black anodized, twist-off cans, this kit pairs with a 3mm thick steel mounting bracket and application-specific lines that route around the stock engine cover. It’s a direct-fit solution built specifically for this turbocharged, direct-injection engine — not a universal catch can adapted to fit.

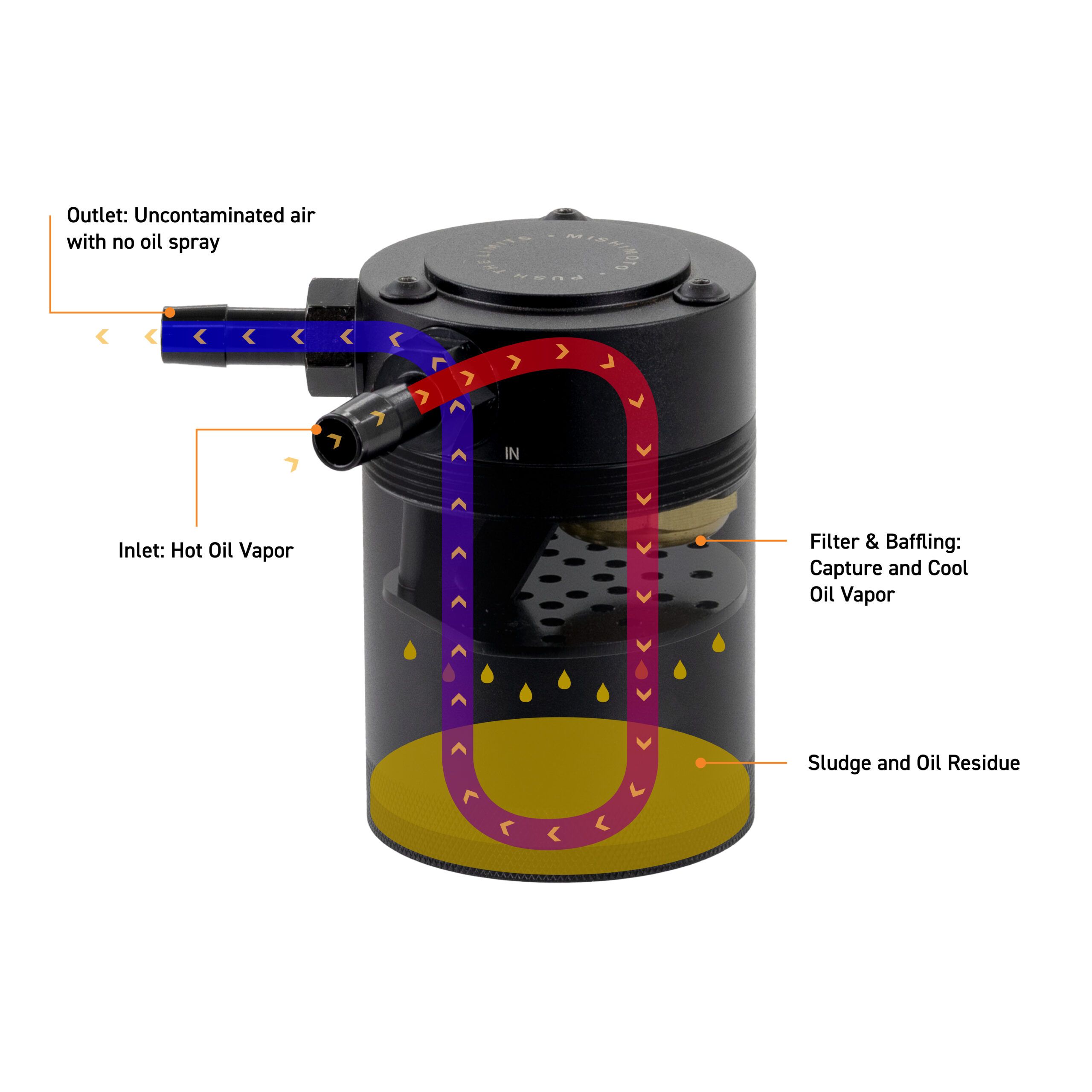

Direct injection helps make the 2.7L EcoBoost one of the most efficient car engines Ford has offered, but without fuel washing the backs of the intake valves, blow-by vapor condenses into carbon deposits that can choke performance over time. As one of the more overlooked components of an automobile engine’s crankcase ventilation system, a catch can intercepts that oil-laden vapor before it reaches the intake tract, protecting the parts of a car engine that keep automobile combustion clean and efficient. Mishimoto’s dual-can setup captures blow-by from both the PCV and CCV systems, while the CCV side accommodates the stock pressure sensor to keep the check-engine light off. Anyone researching car engine parts or engine parts for car maintenance will find this catch can kit addresses a real weak point in modern, direct-injection car engines.
Vehicle Applications
This Mishimoto catch can kit is a direct fit for 2015-2017 Ford F-150 Lariat, XL, and XLT trucks equipped with the 2.7L EcoBoost engine. The application-specific lines are designed to fit alongside the factory engine cover, and the kit reuses the stock quick-disconnect fittings, so installation stays close to factory-style routing across all three trims and model years.
Features
- Dual-can setup captures blow-by from both the PCV and CCV systems
- CCV side accommodates the stock pressure sensor for CEL-free running
- In-line check valve prevents the can from being pressurized under boost
- Application-specific lines fit with the stock engine cover

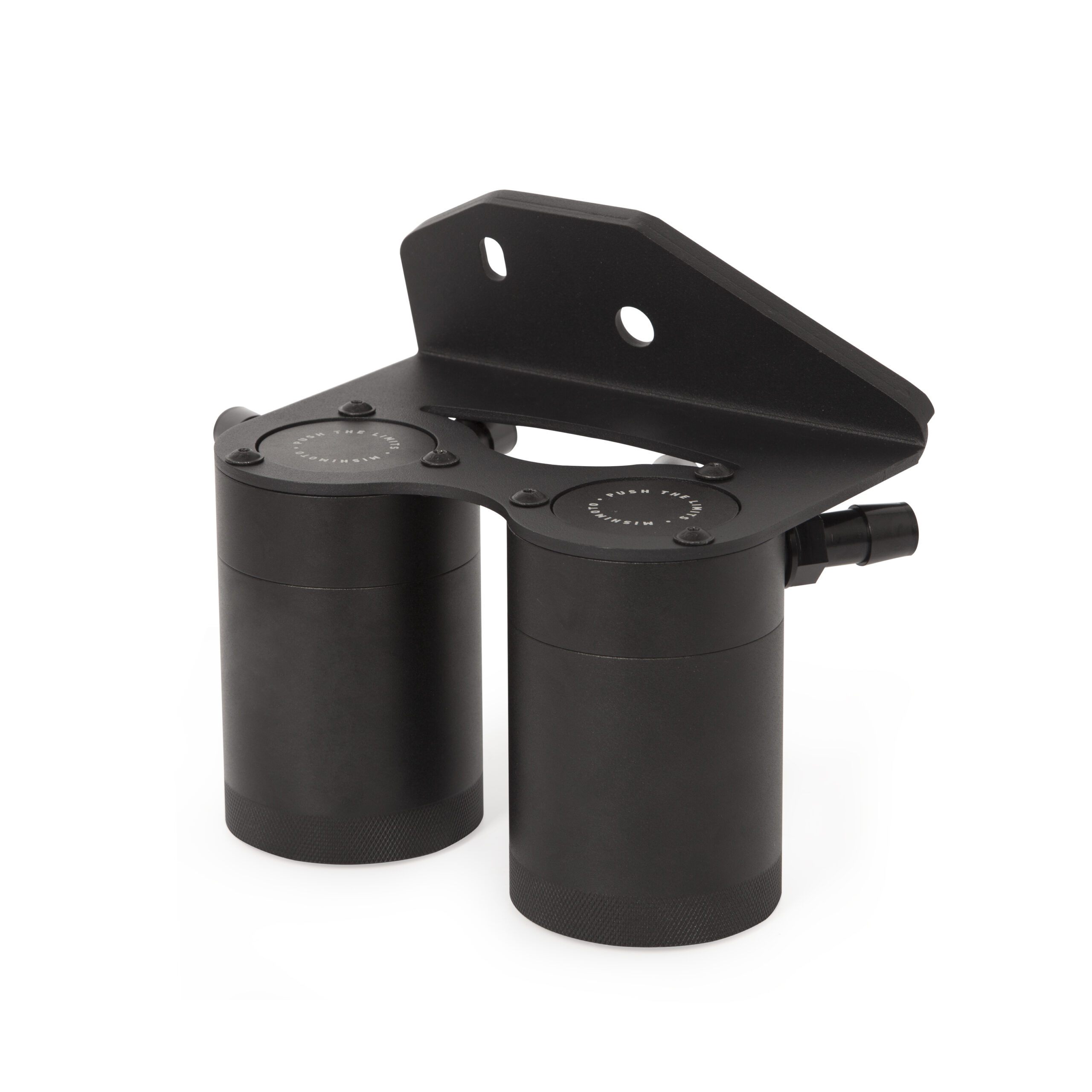

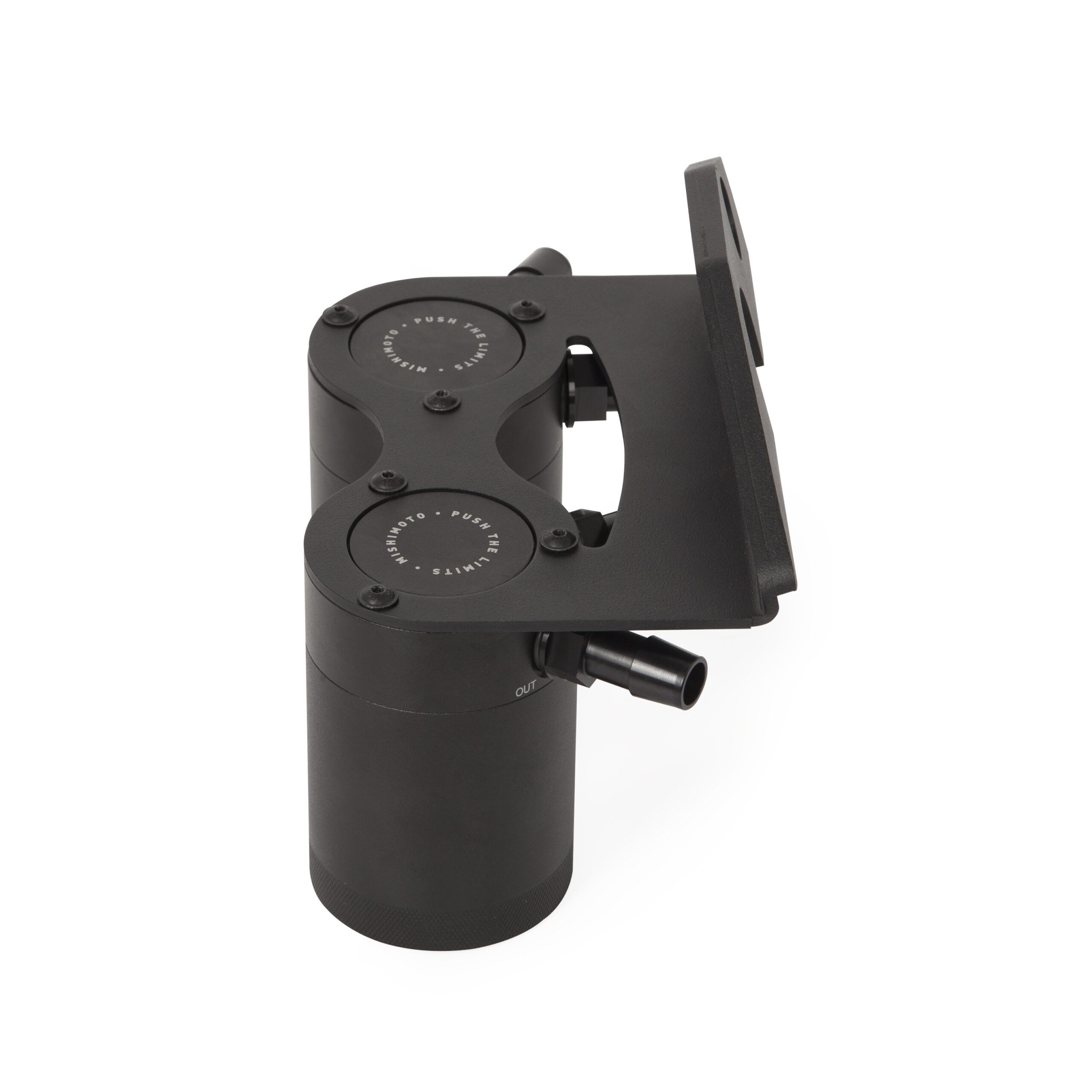

- 3mm thick steel bracket won’t bend, rattle, or break under heavy abuse
- Includes stock quick-disconnect fittings

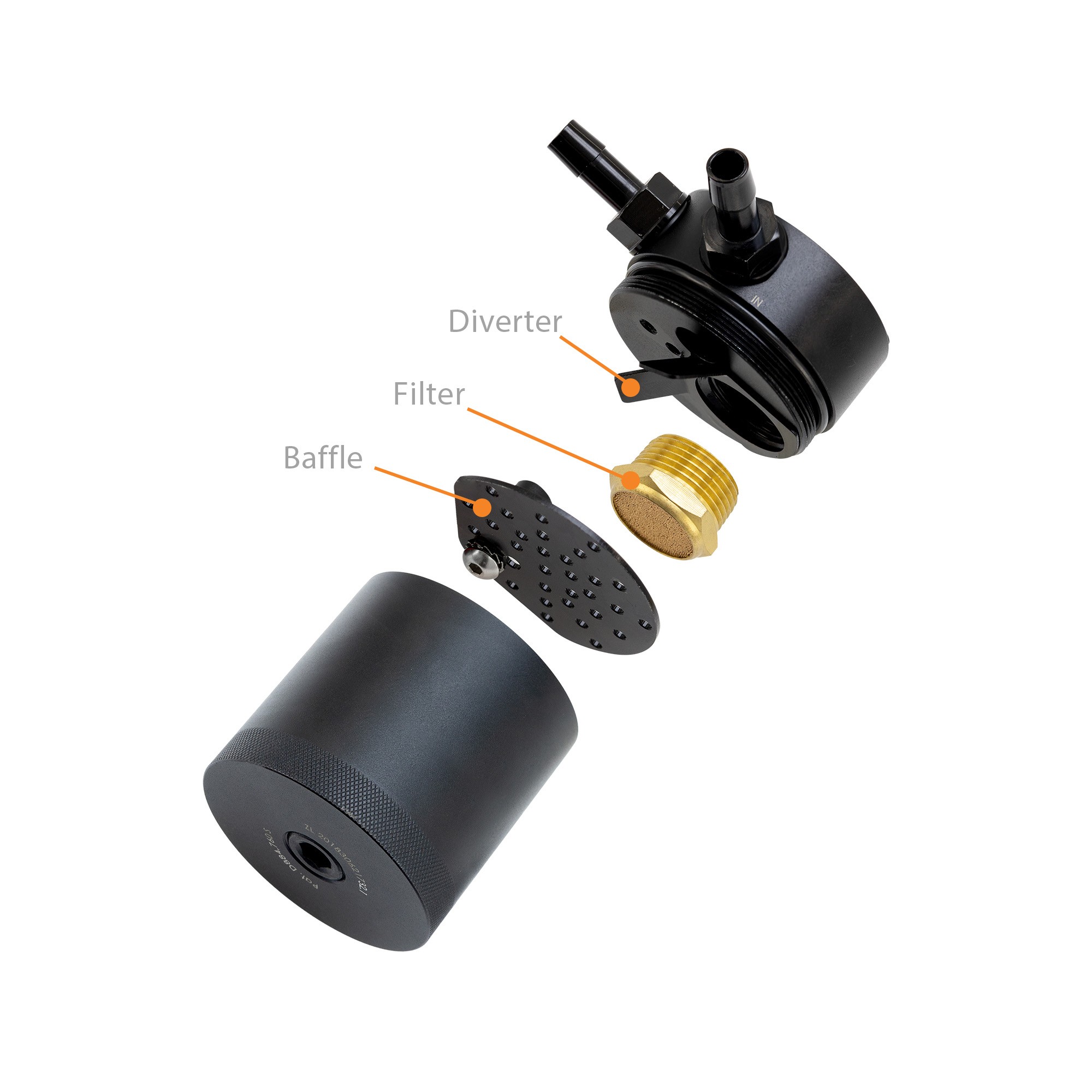

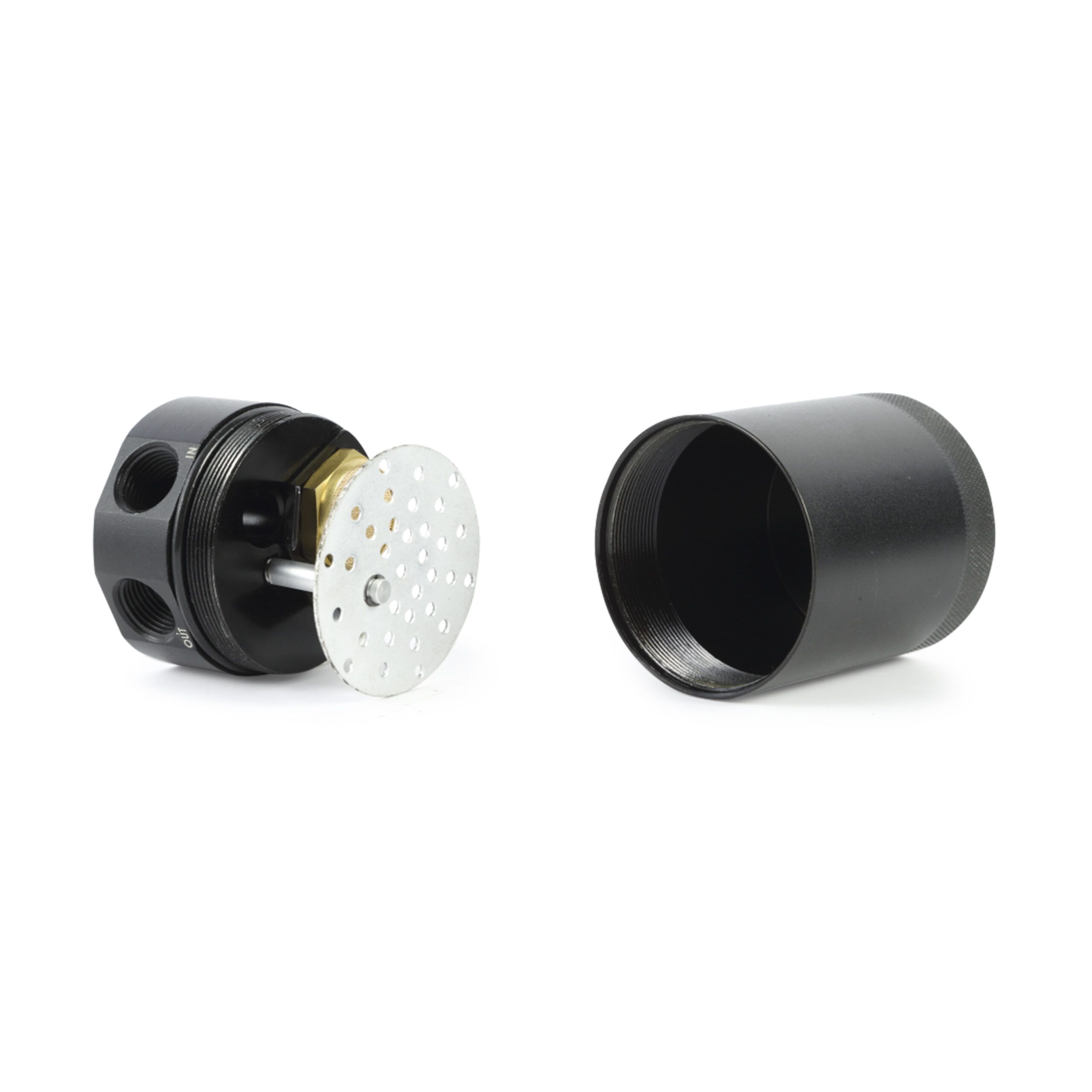

- Filters and cans are fully serviceable
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Color: Black
- Finish: Anodized
- Height: 3.7 in
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Can Finish: Anodized
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
Frequently Asked Questions
What vehicles fit the Mishimoto MMBCC-F27T-15SBE catch can kit?
This kit is a direct fit for 2015-2017 Ford F-150 Lariat, XL, and XLT trucks equipped with the 2.7L EcoBoost engine.
What is the catch can made of?
The cans are machined from 6061-T6 billet aluminum with an anodized finish and a twist-off design.
Does this kit work with the stock pressure sensor?
Yes, the CCV side accommodates the stock pressure sensor so the check engine light stays off.

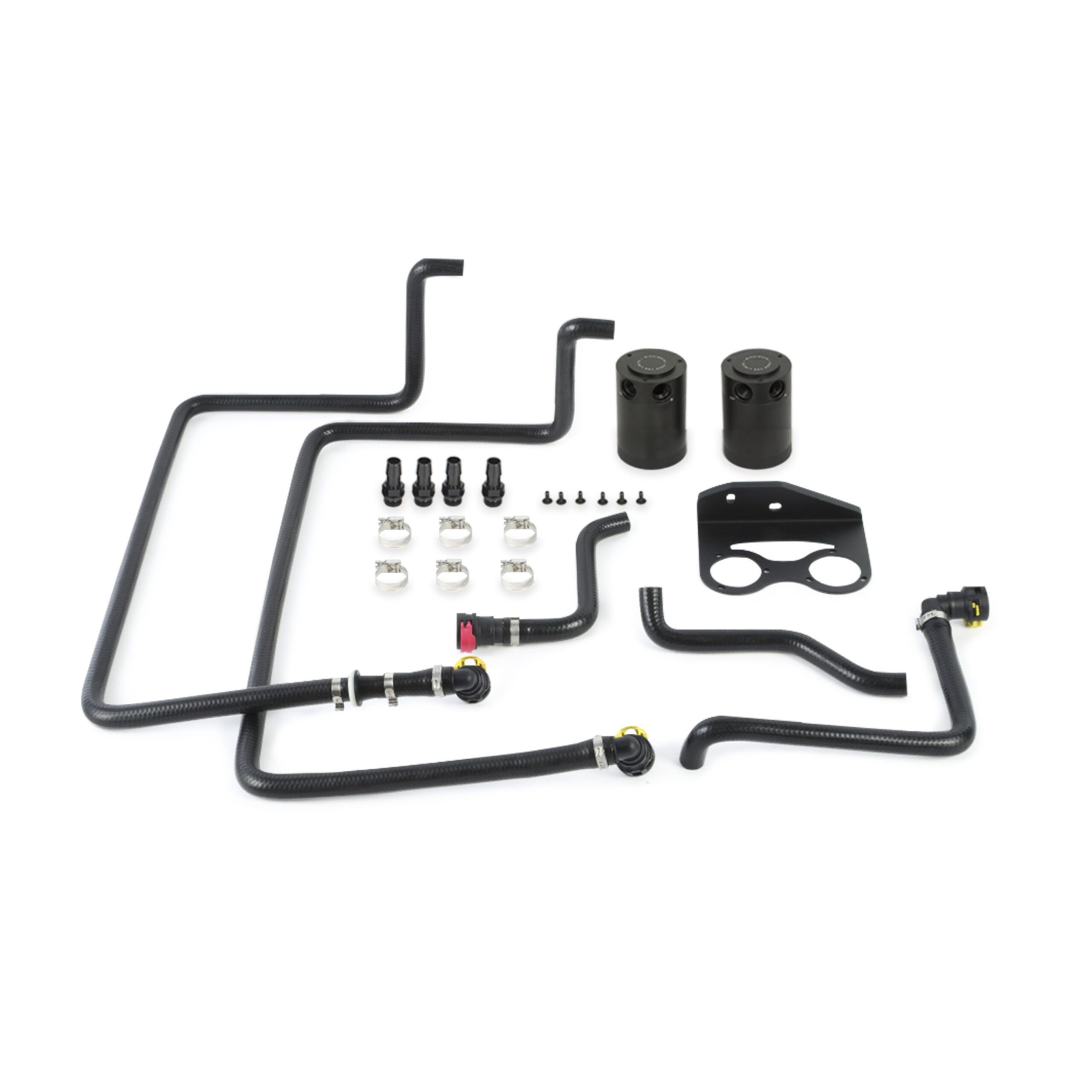

Does the kit include mounting hardware and hoses?
Yes, it includes a mounting bracket, hoses, and a drain plug, along with the stock quick-disconnect fittings.
Is this catch can kit serviceable?
Yes, the filters and cans are fully serviceable.
Does Mishimoto provide a warranty?
Yes, this catch can kit is backed by the Mishimoto Lifetime Warranty.
