Description
The Mishimoto MMBCC-BR23-21P is a direct-fit oil catch can kit engineered specifically for the Ford Bronco’s 2.3L EcoBoost engine, a direct-injection powerplant known for efficiency but prone to intake valve carbon buildup. Rather than treating carbon deposits after the fact, this catch can kit stops them before they start, diverting crankcase blow-by away from the intake tract and into a serviceable 6061-T6 billet aluminum can. Housed in a twist-off, anodized black finish can with a 2.5-inch outside diameter, this kit pairs precision engineering with real-world durability for Bronco owners who expect more from their engine parts.

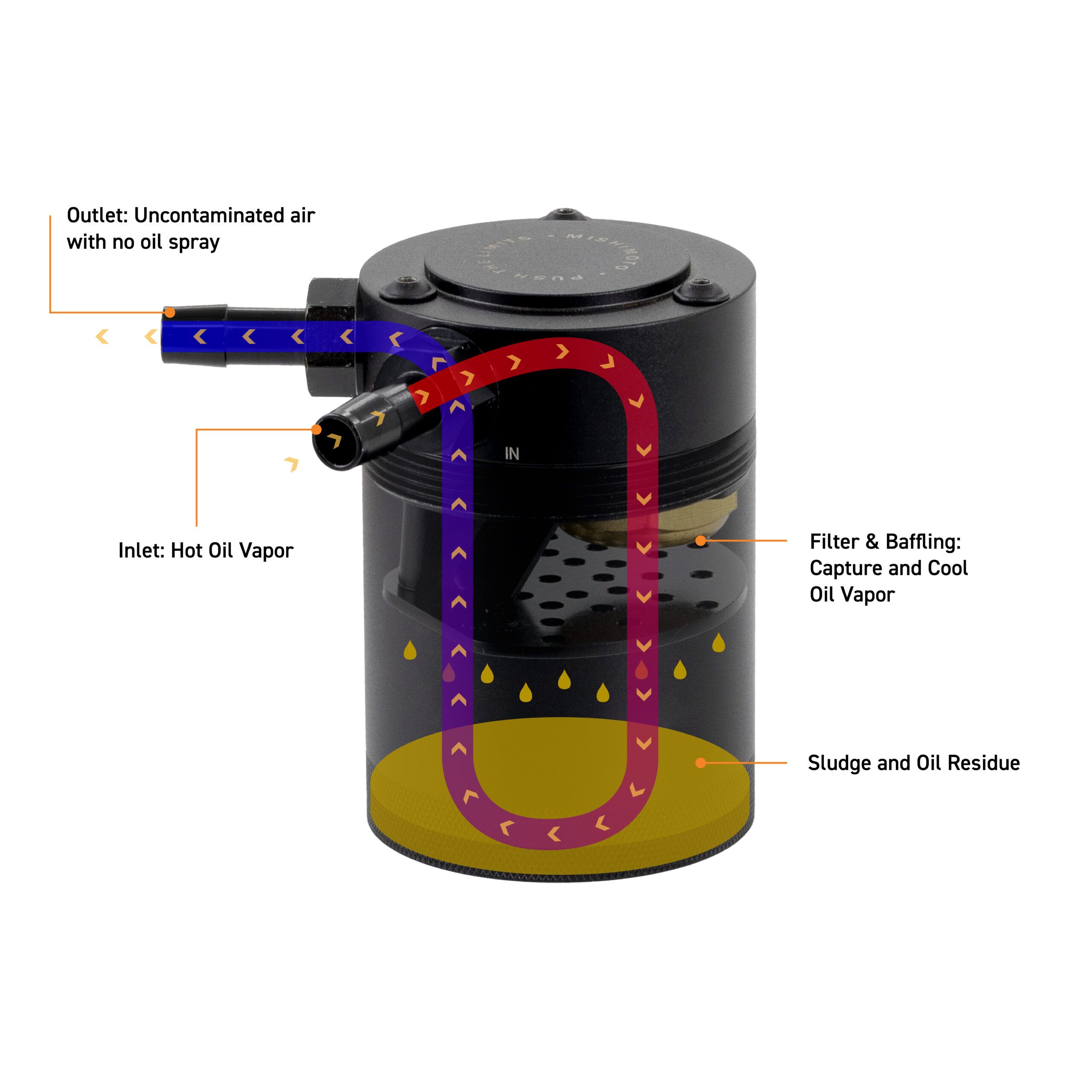

As blow-by gases pass through the crankcase and toward the intake, they carry oil, fuel, and water vapor that can coat intake valves and rob power over time. This Mishimoto catch can uses interior air turbulators and baffles to separate those vapors from the crankcase gases, while a sintered bronze filter scrubs the remaining carbon so only clean air returns to the intake. Because the catch can traps this residue rather than sending it back to the oil pan, it helps keep engine oil cleaner and reduces the risk of accelerated wear — a smart upgrade for anyone serious about protecting their car engine and the components of an automobile engine that keep it running smoothly. From owners focused on engine parts and car engine parts longevity to everyday Bronco drivers, this catch can kit addresses a well-known weak point of modern direct-injection combustion engines.
Vehicle Applications
This Mishimoto catch can kit is a direct-fit solution built around the Ford Bronco’s 2.3L EcoBoost engine. It fits the 2021-2024 Ford Bronco Badlands, Big Bend, Black Diamond, and Outer Banks trims, as well as the 2021-2023 Ford Bronco Base trim. The direct-fit steel bracket mounts the catch can away from engine vibration for a clean, factory-style installation with no modification required.
Features
- Direct-fit design built specifically for the Ford Bronco’s 2.3L EcoBoost engine
- Catch can captures blow-by, preventing it from fouling engine oil
- Sturdy 2.7mm-thick steel brackets withstand rough roads and off-road abuse

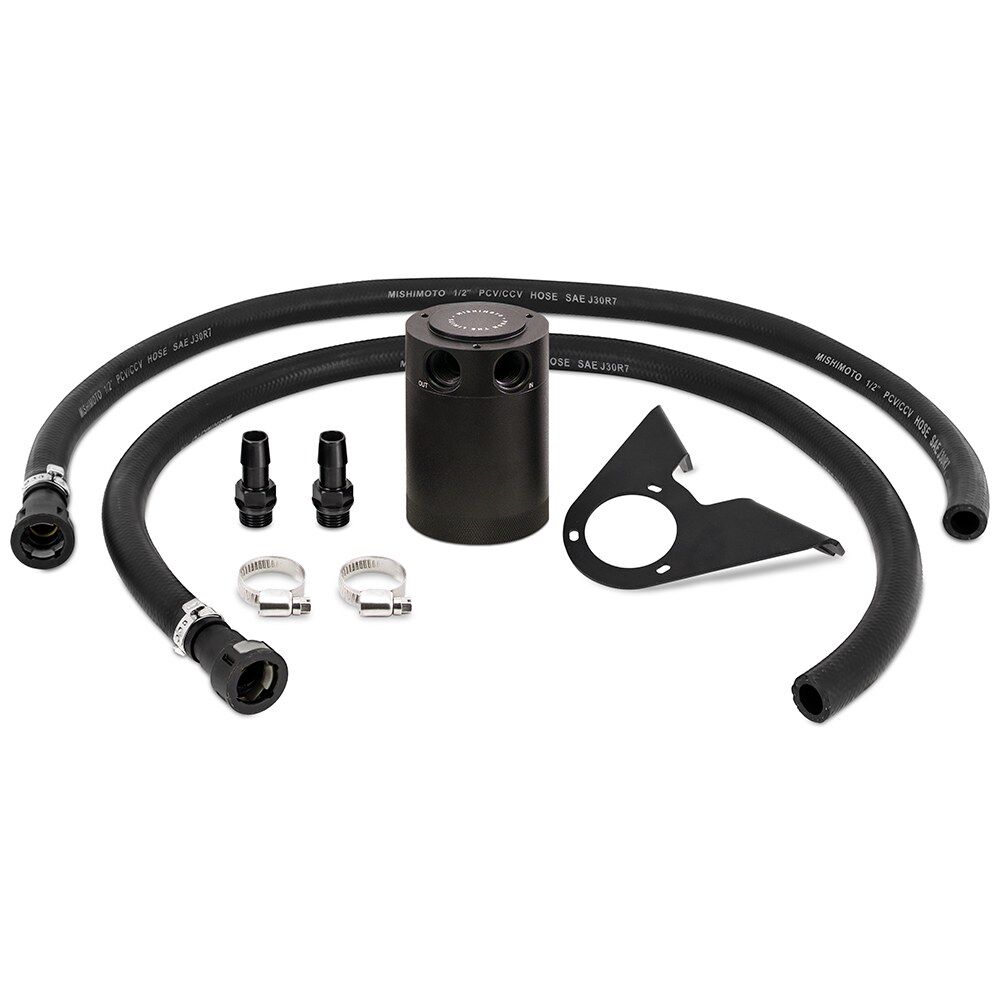

- Includes high-quality, fuel- and oil-resistant hoses with pre-installed quick-disconnect fittings for easy installation

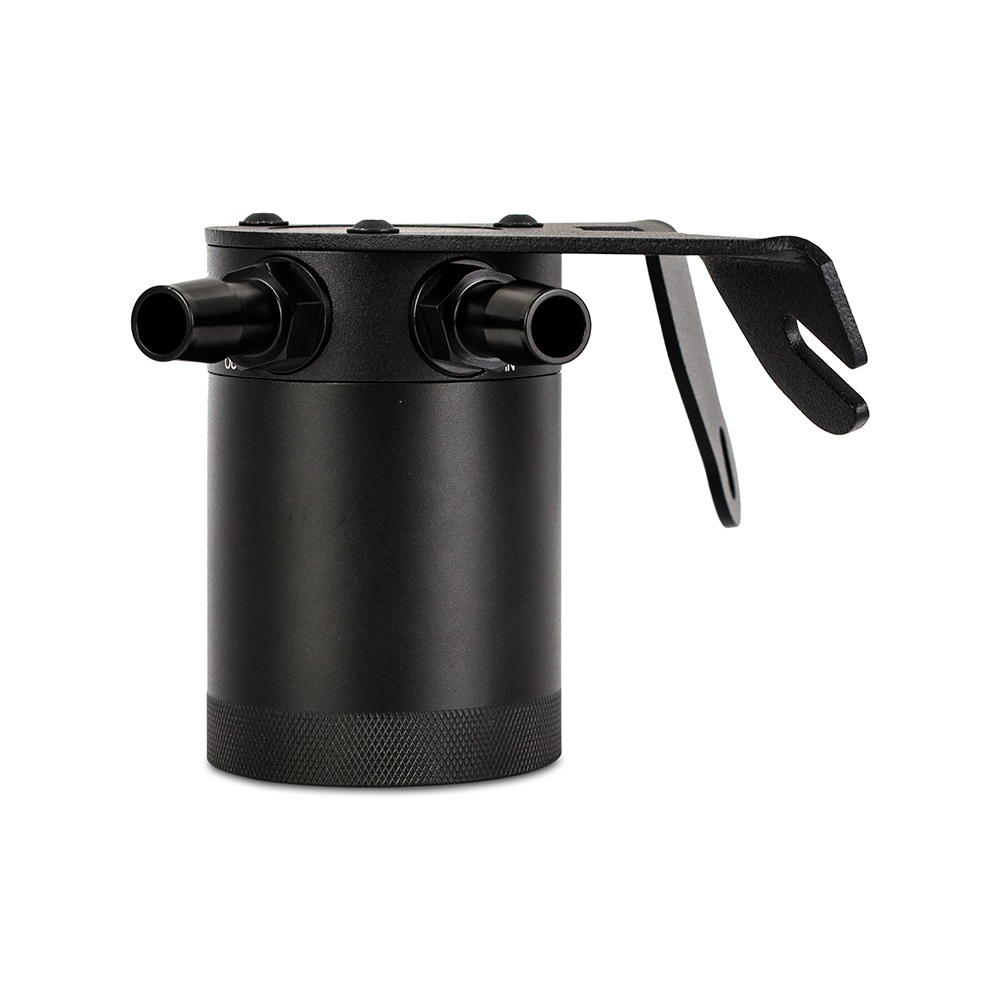

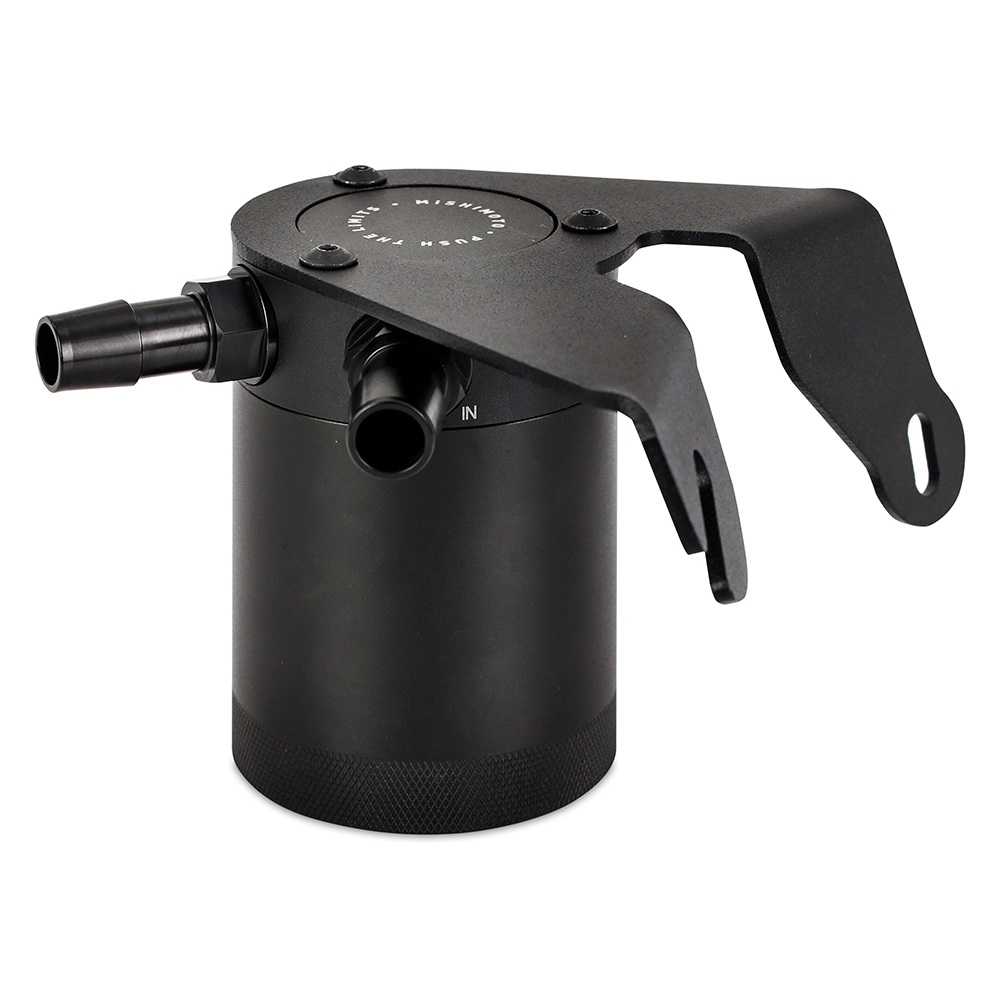

- Direct-fit bracket mounts the catch can away from engine vibration
- Protects intake valves from power-robbing carbon buildup
- Pre-installed factory-style quick-disconnect fittings for a clean installation

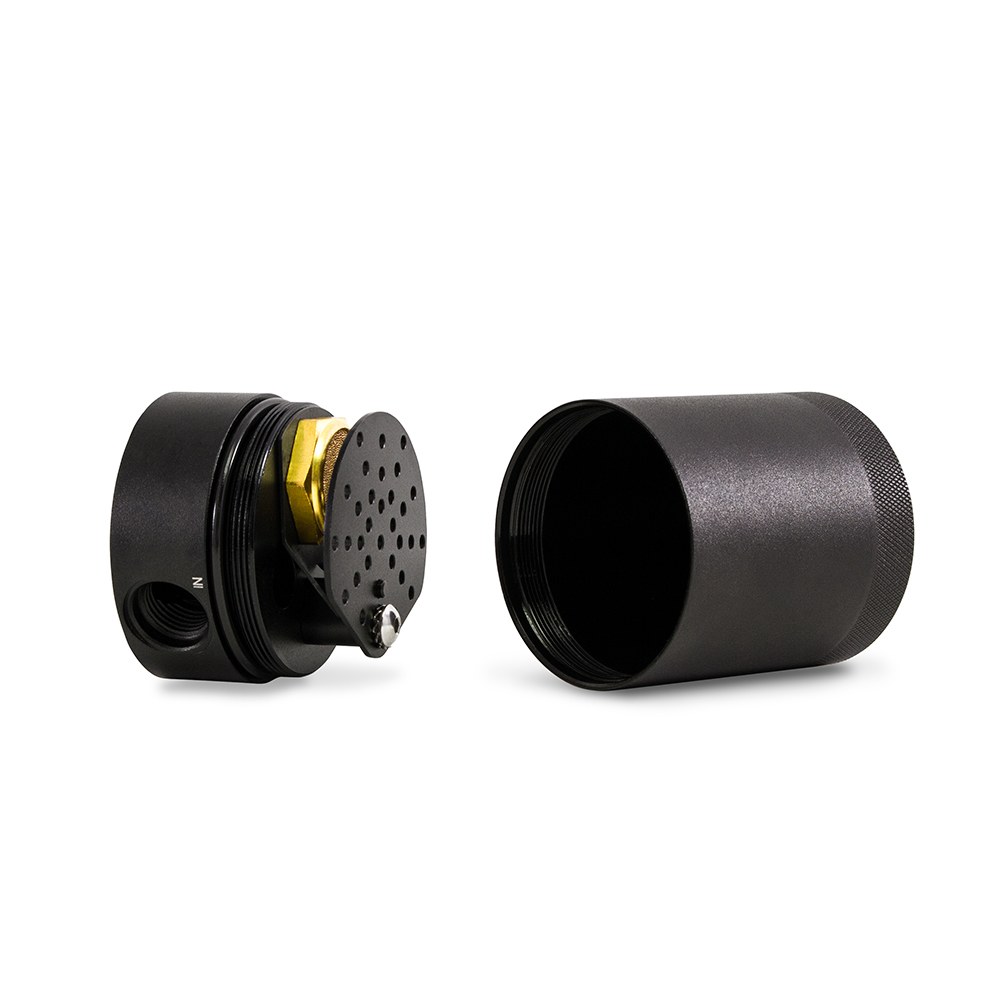

- Filters and can are fully serviceable

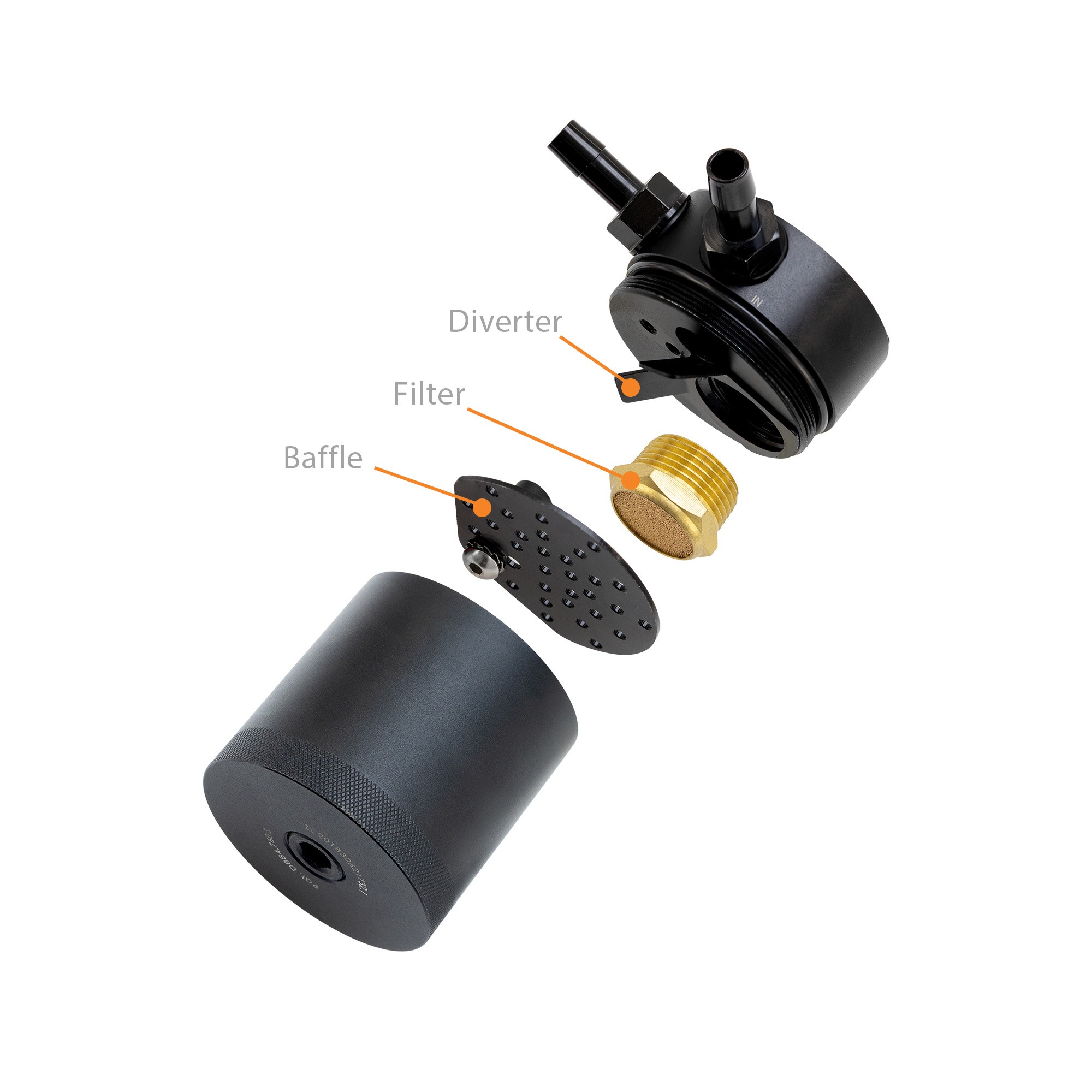

- Interior air turbulators and baffles separate oil, fuel, and water vapor from crankcase gases
- Sintered bronze filter removes remaining carbon before clean air returns to the intake
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-BR23-21P
- Color: Black
- Finish: Anodized
- Height: 3.7 in
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Can Finish: Anodized
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Patent No. US D884,760
Frequently Asked Questions
What vehicles fit the Mishimoto MMBCC-BR23-21P catch can kit?
This kit is a direct fit for the 2021-2024 Ford Bronco Badlands, Big Bend, Black Diamond, and Outer Banks, as well as the 2021-2023 Ford Bronco Base.
What is the catch can made of?
The catch can is made from 6061-T6 billet aluminum with an anodized finish and a twist-off design for easy servicing.
Does this kit include mounting hardware and hoses?
Yes, it includes a mounting bracket, hoses, and a drain plug, along with pre-installed quick-disconnect fittings for installation.
How does the catch can prevent carbon buildup?
Interior air turbulators and baffles separate oil, fuel, and water vapor from crankcase gases, and a sintered bronze filter removes remaining carbon before clean air returns to the intake, keeping deposits from reaching the intake valves.
What warranty does Mishimoto provide?
This kit is backed by the Mishimoto Lifetime Warranty.
