Description

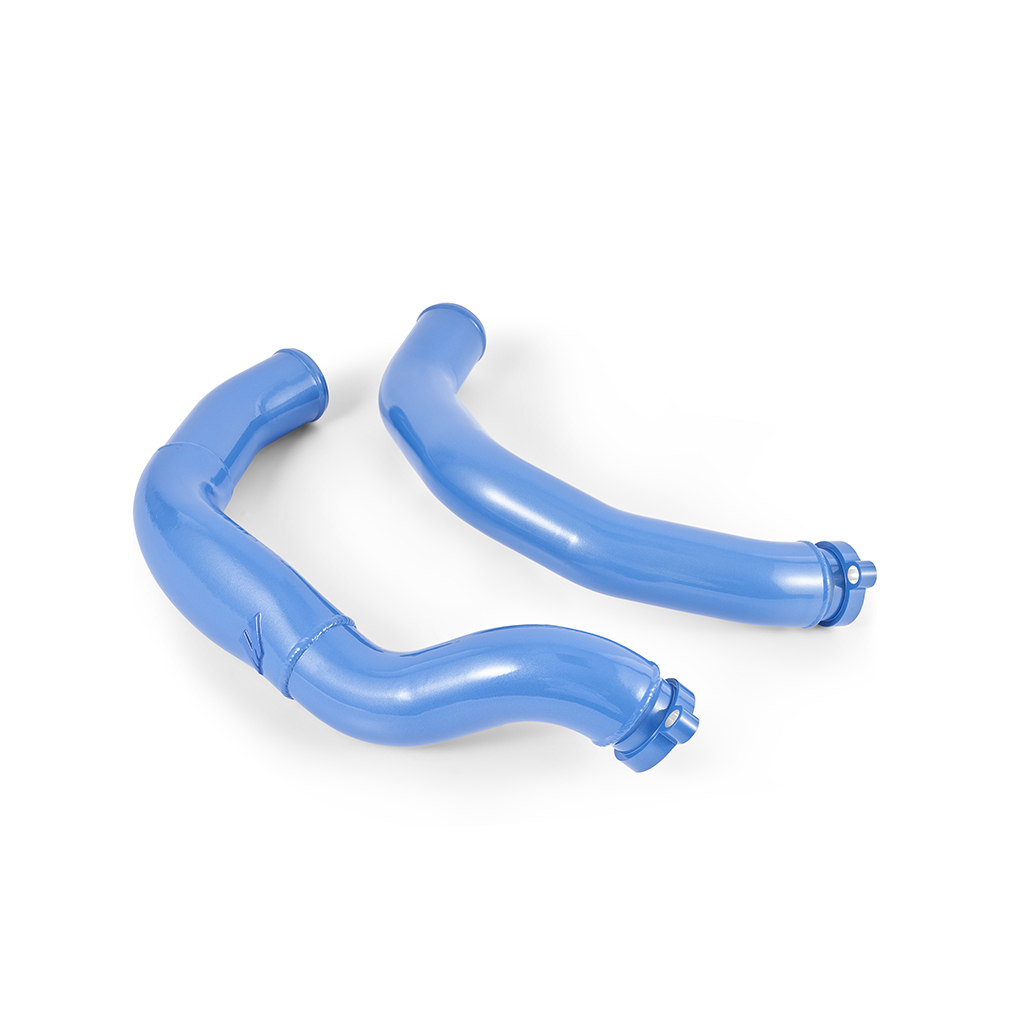

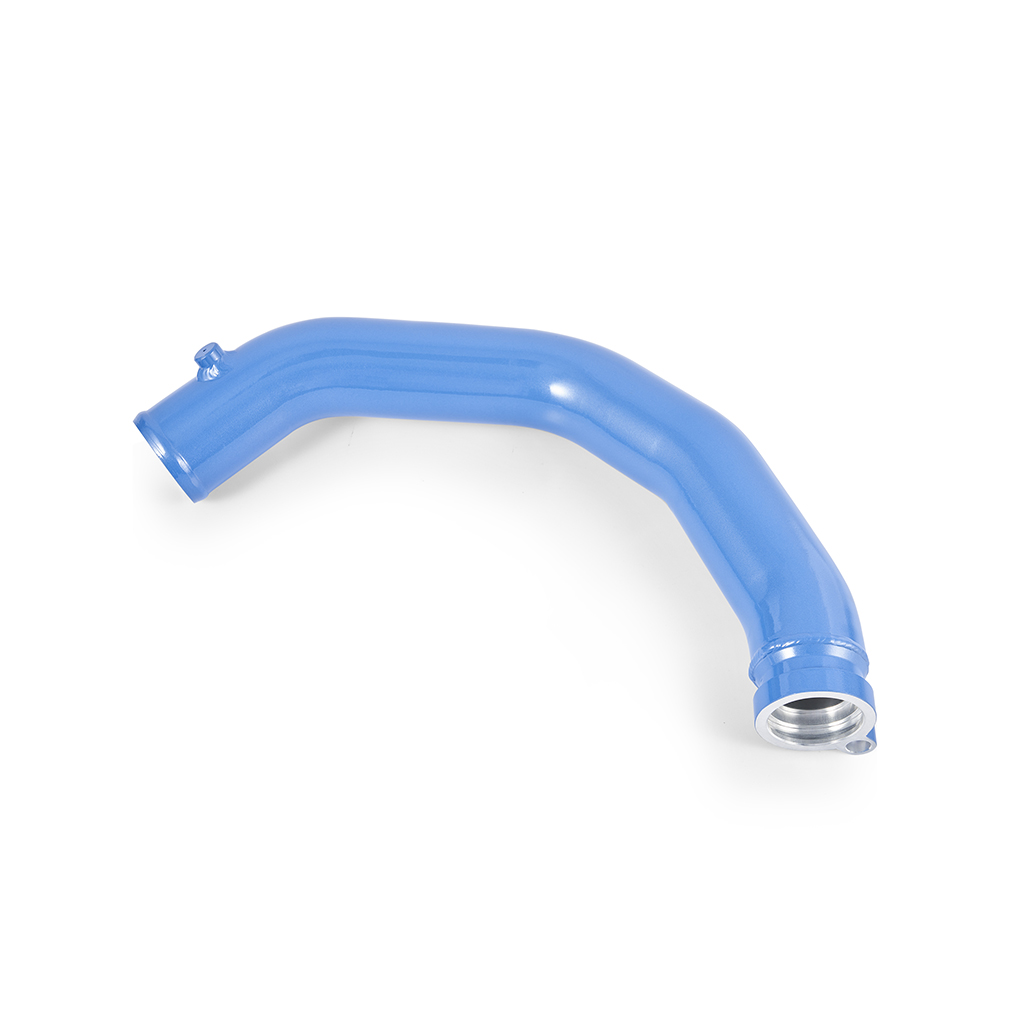

The Mishimoto 2015+ BMW F8X M3/M4 Color Matched Charge Pipe Kit (MMICP-F80-15CYMB) replaces the factory charge pipes on the S55-powered M3 and M4 with a full-aluminum, TIG-welded charge pipe kit designed to solve a known factory weak point: the stock pipes’ tendency to split at plastic welds near the turbo or burst along their seams under boost. Shown here finished in Yas Marina Blue, one of 12 available OEM color options, this kit pairs a durable forced induction upgrade with a look that matches the rest of your F80.
As part of Mishimoto’s Forced Induction lineup, this charge pipe kit keeps boost sealed and airflow moving efficiently between the turbo and the intercooler, replacing a common source of boost leaks with a more uniform, mandrel-bent aluminum pipe shape that doesn’t sacrifice fitment. A unique cast midsection is engineered for a precise fit between the engine and air intake, while a built-in bung allows for simple integration of methanol injection. The color matched, automotive-grade powder coat is built for life under the hood, and every kit is backed by the Mishimoto Lifetime Warranty for long-term peace of mind on your induction system upgrade.
Vehicle Applications
This charge pipe kit is a direct fit for the 2015-2018 BMW M3, the 2015-2020 BMW M4, the 2016 BMW M4 GTS, and the 2019-2020 BMW M4 CS and M2 Competition, covering the S55-powered F8X platform throughout its production run.
Features
- Full aluminum, TIG-welded charge pipe construction for durability
- Color matched finish available in a choice of 12 OEM colors (shown in Yas Marina Blue)
- Unique cast midsection engineered for precise fitment between engine and air intake
- Includes a bung for simple integration of methanol injection
- Designed for optimal airflow
- Matte black silicone couplers for a secure, stock-style connection to the intercooler
- Worm gear clamps included for installation
- Mandrel-bent pipes with a powder coated finish
- Patent No. US D971,261 S
- Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-F80-15CYMB
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Bend Type: Mandrel
- Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Chassis Codes: F80, F82, F83, F87
- CARB EO Number: D-759-13

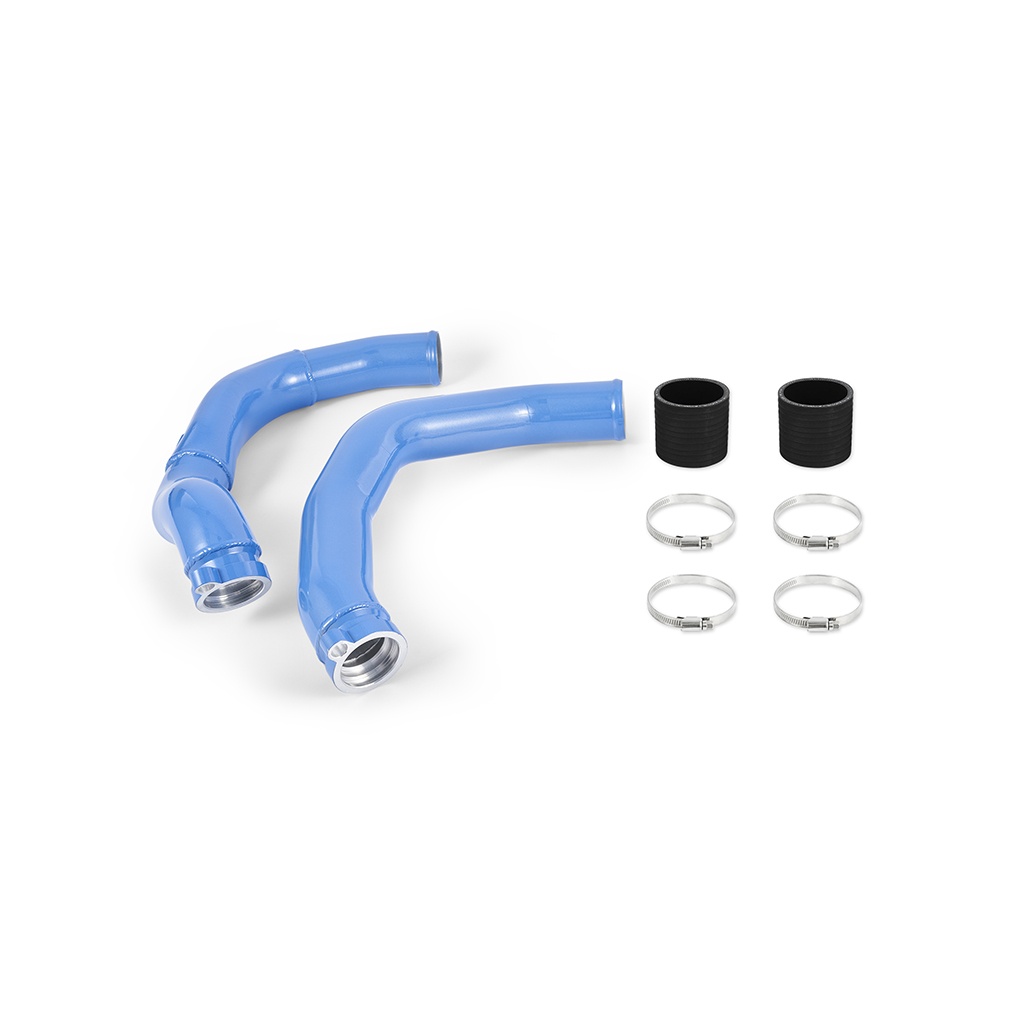

- Kit Includes: (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, (1) CARB EO Sticker, Mishimoto Lifetime Warranty
- Installation Torque: 22 in-lbs (2.5NM) recommended for all worm gear clamps; operating range 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM)
- Installation Note: Check condition of OEM O-rings before installation and replace with OEM spec O-rings as needed (BMW part number: 11617848448)
- Color Note: Color matched products may vary slightly from your vehicle color as paint can be affected by heat, sun fade, and age
Frequently Asked Questions
What vehicles does the Mishimoto MMICP-F80-15CYMB charge pipe kit fit?
This kit is a direct fit for the 2015-2018 BMW M3, the 2015-2020 BMW M4, the 2016 BMW M4 GTS, and the 2019-2020 BMW M4 CS and M2 Competition.
What is the Mishimoto charge pipe kit made from?
The charge pipes are full aluminum with TIG-welded construction, mandrel-bent for airflow, and finished in a color matched powder coat.
What is included in this charge pipe kit?
The kit includes (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, (1) CARB EO Sticker, and the Mishimoto Lifetime Warranty.
Can I choose a different color for the charge pipes?
Yes, the charge pipes are available color matched to your choice of 12 OEM colors; the example shown here is finished in Yas Marina Blue with black silicone couplers.
What should I check before installing these charge pipes?
Check the condition of your OEM O-rings before installation and replace with OEM spec O-rings as needed, referencing BMW part number 11617848448.
Does this charge pipe kit come with a warranty?
Yes, it includes the Mishimoto Lifetime Warranty.
