Description

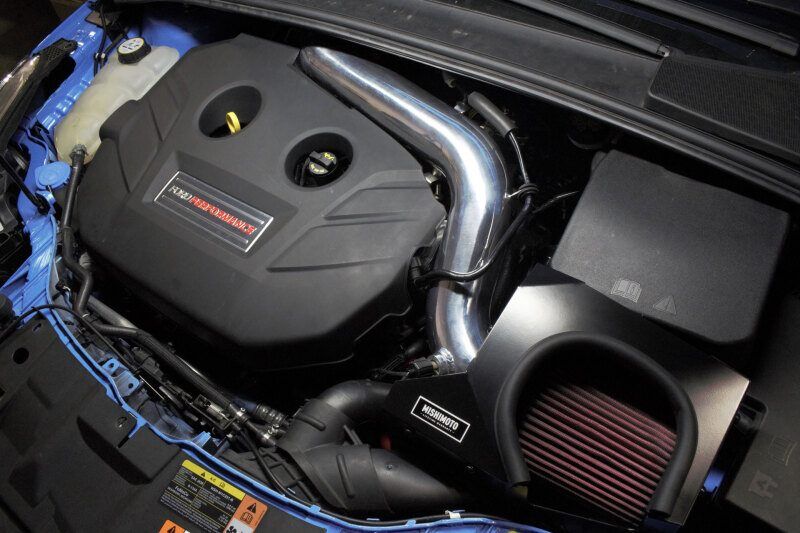

The Mishimoto MMAI-RS-16WBL is a full replacement cold air intake system engineered specifically for the 2016-2018 Ford Focus RS and its 2.3L EcoBoost engine. Unlike a simple filter swap, this kit replaces every core component of the OEM intake system, including the airbox and intake pipe, with a 3-inch aluminum pipe that routes all the way to the turbo. Mishimoto’s engineers logged hundreds of miles of road testing and countless dyno runs to develop this air intake system, resulting in repeatable, stock-tune-safe gains.

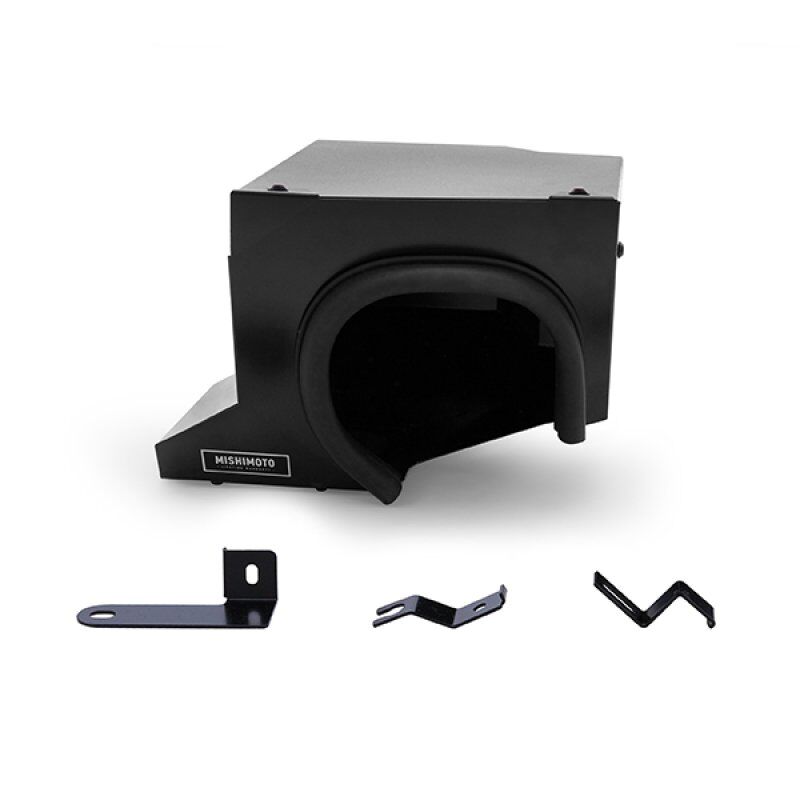

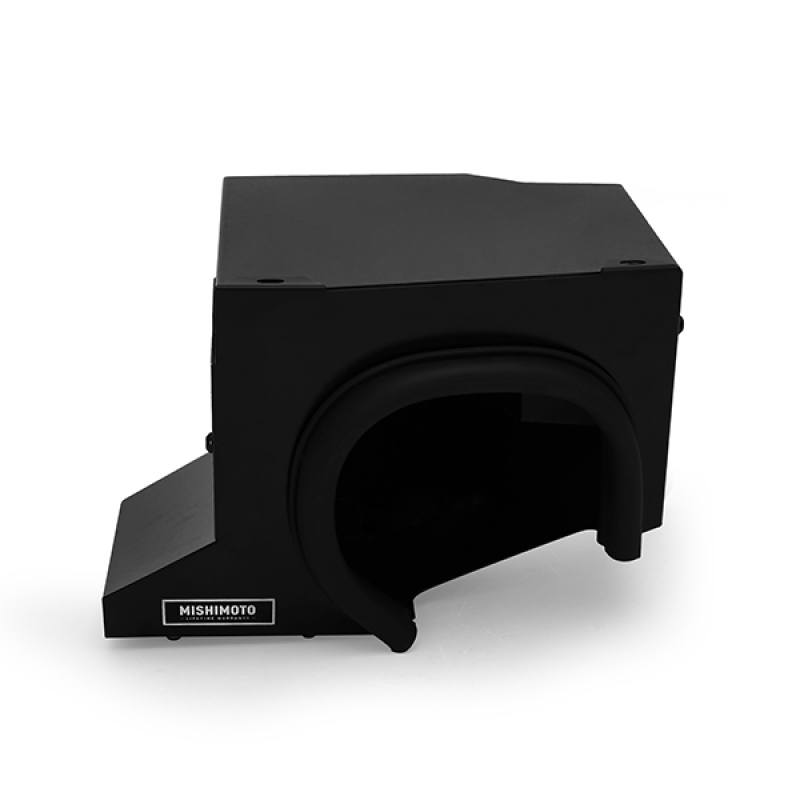

This cold air intake filter setup is built around a redesigned airbox that mirrors the stock airbox’s shape while improving pressure drop through an open top that exposes the filter to more incoming air. The airbox seals against the hood to stay fully enclosed and uses the factory air inlet ducts to pull air from the front of the vehicle, with weather stripping around the ports to prevent movement. The result is an air intake filter positioned to receive maximum airflow, a black powder-coated airbox that keeps unwanted hot air away from the filter, and a noticeably more aggressive intake tone under acceleration—all while working with the stock tune, no additional tuning required.
Vehicle Applications
This intake is a direct bolt-in for the 2016-2018 Ford Focus RS equipped with the 2.3L EcoBoost engine. No cutting or modification to factory components is necessary for installation. The intake carries CARB EO number D-759-2, which currently covers model years 2017-2018.
Features
- Direct fit for 2016-2018 Ford Focus RS, no cutting or modification required
- Dyno-proven maximum gains of up to 12 whp and 15 wtq on the stock tune
- Designed to work with the stock tune with no additional tuning required
- Air filter placed to receive maximum airflow from the front of the vehicle
- Black powder-coated airbox helps keep unwanted hot air out of the air filter
- Highly aggressive intake tone under acceleration

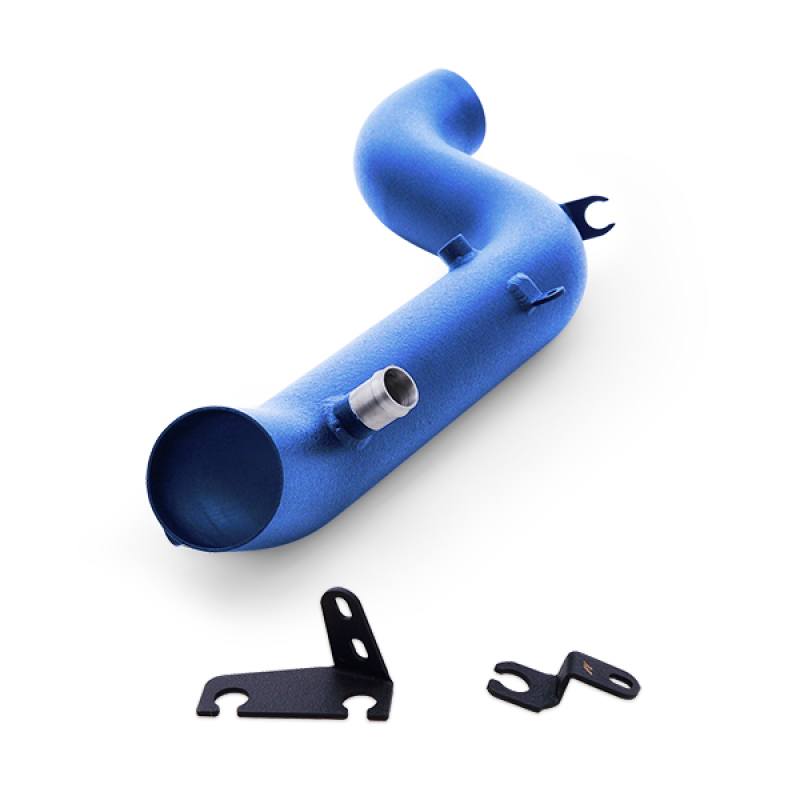

- Available with a polished, wrinkle black, or Wrinkle Nitrous Blue pipe
- CARB EO number: D-759-2
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Filter Material: Multi-layered cotton
- Hose Material: Aluminum
- Hose Color: Blue
- Grade Type: Performance
- Filter Color: Red
- Finish: Powder-Coat
- Optional Color: Wrinkle Nitrous Blue

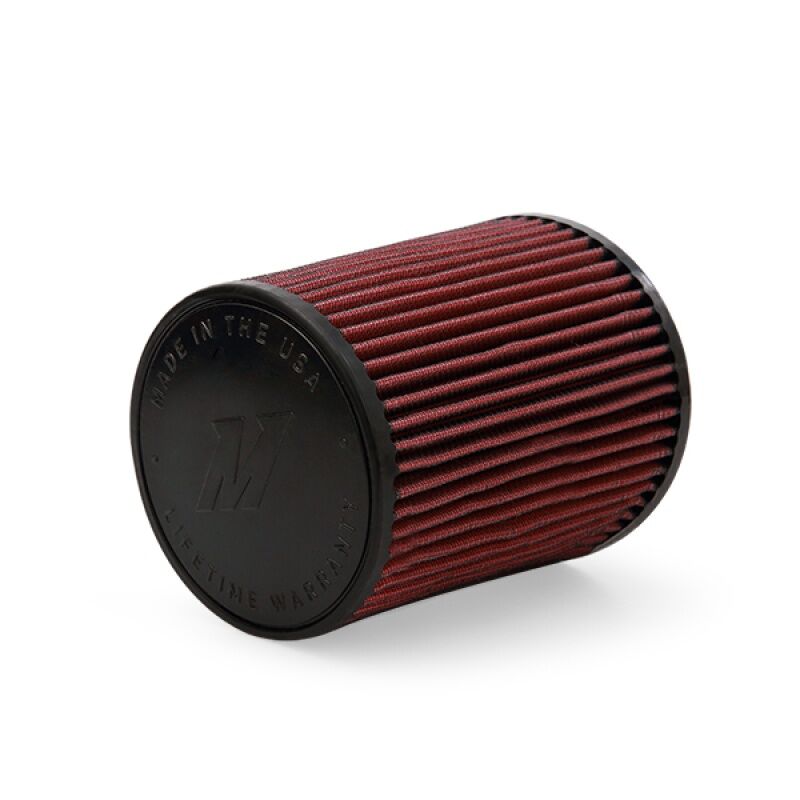

- Air Filter Part Number: MMAF-3006
- CARB EO Number: D-759-2 (currently covers model years 2017-2018)

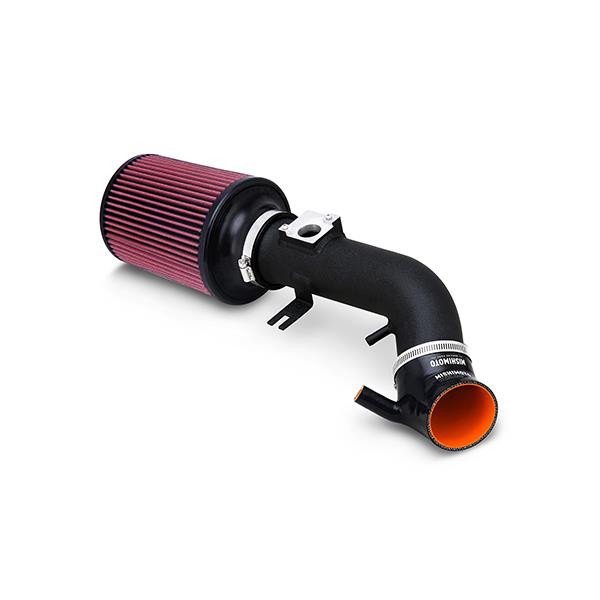

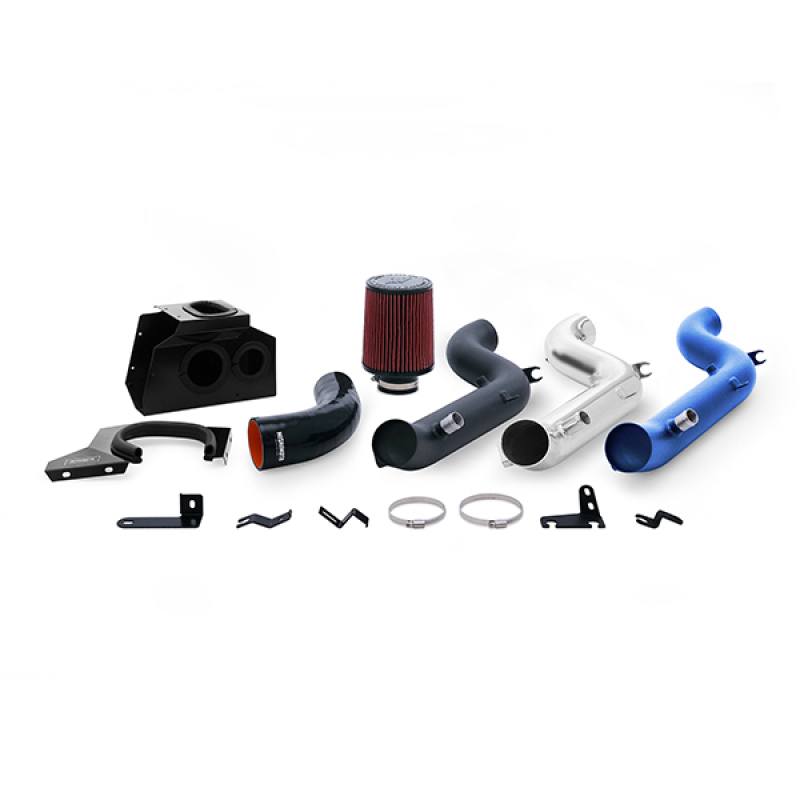

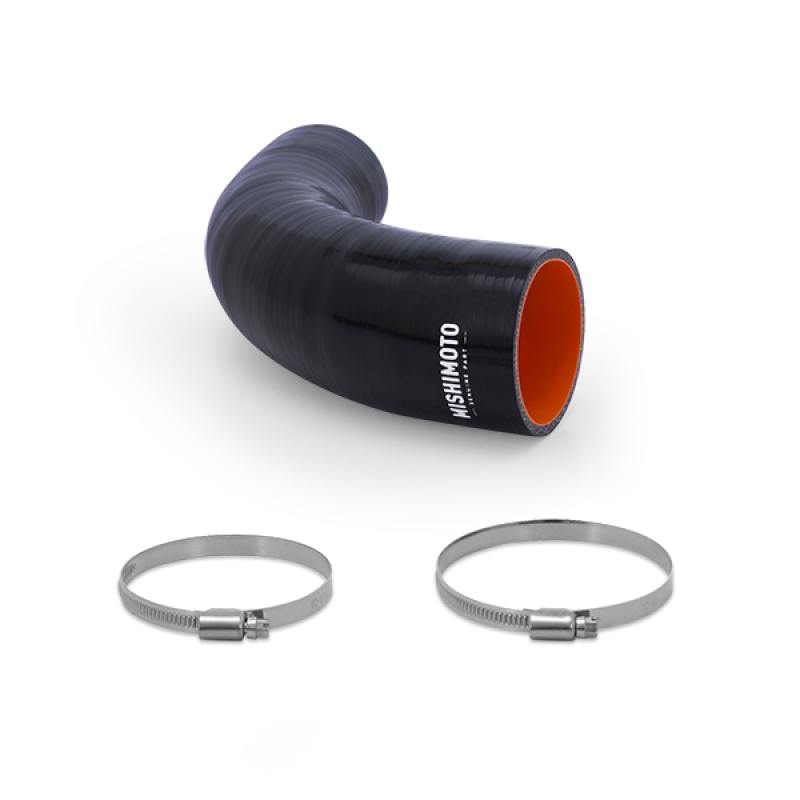

- Includes: (1) Aluminum Intake Pipe w/ CNC-Machined MAP Section, (1) Airbox w/ Protective Edging, (1) High-Flow Oiled Filter, (1) Silicone Turbo Inlet Hose, (2) Worm Gear Clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMAI-RS-16WBL cold air intake fit?
This intake is a direct bolt-in for the 2016-2018 Ford Focus RS equipped with the 2.3L EcoBoost engine, with no cutting or modification to factory components required.
How much power does this cold air intake system add?
Mishimoto’s testing showed repeatable, reliable maximum gains of up to 12 hp and 15 ft-lbs of torque, and it is safe to run on a stock tune.
Does this intake require a tune?
No, the intake is designed to work with the stock tune, so no additional tuning is required.
What does the Mishimoto Focus RS intake kit include?
The kit includes one aluminum intake pipe with a CNC-machined MAP section, one airbox with protective edging, one high-flow oiled filter, one silicone turbo inlet hose, two worm gear clamps, and coverage under the Mishimoto Lifetime Warranty.
How often should the air filter be cleaned and re-oiled?
Mishimoto recommends cleaning and re-oiling the oiled air filter every 10,000-15,000 miles during normal driving, and inspecting it more often if you frequently drive in dusty or off-road conditions. Filter re-oiling is not included in the Lifetime Warranty.
Is this intake CARB legal?
The intake carries CARB EO number D-759-2, which currently covers model years 2017-2018.
