Description

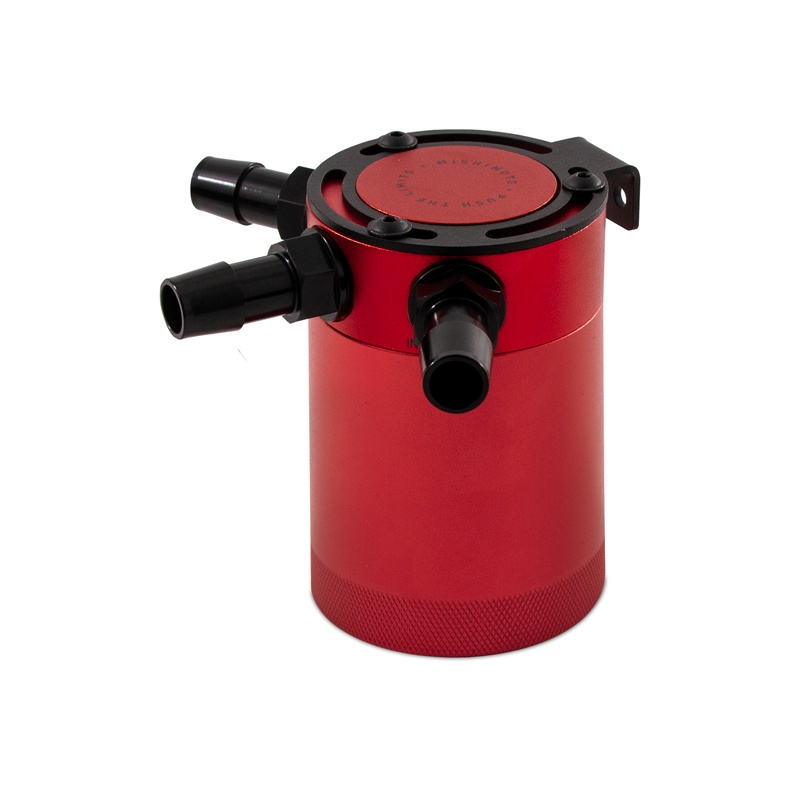

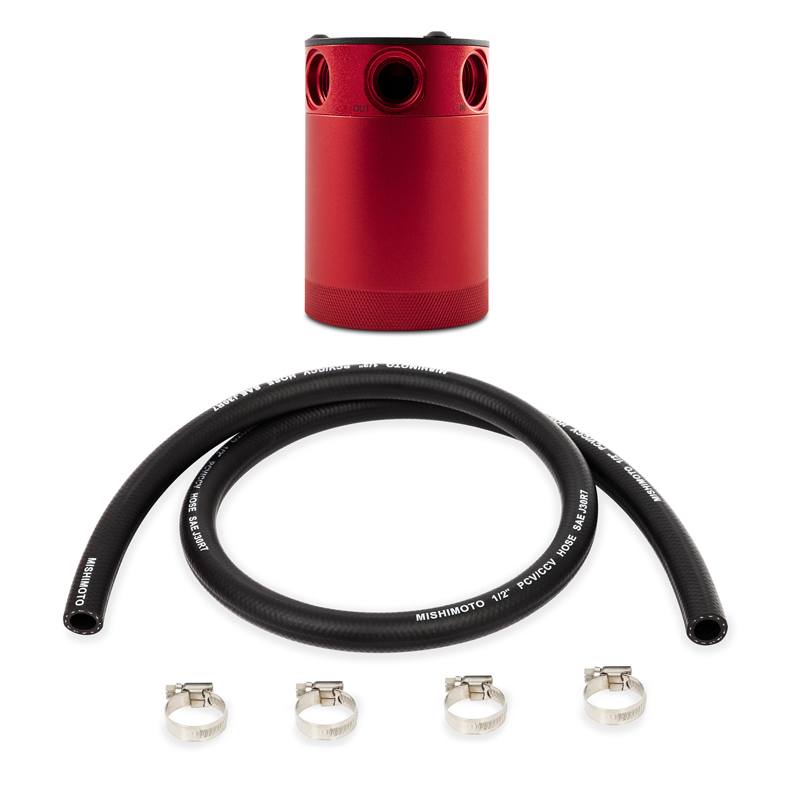

The Mishimoto Compact Baffled Oil Catch Can, part number MMBCC-CBTHR-RD, is the 3-Port version of Mishimoto’s compact catch can lineup, machined from red-finished 6061 billet aluminum and engineered after years of oil catch can research and development. It is built to intercept oil particles from PCV/CCV air before that air reaches the intake, keeping the system cleaner without relying on heat to process blow-by.
Inside this Performance-grade catch can, an internal air diverter turbulates incoming air longer so oil droplets have time to sink to the bottom of the can, while an internal baffle keeps that collected oil from sloshing around under hard driving. Only clean air is allowed to pass onward through a 50 micron bronze filter. Unlike heated air-oil-separator systems that drain blow-by back into the oil pan, this Mishimoto catch can is unheated, letting low-octane oil vapors and contaminated fuel vapors condense and stay trapped in the can rather than recirculating into the engine oil. For anyone researching car engine parts, parts of a car engine, or components of an automobile engine that protect the intake tract from blow-by contamination, this compact catch can is a direct-fit accessory for that job.
Vehicle Applications
Mishimoto lists no make-, model-, or engine-specific applications for this particular catch can, and the included universal mounting bracket is designed to let the can be mounted from multiple angles, giving installers flexibility to fit it into a variety of engine bay layouts on vehicles equipped with PCV or CCV systems.
Features
- Separates oil particles from PCV/CCV air using a 50 micron bronze filter
- 100-percent billet 6061 aluminum, sealed can construction
- Internal air diverter increases air turbulence to improve oil separation
- Internal baffle keeps collected oil from splashing around under race conditions
- Filter and can are both fully serviceable and 100-percent washable
- Removable drain plug allows the can to be drained back to the oil pan
- Universal mounting bracket allows mounting from multiple angles for maximum fitment options
- Includes 3 aluminum 1/2-in barbed fittings and a universal mounting bracket
- Covered by the Mishimoto Lifetime Warranty
- Patent No. US D910,727
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-CBTHR-RD
- Configuration: 3-Port Compact Baffled Oil Catch Can
- Port Outside Diameter: 16 mm
- Grade Type: Performance
- Material: 6061 aluminum
- Finish: aluminum
- Color: Red
- Catch Can Diameter: 2.5 in
- Height: 3.8 in
- Inlet Thread: M16x1.5
- Outlet Thread: M16x1.5
- Drain Plug Thread Size: 3/8 NPT
- Includes: (1) Compact 3-Port Baffled Oil Catch Can, (3) aluminum 1/2-in Barbed Fittings, (1) Universal Mounting Bracket, Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto Compact Baffled Oil Catch Can do?
It separates oil particles from PCV/CCV air before that air returns to the intake. An internal air diverter turbulates the air so oil sinks to the bottom of the can, and the air then passes through a 50 micron bronze filter, while an internal baffle keeps collected oil from splashing around under race conditions.
What is this catch can made of and what color is it?
The can is 100-percent billet 6061 aluminum with an aluminum finish, and this version, MMBCC-CBTHR-RD, is Red.
Is the Mishimoto Compact Baffled Oil Catch Can serviceable?
Yes. Both the filter and the can are fully serviceable, and the can is 100-percent washable. The drain plug can also be removed to allow the can to be drained back to the oil pan.
What comes included with this catch can?
It includes (1) Compact 3-Port Baffled Oil Catch Can, (3) aluminum 1/2-in barbed fittings, (1) universal mounting bracket, and the Mishimoto Lifetime Warranty.
Will this catch can fit my specific vehicle?
Mishimoto does not list specific vehicle applications, chassis codes, or engine codes for this part. It uses a universal mounting bracket that allows mounting from multiple angles for flexible installation.
What are the thread sizes on this catch can?
The inlet and outlet threads are M16x1.5, and the drain plug thread size is 3/8 NPT.
