Description

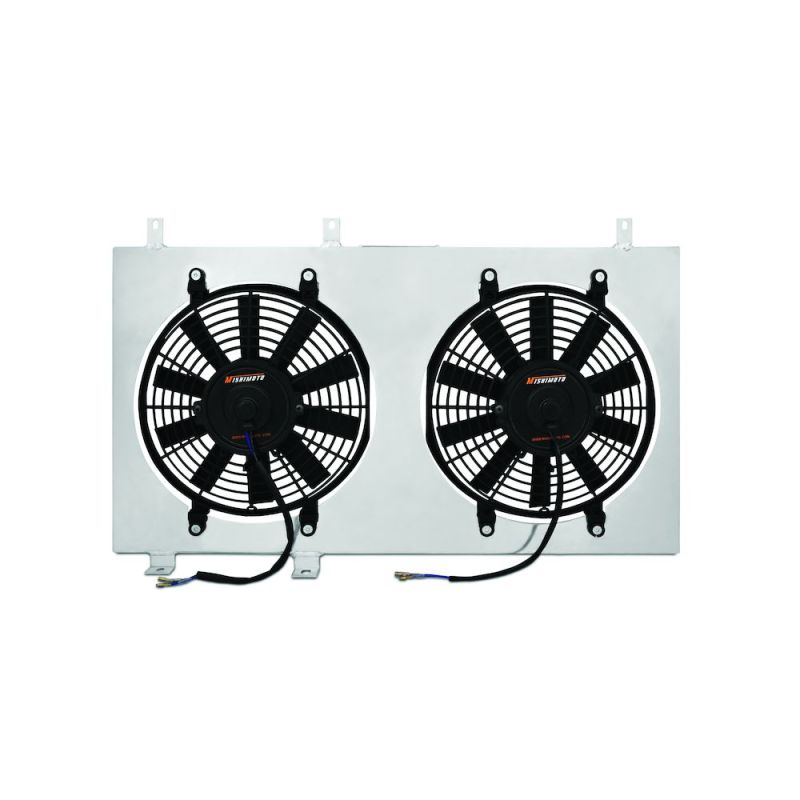

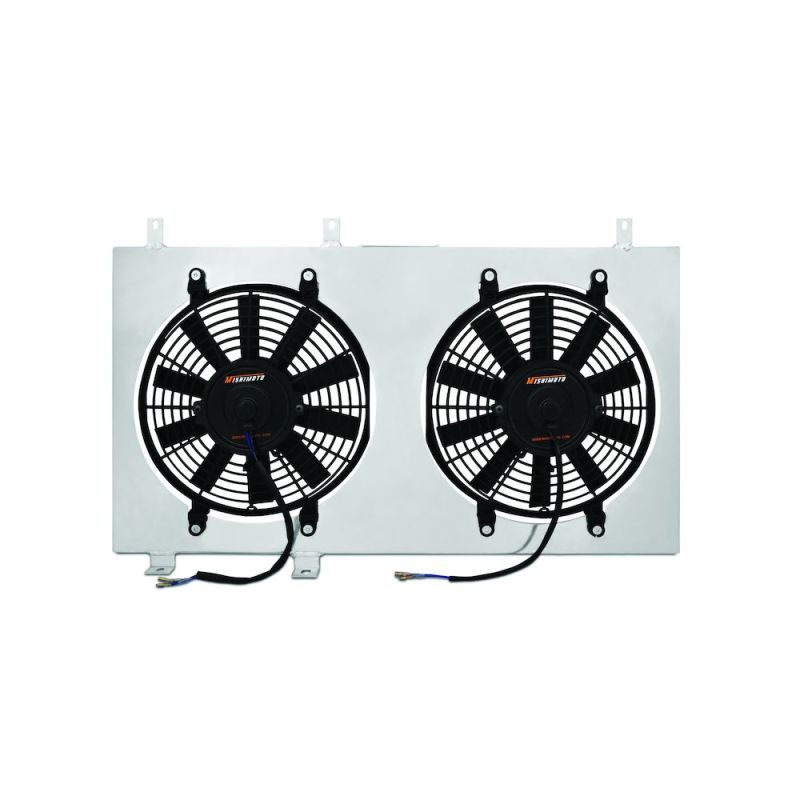

The Mishimoto Toyota Corolla Performance Aluminum Fan Shroud Kit (MMFS-AE86-83) is built for the AE86 chassis and pairs a polished-finish aluminum shroud with two 12-inch slim electric fans, each rated at over 1150 CFM. This is a dedicated Mishimoto cooling upgrade designed to bolt into the AE86 engine bay and replace bulky OEM shroud setups with a lighter, more efficient assembly.

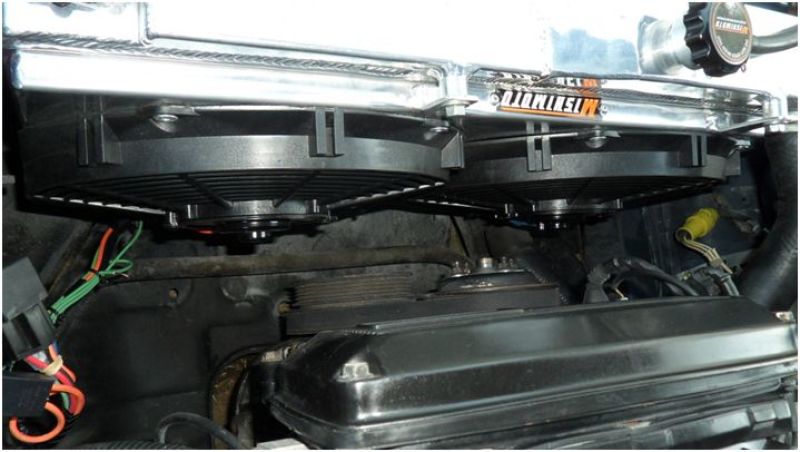

As a Mishimoto cooler component, this fan shroud kit is engineered to move more air across the radiator core while keeping the fan blades securely mounted and out of harm’s way. The aluminum shroud construction sheds weight compared to standard shrouds, and because the kit is compatible with both OEM and Mishimoto radiators, it slots into an existing cooling system without requiring a full radiator swap. The included electric fans are plug-in and run on straight, black plastic blades, giving the Corolla’s cooling system a boost in airflow when engine temperatures climb.
Vehicle Applications
This Mishimoto shroud kit is built for the AE86-chassis Toyota Corolla. It covers the Corolla Base for 1983-1984, the Corolla DLX across 1983-1987, and the Corolla SR5 for 1983. Later coverage includes the Corolla LE from 1984-1987, the Corolla LE Limited for 1985-1986, and the Sport DLX and Sport SR5 trims spanning 1984-1987. It also fits the Sport GTS from 1985-1987, along with the 1987 Corolla FX, FX16, and FX16 GTS models. Engine codes referenced for this kit are 4A-GEC, 4A-GEU, 4A-C, and 4A-U.
Features

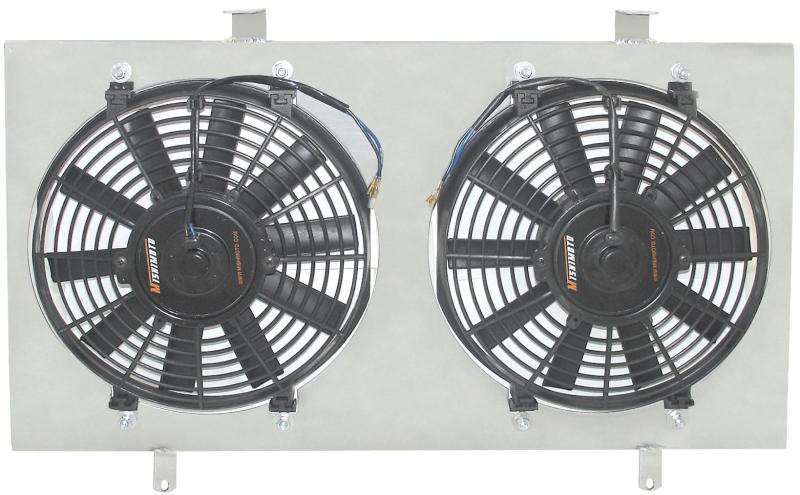

- Aluminum fan shroud with a polished aluminum housing finish and silver shroud color

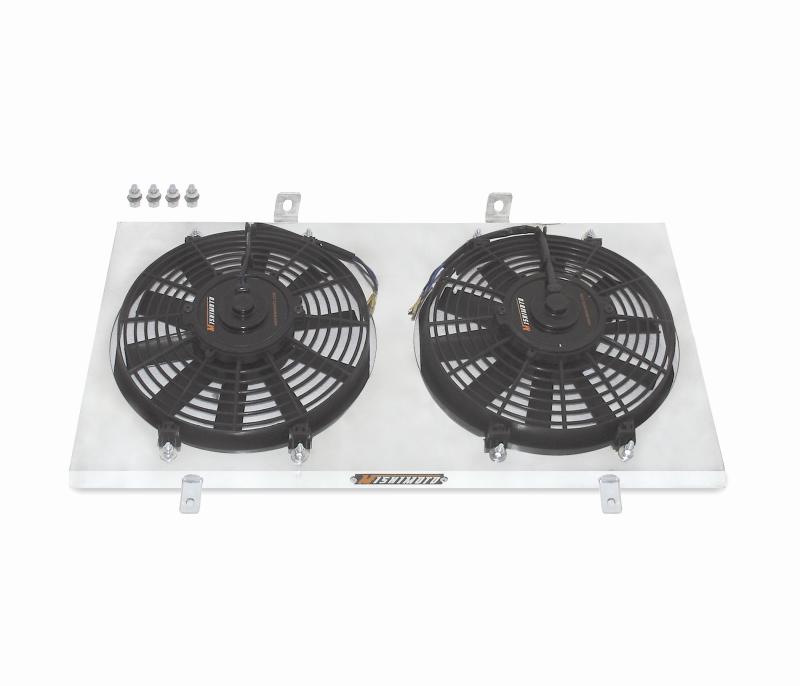

- Two 12-inch slim electric fans, each producing more than 1150 CFM of airflow
- Compatible with both OEM and Mishimoto radiators
- Straight, black plastic fan blades, 10 blades per fan
- Plug-in electrical fans with motor included; fans may require additional wiring
- Mounting hardware included for installation
- No fan clutch mounting and no control module included
- Backed by the Mishimoto Lifetime Warranty
Specifications

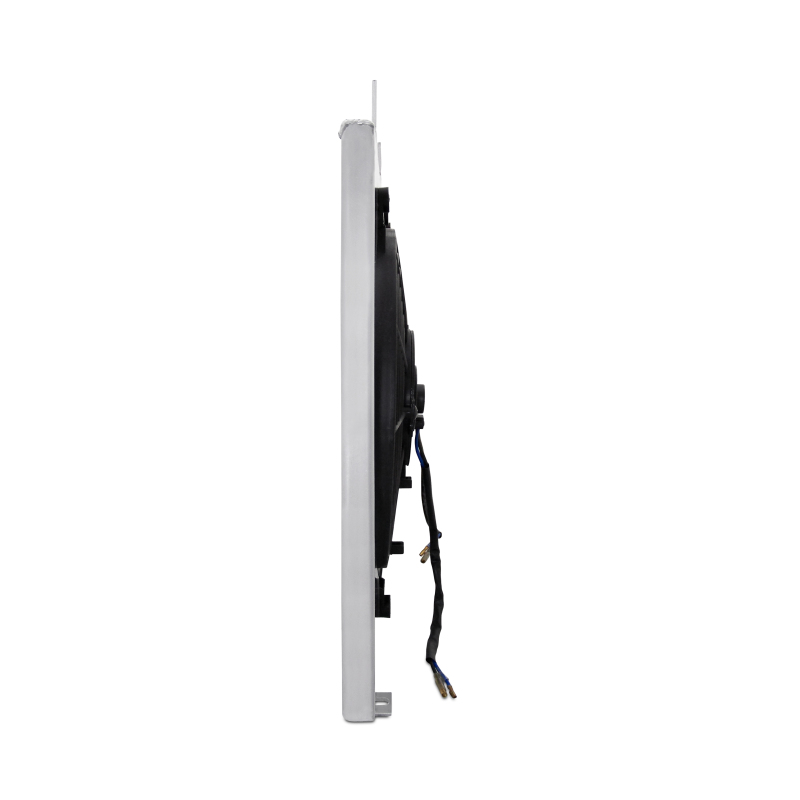

- Width: 3.5 in
- Height: 15.55 in
- Length: 22.83 in
- Depth: 3.5 in
- Shroud Material: Aluminum
- Shroud Color: Silver
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Blade Quantity: 10 per fan
- Fan Diameter: 12 in (x2 fans)
- Airflow Rate: 1150 CFM per fan (Maximum CFM: 1150)
- Grade Type: Performance
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Motor Included: Yes
- Mounting Hardware Included: Yes
- Fan Clutch Mounted: No
- Control Unit/Module Included: No
- Chassis Code: AE86
- Engine Codes: 4A-GEC, 4A-GEU, 4A-C, 4A-U
Frequently Asked Questions
What does the Mishimoto AE86 fan shroud kit include?
It includes one aluminum fan shroud, two 12-inch slim electric fans, and the Mishimoto Lifetime Warranty.
What years and trims of Toyota Corolla does it fit?
It fits the AE86-chassis Corolla, including the Base (1983-1984), DLX (1983-1987), SR5 (1983), LE (1984-1987), LE Limited (1985-1986), Sport DLX and Sport SR5 (1984-1987), Sport GTS (1985-1987), and the 1987 FX, FX16, and FX16 GTS.
Will this work with my stock radiator?
Yes, it is compatible with both OEM and Mishimoto radiators.
How much airflow do the fans provide?
Each of the two 12-inch electric fans is rated at over 1150 CFM.
Does installation require extra wiring?
The fans may require additional wiring during installation.
What warranty comes with this kit?
The kit is backed by the Mishimoto Lifetime Warranty.
