Description

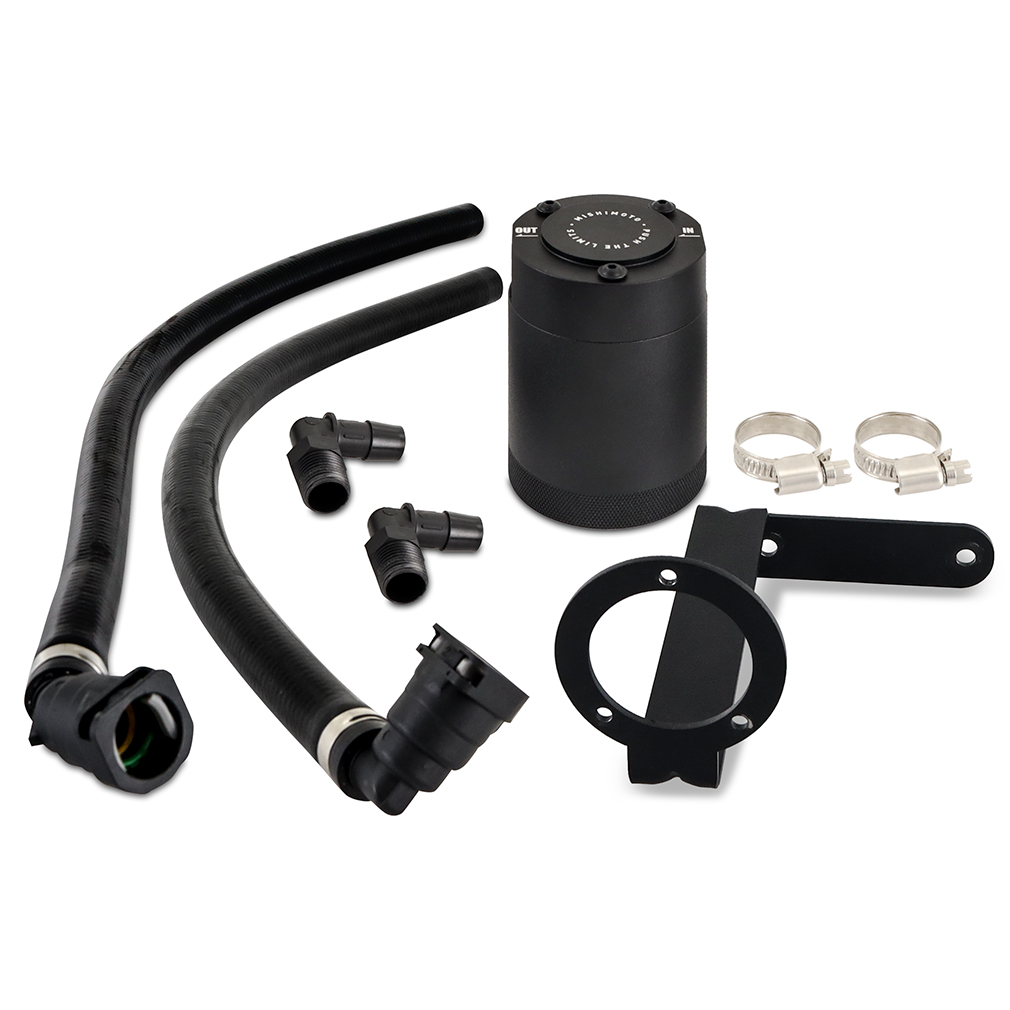

The Mishimoto Direct-Fit Oil Catch Can System (MMBCC-FRD-11P) is purpose-built for the 2011+ Ford F-150, giving owners of 2.7L/3.5L EcoBoost and 5.0L trucks a serviceable way to intercept oil vapor before it reaches the intake tract. Machined from anodized 6061-T6 billet aluminum and fitted with a 50-micron bronze filter, this catch can ties directly into the factory PCV system using pre-molded, application-specific hoses and factory-style quick-disconnect fittings. It’s a focused piece of engineering aimed at one job: keeping the inside of your car engine cleaner for longer.
Every car engine that relies on a Positive Crankcase Ventilation system recirculates blow-by vapor, a mix of unburned fuel and oil particles, back into the intake system to be burned again. That’s good for emissions, but those oily vapors coat the intake manifold and valves over time, and on direct-injection engines like the EcoBoost, carbon buildup on the intake valves can become severe. The oily vapor entering the cylinder can also lower the effective octane of the incoming fuel charge, raising the risk of pre-detonation and knock during automobile combustion. Mishimoto’s catch can addresses both issues by giving vapor a chance to slow down and condense inside the can; an internal air diverter increases turbulence to improve oil separation, and the captured oil collects in the twist-off can instead of continuing on toward the components of your automobile engine that don’t need it, including the intake manifold, valves, and combustion chambers.
Vehicle Applications
This Mishimoto oil catch can is a direct fit for the 2011-2025 Ford F-150 XL and XLT, the 2011-2023 F-150 Lariat and Platinum, and the 2011-2025 F-150 King Ranch. It also fits the 2011-2014 F-150 FX2, FX4, and STX, the 2013-2014 and 2016-2023 F-150 Limited, the 2014 and 2021-2025 F-150 Tremor, the 2016-2025 F-150 SSV, the 2017-2025 F-150 Raptor, and the 2018-2025 F-150 Police Responder. Owners of 2011-2014 F-150 models with the 5.0L engine should note that this kit cannot be used in conjunction with Mishimoto’s MMBCC-F150-11PBE, which is a more direct fit for that specific application.
Features
- Direct fit for 2011+ Ford F-150 2.7L/3.5L EcoBoost and 5.0L trucks
- Anodized billet 6061 aluminum can and bracket construction
- Robust 3mm-thick steel bracket for a sturdy, serviceable mounting point
- Helps reduce carbon buildup on intake valves
- Protects the intake system and essential engine components by capturing oil blow-by in the PCV system
- Application-specific pre-molded hoses fit with the stock engine cover
- Factory-style quick-disconnect fittings for secure, straightforward installation
- Helps maintain proper octane levels to reduce potential detonation
- Internal air diverter increases air turbulence to improve oil separation
- Simple installation with basic hand tools
- Filter and can are fully serviceable
- Covered by the Mishimoto Lifetime Warranty
- Patent No. US D1,077,006 S
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-FRD-11P
- Color: Black
- Finish: Anodized
- Height: 3.7 in
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Finish: Anodized
- Can Outside Diameter: 2.5 in
- Inlet Port Inside Diameter: 0.7 in
- Outlet Port Inside Diameter: 0.7 in
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-FRD-11P fit?
It is a direct fit for the 2011-2025 Ford F-150 XL and XLT, 2011-2023 Lariat and Platinum, 2011-2025 King Ranch, 2011-2014 FX2/FX4/STX, 2013-2014 and 2016-2023 Limited, 2014 and 2021-2025 Tremor, 2016-2025 SSV, 2017-2025 Raptor, and 2018-2025 Police Responder.
What filter does the catch can use?
It uses a 50-micron bronze filter to capture oil particles carried in PCV system vapor.
Can this be used with the MMBCC-F150-11PBE kit?
No, this kit cannot be used in conjunction with MMBCC-F150-11PBE. If you have a 2011-2014 F-150 with the 5.0L engine, MMBCC-F150-11PBE is a more direct fit for that model.
What is the catch can made from?
The can is made from 6061-T6 billet aluminum with an anodized finish and uses a twist-off can type.
Is the catch can serviceable?
Yes, the filter and can are fully serviceable, and the system includes a drain plug to make emptying easy.
What warranty applies to this catch can?
This catch can is backed by the Mishimoto Lifetime Warranty.
