Description
The Mishimoto Direct Fit Oil Cooler Kit (MMOC-CSS-10TBK) is a Black, Thermostatic liquid-to-air oil cooler system engineered specifically for the 2010-2015 Chevrolet Camaro SS. Unlike the factory liquid-to-liquid setup, this Mishimoto oil cooler kit uses a 25-row stacked plate core mounted behind the front bumper on an application-specific bracket to take full advantage of airflow entering the front of the car. In lab testing, this kit produced a temperature drop of up to 35°F, giving LS3 and L99 engines added protection during hard driving.
Built around a Bar-and-Plate, Performance-grade core finished in an Anodized Black, this Mishimoto oil cooler kit pairs a 25-row cooler with pre-assembled stainless steel braided oil lines and durable AN Flare fittings for a clean, direct-fit installation. The kit includes a thermostatic oil sandwich plate along with application-specific mounting hardware, so there’s no guesswork in getting the cooler mounted and plumbed correctly. As with every Mishimoto cooling product, this kit is backed by the Mishimoto Lifetime Warranty, giving Camaro SS owners confidence that their oil temperatures stay in check even through sustained full-throttle driving.
Vehicle Applications
This Mishimoto oil cooler kit is a direct fit for the 2010-2015 Chevrolet Camaro SS equipped with the LS3 or L99 engine. The mounting bracket, hose lengths, and sandwich plate are designed specifically around the 5th Generation Camaro chassis for a true bolt-on installation without cutting or modifying factory components.
Features
- Direct fit for the 2010-2015 Chevrolet Camaro SS (LS3 and L99 engines)

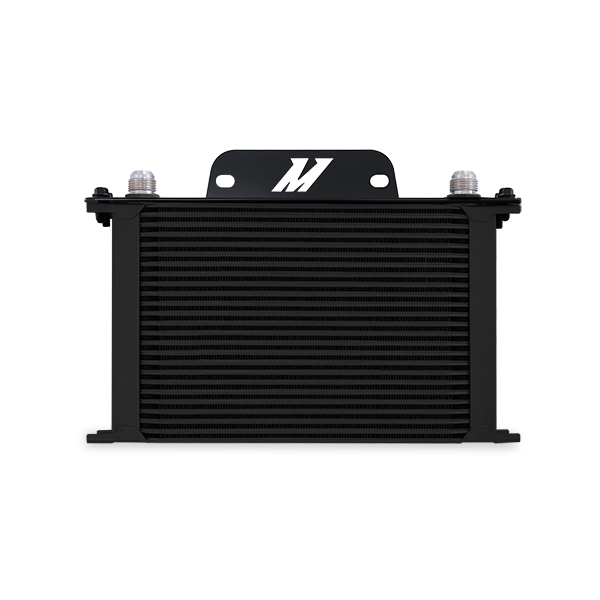

- 25-row stacked-plate oil cooler for reduced fluid temperature
- Test-proven oil temperature reduction of up to 35°F
- Minimal pressure drop
- Application-specific mounting bracket designed for the 5th Gen Camaro

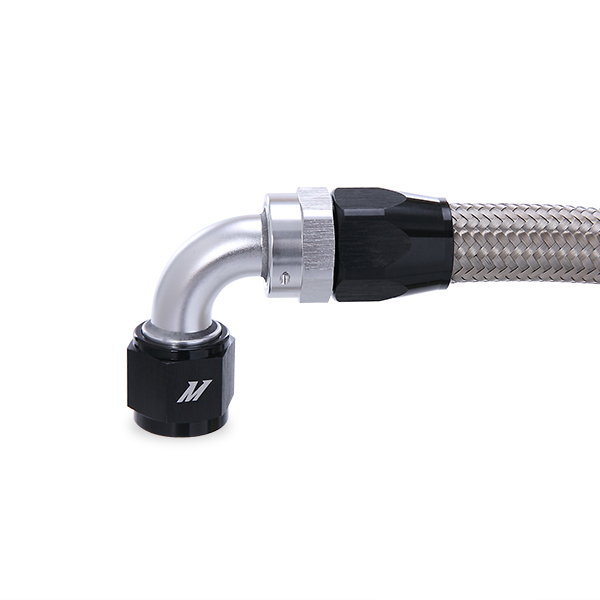

- Premade stainless steel braided oil lines with -10AN fittings (65-in and 54-in hoses with 90° and 45° fittings)

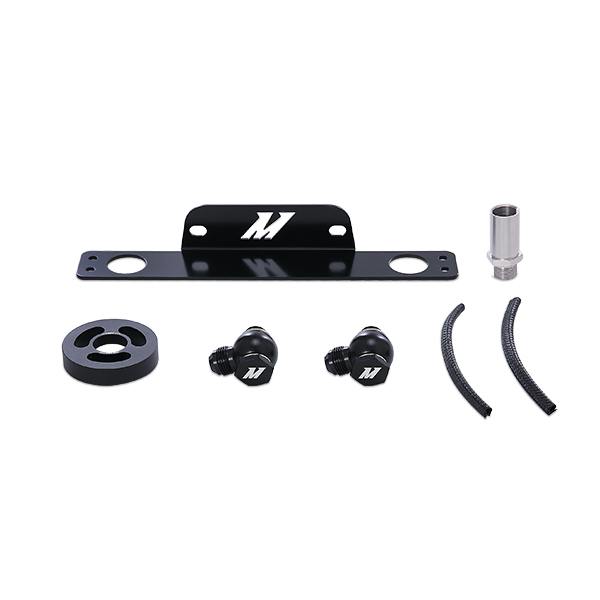

- Thermostatic M22 oil sandwich plate with CNC sandwich plate spacer and stainless steel adapter
- Banjo fittings with bolt, M20 x -10AN, and Dowty seals included
- Finished in Anodized Black with a Black core color
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Color/Finish: Black, Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Rows: 25
- Inlet/Outlet Fitting Type: AN Flare (Male/Male)
- Overall Width: 1.97 in
- Overall Height: 12.95 in
- Overall Length: 8.35 in
- Base Height: 12.95 in
- Engine Codes: LS3, L99
- Recommended torque for straight fittings and banjo bolts: 15-25 lb-ft (do not exceed 35 ft-lb)
Frequently Asked Questions
What vehicles does the Mishimoto MMOC-CSS-10TBK oil cooler kit fit?
This kit is a direct fit for the 2010-2015 Chevrolet Camaro SS with the LS3 or L99 engine.
How much does this oil cooler reduce oil temperature?
The kit is test-proven to reduce oil temperature by up to 35°F.
What color and configuration is the MMOC-CSS-10TBK?
This part number is the Black, Thermostatic version of the Mishimoto Direct Fit Oil Cooler Kit; the cooler line is also available in Sleek Silver.
What is included with the oil cooler kit?

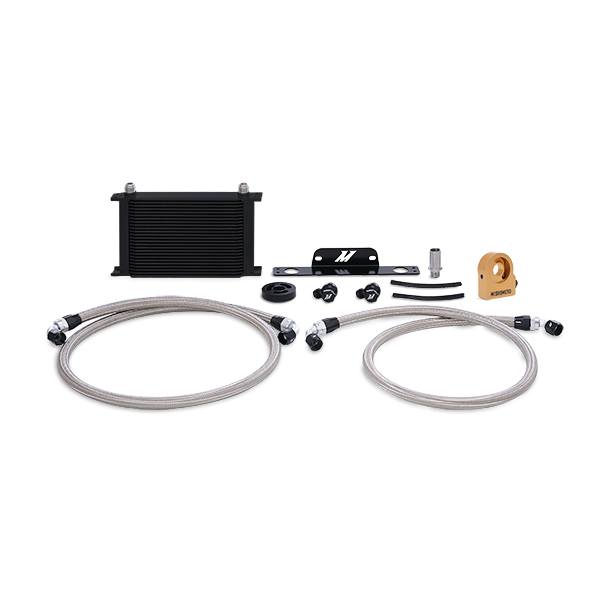

The kit includes an application-specific mounting bracket, a 25-row oil cooler, a 65-in stainless steel braided hose with 90° -10AN fittings, a 54-in stainless steel braided hose with 90° and 45° -10AN fittings, banjo fittings with bolt (M20 x -10AN) and Dowty seals, an M22 oil sandwich plate, a CNC sandwich plate spacer (M22, 15mm), a stainless steel sandwich plate adapter (M22, 15mm), and the Mishimoto Lifetime Warranty.
What torque should be used on the fittings and banjo bolts?
Mishimoto recommends a torque of 15-25 lb-ft for all straight fittings and banjo bolts, and advises not exceeding a maximum torque rating of 35 ft-lb.
Does this oil cooler kit come with a warranty?
Yes, the Mishimoto Direct Fit Oil Cooler Kit is covered by the Mishimoto Lifetime Warranty.
