Description
The Mishimoto Direct Fit Oil Cooler Kit (MMOC-CSS-10BK) is a purpose-built liquid-to-air oil cooler engineered specifically for the LS3 and L99 engines found in the 2010-2015 Chevrolet Camaro SS. Unlike the factory liquid-to-liquid setup, this Mishimoto oil cooler kit mounts behind the front bumper on an application-specific bracket, putting a 25-row stacked-plate, bar-and-plate cooler core directly in the path of incoming airflow. Finished in Stealth Black with an anodized finish and a non-thermostatic aluminum sandwich plate, this kit is test-proven to drop oil temperatures by up to 35°F.
As a dedicated Mishimoto oil cooler, this cooling upgrade helps maintain optimal oil temperature and protects your engine’s oil supply during extended high-load driving or spirited full-throttle runs. The kit pairs pre-assembled stainless steel braided oil lines with durable -10AN fittings and a CNC-machined M22 oil sandwich plate, delivering minimal pressure drop while increasing oil capacity by 0.75 qt. Every component in this Mishimoto oil cooler kit is matched specifically to the 5th-generation Camaro platform, from the mounting bracket to the hose lengths and fittings, so there’s no guesswork or fabrication required to get a proper direct fit.
Vehicle Applications
This Mishimoto direct fit oil cooler kit is designed exclusively for the 2010-2015 Chevrolet Camaro SS equipped with the LS3 or L99 engine. The mounting bracket, hose lengths, and fitting configuration are specific to this generation of Camaro, so no other years, makes, or models are covered by this application-specific kit.
Features
- Direct fit for the 2010-2015 Chevrolet Camaro SS (LS3 or L99 engine)
- Reduces oil temperatures by up to 35°F, test-proven
- Minimal pressure drop
- Application-specific mounting bracket designed for the 5th Gen Camaro

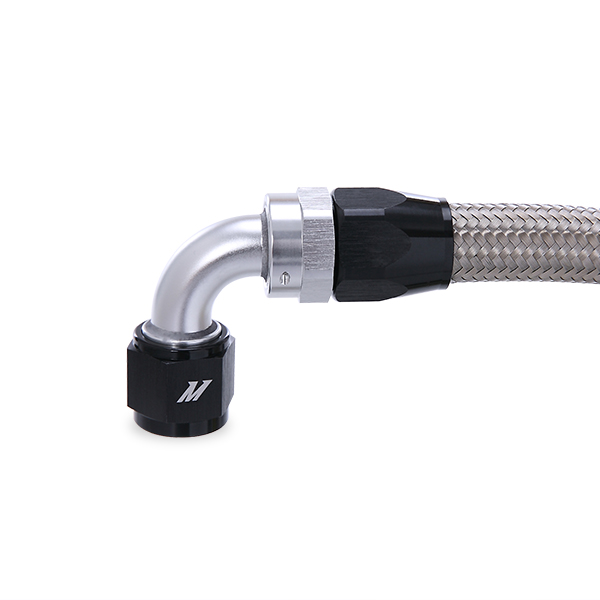

- Premade stainless steel braided oil lines with durable -AN fittings
- Non-thermostatic 6061 aluminum CNC-machined oil sandwich plate

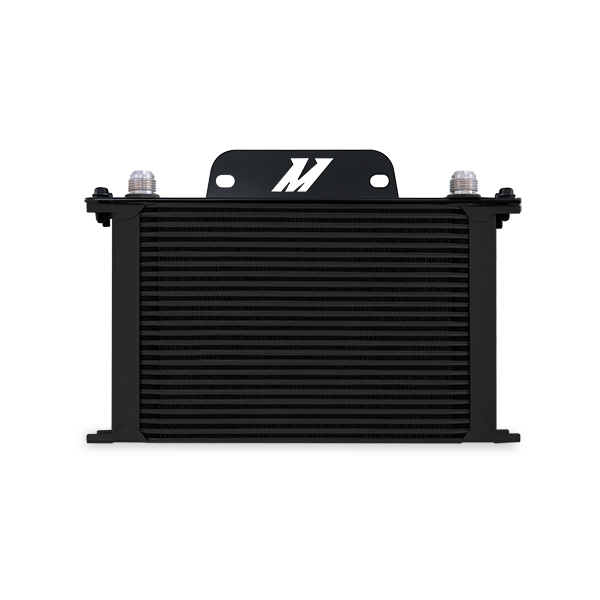

- 25-row stacked-plate, bar-and-plate oil cooler core for optimal fluid temperature reduction
- Increases oil capacity by 0.75 qt
- Stealth Black anodized finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-and-Plate
- Core Row Quantity: 25
- Core Color: Black
- Finish: Anodized
- Grade Type: Performance
- Inlet/Outlet Fitting Type: AN Flare, Male
- Overall Width: 1.97 in
- Overall Height: 12.95 in
- Overall Length: 8.35 in
- Engine Codes: LS3, L99

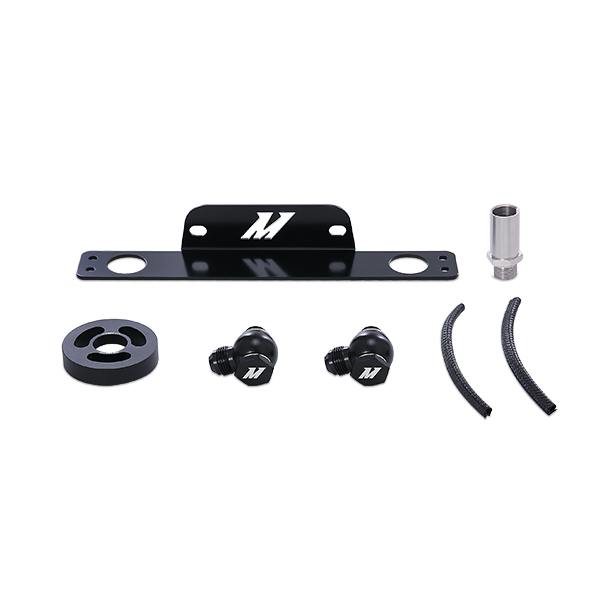

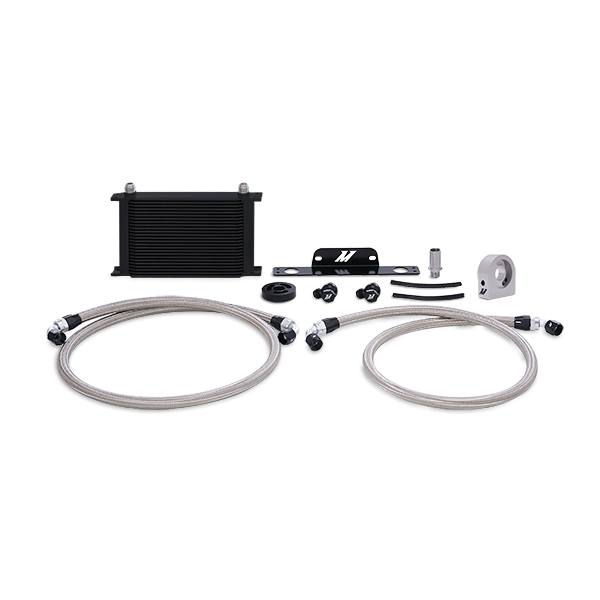

- Kit Includes: Application-Specific Mounting Bracket, 25-Row Oil Cooler, 65-in Stainless Steel Braided Hose with 90° -10AN Fittings, 54-in Stainless Steel Braided Hose with 90° & 45° -10AN Fittings, Banjo Fittings with Bolt M20 x -10AN + Dowty Seals (Black), M22 Oil Sandwich Plate, CNC Sandwich Plate Spacer (M22, 15mm), Stainless Steel Sandwich Plate Adapter (M22, 15mm), Mishimoto Lifetime Warranty
- Recommended Installation Torque: 15-25 lb-ft for straight fittings and banjo bolts; do not exceed 35 ft-lb
Frequently Asked Questions
What vehicles does the Mishimoto MMOC-CSS-10BK oil cooler kit fit?
This kit is a direct fit for the 2010-2015 Chevrolet Camaro SS equipped with the LS3 or L99 engine.
How much does this oil cooler kit reduce oil temperature?
The kit is test-proven to reduce oil temperatures by up to 35°F.
What color is this specific Mishimoto oil cooler?
This kit is finished in Stealth Black with an anodized finish and a non-thermostatic oil sandwich plate; the cooler is also offered in Sleek Silver as a separate option.
What is included in the Mishimoto Direct Fit Oil Cooler Kit?
The kit includes an application-specific mounting bracket, a 25-row oil cooler, a 65-in stainless steel braided hose with 90° -10AN fittings, a 54-in stainless steel braided hose with 90° and 45° -10AN fittings, banjo fittings with bolt M20 x -10AN plus Dowty seals (black), an M22 oil sandwich plate, a CNC sandwich plate spacer (M22, 15mm), a stainless steel sandwich plate adapter (M22, 15mm), and the Mishimoto Lifetime Warranty.
What torque specification should be used during installation?
Mishimoto recommends a torque specification of 15-25 lb-ft for all straight fittings and banjo bolts, and the maximum torque rating should not exceed 35 ft-lb.
What warranty comes with this Mishimoto oil cooler kit?
This kit is backed by the Mishimoto Lifetime Warranty.
