Description

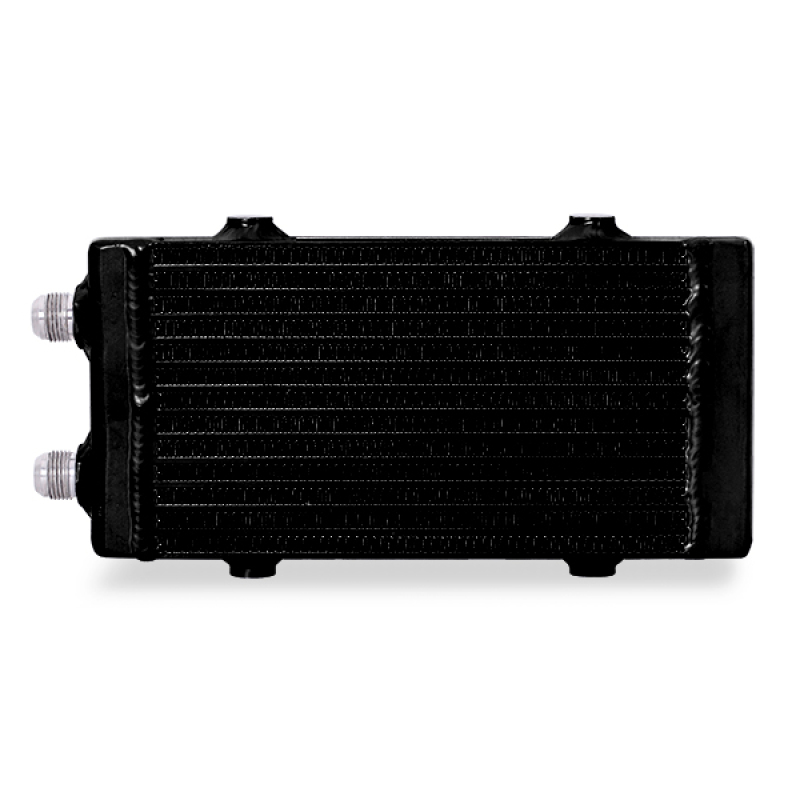

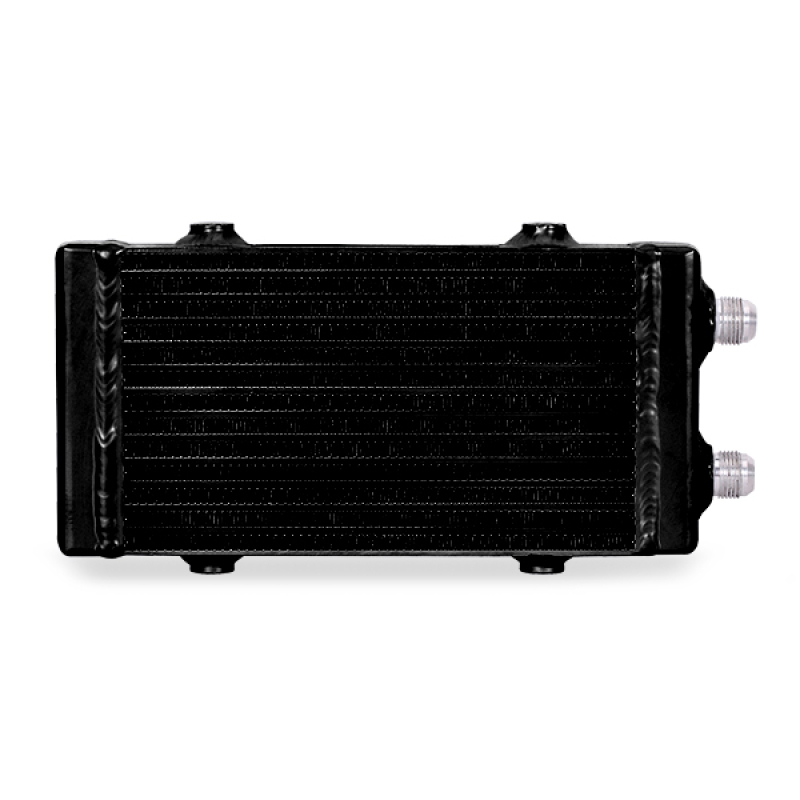

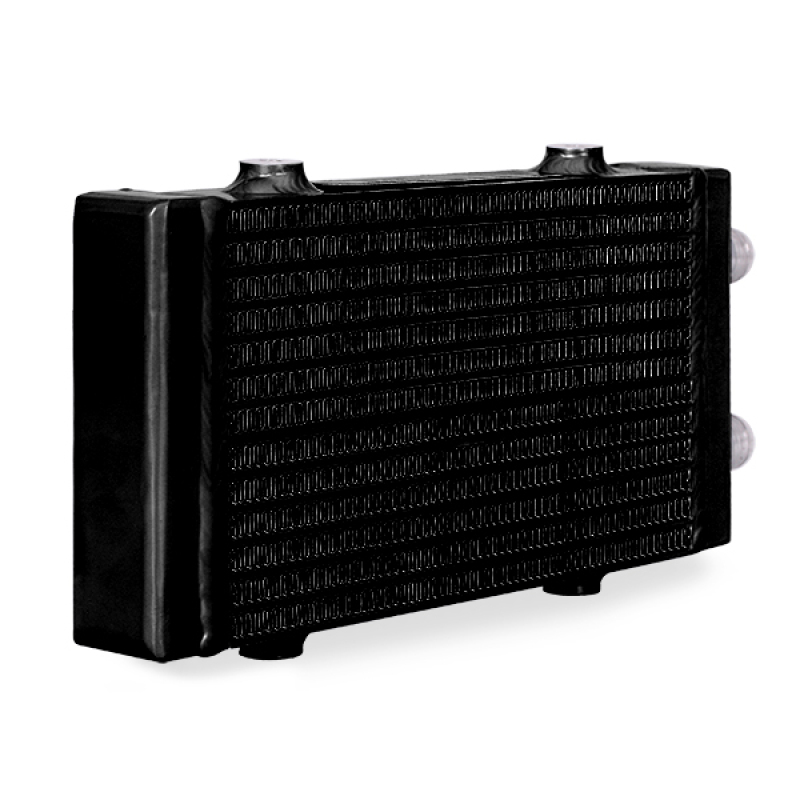

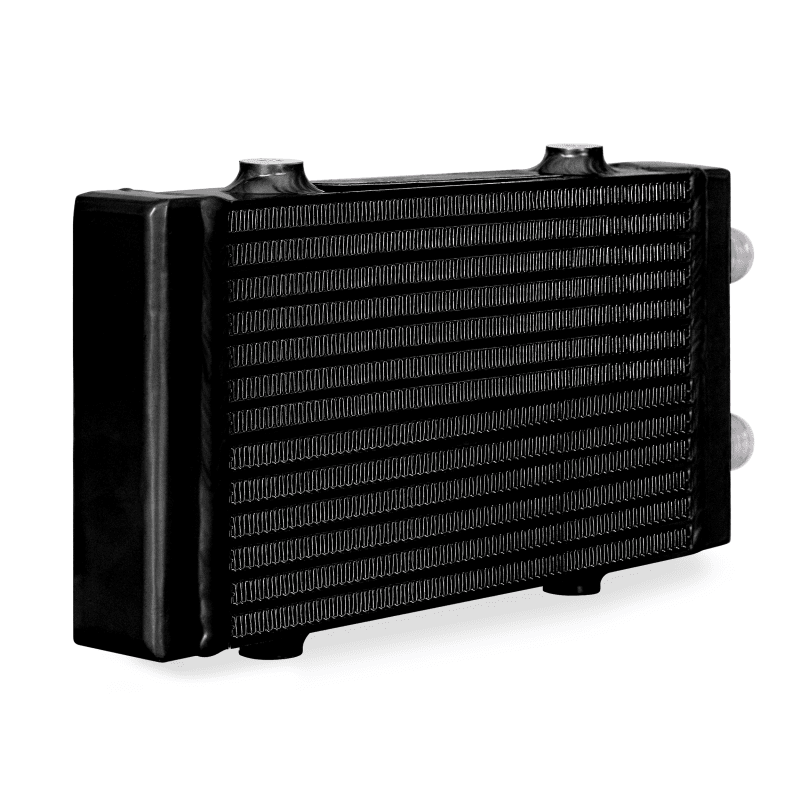

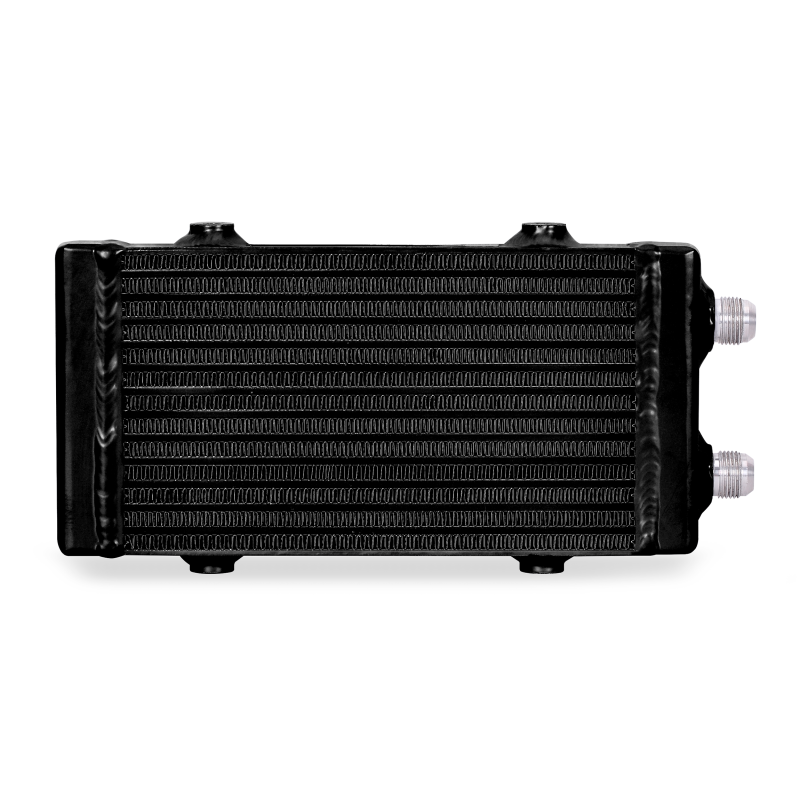

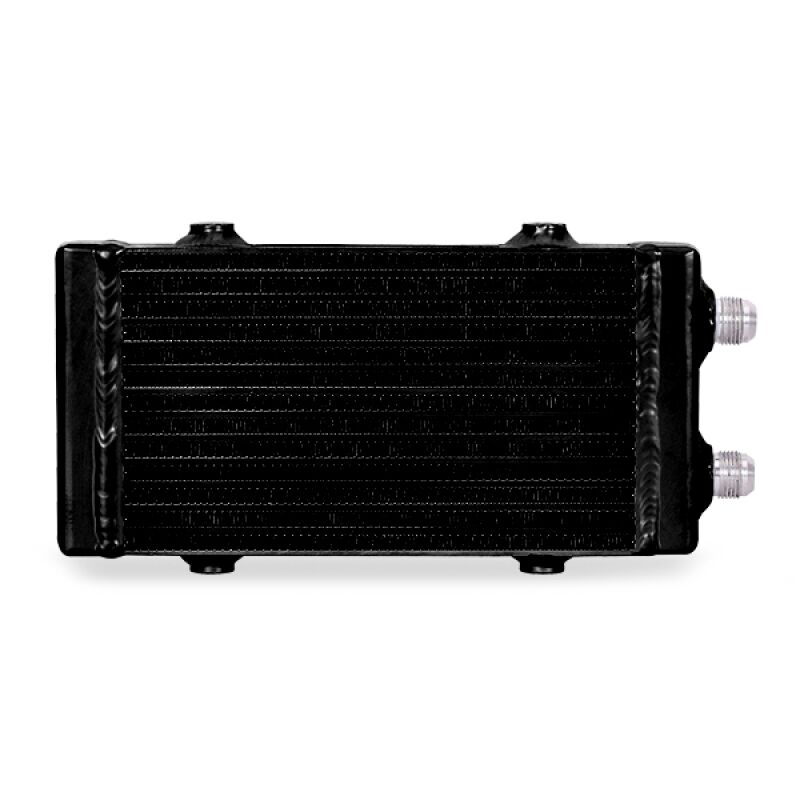

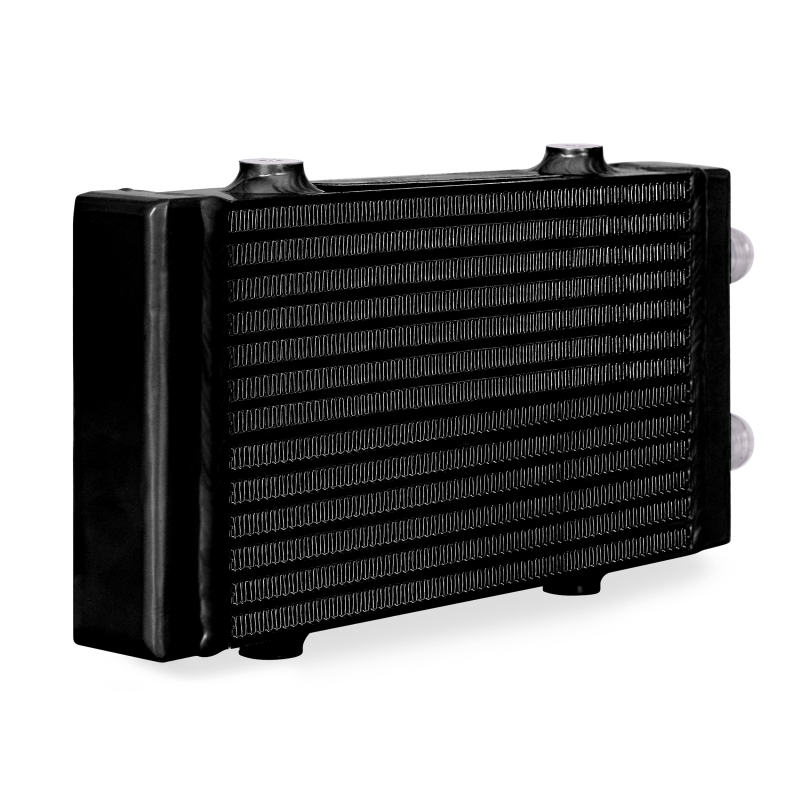

The Mishimoto MMOC-DP-SBK is a small dual pass race oil cooler finished in Stealth Black, built around a bar-and-plate aluminum core that routes oil in one side, around the core, and back out the same side for compact, efficient cooling. With -10AN male fittings and a 100-percent aluminum construction, this cooler is purpose-built for drivers who need reliable oil temperature control without the bulk of a larger unit.
Keeping oil viscosity in check is critical once you start pushing a vehicle hard, and this Mishimoto cooler is engineered to do exactly that. The dual pass core design maximizes the time oil spends dissipating heat before returning to the engine, helping protect high-wear internal components while adding oil system capacity for extra cooling headroom. As part of Mishimoto’s Cooling lineup, this oil cooler kit is designed with CNC end tanks and M8x1.25 welded bungs for bracket mounting, making it a practical choice whenever a compact, custom-fit oil cooler is needed for track or performance use.
Vehicle Applications
This Mishimoto oil cooler is built as a universal, custom-application unit rather than a fitment for one specific vehicle, chassis, or engine. Its compact 5.51 in. core height and 1.57 in. width make it well suited to tight engine bays and custom oil cooling setups where space is at a premium, letting builders integrate it into a wide range of performance and track-focused installations using the included -10AN fittings and mounting bungs.
Features
- Durable bar-and-plate cooler design for use in custom applications
- Dual pass design for optimal fluid temperature reduction
- M8x1.25 welded bungs for attaching brackets
- -10AN fittings for attaching oil lines
- 100-percent aluminum construction with CNC end tanks
- Reduces oil temperatures with minimal pressure loss
- Increased oil system capacity for increased cooling capability
- Available in Sleek Silver or Stealth Black finishes; only the silver version carries the Mishimoto “M” logo on one side, while the Stealth Black option has no logo
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-DP-SBK
- Color / Core Color: Black (Stealth Black)
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Height: 5.51 in.
- Core Thickness: 1.57 in.
- Overall Width: 1.57 in.
- Overall (Base) Height: 6.3 in.
- Overall Length: 12.48 in.
- Fluid Capacity: 0.5 qt.
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Inlet/Outlet Outside Diameter: 0.625 in.
- Inlet/Outlet Size: -10AN
- Includes: (1) Oil Cooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What does “dual pass” mean for this Mishimoto oil cooler?
On this dual pass core, oil enters one side of the cooler, travels around the core, and exits again on the same side.
What color finish does the MMOC-DP-SBK come in?
This version features a Stealth Black anodized finish. Mishimoto also offers this cooler in silver; only the silver version has the Mishimoto “M” logo on one side, while the Stealth Black option does not have a logo.
What size and type of fittings does this oil cooler use?
It uses -10AN male AN Flare fittings on both the inlet and outlet, with an inlet and outlet outside diameter of 0.625 in.
What is the core construction of this cooler?
It is a bar-and-plate style core with 100-percent aluminum construction and CNC end tanks.
What is included with this oil cooler, and is it covered by a warranty?
The package includes (1) oil cooler, and it is backed by the Mishimoto Lifetime Warranty.
How is this oil cooler mounted?
It uses M8x1.25 welded bungs for attaching brackets.
