Description

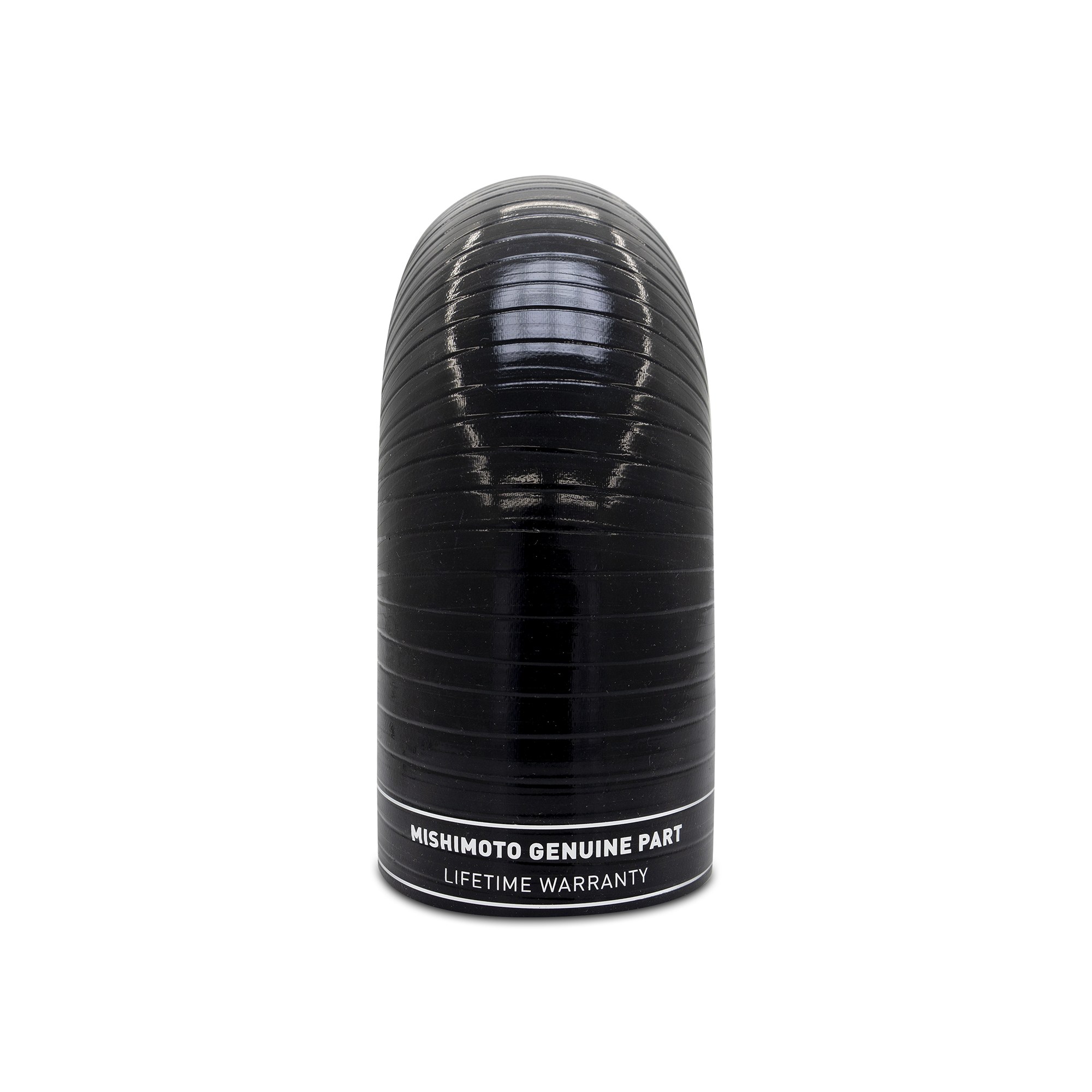

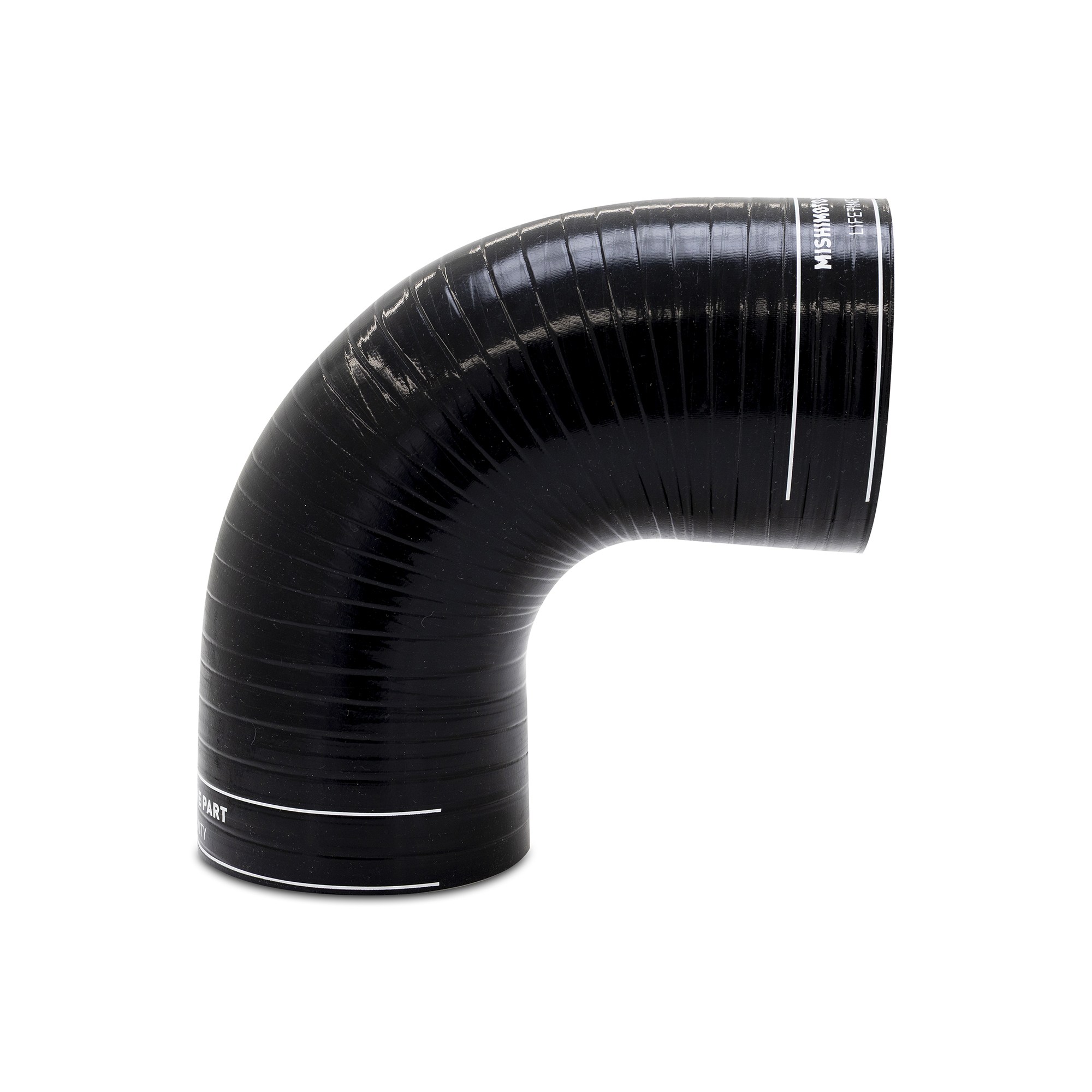

The Mishimoto DuraCore™ 90-Degree Silicone Intercooler Boot (MMDCC-40A9BK) is a black, angle-shaped coupler purpose-built for fabricators assembling a custom intercooler piping kit. Molded from five layers of silicone with heat-resistant embedded fibers and finished with DuraCore™ technology on its innermost layer, this boot is engineered to be the strongest link in your charge-piping system rather than its weak point.
As part of Mishimoto’s broader air intake system lineup, this 90-degree coupler gives fabricators the flexibility to route charge pipes through tight engine bays without sacrificing sealing integrity. DuraCore™ technology delivers greater resistance to heat, pressure, fuel, and oil than standard silicone alone, which helps prevent leaks and blowouts in high-boost applications. Reinforcing rings add structural rigidity at the connection points, keeping the seal locked down under pressure, while the coupler itself is coolant compatible for added versatility in your air intake system build. Available across Mishimoto’s full DuraCore™ lineup in straight, straight hump, transition, 45-degree, and 90-degree configurations from 3″ to 4″, this particular boot lets you dial in the exact angle your piping layout requires.
Vehicle Applications
This DuraCore™ 90-degree silicone intercooler boot is a universal fabrication component rather than a vehicle-specific bolt-on part, making it suited to any truck build or custom intercooler piping project where a 90-degree transition is needed. Because it is not tied to a single make or model, it works alongside whatever mismatched tube diameters or tight-clearance routing your particular air intake system design calls for.
Features
- 90-degree angle configuration for tight-clearance charge pipe routing
- DuraCore™ synthetic inner layer resists heat, pressure, fuel, and oil better than standard silicone

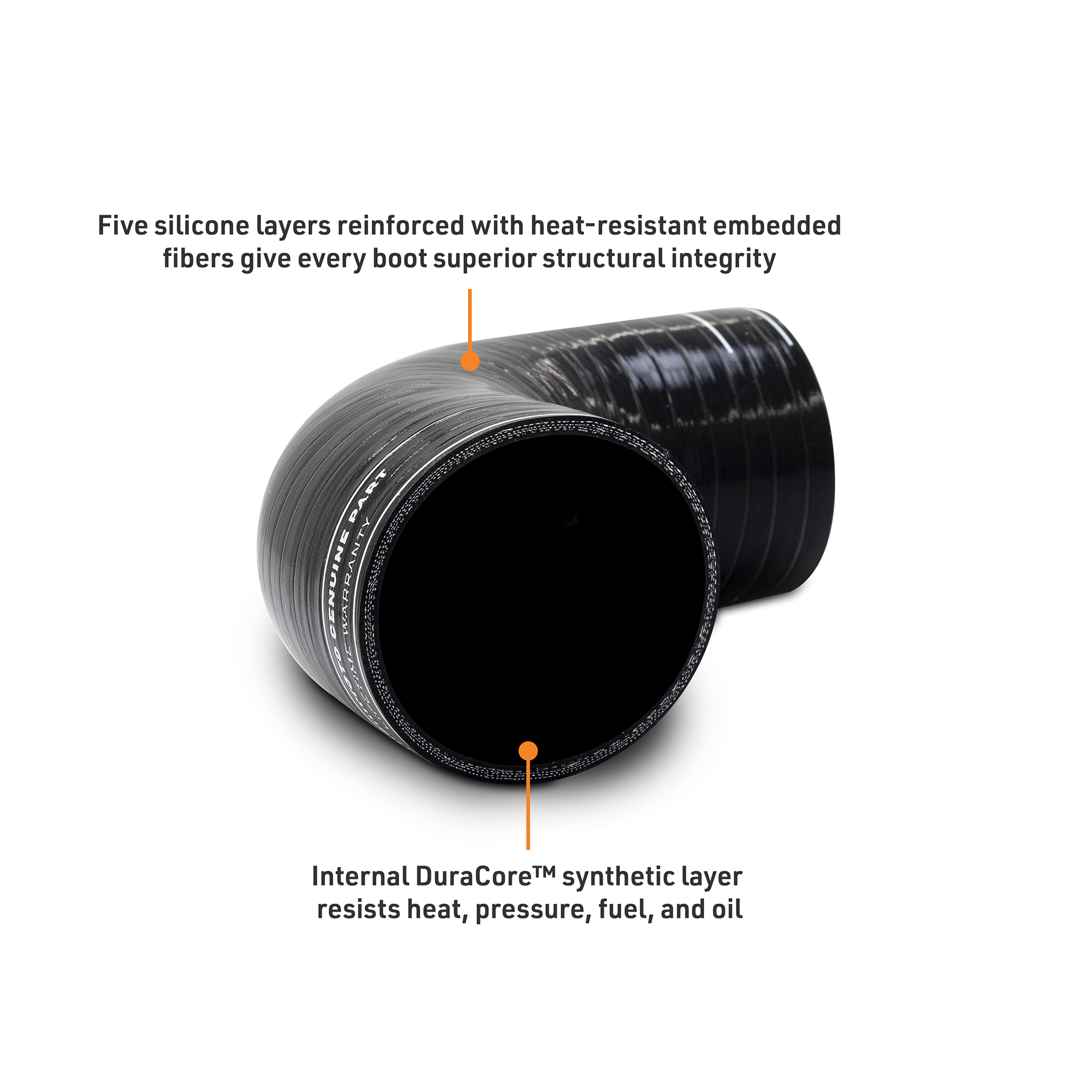

- Constructed from five layers of silicone reinforced with heat-resistant embedded fibers
- Reinforcing rings add structural integrity at connection points to resist blowouts under boost
- Coolant compatible for added application flexibility
- Part of a full DuraCore™ range offered in straight, straight hump, transition, 45-degree, and 90-degree shapes from 3″ to 4″ sizing
- Backed by the Mishimoto Lifetime Warranty

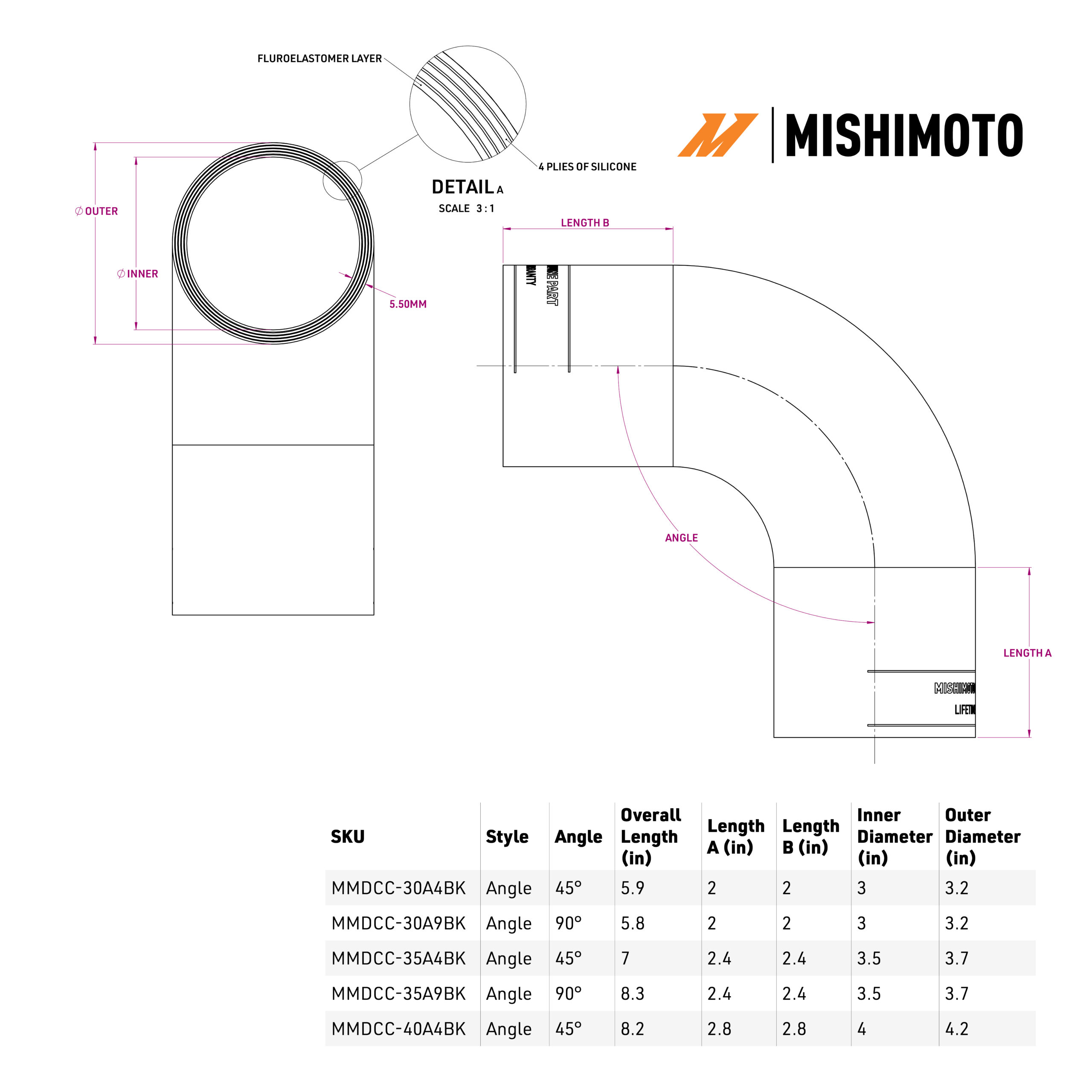

Specifications
- Brand: Mishimoto
- Part Number: MMDCC-40A9BK
- Product Type: Air Intake Systems
- Material: Silicone with DuraCore Technology
- Color: Black
- Shape: Angle
- Coupler Style: 90 degree
- Outer Diameter: 4.43 in
- End 1 Outside Diameter: 4.2 in
- Overall Length: 9.56 in
- Maximum Temperature Rating: 347°F
- Coolant Compatible: Yes
- Hose Clamps Included: No
- Recommended Clamps: 2x MMCLAMP-CTWG-117 (Constant Tension Worm-Gear)
- Includes: (1) Coupler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What angle is this intercooler boot?
This is a 90-degree angle configuration, part of Mishimoto’s DuraCore lineup that also includes straight, straight hump, transition, and 45-degree shapes.
What material is the boot made from?
It is made from silicone with DuraCore technology, constructed from five layers of silicone reinforced with heat-resistant embedded fibers.
Are hose clamps included?
No, hose clamps are not included. Mishimoto recommends two constant tension worm-gear clamps, part number MMCLAMP-CTWG-117.
What is the maximum temperature rating?
This boot carries a maximum temperature rating of 347°F.
Is this boot coolant compatible?
Yes, this boot is coolant compatible.
What sizing range is available in the DuraCore lineup?
DuraCore silicone boots are offered in sizing from 3″ to 4″ across straight, straight hump, transition, 45-degree, and 90-degree configurations.
