Description

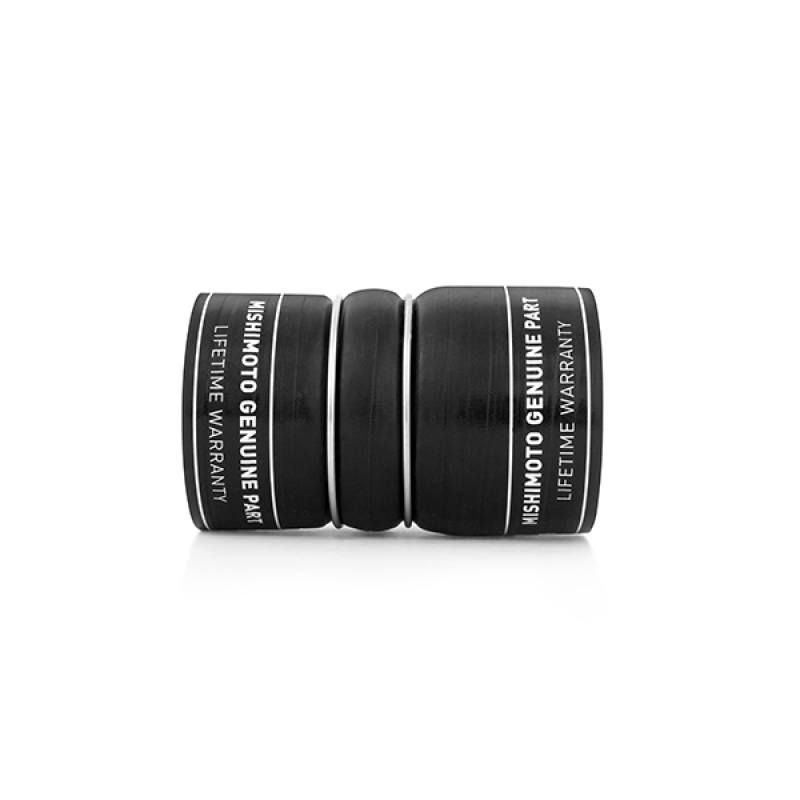

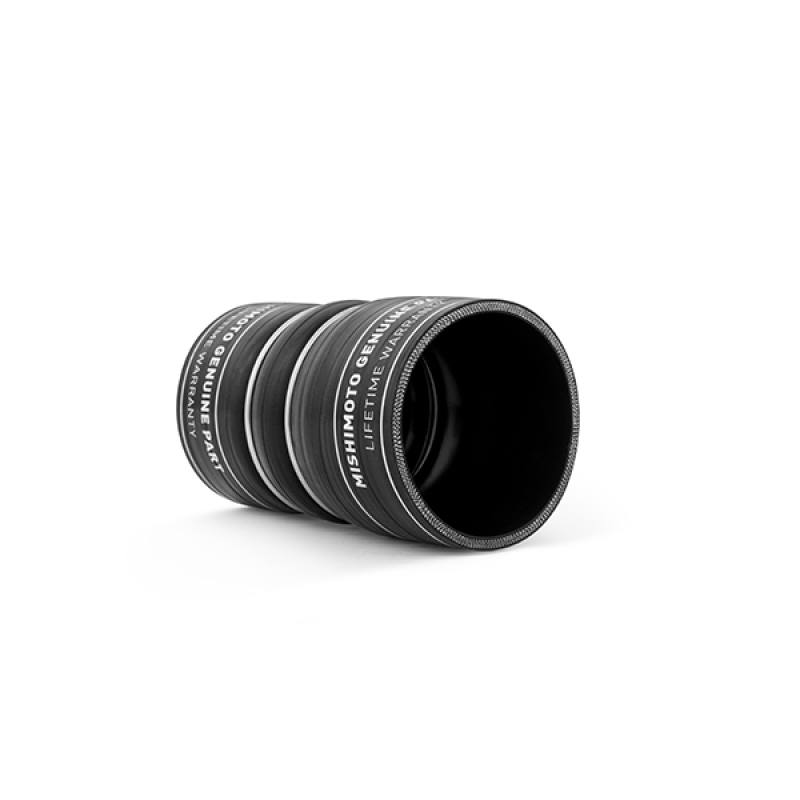

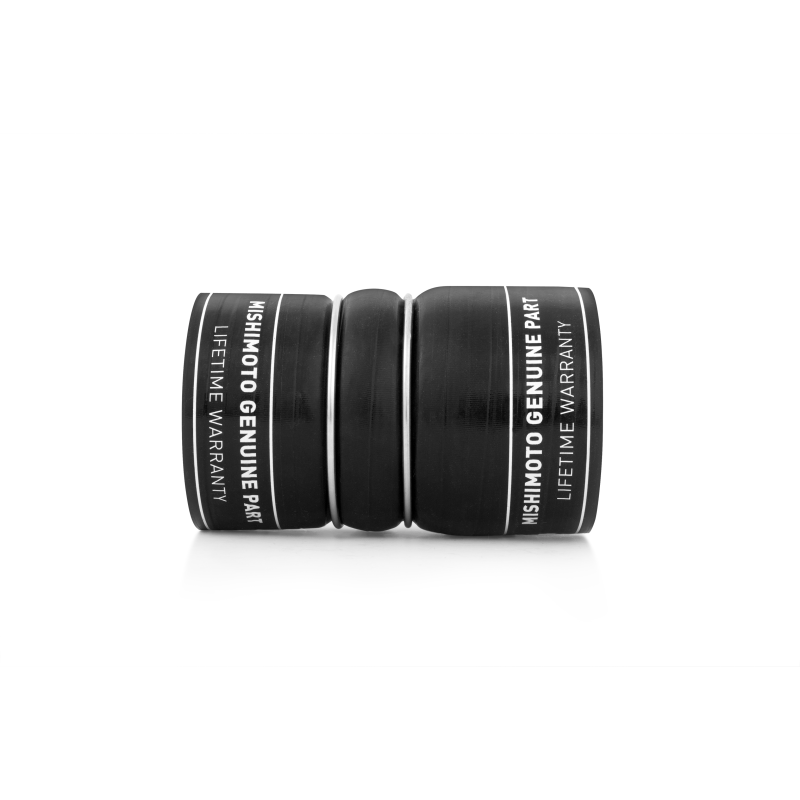

The Mishimoto MMBK-F2D-08HL is a direct-fit, hot side lower silicone boot engineered with Mishimoto’s proprietary DuraCore technology specifically for the 2008-2010 Ford 6.4L Powerstroke. This boot kit replaces the factory pipe (part number 8C3Z-6W651-A) that can wear out under the stress of turbocharged diesel operation, pairing a DuraCore-reinforced silicone boot with Mishimoto constant-tension T-bolt clamps for a durable, leak-resistant connection point in your truck’s air intake system.
Where lesser air intake components can crack, swell, or blow apart under sustained heat and boost pressure, this Mishimoto boot is built to resist heat, pressure, fuel, and oil, helping protect the integrity of the connection between your Powerstroke’s intake plumbing. The included constant-tension T-bolt clamps maintain consistent clamping force through repeated heat cycles, reducing the chance of leaks that can undermine any air intake system. It carries a maximum temperature rating of 428°F, and Mishimoto recommends an installation torque of 27 in-lbs (3NM) for the T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM); the maximum torque rating of 35 in-lbs (4NM) should never be exceeded. Backed by the Mishimoto Lifetime Warranty, this precision-engineered boot kit is designed to deliver years of reliable service as part of your truck’s air intake system.
Vehicle Applications
This boot kit is a specific fit for 2008-2010 Ford F-250 Super Duty trucks, including FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, and XLT trims, plus the 2009-2010 Cabela’s edition. It also fits the 2008-2010 Ford F-350 Super Duty in Harley-Davidson Edition, King Ranch, Lariat, XL, and XLT trims, the 2008-2009 F-350 FX4, and the 2009-2010 F-350 Cabela’s edition. Coverage extends to the 2008-2010 Ford F-450 Super Duty King Ranch, Lariat, XL, and XLT trims, the 2009-2010 F-450 Harley-Davidson Edition, and the 2010 F-450 Base. Rounding out fitment are the 2008-2010 Ford F-550 Super Duty Lariat, XL, and XLT trims, along with the 2008 F-550 Base.
Features
- Direct fit for the 2008-2010 Ford 6.4L Powerstroke
- Replaces weak factory pipe (part number 8C3Z-6W651-A)
- DuraCore technology provides superior resistance to heat, pressure, fuel, and oil

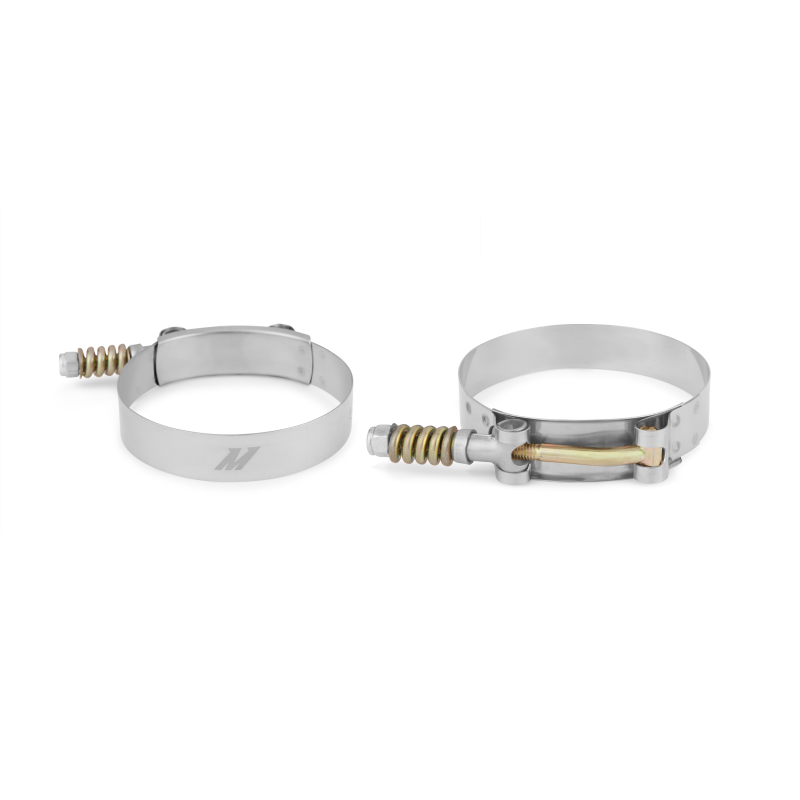

- Includes high-quality constant-tension T-bolt clamps
- Black silicone construction
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBK-F2D-08HL
- Material: Silicone with DuraCore
- Color: Black
- Clamps Included: Yes
- Fit Type: Specific
- Grade Type: Performance
- Maximum Temperature Rating: 428°F
- Installation Torque: 27 in-lbs (3NM) recommended; 18-35 in-lbs (2-4NM) operating range; 35 in-lbs (4NM) maximum

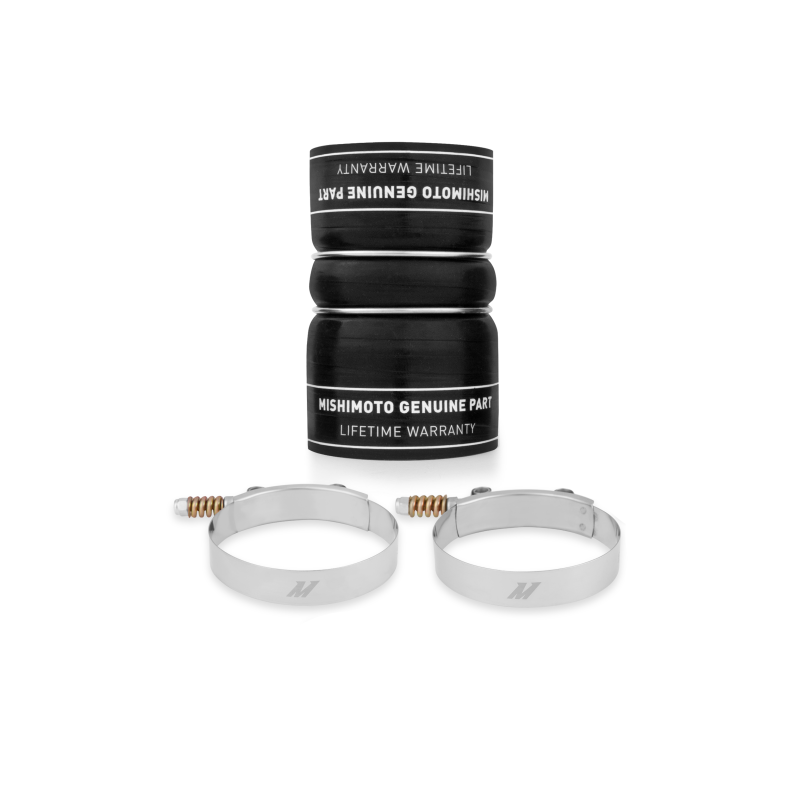

- Purchase Includes: (1) Hot Side, Lower Silicone Boot with DuraCore technology, (2) Constant-Tension T-Bolt clamps, (1) Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMBK-F2D-08HL fit?
This boot kit is a specific fit for the 2008-2010 Ford F-250, F-350, F-450, and F-550 Super Duty trucks with the 6.4L Powerstroke, covering trims such as FX4, Harley-Davidson Edition, King Ranch, Lariat, XL, XLT, Cabela’s, and Base depending on model and year, as listed in the vehicle applications section.
What factory part does this boot kit replace?
It replaces the factory pipe, part number 8C3Z-6W651-A.
What is Mishimoto DuraCore technology?
DuraCore is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil, which helps extend the life of the boot by preventing leaks and blowouts.
What is included with this kit?
The kit includes one hot side, lower silicone boot with DuraCore technology, two constant-tension T-bolt clamps, and the Mishimoto Lifetime Warranty.
What is the recommended installation torque for the clamps?
Mishimoto recommends 27 in-lbs (3NM) for the T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
What is the maximum temperature rating of this boot?
This silicone boot with DuraCore technology has a maximum temperature rating of 428°F.
