Description

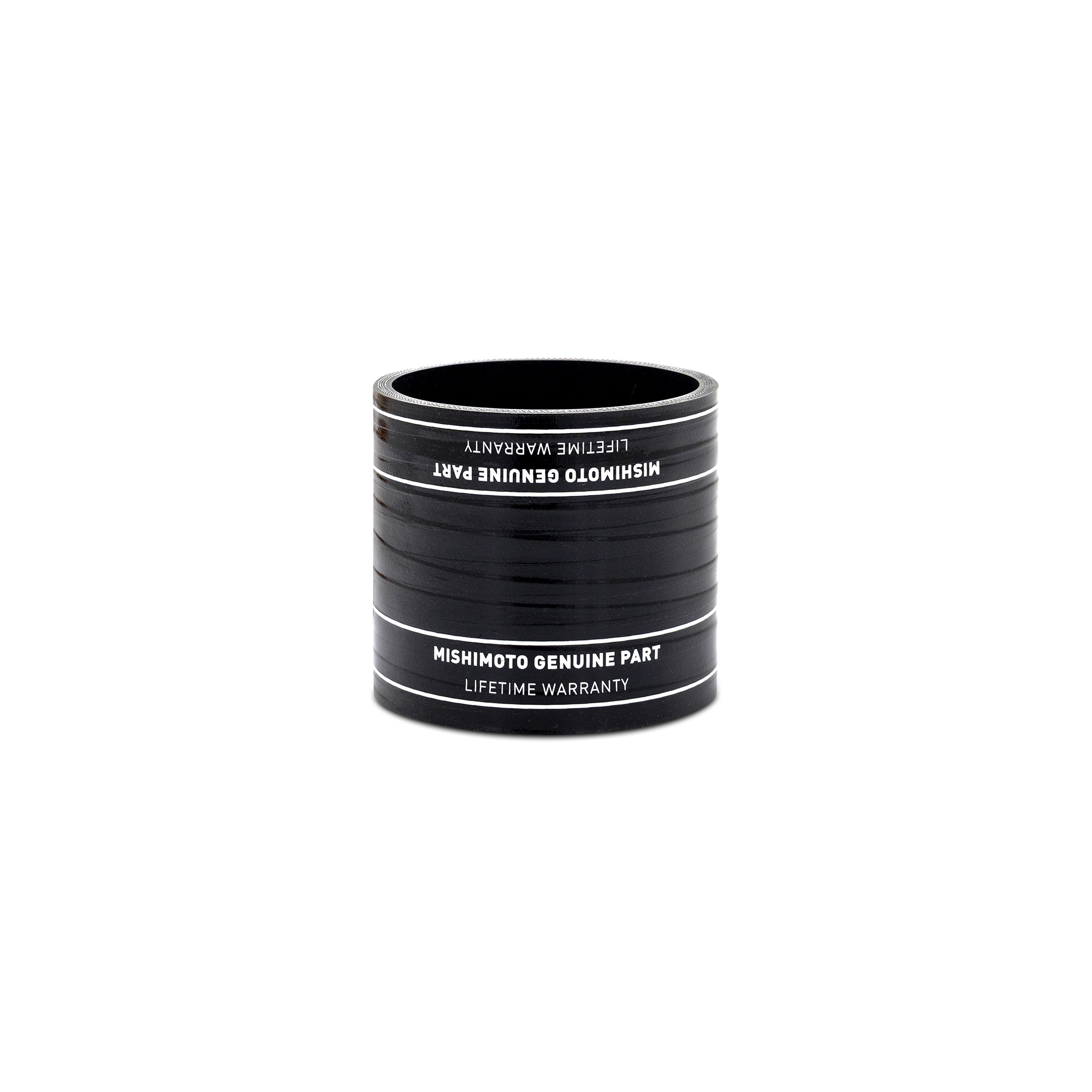

The Mishimoto DuraCore Silicone Straight Intercooler Boot (MMDCC-35SBK) is a black, 3.5-inch straight silicone coupler purpose-built for custom intercooler piping systems. Constructed from five layers of silicone reinforced with heat-resistant embedded fibers, this boot uses Mishimoto’s DuraCore technology in its innermost layer to stand up to heat, pressure, fuel, and oil exposure that standard silicone couplers struggle to survive under sustained high-boost conditions.
As part of Mishimoto’s broader DuraCore intercooler boot lineup, this coupler shares a family of options that includes straight, straight hump, transition, 45-degree, and 90-degree configurations spanning 3 to 4 inches in sizing, so builders can find the exact size and shape their fabrication demands for a complete air intake system or intercooler piping kit. Whether you’re routing charge pipes through a tight engine bay or replacing a failure-prone factory coupler, this Mishimoto boot is engineered to be the strongest link in the build rather than the point where it lets you down, and it remains coolant compatible for added versatility in a piping layout.
Vehicle Applications
This DuraCore Silicone Straight Intercooler Boot is a universal-fit component rather than a vehicle-specific part. It’s designed for fabricators and builders routing custom intercooler piping around tight engine bays or connecting mismatched tube diameters, giving you a coupler size and shape suited to whatever fabrication project you’re working on, independent of make, model, or year.
Features

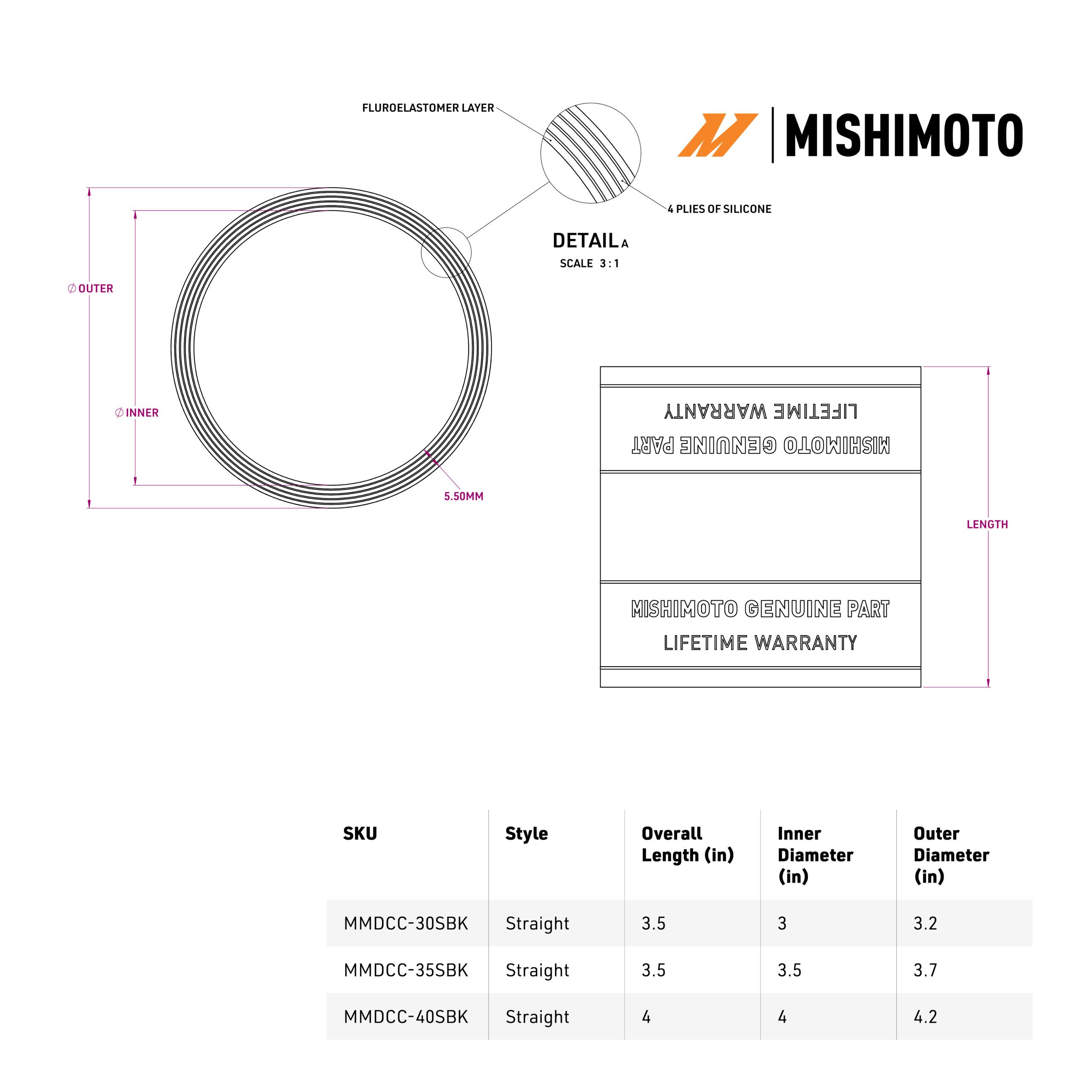

- Straight coupler configuration measuring 3.5 inches inner diameter, 3.93 inches outer diameter, and 3.5 inches overall length

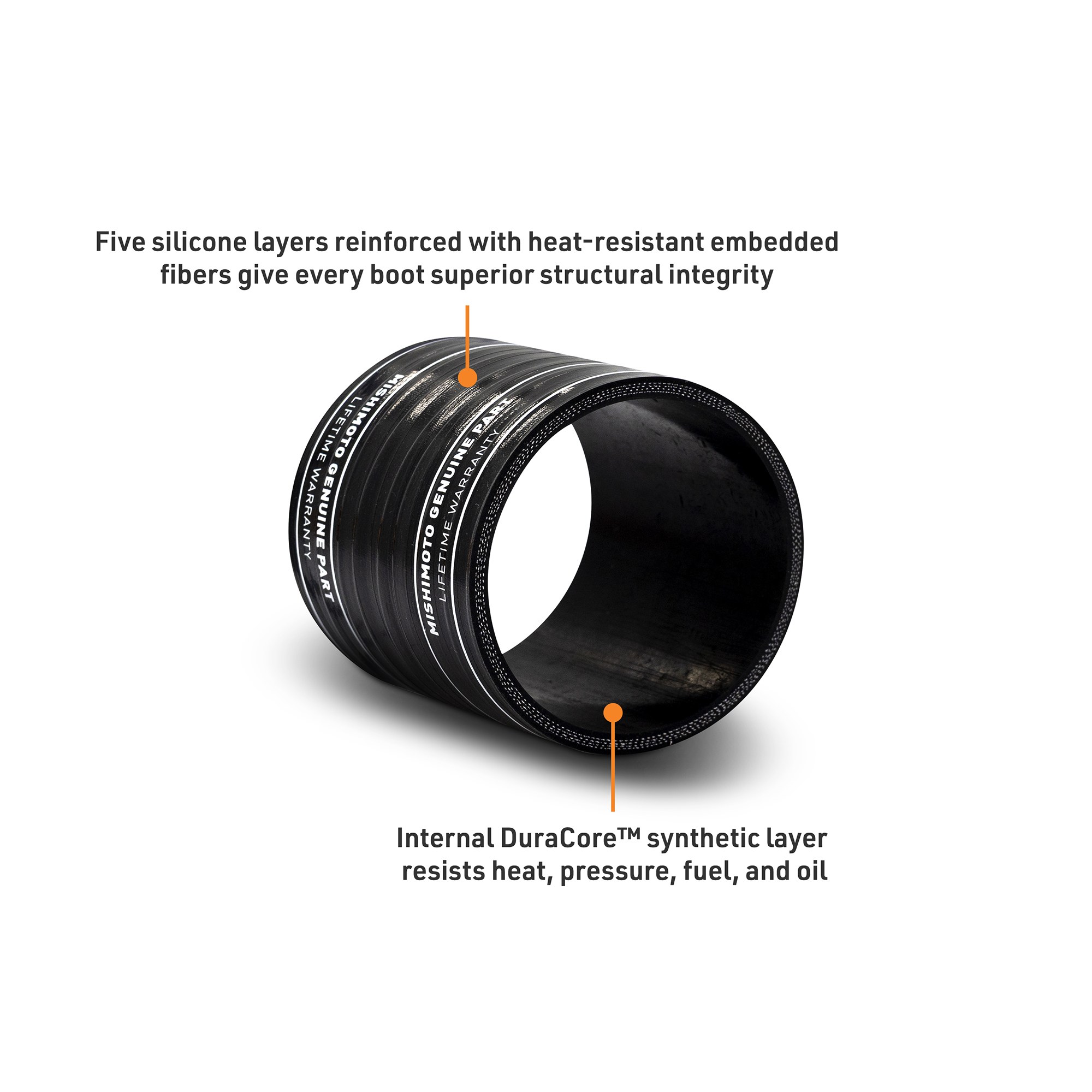

- Built from five layers of silicone with heat-resistant embedded fibers for structural integrity
- DuraCore synthetic inner layer resists heat, pressure, fuel, and oil better than standard silicone
- Coolant compatible construction
- Rated to withstand temperatures up to 347°F
- Black silicone finish
- Includes (1) coupler; hose clamps not included
- Recommended clamps: 2x MMCLAMP-4T constant tension T-bolt or 2x MMCLAMP-CTWG-105 constant tension worm-gear (sold separately)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMDCC-35SBK
- Material: Silicone with DuraCore Technology
- Color: Black
- Coupler Style/Shape: Straight
- Inner Diameter: 3.5 inches
- Outer Diameter: 3.93 inches
- Overall Length: 3.5 inches
- Maximum Temperature Rating: 347°F
- Coolant Compatible: Yes
- Hose Clamps Included: No
- Includes: (1) Coupler
- Warranty: Mishimoto Lifetime Warranty
- California Prop 65 Warning: Cancer and Reproductive Harm
Frequently Asked Questions
What is the Mishimoto DuraCore Silicone Straight Intercooler Boot made of?
It’s constructed from five layers of silicone with heat-resistant embedded fibers, using Mishimoto’s DuraCore technology in the innermost layer for added resistance to heat, pressure, fuel, and oil.
What size is the MMDCC-35SBK boot?
This straight coupler has a 3.5-inch inner diameter, a 3.93-inch outer diameter, and an overall length of 3.5 inches.
What is the maximum temperature rating of this boot?
It’s rated to withstand temperatures up to 347°F.
Are hose clamps included with this coupler?
No, hose clamps are not included. Mishimoto recommends 2x MMCLAMP-4T constant tension T-bolt clamps or 2x MMCLAMP-CTWG-105 constant tension worm-gear clamps.
Is this intercooler boot compatible with coolant?
Yes, this boot is coolant compatible.
Does this boot fit a specific vehicle make or model?
This is a universal-fit silicone coupler designed for custom intercooler piping builds rather than a specific make, model, or year.
