Description
The Mishimoto MMICP-EVO-01BL is a mandrel bent aluminum intercooler pipe kit built specifically for the Mitsubishi Lancer Evolution 7/8/9, finished in polished aluminum and paired with blue silicone couplers instead of the stock rubber pieces. Every pipe end is bead-rolled to keep couplers locked in place under boost, and the kit is designed with high-horsepower Evolution builds in mind. Whether the car is a daily driver or a stripped, caged time attack build, this kit is aimed at improving airflow through the charge air system.
By eliminating the restrictive bends found in factory Evolution piping, this Mishimoto forced induction piping kit helps improve turbocharger spool and supports a more efficient induction system overall. The blue silicone couplers offer greater heat and pressure tolerance than the factory rubber couplers, which matters as boost and underhood temperatures climb on a modified forced induction setup. Combined with lightweight mandrel bent aluminum pipes, this kit is built to be a durable, performance-oriented upgrade for owners looking to optimize their Evolution’s force induction system without adding unnecessary weight or restriction.
Vehicle Applications
This Mishimoto intercooler pipe kit is designed to fit the 2003–2006 Mitsubishi Lancer Evolution, including the 2005–2006 Lancer Evolution MR and RS trims, as well as the 2006 Lancer Evolution SE. Note that the upper intercooler pipes are not designed to work with the stock airbox, so an aftermarket open element air filter is required for proper installation.
Features
- Direct fit for the Mitsubishi Lancer Evolution 7/8/9
- Lightweight, mandrel bent, polished aluminum pipes
- Eliminates restrictive bends found in the stock piping for more efficient airflow
- Improves turbocharger spool and provides support for high-horsepower vehicles
- Bead-rolled pipe ends prevent boost leaks and coupler disconnection
- Blue silicone couplers provide increased heat and pressure tolerance versus stock rubber couplers
- Includes 10 T-bolt clamps for secure, leak-free connections
- CARB EO Number D-759; CARB compliant for 2003-2006 model years only
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Pipe Material: Aluminum
- Finish: Polished
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Blue
- Clamp Type: T-Bolt
- Clamp Quantity: 10
- Clamps Included: Yes
- CARB EO Number: D-759
- Recommended Clamp Torque: 27 in-lbs (3NM), operating range 18-35 in-lbs (2-4NM), do not exceed 35 in-lbs (4NM)

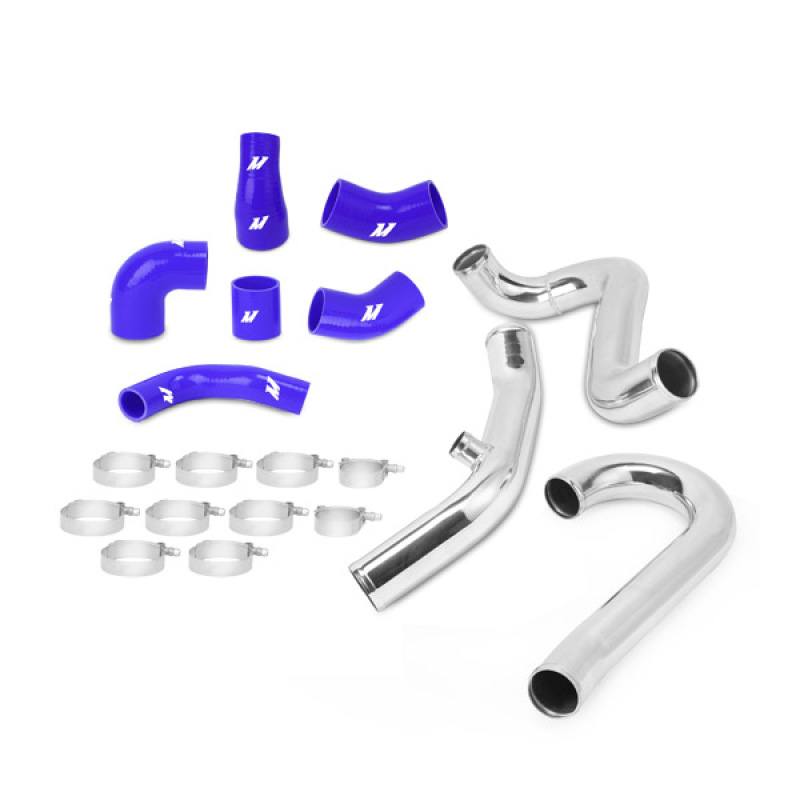

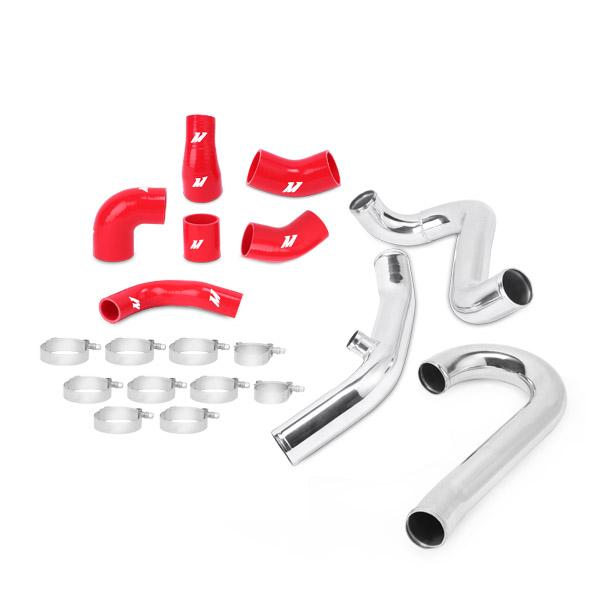

- Kit Includes: (3) Performance Aluminum Intercooler Pipes, (6) Silicone Couplers, (10) T-Bolt Clamps, (1) CARB Sticker, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does the Mishimoto MMICP-EVO-01BL intercooler pipe kit fit?
This kit fits the 2003–2006 Mitsubishi Lancer Evolution, including the 2005–2006 Lancer Evolution MR and RS, and the 2006 Lancer Evolution SE.
What is included with this intercooler pipe kit?
The kit includes (3) Performance Aluminum Intercooler Pipes, (6) Silicone Couplers, (10) T-Bolt Clamps, (1) CARB Sticker, and the Mishimoto Lifetime Warranty.
Will this kit work with the factory airbox?
No. The upper intercooler pipes are not designed to work with the stock airbox, so an aftermarket open element air filter is required.
Is this intercooler pipe kit CARB compliant?
Yes, it carries CARB EO Number D-759 and is CARB compliant for 2003-2006 model years only.
What color are the couplers on this kit?
This kit uses blue silicone couplers, which provide increased heat and pressure tolerance compared to the stock rubber couplers.
What torque should be used when installing the clamps?
A torque of 27 in-lbs (3NM) is recommended for the T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM).
