Description
The Mishimoto MMICP-EVO-01UBL is a mandrel bent aluminum intercooler pipe kit built specifically for the Mitsubishi Lancer Evolution 7/8/9, finished in polished aluminum and paired with blue silicone couplers for a distinctive look under the hood. Bead-rolled pipe ends and a full set of T-bolt clamps keep this forced induction plumbing locked together, replacing the factory rubber connections that can loosen or crack under boost.
Designed with high-horsepower applications in mind, this Mishimoto intercooler pipe kit improves the airflow efficiency of your charge air system, helping the turbo spool more effectively whether you’re driving your Evolution daily or campaigning a stripped and caged time attack build. The silicone couplers used throughout offer greater heat and pressure tolerance than the stock rubber pieces, an important upgrade for any performance induction system that sees repeated boost cycles. As a forced induction upgrade, this pipe kit is built to handle the demands of a modified induction system without sacrificing the bead-rolled, leak-resistant connections that keep everything sealed at the couplers.
Vehicle Applications
This Mishimoto intercooler pipe kit is designed to fit the Mitsubishi Lancer Evolution from 2003 to 2006, along with the Evolution MR and Evolution RS trims for 2005 to 2006, and the Evolution SE for 2006. Coverage spans the 7/8/9 generation of the Evolution platform across these specific model years and trims.
Features

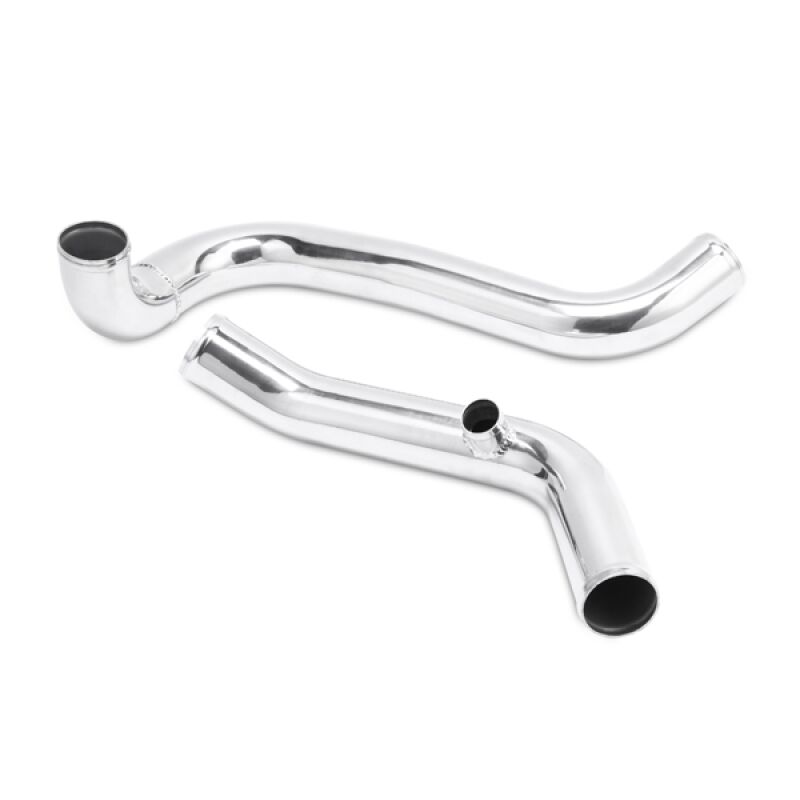

- Mandrel bent, polished aluminum intercooler pipes for smooth, unrestricted airflow
- Bead-rolled pipe ends help prevent leaks and coupler disconnection

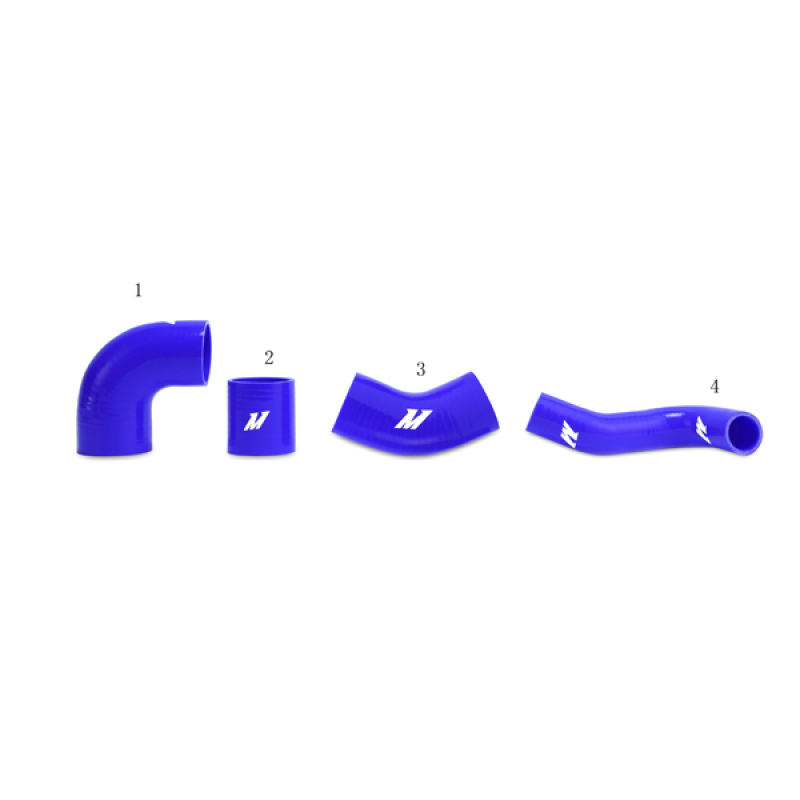

- Blue silicone couplers offer increased heat and pressure tolerance versus stock rubber
- T-bolt clamps included for a secure, leak-resistant connection at every joint
- CARB compliant for 2003-2006 model years only (CARB EO Number D-759)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-EVO-01UBL
- Finish: Polished
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Blue
- Clamp Type: T-Bolt
- Clamps Included: Yes
- CARB EO Number: D-759

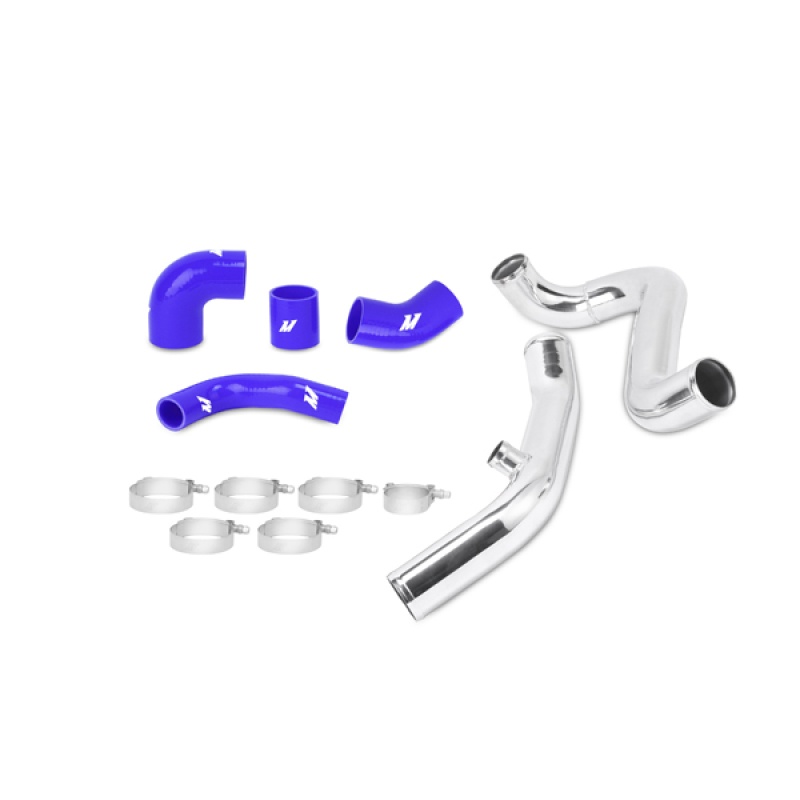

- Kit Includes: (2) Performance Aluminum Intercooler Pipes, (4) Silicone Couplers, (6) T-Bolt Clamps, (1) CARB Sticker, Mishimoto Lifetime Warranty
- Installation Notes: 27 in-lbs (3NM) recommended torque for all T-bolt and constant-tension T-bolt clamps; operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What does the Mishimoto Evolution 7/8/9 Intercooler Pipe Kit include?
The kit includes (2) Performance Aluminum Intercooler Pipes, (4) Silicone Couplers, (6) T-Bolt Clamps, (1) CARB Sticker, and the Mishimoto Lifetime Warranty.
Which vehicles does this intercooler pipe kit fit?
It is designed for the Mitsubishi Lancer Evolution (2003-2006), Evolution MR (2005-2006), Evolution RS (2005-2006), and Evolution SE (2006).
What color are the couplers on this kit?
This kit uses blue silicone couplers.
Is this intercooler pipe kit CARB compliant?
Yes, it is CARB compliant for 2003-2006 model years only, under CARB EO Number D-759.
What type of clamps come with this kit?
The kit includes T-bolt clamps, and clamps are included with purchase.
What is the recommended torque for the included clamps?
A torque of 27 in-lbs (3NM) is recommended for all T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM).
