Description
The Mishimoto MMICP-F150-11CWBK is a wrinkle black cold-side intercooler pipe kit built for the 3.5L V6 EcoBoost engine, replacing the factory plastic piping with mandrel-bent aluminum tubing finished in a durable wrinkle black powder coat. This kit pairs a pipe featuring a CNC quick-disconnect flange with a second pipe machined for a CNC IAT sensor housing, both sized to a 3.5-inch inside diameter so the cold side of the induction system can move more air with fewer restrictions than the stock setup. As part of Mishimoto’s Forced Induction lineup, this pipe kit is engineered specifically to eliminate the tight bends and thin-wall plastic that limit airflow on the factory EcoBoost charge-air system.
By opening up the cold-side path with mandrel-bent aluminum and eliminating restrictive bends, this kit increases internal volume by 34 percent compared to the stock piping, giving the forced induction system room to flow more freely under boost. Each pipe connects through Mishimoto Silicone Boots built with DuraCore technology, which resist heat, pressure, fuel, and oil far better than typical couplers, helping prevent leaks and blowouts in a hard-working induction system. Constant-tension T-bolt clamps are included to keep every joint secure under repeated heat cycling, and no trimming or additional modification is required for installation. When paired with Mishimoto’s matching hot-side intercooler pipe kit for the same trucks, this cold-side kit can help contribute to gains of up to 15 more horsepower and 21 ft/lbs more torque, and adding Mishimoto’s performance intercooler further rounds out an upgraded induction system.
Vehicle Applications
This cold-side intercooler pipe kit is a direct fit for the 2011-2014 Ford F-150 with the 3.5L V6 EcoBoost engine, covering XL, XLT, FX2, FX4, King Ranch, Lariat, and Platinum trims across that full range, the Limited trim for 2013-2014, and the 2014 Tremor. Coverage extends to the 2015-2017 Ford Expedition lineup, including XL, XLT, Limited, King Ranch, and Platinum trims for 2015-2017 and the SSV trim for 2016-2017, as well as the long-wheelbase Expedition EL in the same XL, XLT, Limited, King Ranch, and Platinum trims for 2015-2017 and EL SSV for 2016-2017. The Expedition Max is also covered, with XL and Limited trims for 2015-2017 and Platinum for 2016-2017. On the Lincoln side, this kit fits the Navigator Reserve and L Reserve trims for 2015-2017, Select and L Select trims for 2016-2017, the Base trim for 2015-2016, and the L trim for 2015 only — all equipped with the 3.5L V6 EcoBoost engine, chassis code P415.
Features
- Mandrel-bent aluminum piping finished in wrinkle black powder coat
- 34-percent greater internal volume than the stock cold-side piping
- 3.5-inch inside diameter cold-side piping

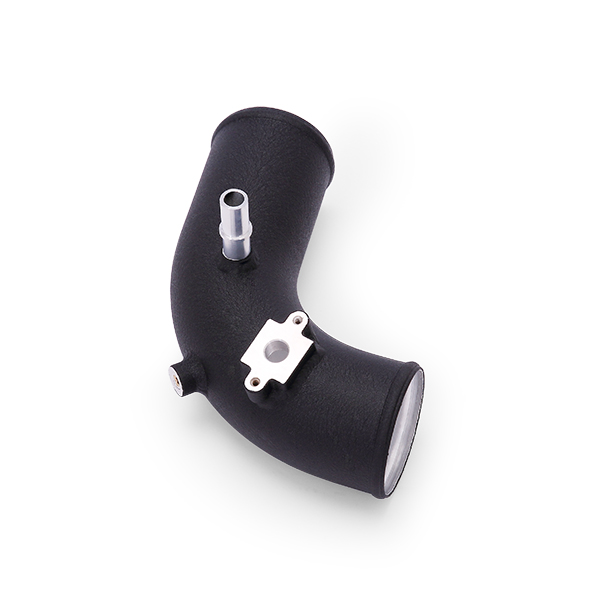

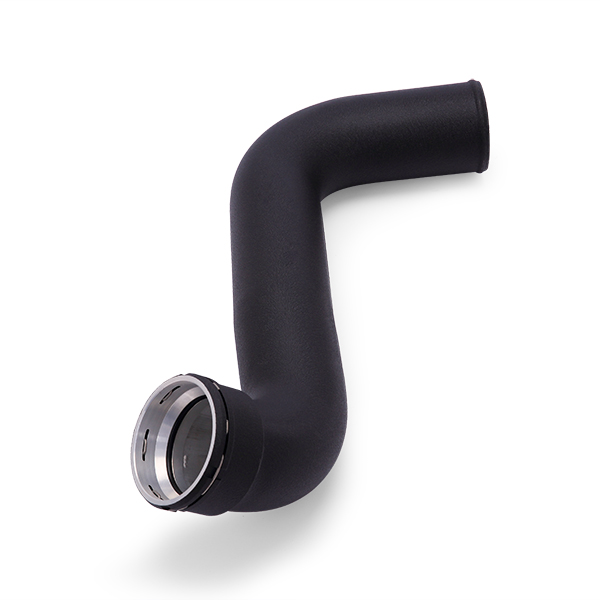

- Pipe with CNC quick-disconnect flange plus a second pipe with a CNC IAT sensor housing

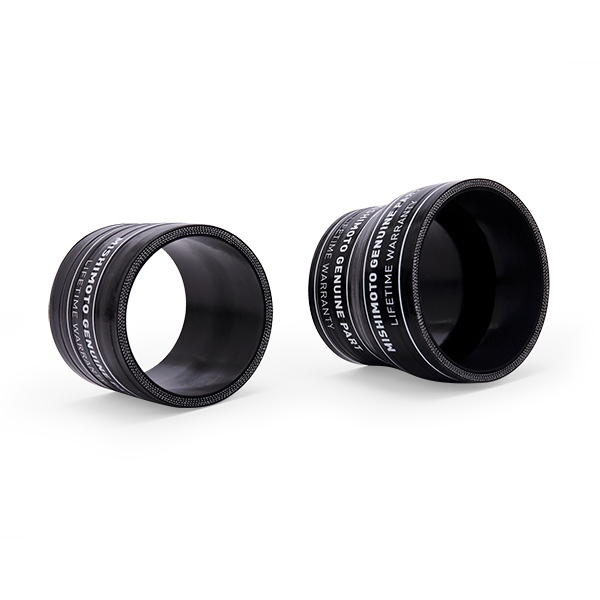

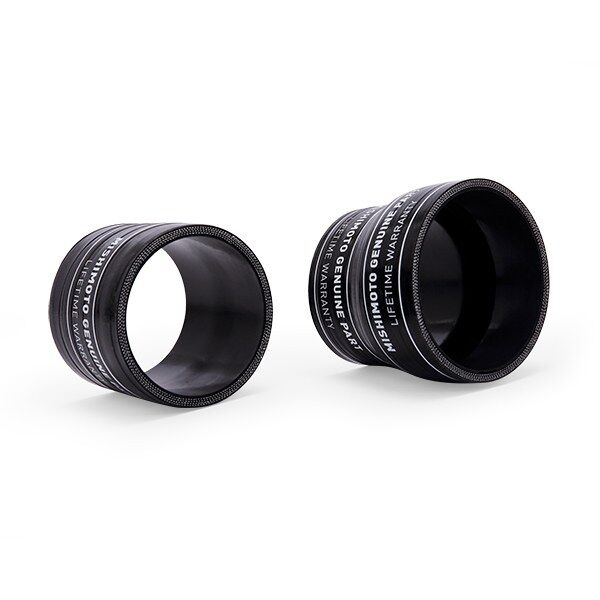

- Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension T-bolt clamps included for a secure installation
- No trimming or additional modification necessary for installation
- CARB EO Number D-759-6
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-F150-11CWBK
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Color/Finish: Black, wrinkle black powder coated
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: T-Bolt (constant-tension)
- Cold Side Pipe Inside Diameter: 3.5 in
- Hot Side Pipe Inside Diameter: 3.5 in
- Engine Codes: 3.5L V6 EcoBoost
- Chassis Codes: P415
- CARB EO Number: D-759-6

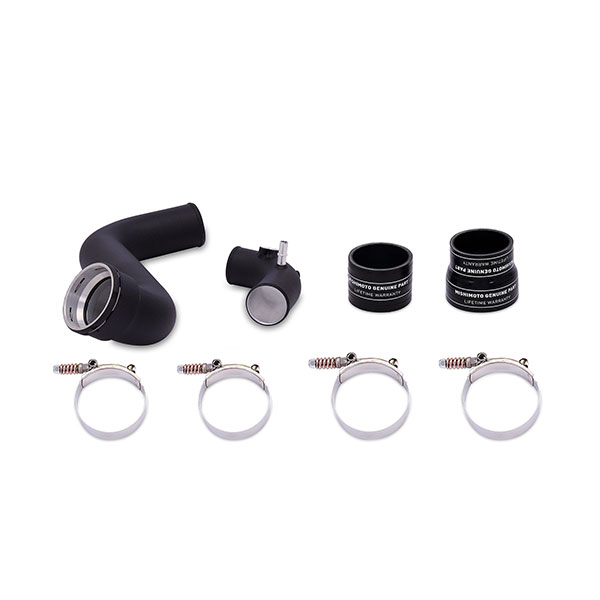

- Kit Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange, (1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing, (2) Silicone Boots w/ DuraCore Technology, (4) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
- Recommended Clamp Torque: 27 in-lbs (3NM), operating range 18-35 in-lbs (2-4NM), do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles does this Mishimoto cold-side intercooler pipe kit fit?
It is a direct fit for the 2011-2014 Ford F-150 3.5L V6 EcoBoost (XL, XLT, FX2, FX4, King Ranch, Lariat, Platinum for 2011-2014, Limited for 2013-2014, and Tremor for 2014), the 2015-2017 Ford Expedition, Expedition EL, and Expedition Max (various trims per year as listed), and the Lincoln Navigator, Navigator L, Navigator Reserve/Select and L Reserve/L Select trims across 2015-2017, all with the 3.5L V6 EcoBoost engine and chassis code P415.
What does the kit include?
The kit includes one aluminum intercooler pipe with a CNC quick-disconnect flange, one aluminum intercooler pipe with a CNC IAT sensor housing, two Silicone Boots with DuraCore technology, four constant-tension T-bolt clamps, and Mishimoto’s Lifetime Warranty.
What material and finish are the pipes?
The pipes are mandrel-bent aluminum, and this version comes finished in wrinkle black powder coat.
How much of a performance gain can this kit provide?
When paired with Mishimoto’s matching hot-side intercooler pipe kit, this cold-side kit can contribute to gains of up to 15 more horsepower and 21 ft/lbs more torque.
What clamps are used and what torque should they be set to?
The kit uses constant-tension T-bolt clamps. Mishimoto recommends 27 in-lbs (3NM) for these clamps, with an operating range of 18-35 in-lbs (2-4NM), and advises not exceeding a maximum of 35 in-lbs (4NM).
Is this intercooler pipe kit covered by a warranty?
Yes, this Mishimoto cold-side intercooler pipe kit is backed by the Mishimoto Lifetime Warranty.
