Description
The Mishimoto Performance Intercooler Power Pack (MMB-F80-PPCMG) is a purpose-built forced induction upgrade engineered specifically for the S55-powered BMW F8X chassis. Where BMW’s factory air-to-water intercooling system left room for improvement, Mishimoto re-engineered the core cooling components and replaced the factory plastic charge pipes—known to crack under pressure or split at the seams—with a stronger, all-aluminum forced induction solution.
This performance induction system pairs a bar-and-plate style Performance Air-to-Water Intercooler with a redesigned Heat Exchanger and a full Charge Pipe Kit, delivering a more capable induction engine cooling package than the stock “silver box” design. The intercooler core volume has been increased by 29-percent with a 16-percent improvement in flow, while the all-aluminum Heat Exchanger sees a 180-percent increase in fin surface area and a 60-percent increase in core volume. Mishimoto reports a 12°F drop in intake air temperatures and a 10°F reduction in global intercooler coolant temperatures, along with dyno-proven average power gains of 11 whp and 8 wtq—with peak gains up to 31 whp and 10 wtq on a stage 1 tuned vehicle. The charge pipes use full aluminum construction with a cast mid-section designed to clear the intake, connected via matte black silicone couplers for a sleek, secure link to the intercooler.
Vehicle Applications
This forced induction system is a specific fit for the S55-equipped BMW F8X platform (chassis codes F80, F82, F83, F87), covering the 2015-2018 BMW M3, the 2015-2020 BMW M4, the 2016 BMW M4 GTS, the 2018-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition.
Features
- Direct fit for the BMW F8X M3, M4, and M2 Competition

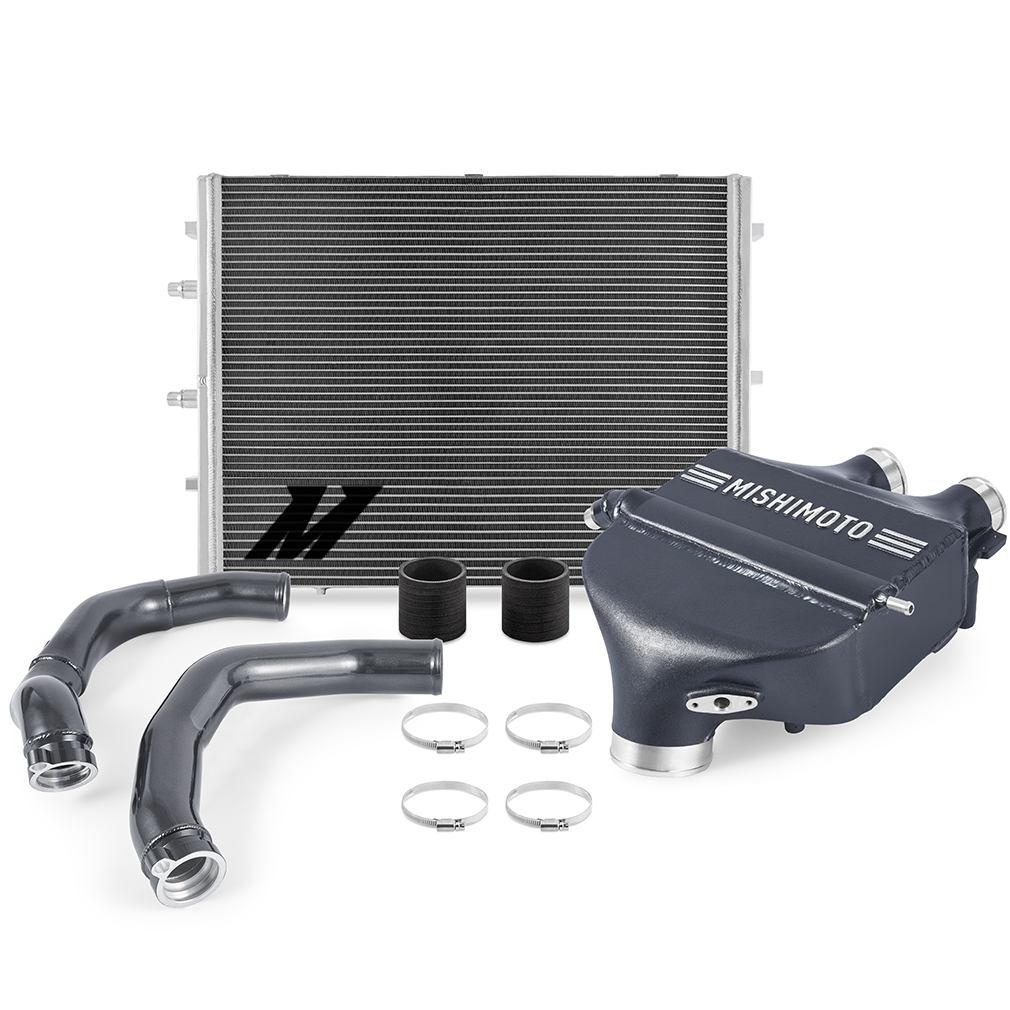

- Includes S55 Performance Intercooler, Heat Exchanger, and Charge Pipe Kit
- Available in a choice of 7 BMW specific color-matching options, including Mineral Gray Metallic, or classic black
- 12°F drop in intake air temperatures and 10°F reduction in global intercooler coolant temperatures
- Dyno-proven average power gains of 11 whp and 8 wtq, with peak gains up to 31 whp and 10 wtq on a stage 1 tuned vehicle

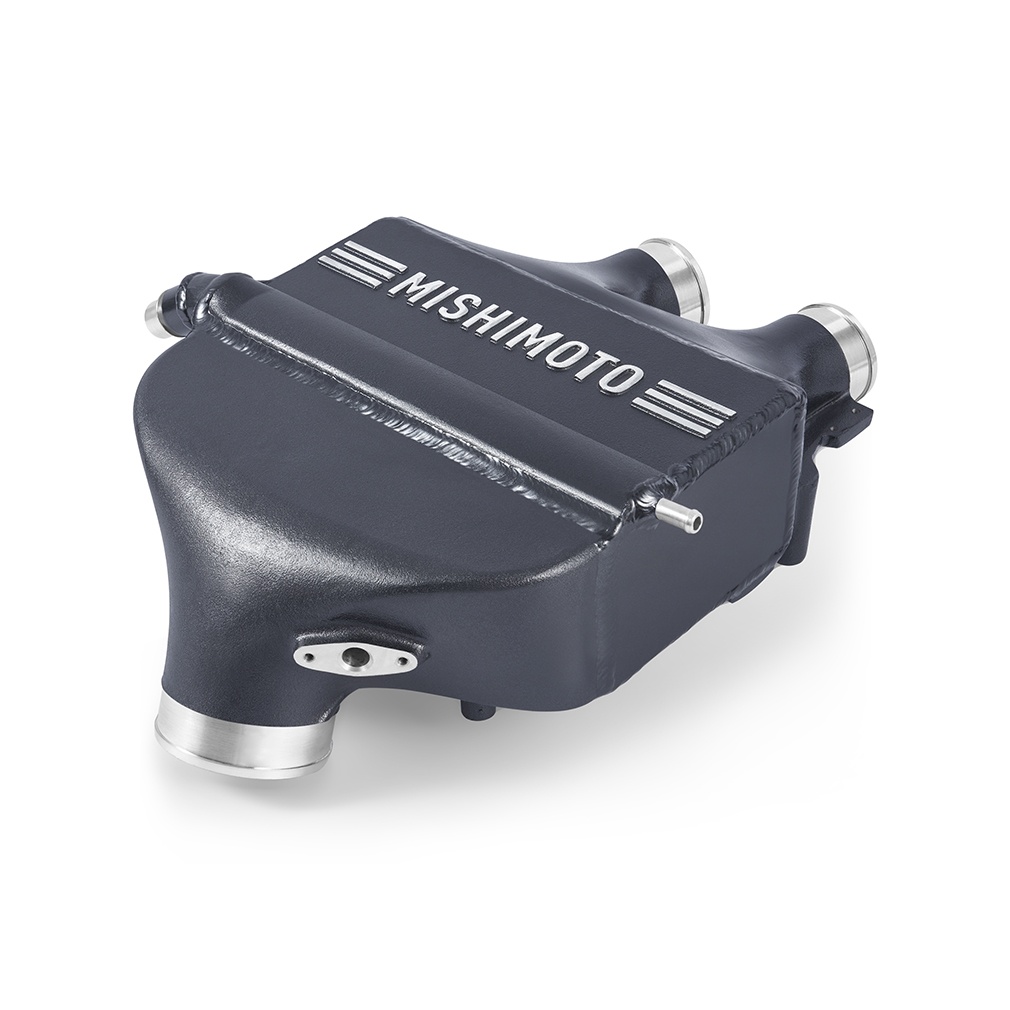

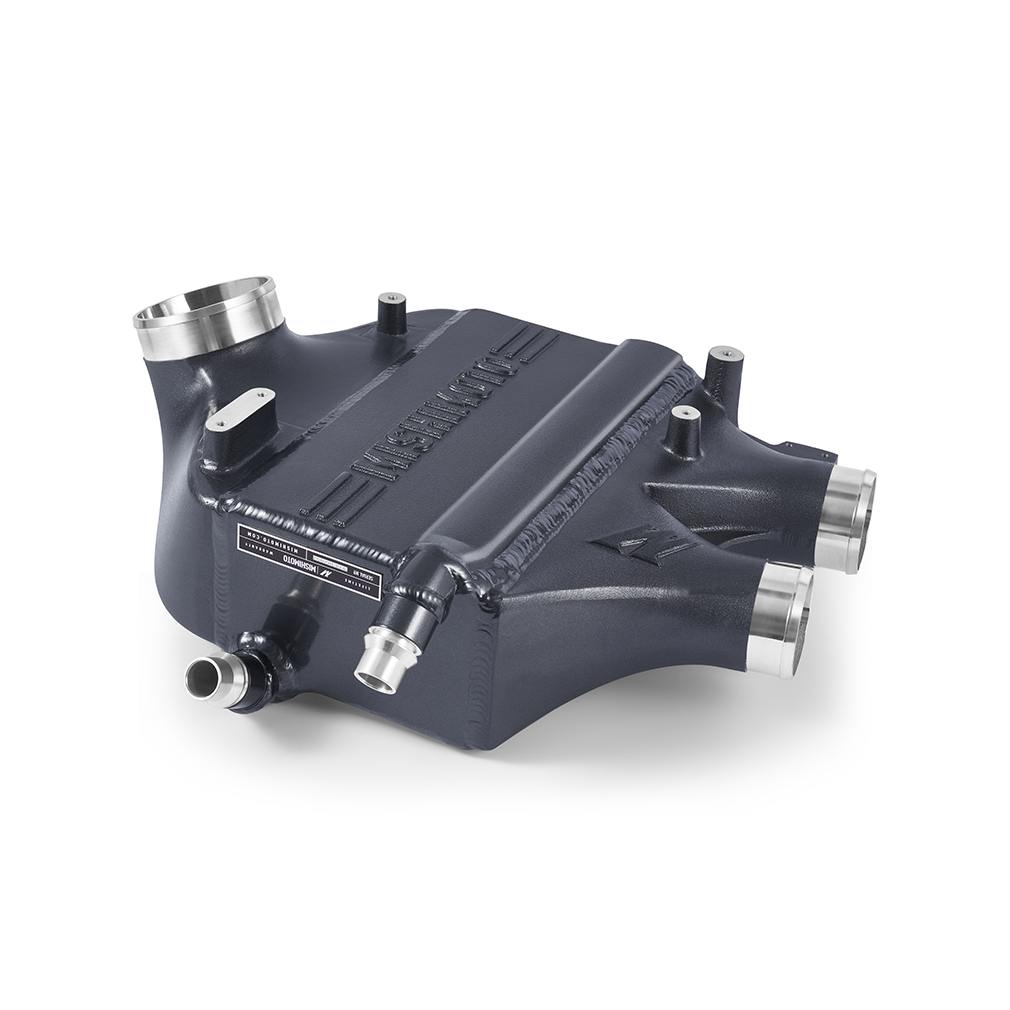

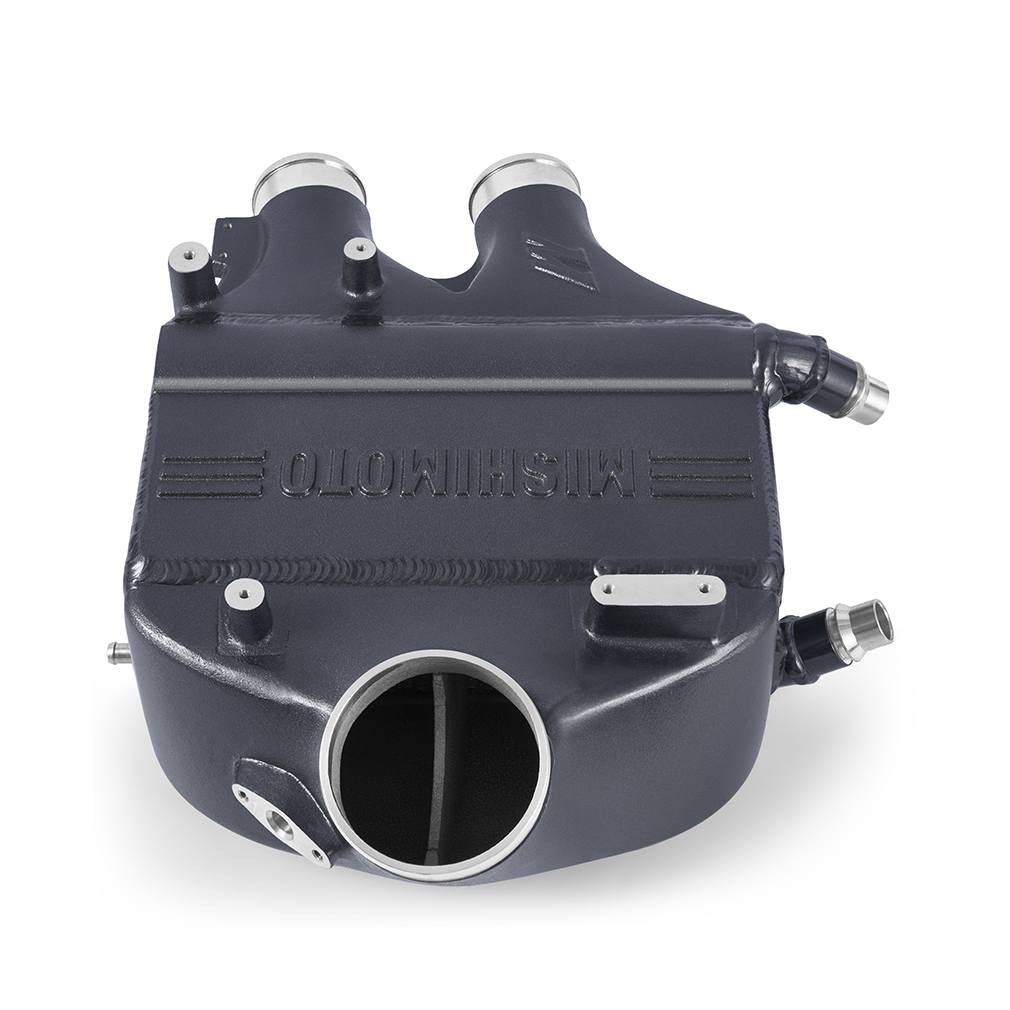

- Intercooler features a bar-and-plate, single-pass coolant passage design with cast aluminum end tanks for optimal flow and cooling capacity
- Intercooler core volume increased by 29-percent with 16-percent improved flow
- Heat Exchanger features all-aluminum construction with a 180-percent increase in fin surface area and 60-percent increase in core volume
- Heat exchanger includes an optional stone guard for added protection against road debris
- Heat exchanger uses variable fin pitch for improved flow to the DCT cooler
- Charge Pipe Kit features full aluminum construction and a cast midsection for durability and fitment
- Charge pipes include matte silicone couplers for a secure connection to the intercooler
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMB-F80-PPCMG
- Product Type: Forced Induction
- Universal or Specific Fit: Specific
- Grade Type: Performance
- Intercooler Type: Air-to-Water
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Engine Codes: S55
- Chassis Codes: F80, F82, F83, F87
- Includes: (1) Performance Air-to-Water Intercooler, (1) Performance Heat Exchanger, (1) Heat Exchanger Stone Guard, (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, (1) CARB EO Sticker, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is included in the Mishimoto MMB-F80-PPCMG Power Pack?
The kit includes (1) Performance Air-to-Water Intercooler, (1) Performance Heat Exchanger, (1) Heat Exchanger Stone Guard, (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, (1) CARB EO Sticker, mounting hardware, and the Mishimoto Lifetime Warranty.
Which BMW vehicles fit this Mishimoto Performance Intercooler Power Pack?
This forced induction package is a specific fit for the S55-powered BMW F8X chassis, covering the 2015-2018 BMW M3, 2015-2020 BMW M4, 2016 BMW M4 GTS, 2018-2020 BMW M4 CS, and 2019-2020 BMW M2 Competition (chassis codes F80, F82, F83, F87).
What issue does this kit address with the factory charge pipes?
BMW’s factory plastic charge pipes commonly crack under pressure or split at the seams. Mishimoto’s replacement charge pipes use full aluminum construction with a cast mid-section designed to squeeze past the intake, plus matte black silicone couplers for a secure connection to the intercooler.
What performance gains has Mishimoto recorded with this intercooler system?
Mishimoto reports dyno-proven average power gains of 11 whp and 8 wtq, with peak gains of up to 31 whp and 10 wtq on a stage 1 tuned vehicle, along with a 12°F drop in intake air temperatures and a 10°F reduction in global intercooler coolant temperatures.
What color options are available for this Power Pack?
The kit is available in a choice of 7 BMW specific color-matching options, such as Mineral Gray Metallic, or classic black.
What construction does the Performance Intercooler and Heat Exchanger use?
The intercooler uses a bar-and-plate, single-pass coolant passage core with cast aluminum end tanks, while the Heat Exchanger features all-aluminum construction with a 180-percent increase in fin surface area and a 60-percent increase in core volume.
