Description
Mishimoto’s F1X M5/M6 Charge Pipes (MMICP-F10-12MWBK) are a full-aluminum, TIG-welded replacement for the factory plastic charge pipes that are a known weak point on the BMW M5 and M6. Designed as a forced induction upgrade for enthusiasts chasing more boost, these charge pipes address a real failure point: factory plastic pipes are prone to splitting at the plastic welds near the turbo or bursting along the seam, resulting in a boost leak. This kit swaps that vulnerability for a mandrel-bent, all-metal induction path built to hold up under sustained boost.

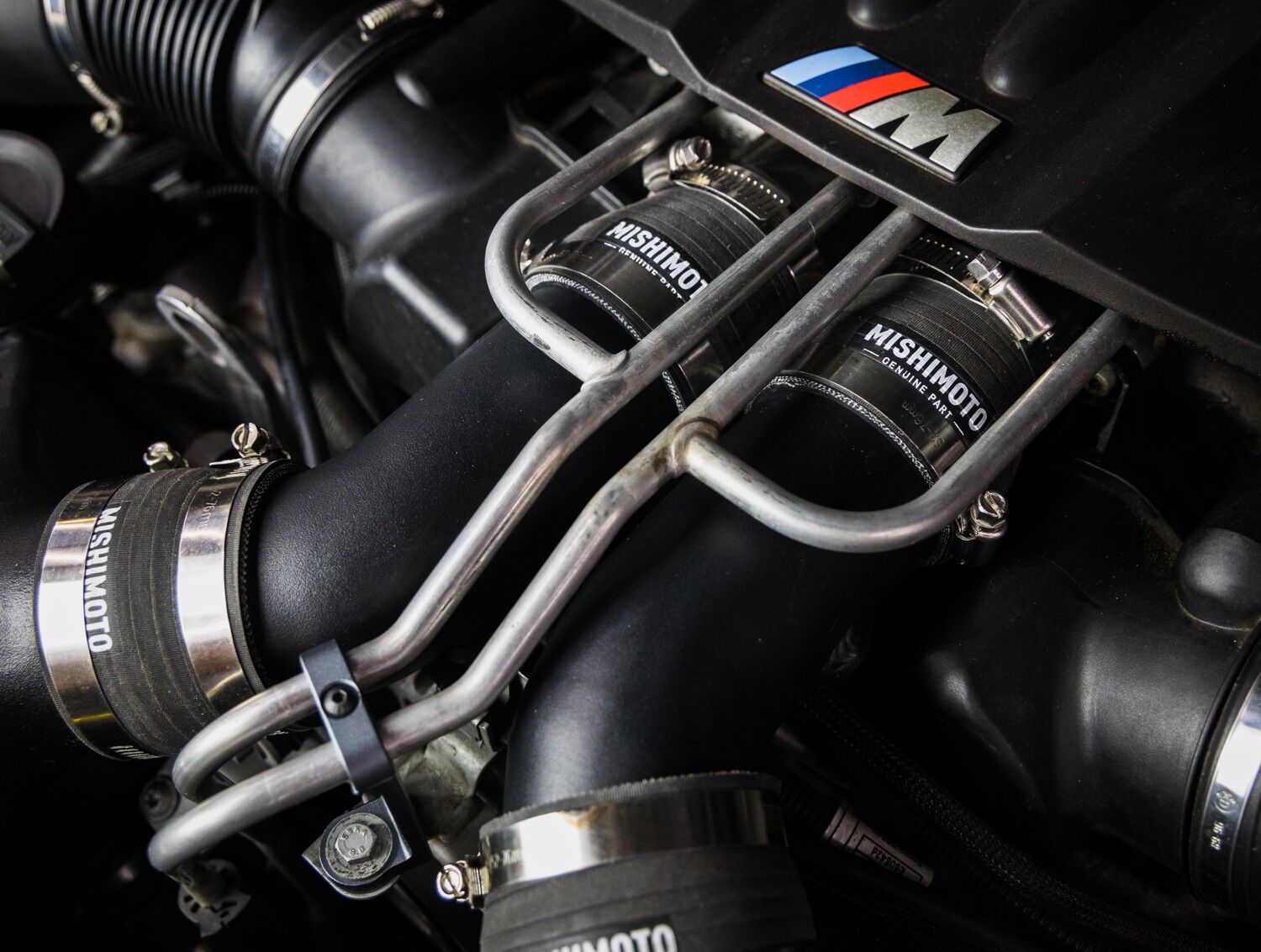

Every Mishimoto charge pipe in this forced induction system is shaped for a smoother, more uniform airflow path from turbo to intercooler without altering factory fitment. The kit pairs the aluminum pipes with a CNC-machined 6061 aluminum bracket that supports the factory metal coolant lines normally carried by the factory intake tubing, plus a pair of matte black silicone couplers for a secure, stock-styled connection to the air-to-water intercoolers. A bung is included for straightforward methanol injection integration, making this charge pipe kit a practical piece of any performance induction system built around the factory turbos. It’s backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This charge pipe kit is built for the F10/F13-chassis BMW M5 and M6 equipped with the S63 engine. Coverage includes the BMW M5 Base for 2012–2016 and 2018, plus the 2017 M5 Competition Edition. On the M6 side, it fits the M6 Base across 2012–2018, the M6 Competition Edition for 2017–2018, the M6 Competition Edition M Performance for 2017, and the M6 Gran Coupe Competition Edition for 2014 and 2017–2018.
Features
- Full aluminum, TIG-welded construction for maximum durability
- Mandrel-bent pipes designed for optimal, uniform airflow from turbo to intercooler
- Holds up against increased boost pressure better than the factory plastic pipes

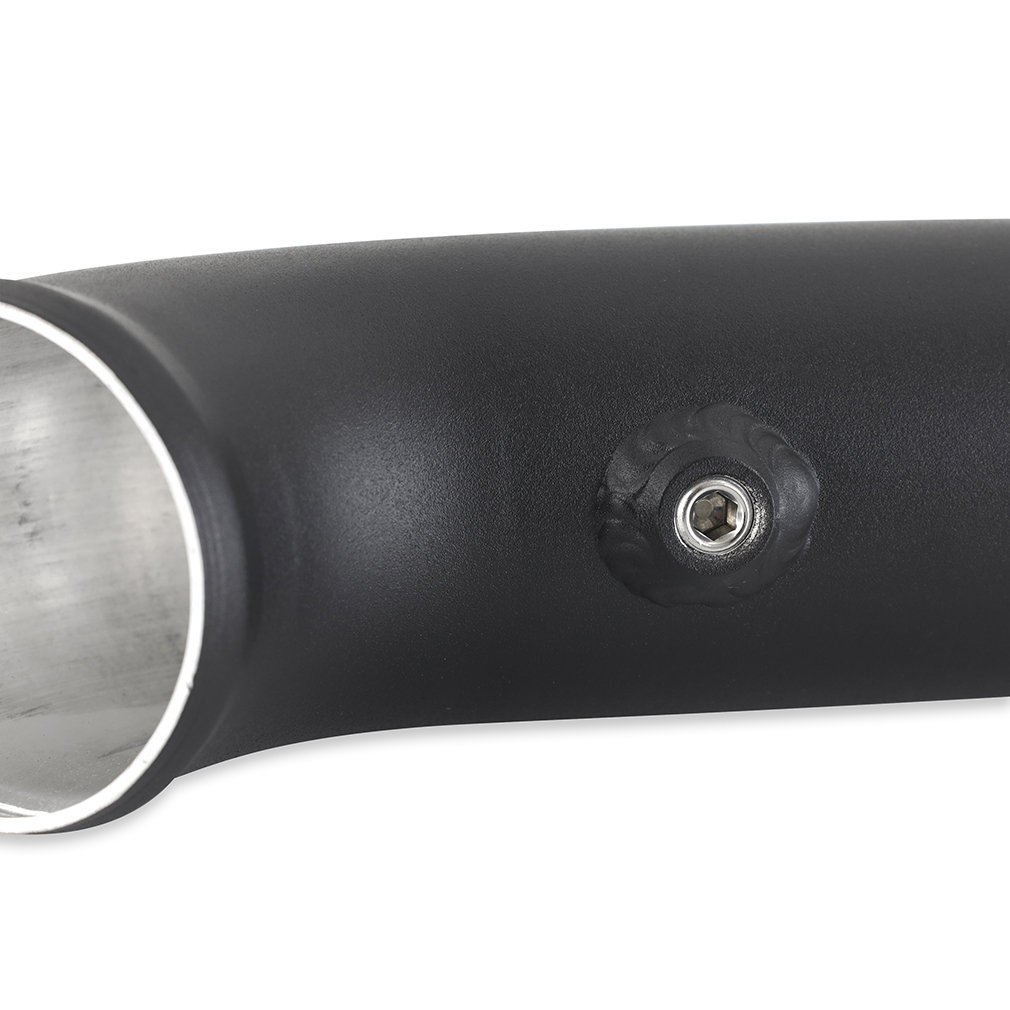

- Includes a bung for simple integration of methanol injection

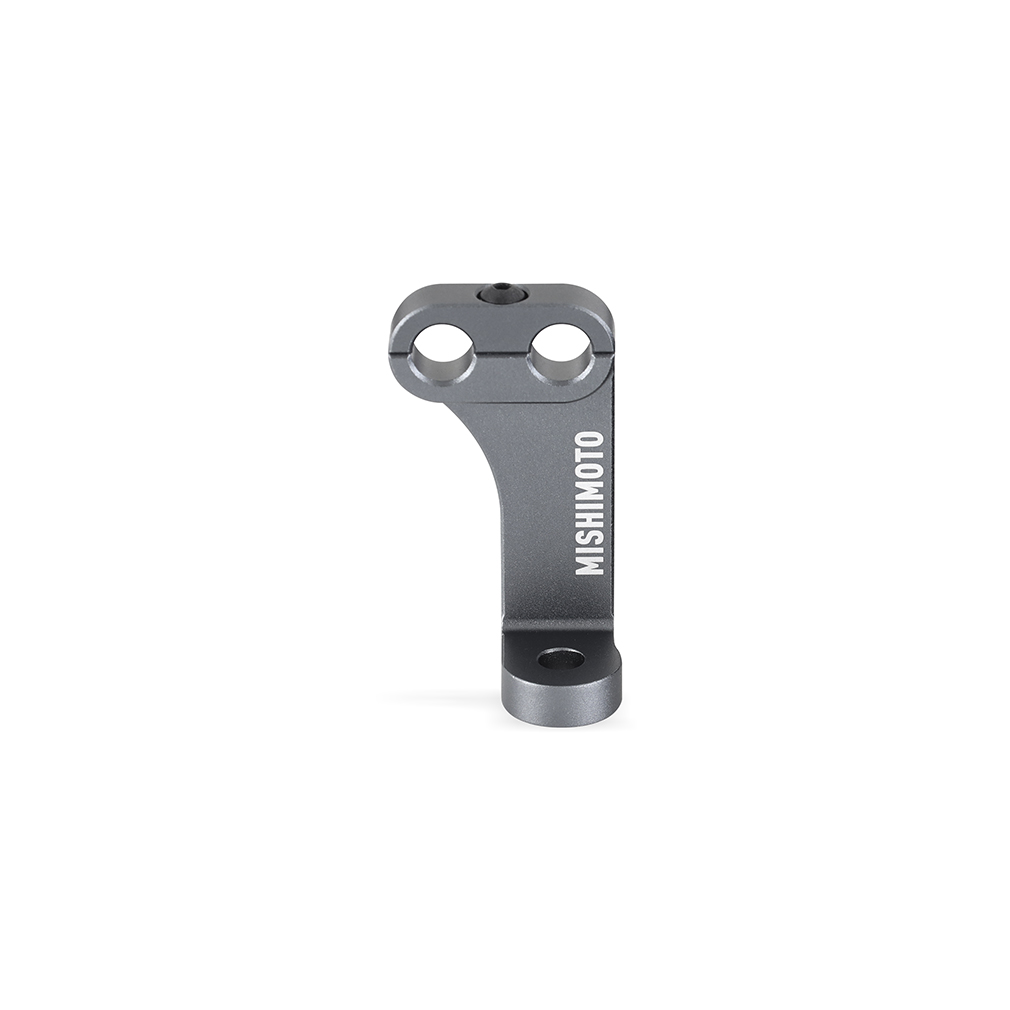

- Includes a CNC-machined 6061 aluminum bracket to support the factory metal coolant lines

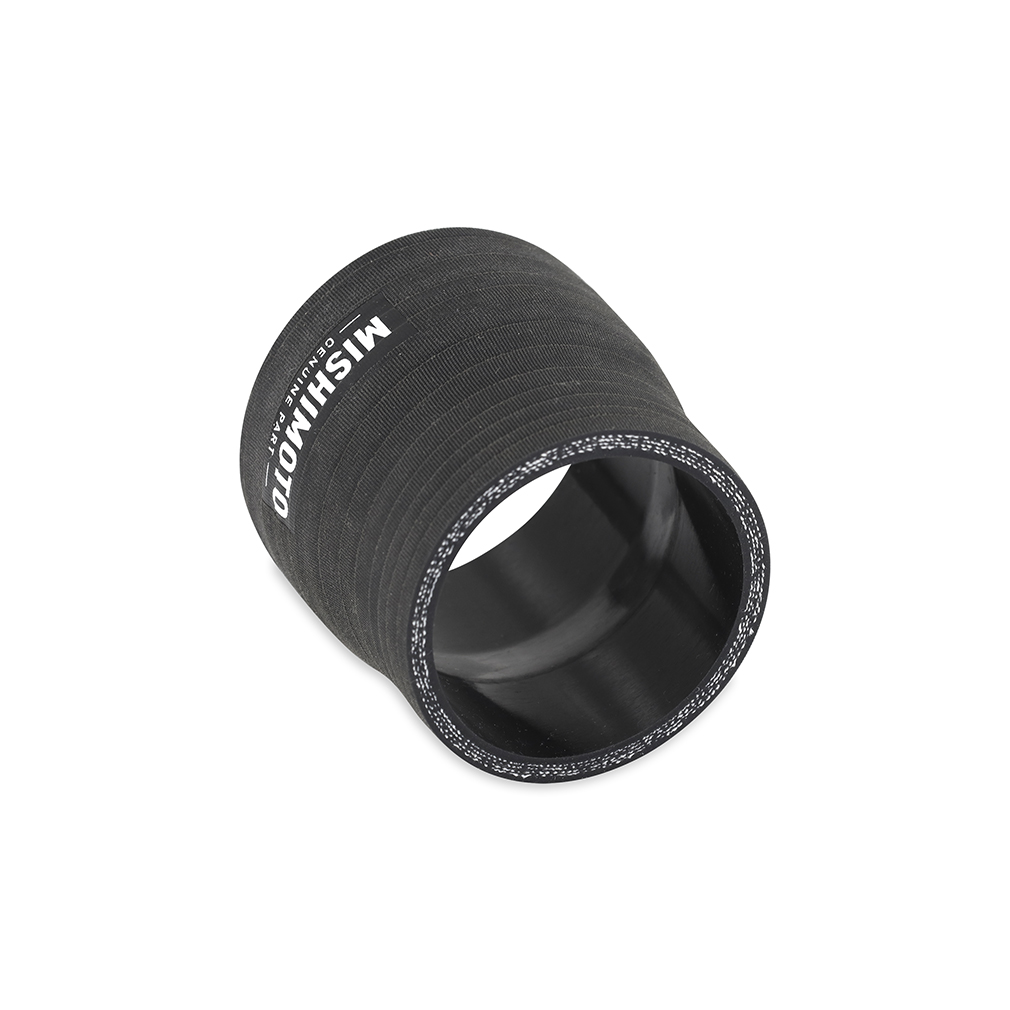

- Includes matte black silicone couplers for a secure, stock-styled connection to the intercoolers
- Finished in Micro-Wrinkle Black powder coat
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-F10-12MWBK
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Color: Black (Micro-Wrinkle Black finish, powder coated)

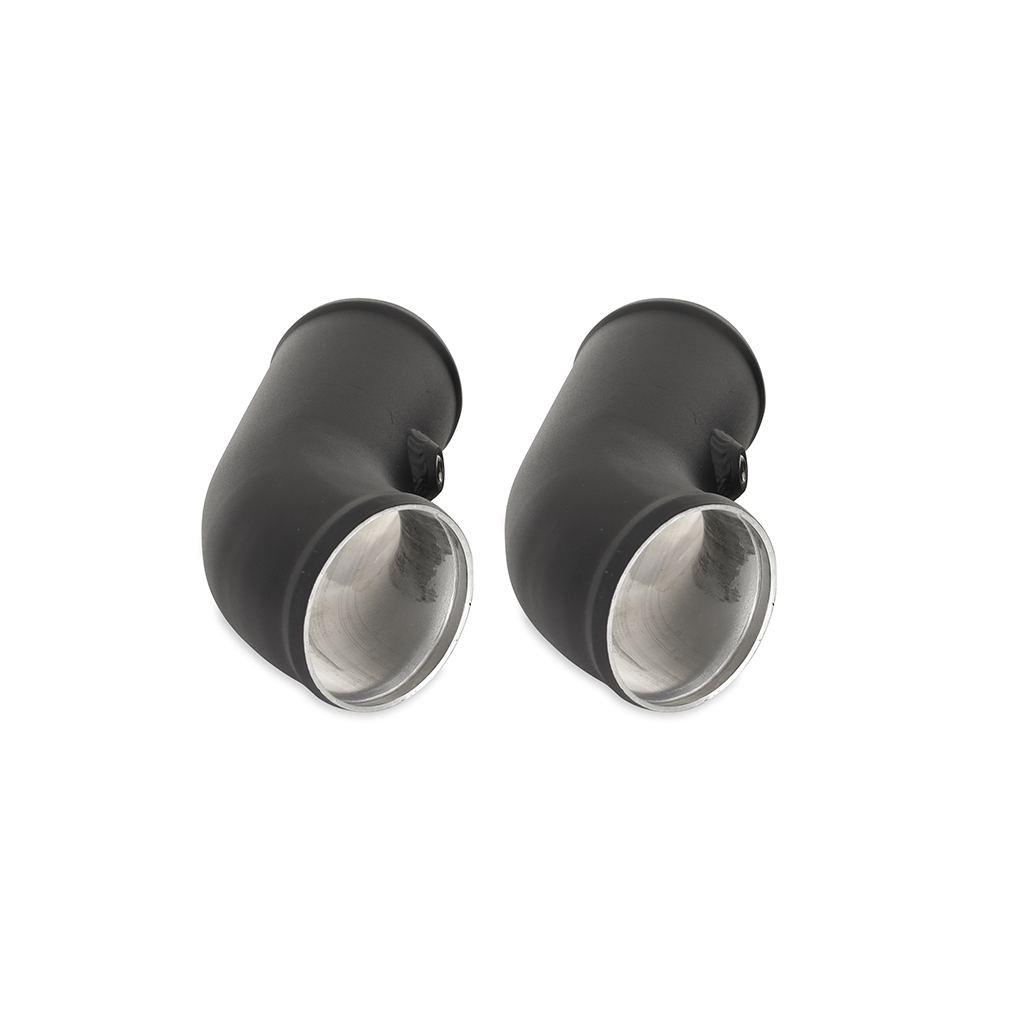

- Pipe Quantity: 2 charge pipes
- Pipe Bend Type: Mandrel
- Hot Side Pipe Inside Diameter: 2.5 in
- Cold Side Pipe Inside Diameter: 2.5 in
- Inlet: 2.5 in / Outlet: 2.5 in
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Core Thickness: 0.063 in
- Overall Length: 6.85 in
- Overall Width: 3.5 in
- Weight: 2.42 lbs
- Chassis Codes: F10, F13
- Engine Code: S63
- Maximum Recommended Horsepower: 1200
- Maximum Recommended Boost Pressure: 60 PSI

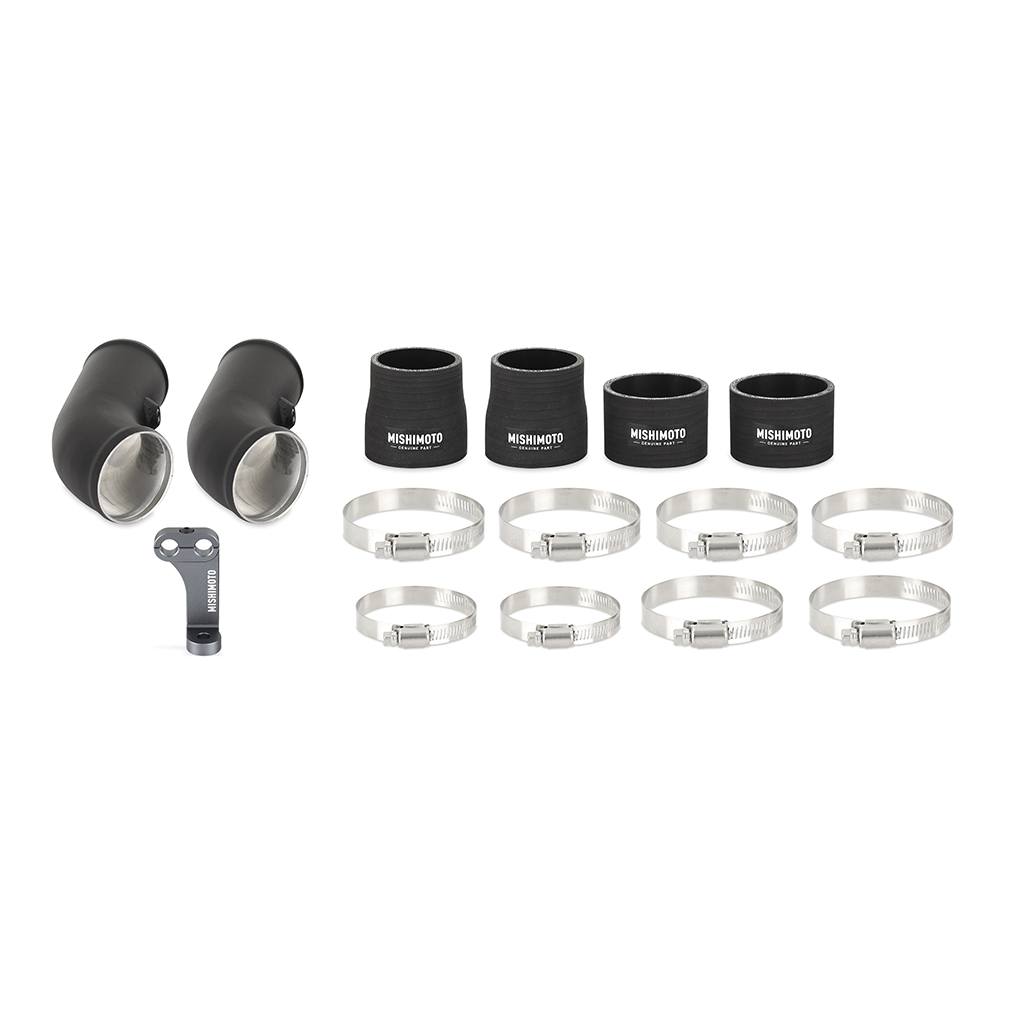

- Kit Includes: (2) Mishimoto Charge Pipes, (4) Silicone Couplers, (8) High Torque Worm Gear Clamps, (1) CNC-Machined Aluminum Coolant Line Bracket, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which BMW models does the Mishimoto F1X M5/M6 charge pipe kit fit?
It fits the BMW M5 Base (2012–2016, 2018), M5 Competition Edition (2017), M6 Base (2012–2018), M6 Competition Edition (2017–2018), M6 Competition Edition M Performance (2017), and M6 Gran Coupe Competition Edition (2014, 2017–2018).
What are the Mishimoto charge pipes made of?
They’re constructed from full aluminum with TIG-welded, mandrel-bent pipes, finished in a Micro-Wrinkle Black powder coat.
What’s included in the MMICP-F10-12MWBK kit?
The kit includes (2) Mishimoto charge pipes, (4) silicone couplers, (8) high-torque worm gear clamps, (1) CNC-machined aluminum coolant line bracket, and the Mishimoto Lifetime Warranty.
What is the maximum recommended horsepower and boost pressure for this charge pipe kit?
Mishimoto lists a maximum recommended horsepower of 1200 and a maximum recommended boost pressure of 60 PSI for this kit.
Does this charge pipe kit support methanol injection?
Yes, it includes a bung for simple integration of methanol injection.
Is this kit covered by a warranty?
Yes, the Mishimoto F1X M5/M6 Charge Pipes include the Mishimoto Lifetime Warranty.
