Description
The Mishimoto MMINT-FIST-14KBSL is the production result of a multi-prototype development program built specifically for the Ford Fiesta ST: a tube-and-fin forced induction intercooler with a core 51-percent larger than the factory unit, engineered to drop intake air temperatures by a measured 26°F (15°C) during testing. Every Fiesta ST owner chasing a cooler, denser charge will recognize this as a purpose-built forced induction upgrade rather than a generic bolt-on.
This forced induction system replaces both the stock intercooler and its hot-side and cold-side piping in one kit, pairing a 25-percent increase in internal core volume with a 226-percent jump in external fin surface area for improved heat rejection without adding bulk. The all-aluminum, TIG-welded core keeps the stock mounting location so airflow to the radiator and A/C condenser is not blocked, while tube-and-fin construction trims weight compared to a bar-and-plate design. Included air diversion plates channel incoming air directly through the core for maximum efficiency, making this Mishimoto induction upgrade a genuinely integrated forced induction solution rather than a single swapped part.
Vehicle Applications
This intercooler kit is a specific fit for the 2014-2016 Ford Fiesta ST equipped with the 1.6L Ecoboost engine (chassis code B3). It is not designed as a universal part and is engineered around this exact platform’s engine bay and airflow path.
Features
- Tube-and-fin, air-to-air aluminum intercooler core, TIG-welded for durability
- 51-percent larger core size with 25-percent more internal volume and 226-percent more external fin surface area versus stock
- Tested 26°F (15°C) reduction in intake air temperature

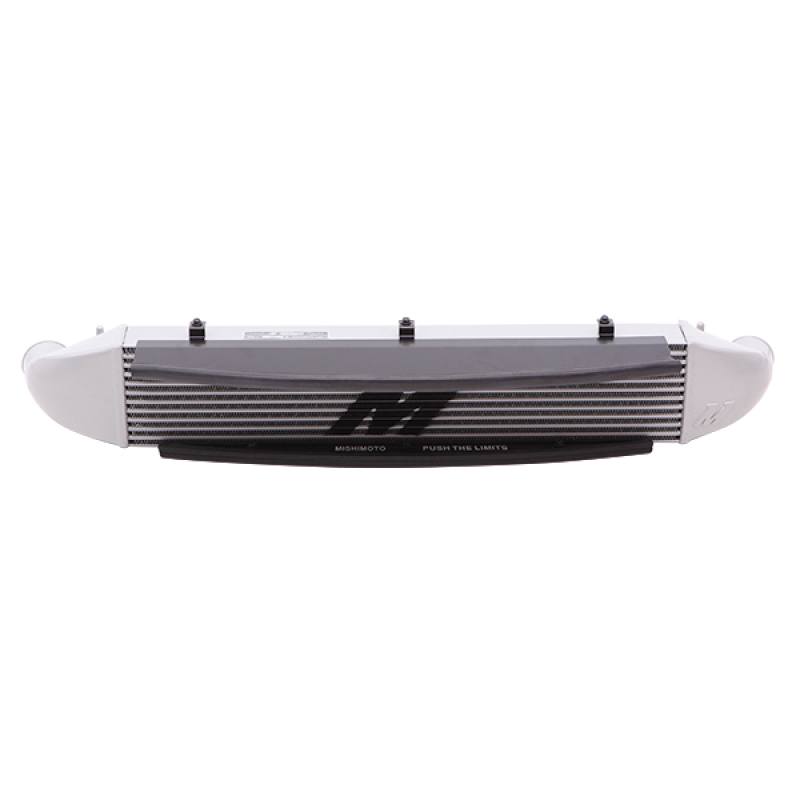

- Upper and lower air diversion plates with mounting hardware and rubber trim seals for maximum core efficiency
- CNC-machined sensor flange on the cold-side pipe for the stock pressure sensor
- Additional port for a meth injection nozzle or boost gauge
- Silicone hose and CNC plug for deletion of the stock sound symposer system
- Durable silicone couplers and stainless steel T-bolt clamps for secure sealing under boost
- Silver core with black piping in this configuration
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-FIST-14KBSL
- Product Type: Forced Induction (Intercooler Kit)
- Intercooler Type: Air-to-Air
- Core Construction: Tube-and-Fin
- Core Material: Aluminum
- Core Color: Silver
- Core Height: 6.36 in
- Core Length: 40.1 in
- Core Thickness: 2.56 in
- Overall Width: 6.15 in
- Overall Height: 6.36 in
- Overall Length: 40.1 in
- Inlet Diameter: 2.55 in
- Outlet Diameter: 2.55 in
- Hot Side Pipe Inside Diameter: 2.55 in
- Cold Side Pipe Inside Diameter: 2.55 in
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fit Type: Specific
- Maximum Boost Pressure: 40 PSI
- Maximum Recommended Horsepower: 325 hp
- Weight: 13.4 lbs
- Vehicle Applications: 2014-2016 Ford Fiesta ST
- Engine Code: 1.6L Ecoboost
- Chassis Code: B3
Frequently Asked Questions
Which vehicles does this Mishimoto intercooler kit fit?
This forced induction intercooler kit is a specific fit for the 2014-2016 Ford Fiesta ST with the 1.6L Ecoboost engine, chassis code B3.
How much does this intercooler reduce intake air temperatures?
During testing, this Fiesta ST intercooler dropped intake air temperatures by 26°F (15°C).
What is included with this intercooler kit?

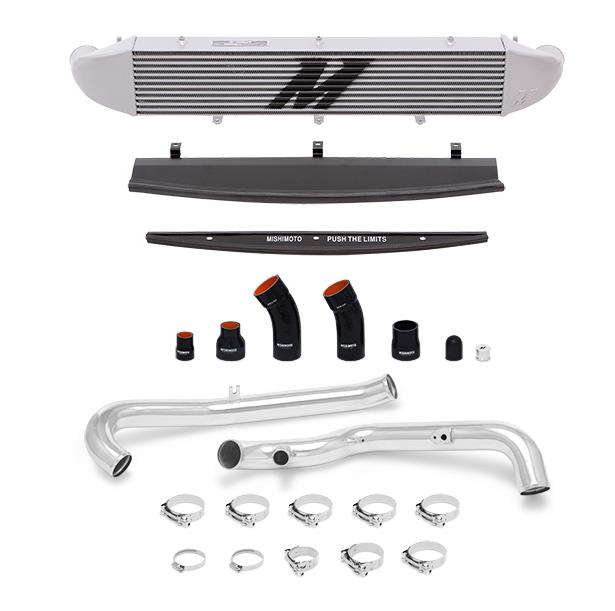

The kit includes the Mishimoto intercooler, an upper diversion plate and lower diversion plate each with mounting hardware and rubber trim seal, an aluminum pipe with CNC sensor flange, an additional aluminum pipe, a CNC sound symposer plug, four silicone couplers, one silicone sound symposer hose, a 1.75-in T-bolt clamp, a 2.5-in T-bolt clamp, six 2.75-in T-bolt clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
What horsepower level is this intercooler rated for?
This intercooler is rated for approximately 325 whp. Exceeding this horsepower limit could require a larger front-mount intercooler; Mishimoto’s J-line intercooler is intended for horsepower levels exceeding 325 whp.
What color combination does this specific kit come in?
This configuration (MMINT-FIST-14KBSL) features a silver core paired with black intercooler piping.
Does this intercooler come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
