Description

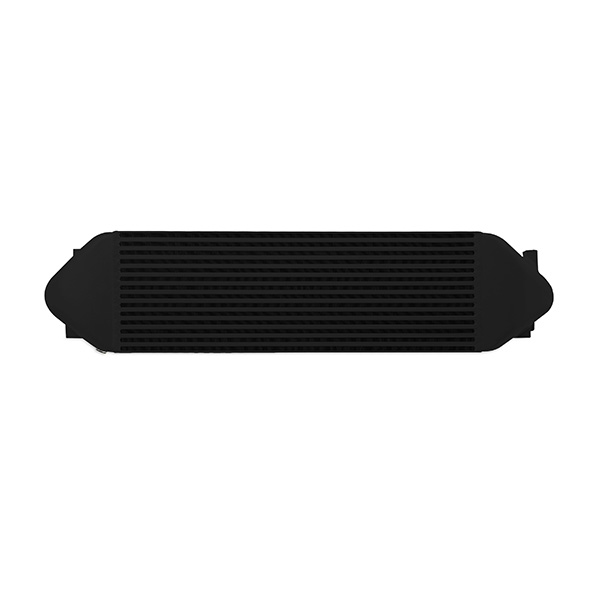

The Mishimoto MMINT-RS-16BK is a direct-fit, bar-and-plate intercooler built specifically for the 2016-2018 Ford Focus RS and its 2.3L EcoBoost engine, finished in Stealth Black. As a purpose-engineered forced induction upgrade, it swaps in for the factory core with a substantially larger aluminum unit designed to keep intake air temperatures in check under sustained boost.
This performance induction upgrade delivers a 36-percent increase in core volume and a 214-percent increase in external fin surface area over the stock core, translating into a nearly 40-percent reduction in air outlet temperature while minimizing the inlet-to-outlet pressure drop across the core. On a stock tune, Mishimoto reports a bolt-on gain of 7 whp and 8 tq, making this forced induction intercooler a practical addition whether you track your RS, drive it hard on weekends, or simply want a more capable induction system supporting steady heat transfer at both idle and cruising speeds.
Vehicle Applications

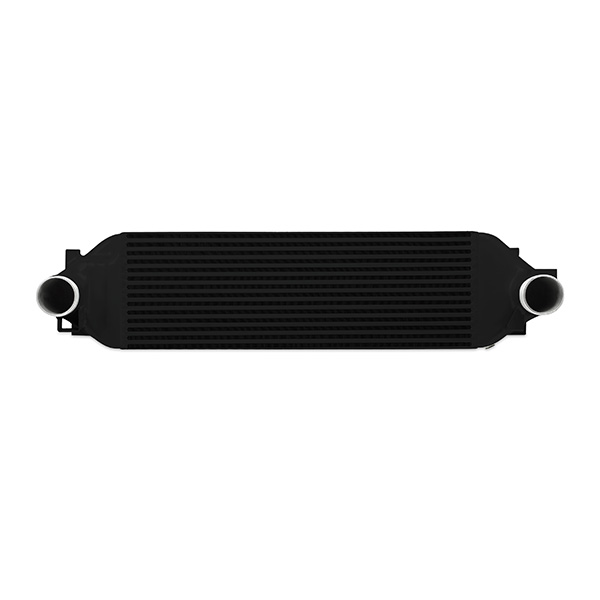

This Mishimoto intercooler is a specific-fit part engineered exclusively for the 2016-2018 Ford Focus RS equipped with the 2.3L EcoBoost engine. It installs in the stock intercooler location using factory mounting points and equipment, so there is no cutting, drilling, or fabrication required, and it is designed to work with the factory intercooler pipes as well as Mishimoto’s own upgraded pipe kit.
Features
- Direct fit for the 2016-2018 Ford Focus RS
- 36-percent increase in internal core volume and 214-percent increase in external fin surface area
- Nearly 40-percent reduction in air outlet temperature while minimizing pressure drop
- Includes left and right air diversion plates to direct air through the intercooler core for maximum efficiency
- Stock mounting location prevents airflow blockage to the radiator and A/C condenser

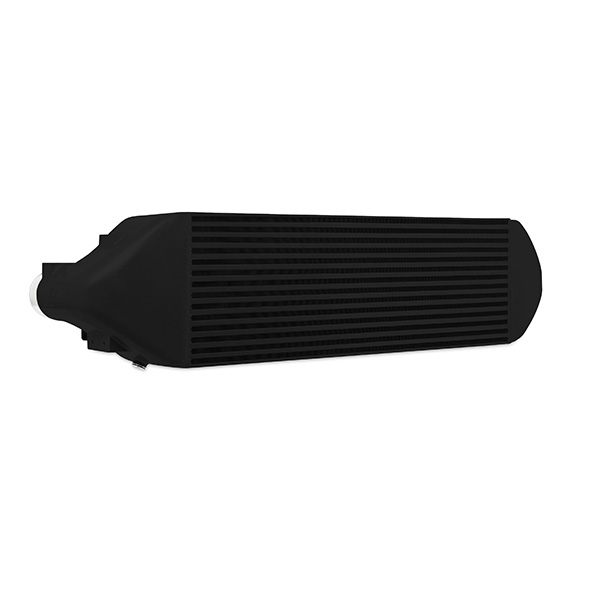

- All-aluminum, TIG-welded bar-and-plate core construction
- Fits with stock, Mishimoto, and most aftermarket intercooler pipe kits
- Bolt-on gain of 7 whp and 8 tq on a stock tune
- Finished in Stealth Black (also available in Sleek Silver)

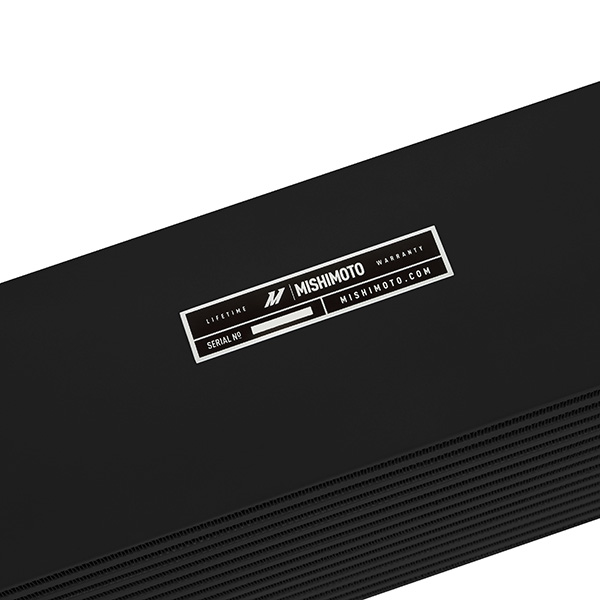

- Backed by the Mishimoto Lifetime Warranty
- Includes (1) intercooler, (1) left and (1) right diversion plate, and mounting hardware
Specifications
- Brand: Mishimoto
- Part Number: MMINT-RS-16BK
- Type: Bar-and-Plate intercooler
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Overall Length: 36.75 in
- Overall Width: 8.2 in
- Overall Height: 8.3 in
- Core Height: 8.3 in
- Core Length: 25.6 in

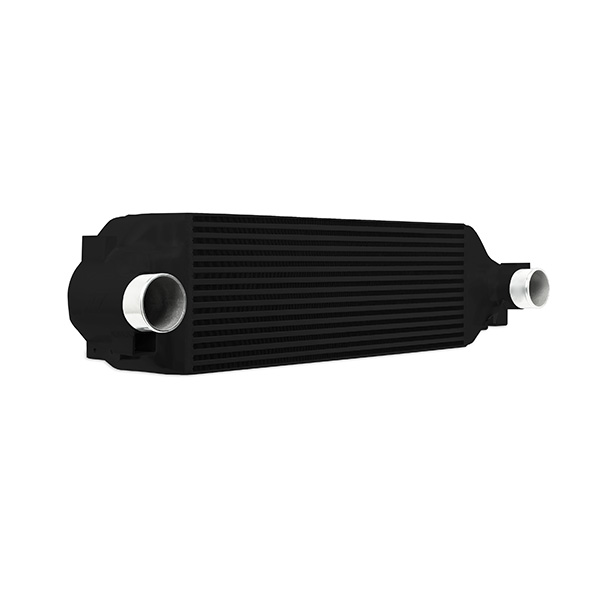

- Inlet Outside Diameter: 2.75 in
- Outlet Outside Diameter: 2.75 in
- Inlet/Outlet Fitting Gender: Male
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Weight: 33 lbs
- Engine Code: 2.3L EcoBoost
- Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-RS-16BK intercooler fit?
It is a direct, specific fit for the 2016-2018 Ford Focus RS with the 2.3L EcoBoost engine.
Does this intercooler require any modification for installation?
No, it functions with all factory equipment on the 2016-2018 Focus RS and installs without modification, and it works with stock, Mishimoto, or most aftermarket intercooler pipes.
What performance gains can I expect from this intercooler?
Mishimoto reports a bolt-on gain of 7 whp and 8 tq on a stock tune, along with nearly a 40-percent reduction in air outlet temperature.
What is included with this intercooler kit?
The kit includes (1) Mishimoto intercooler, (1) left and (1) right diversion plate, mounting hardware, and the Mishimoto Lifetime Warranty.
What color is this specific intercooler?
This version, MMINT-RS-16BK, is finished in Stealth Black; Mishimoto also offers it in Sleek Silver.
What material is the intercooler core made from?
The core and inlet tank are constructed from aluminum in a bar-and-plate design with TIG-welded construction.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
