Description

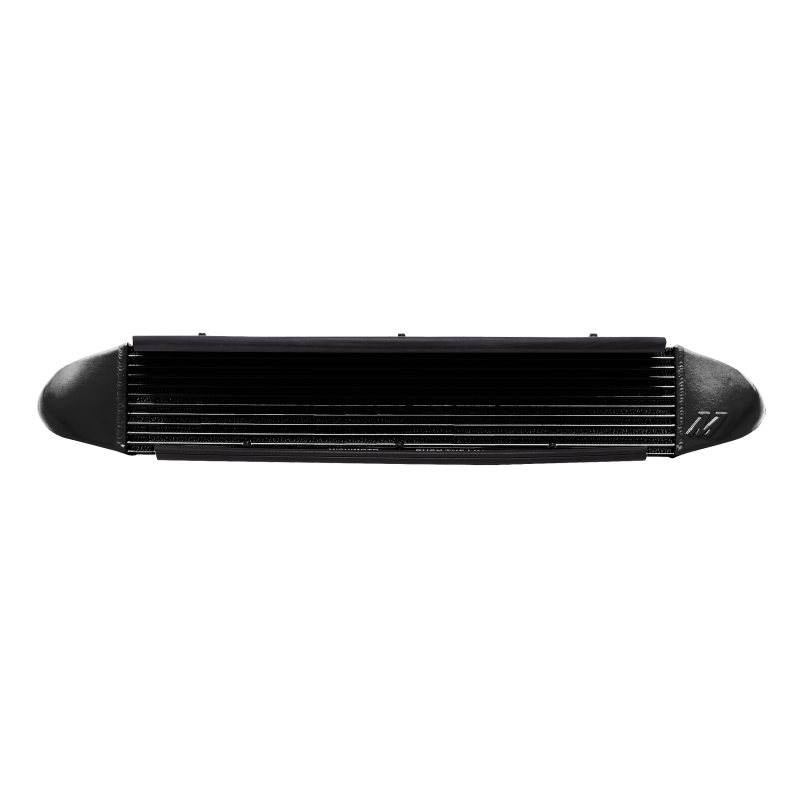

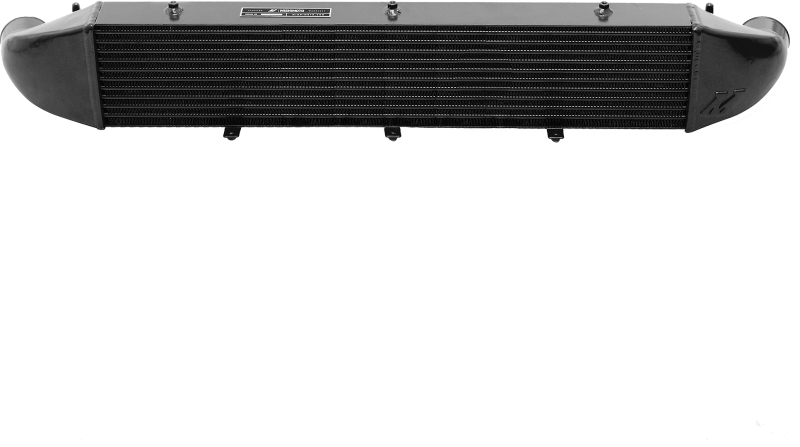

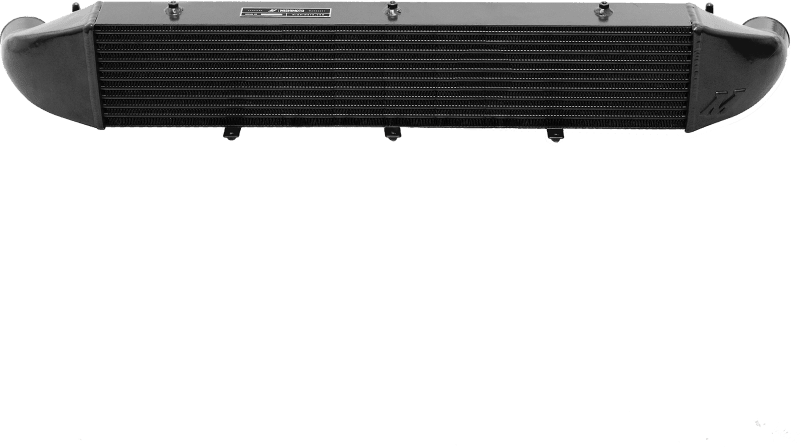

The Mishimoto MMINT-FIST-14KBBK is a purpose-built Forced Induction intercooler kit engineered specifically for the 2014-2016 Ford Fiesta ST after engineers tested multiple prototypes before settling on this final tube-and-fin design. The result is a core that’s 51-percent larger than stock, with a 25-percent increase in internal core volume, and during testing this Fiesta ST intercooler dropped intake temperatures by 26F.
Built around Mishimoto’s tube-and-fin core construction, this forced induction system balances cooling capacity with weight savings, since the tube-and-fin layout keeps overall mass down compared to a bar-and-plate core while still allowing airflow to the radiator. The included air diversion plates channel air directly through the core for maximum efficiency, and the accompanying cold-side pipe features a CNC-machined sensor flange for the stock pressure sensor along with a port for meth injection or a boost gauge. A silicone hose and CNC plug are included to delete the stock sound symposer system if desired. As a complete induction system upgrade, the kit pairs an all-aluminum, TIG-welded core with durable silicone couplers and stainless steel T-bolt clamps so the piping holds firm under boost.
Vehicle Applications
This intercooler kit is a specific fit for the 2014-2016 Ford Fiesta ST (chassis code B3). It replaces the stock hot-side and cold-side intercooler pipes and couplers, mounts in the stock location so airflow to the radiator and AC condenser is preserved, and is also compatible with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit as well as stock, Mishimoto, or most aftermarket intercooler pipe kits.
Features

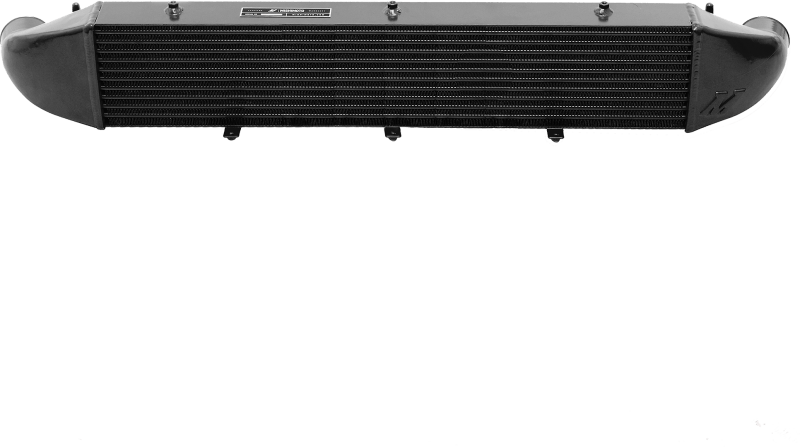

- Tube-and-fin core is 51% larger than stock with a 25% increase in internal core volume and a 226% increase in external fin surface area
- Reduced intake air temperatures by 26F during testing

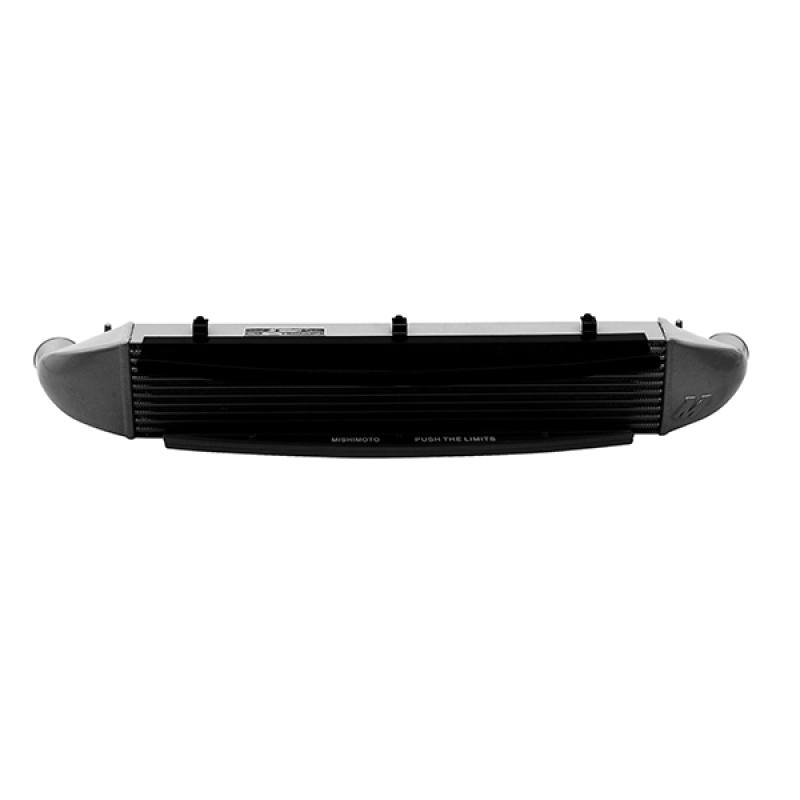

- Includes upper and lower air diversion plates with mounting hardware and rubber trim seals to direct air through the core
- Cold-side pipe features a CNC-machined sensor flange for the stock pressure sensor plus a port for meth injection or a boost gauge
- Silicone hose and CNC plug included to delete the stock sound symposer system
- Black silicone couplers with stainless steel T-bolt clamps for secure piping under boost
- All-aluminum, TIG-welded construction with cast end tanks
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material / Construction: Aluminum, Tube-and-Fin
- Core Height: 6.36 in
- Core Length: 40.1 in
- Core Thickness: 2.56 in
- Overall Height: 6.36 in / Overall Length: 40.1 in / Overall Width: 6.15 in
- Inlet Diameter: 2.55 in / Outlet Diameter: 2.55 in
- Hot Side Pipe Inside Diameter: 2.55 in / Cold Side Pipe Inside Diameter: 2.55 in
- Pipe Material: Aluminum, Powder Coated, Black
- Coupler Material: Silicone, Black
- End Tank Material/Construction: Aluminum, Cast
- Intercooler Type: Air-to-Air
- Maximum Boost Pressure: 40 PSI
- Maximum Horsepower: 325 HP
- Weight: 13.4 lbs
- Chassis Code: B3
- Grade Type: Performance
- Fit Type: Specific
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-FIST-14KBBK intercooler kit fit?
This kit is a specific fit for the 2014-2016 Ford Fiesta ST (chassis code B3).
How much larger is this intercooler core compared to stock?
The core is 51% larger than stock, with a 25% increase in internal core volume and a 226% increase in external fin surface area.
How much does this intercooler reduce intake air temperatures?
During testing, this Fiesta ST intercooler dropped intake temperatures by 26F.
What is the maximum recommended horsepower and boost pressure for this intercooler?
It is rated for approximately 325 whp and a maximum boost pressure of 40 PSI. Exceeding these limits could require a larger front-mount intercooler, and the J-line intercooler can be used for horsepower levels exceeding 325 whp.
What is included in the kit?

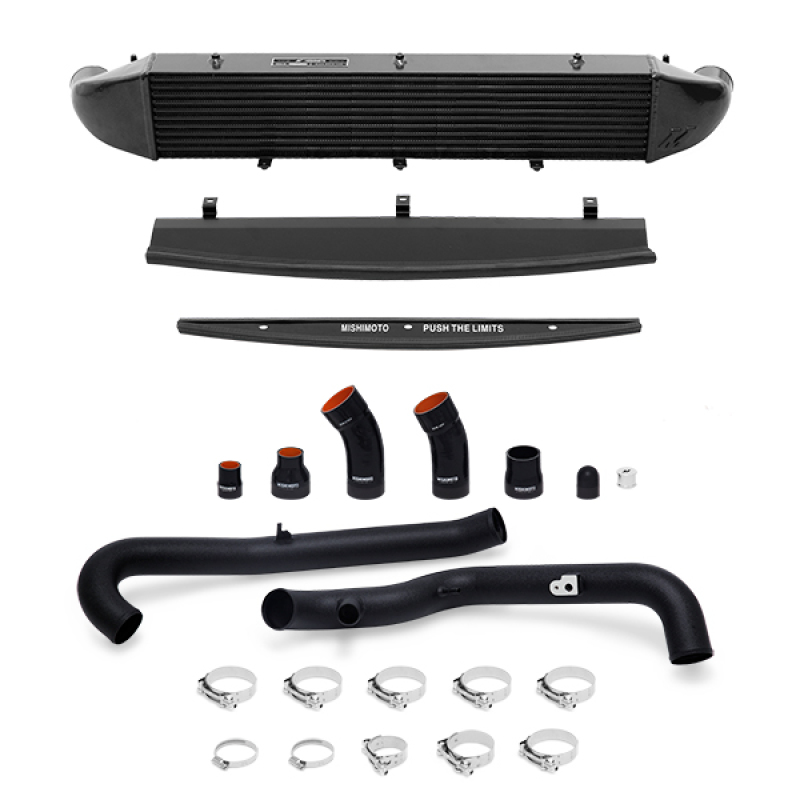

The kit includes the intercooler, upper and lower diversion plates with mounting hardware and rubber trim seal, an aluminum pipe with a CNC sensor flange, an aluminum pipe, a CNC sound symposer plug, silicone couplers, a silicone sound symposer hose, T-bolt clamps, and mounting hardware.
Does this intercooler kit come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
