Description
The Mishimoto MMINT-FIST-14KPSL is a direct-fit forced induction intercooler engineered specifically for the 2014-2016 Ford Fiesta ST. After running through multiple prototype designs, Mishimoto’s engineers settled on a tube-and-fin core that’s 51 percent larger than the factory unit while still fitting in the stock location, and during testing it dropped intake air temperatures by a full 26°F.
As a dedicated forced induction upgrade for the Fiesta ST’s induction system, this kit doesn’t stop at the core. It replaces both the hot side and cold side intercooler pipes and couplers, giving your force induction setup a complete cold-side refresh in a single package. The larger core delivers a 25-percent increase in internal core volume and a 226-percent increase in external fin surface area, all while keeping the stock mounting location clear so airflow to the radiator and A/C condenser isn’t blocked. Included air diversion plates channel air through the core for maximum efficiency, and the cold-side pipe adds a CNC-machined sensor flange for the stock pressure sensor, a port for meth injection or a boost gauge, plus a silicone hose and CNC plug for deleting the stock sound symposer system — all wrapped in durable silicone couplers and stainless steel T-bolt clamps built to hold under full boost.
Vehicle Applications
This is a specific-fit intercooler kit, not a universal piece — it’s built exclusively for the 2014-2016 Ford Fiesta ST fitted with the 1.6L Ecoboost engine (chassis code B3). It’s also designed to work alongside the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit and is compatible with stock, Mishimoto, or most aftermarket intercooler pipe kits, giving Fiesta ST owners flexibility as they build out their setup.
Features

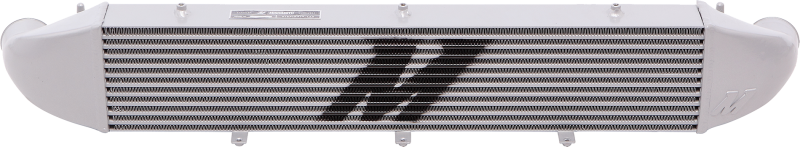

- Tube-and-fin core construction for reduced weight compared to bar-and-plate designs
- 51% larger core size with a 25% increase in internal core volume versus the stock intercooler
- 226% increase in external fin surface area

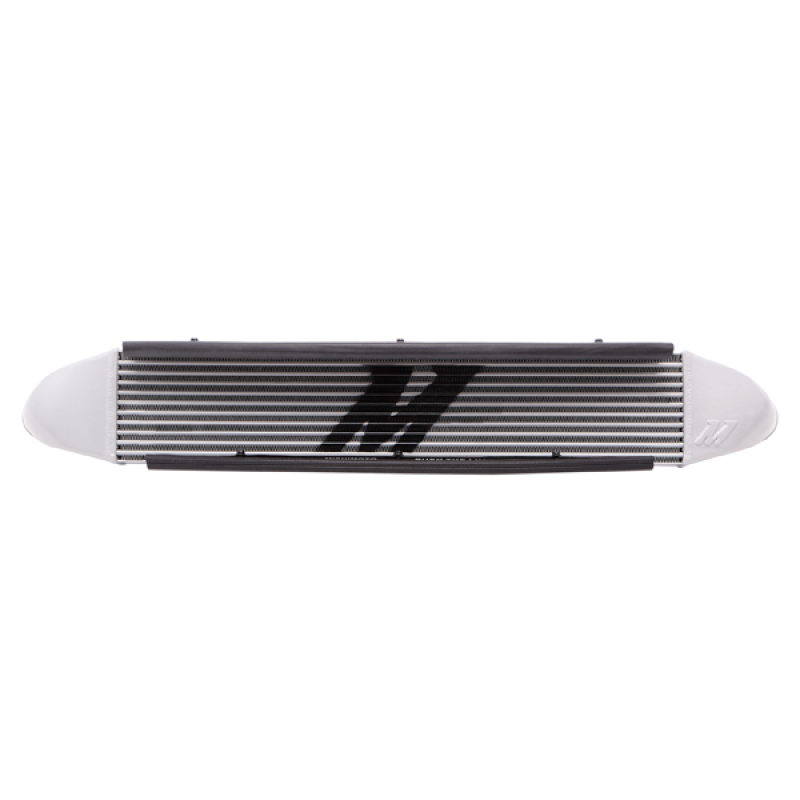

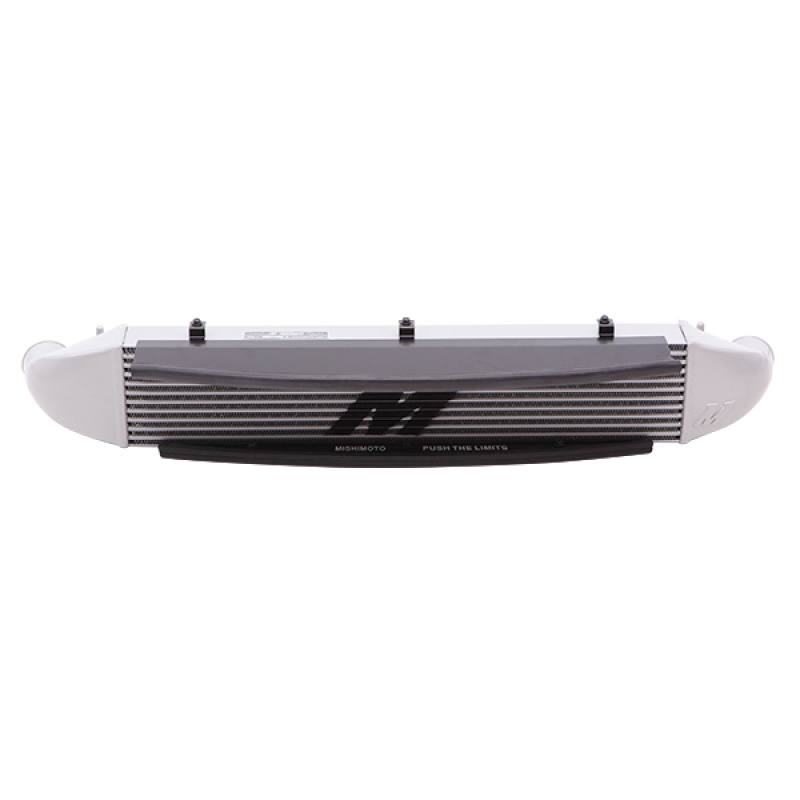

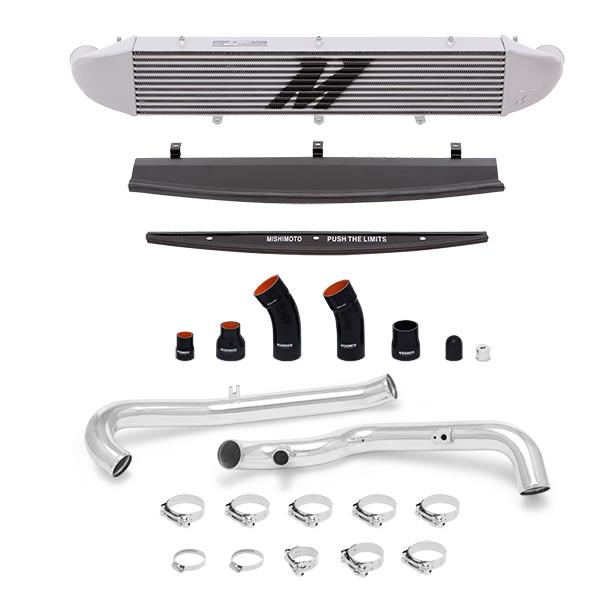

- Upper and lower air diversion plates with mounting hardware and rubber trim seals to route air through the core
- CNC-machined sensor flange for the stock pressure sensor, plus a port for meth injection or a boost gauge

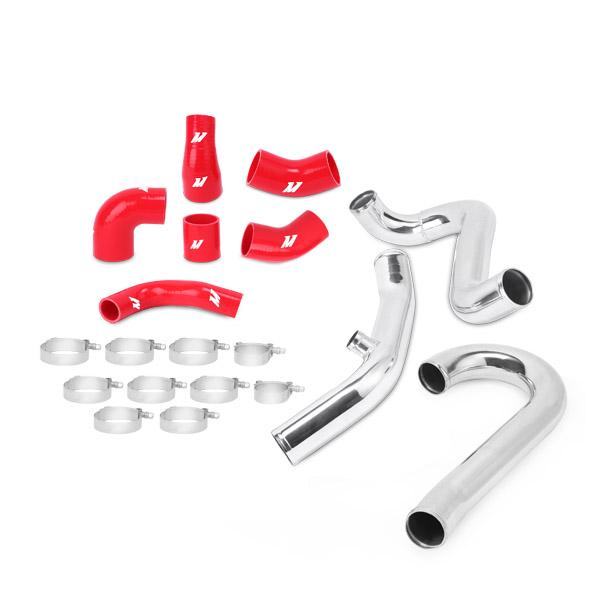

- Silicone hose and CNC plug to delete the stock sound symposer system
- Silicone couplers and stainless steel T-bolt clamps for reliable holding power at full boost
- All-aluminum, TIG-welded core construction with cast end tanks
- Powder-coated aluminum piping
- Replaces both hot side and cold side intercooler pipes and couplers
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Tube-and-Fin
- Intercooler Type: Air-to-Air
- Core Height: 6.36 in
- Core Thickness: 2.56 in
- Core Length: 40.1 in
- Overall Width: 6.15 in
- Inlet Diameter: 2.55 in
- Outlet Diameter: 2.55 in
- End Tank Material: Aluminum (Cast)
- Pipe Material: Aluminum, Powder Coated, Silver
- Coupler Material: Silicone, Black
- Maximum Boost Pressure: 40 PSI
- Maximum Recommended Horsepower: 325 HP
- Weight: 13.4 lbs
- Engine Codes: 1.6L Ecoboost
- Chassis Codes: B3
Frequently Asked Questions
What vehicles does this Mishimoto intercooler kit fit?
This is a specific-fit kit designed for the 2014-2016 Ford Fiesta ST equipped with the 1.6L Ecoboost engine (chassis code B3).
How much does this intercooler reduce intake air temperatures?
During testing, this Fiesta ST intercooler dropped intake temperatures by 26°F.
What is the maximum horsepower and boost rating for this intercooler?
This intercooler is rated for approximately 325 horsepower and a maximum boost pressure of 40 PSI. Exceeding these limits could require a larger front-mount intercooler.
What is included with the Mishimoto Fiesta ST intercooler kit?

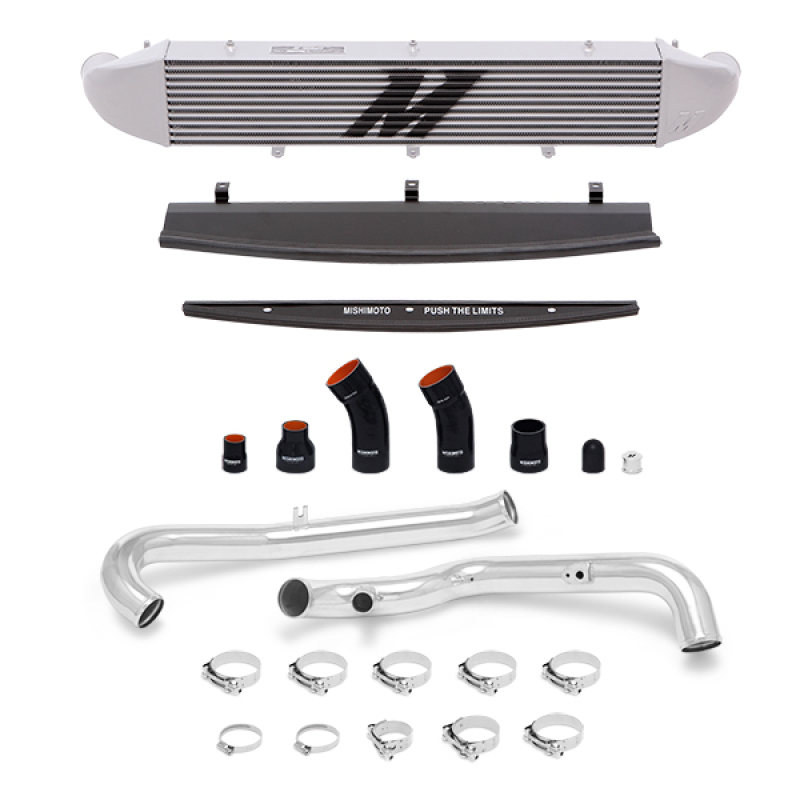

The kit includes the intercooler, upper and lower diversion plates with mounting hardware and rubber trim seals, an aluminum pipe with a CNC sensor flange, a second aluminum pipe, a CNC sound symposer plug, four silicone couplers, a silicone sound symposer hose, a 1.75-in T-bolt clamp, a 2.5-in T-bolt clamp, six 2.75-in T-bolt clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
Does this kit replace the stock intercooler piping?
Yes, it replaces both the hot side and cold side intercooler pipes and couplers.
Is this intercooler backed by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
