The Mishimoto MMINT-F35T-15KBBK is a direct-fit Forced Induction intercooler and pipe kit engineered specifically for the 2015-2016 Ford F-150 3.5L EcoBoost, pairing a Stealth Black bar-and-plate intercooler with black wrinkle-finish aluminum piping. This kit tears out the factory’s weak plastic piping and undersized core, replacing them with a purpose-built forced induction system designed to let the twin-turbo 3.5L EcoBoost breathe.
At the heart of this induction system upgrade is a 77-percent increase in intercooler core volume and a 163-percent increase in external fin surface area compared to the stock unit, paired with Mishimoto’s aluminum piping that adds 24-percent more total internal volume than the factory pipes. The result of this forced induction upgrade is a reported 10°F (5.5°C) reduction in intake air temperature, helping the F-150’s twin turbochargers deliver consistent, dense charge air. DuraCore silicone boots and constant-tension worm gear clamps hold every connection tight under boost, while the cold-side pipe’s CNC quick-disconnect and pre-installed O-ring keep installation straightforward for anyone building out a performance induction setup on their EcoBoost.
Vehicle Applications
This Mishimoto forced induction intercooler and pipe kit is a direct fit for the 2015-2016 Ford F-150 3.5L V6 EcoBoost across the King Ranch, Lariat, Platinum, XL, and XLT trims, all covered for both the 2015 and 2016 model years. It also fits the 2016 Ford F-150 Limited and 2016 Ford F-150 SSV. The kit works with the F-150’s factory intercooler fans without modification, so there’s no need to source additional cooling hardware once it’s installed.
Features
- Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
- 24-percent total internal volume increase over the stock intercooler pipes
- Cold-side pipe includes a CNC quick-disconnect with pre-installed O-ring and spring clip for quick, easy installation
- Additional port on the cold-side pipe can be drilled and tapped for methanol injection or sensors
- Mishimoto Silicone Boots with DuraCore technology resist heat, pressure, fuel, and oil
- Constant-tension worm gear clamps maintain a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temperature
- 77-percent increase in internal intercooler core volume
- 163-percent increase in external fin surface area
- All-aluminum, TIG-welded construction
- Fits with stock intercooler fans without modification
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 9.4 in
- Core Thickness: 4.7 in
- Core Length: 19.6 in
- Inlet Diameter: 2.5 in
- Cold-Side Pipe Inside Diameter: 2.5 in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Intercooler Type: Air-to-Air
- Maximum Boost Pressure: 50 PSI
- Overall Height: 9.5 in
- Overall Length: 29 in
- Hose Clamps Included: Yes
- Grade Type: Performance
- Applications: 2015-2016 Ford F-150 3.5L V6 EcoBoost
- Engine Codes: 3.5L V6 EcoBoost
- Chassis Codes: P552
- CARB EO Number: D-759-6
Frequently Asked Questions
What does the Mishimoto MMINT-F35T-15KBBK kit include?

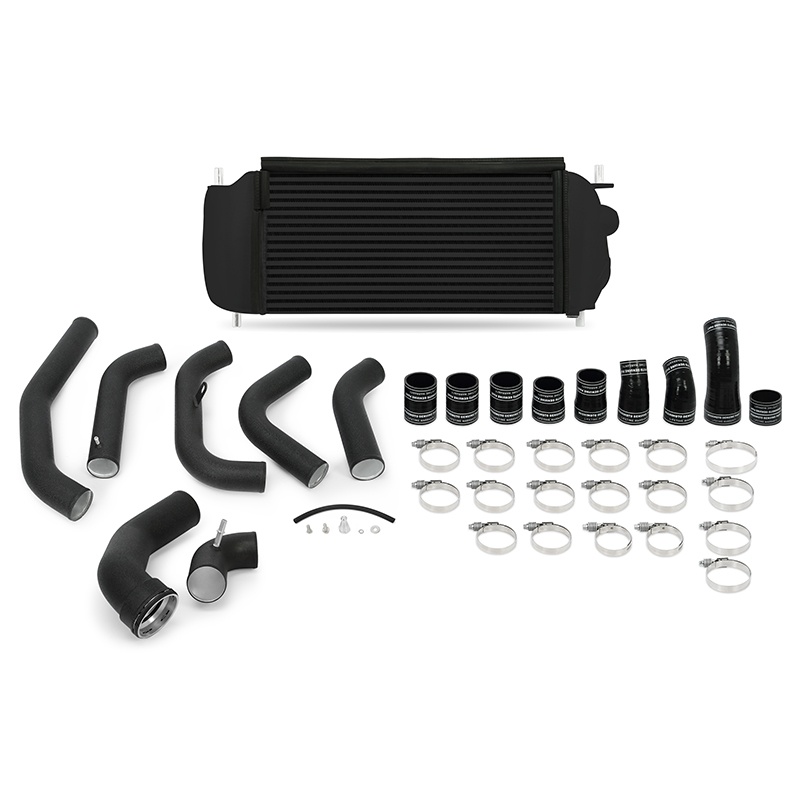

The kit includes one Mishimoto intercooler with assembled rubber trim, one bypass valve bracket, one aluminum cold-side intercooler pipe with CNC quick-disconnect flange, one aluminum cold-side intercooler pipe with CNC IAT sensor housing, five aluminum hot-side intercooler pipes, nine silicone boots with DuraCore technology, eighteen constant-tension worm gear clamps, mounting hardware, bypass valve hardware, and the Mishimoto Lifetime Warranty.
Which vehicles fit this Mishimoto intercooler and pipe kit?
This kit is a direct fit for the 2015-2016 Ford F-150 3.5L V6 EcoBoost, covering the King Ranch, Lariat, Platinum, XL, and XLT trims for 2015-2016, as well as the 2016 Limited and 2016 SSV trims.
What color options does this kit come in?
This specific kit (MMINT-F35T-15KBBK) features a black intercooler with black pipes. The intercooler is also available in Sleek Silver or Stealth Black, and the pipes are available in polished or wrinkle black finishes.
What is the maximum boost pressure rating for this kit?
The kit is rated for a maximum boost pressure of 50 PSI.
How much does this kit reduce intake air temperature?
Mishimoto reports a 10°F (5.5°C) reduction in intake air temperature with this intercooler and pipe kit.
Is this kit backed by a warranty?
Yes, this 2015-2016 3.5L F-150 EcoBoost Intercooler and Pipe kit is backed by the Mishimoto Lifetime Warranty.
