Description

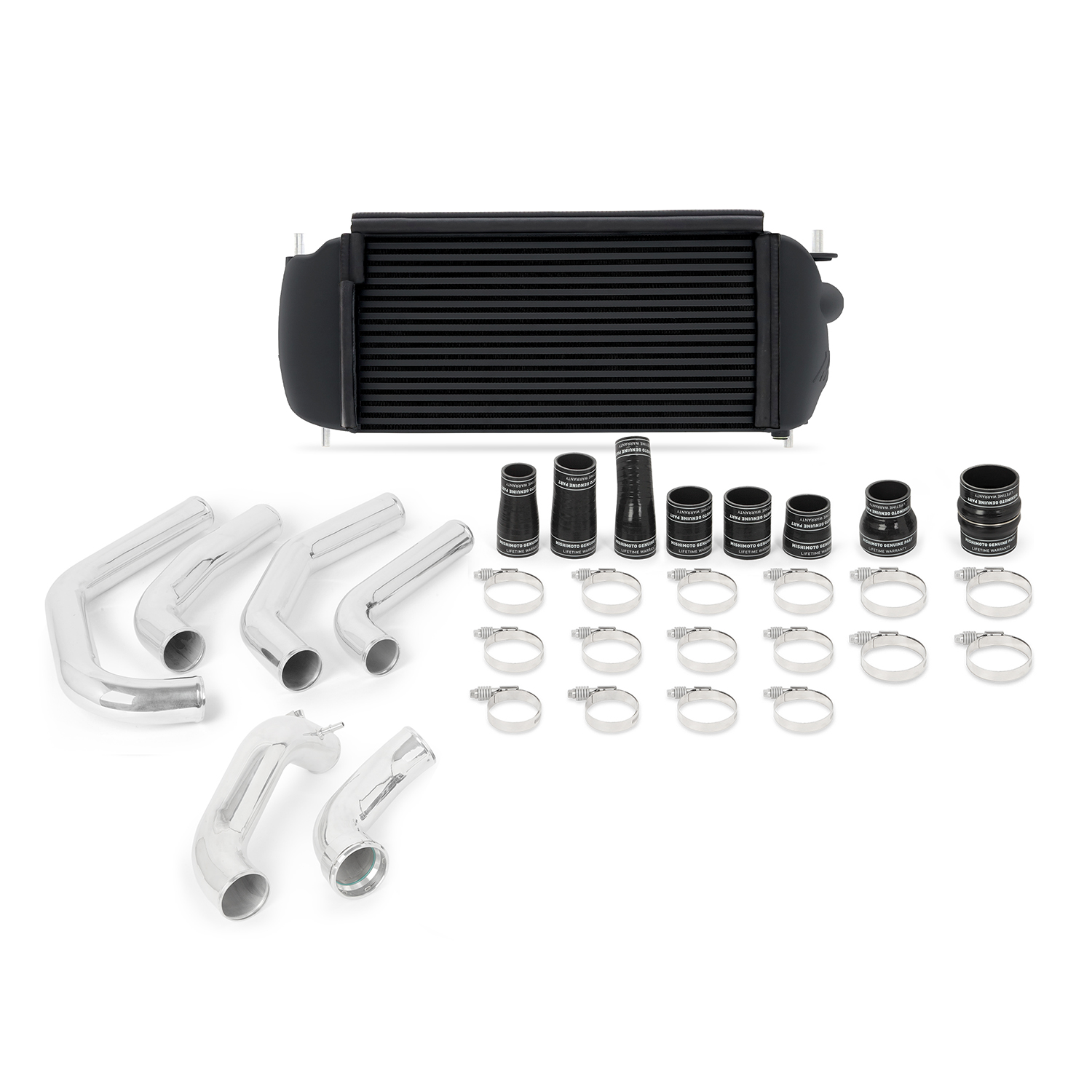

The Mishimoto MMINT-F27T-15KPBK is a direct-fit intercooler and pipe kit engineered specifically for the 2015-2017 Ford F-150 2.7L EcoBoost, built with a black intercooler core paired with polished aluminum piping. It replaces the factory intercooler and its weak, unattractive plastic piping with a bar-and-plate, cast-end-tank intercooler and free-flowing aluminum pipes joined by Mishimoto’s DuraCore silicone boots. The standout figure here is a 77-percent increase in intercooler core volume and a 163-percent jump in external fin surface area over the stock unit, giving the twin-turbo 2.7L EcoBoost room to breathe.
As a core piece of the F-150’s forced induction system, this Mishimoto kit is built to keep pace with a performance induction setup rather than choke it. The 38-percent larger internal volume of the aluminum piping, compared to the factory plastic pipes, reduces flow restriction through the induction system, while the cold-side pipe’s CNC quick-disconnect flange with a pre-installed O-ring and spring clip simplifies installation. DuraCore silicone boots resist heat, pressure, fuel, and oil, and constant-tension worm gear clamps keep a firm grip on the pipes and boots as they expand and contract under boost, helping ensure pressure generated by the forced induction hardware reaches its destination instead of leaking out. Mishimoto reports a 10°F (5.5°C) reduction in intake air temperature with this intercooler in place, letting the induction system deliver cooler air to the 2.7L V6 EcoBoost engine.
Vehicle Applications
This Mishimoto intercooler and pipe kit is a specific fit for the 2015-2017 Ford F-150 equipped with the 2.7L V6 EcoBoost engine (chassis code P552), covering the Lariat, XL, and XLT trims across the 2015 through 2017 model years.
Features
- Direct fit for 2015-2017 Ford F-150 2.7L EcoBoost
- 38-percent increase in total internal pipe volume over the stock plastic piping
- Cold-side pipe includes a CNC quick-disconnect flange with pre-installed O-ring and spring clip for easier installation
- Mishimoto Silicone Boots with DuraCore technology for resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps maintain a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temperature
- 77-percent increase in intercooler core volume and 163-percent increase in external fin surface area over stock
- All-aluminum, TIG-welded intercooler with cast end tanks and bar-and-plate core construction
- Available with a black or silver intercooler and wrinkle black or polished pipes; this kit features a black intercooler with polished pipes
- Includes intercooler with assembled rubber trim, intercooler pipes (including one with CNC quick-disconnect flange and one with CNC IAT sensor housing), 8 silicone DuraCore boots, 2 high-torque worm gear clamps, 14 constant-tension T-bolt clamps, and mounting hardware
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Intercooler Type: Air-to-Air
- Core Height: 9.4 in
- Core Length: 19.6 in
- Core Thickness: 4.7 in
- Overall Height: 9.5 in
- Overall Length: 29 in
- Inlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Color: Polished
- Core Color: Black
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 50 PSI
- Engine Codes: 2.7L V6 EcoBoost
- Chassis Codes: P552
- CARB EO Number: D-759-6
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F27T-15KPBK intercooler and pipe kit fit?
It is a direct fit for 2015-2017 Ford F-150 Lariat, XL, and XLT trims equipped with the 2.7L V6 EcoBoost engine (chassis code P552).
What is included in this Mishimoto intercooler and pipe kit?
The kit includes one Mishimoto intercooler with assembled rubber trim, one aluminum intercooler pipe with a CNC quick-disconnect flange, one aluminum intercooler pipe with a CNC IAT sensor housing, four additional aluminum intercooler pipes, eight silicone boots with DuraCore technology, two high-torque worm gear clamps, fourteen constant-tension T-bolt clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
How much does this intercooler increase core volume and fin surface area over stock?
It increases intercooler core volume by 77 percent and external fin surface area by 163 percent over the factory intercooler.
How much larger is the piping compared to the factory plastic pipes?
The aluminum piping offers a 38-percent increase in total internal volume compared to the stock plastic pipes.
What is the maximum boost pressure rating for this intercooler kit?
The kit is rated for a maximum boost pressure of 50 PSI.
What color options are available for this kit?
This intercooler and pipe kit is available with a black or silver intercooler and wrinkle black or polished pipes; this specific kit (MMINT-F27T-15KPBK) features a black intercooler with polished pipes and is backed by the Mishimoto Lifetime Warranty.
