Mishimoto Forced Induction Intercooler Kit | 2024+ Tacoma & LC250

Description

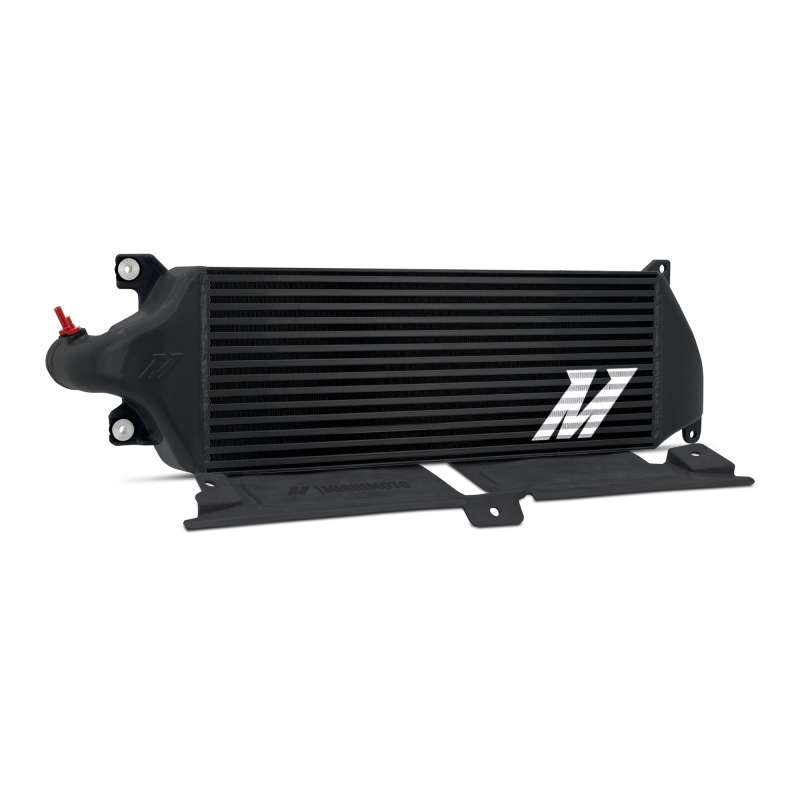

The Mishimoto Intercooler and Charge Pipe Kit (MMINT-TAC-24KBKRD) is a complete forced induction upgrade built for the 2024+ Toyota Tacoma’s T24A-FTS engine, addressing the heat soak that builds in the factory tube-and-fin intercooler across repeated WOT runs, towing grades, and sustained trail use. This specific kit pairs a Black-finished, 55% larger bar-and-plate core with matched Black aluminum charge piping, delivering a fully engineered charge air system rather than a single swapped part.

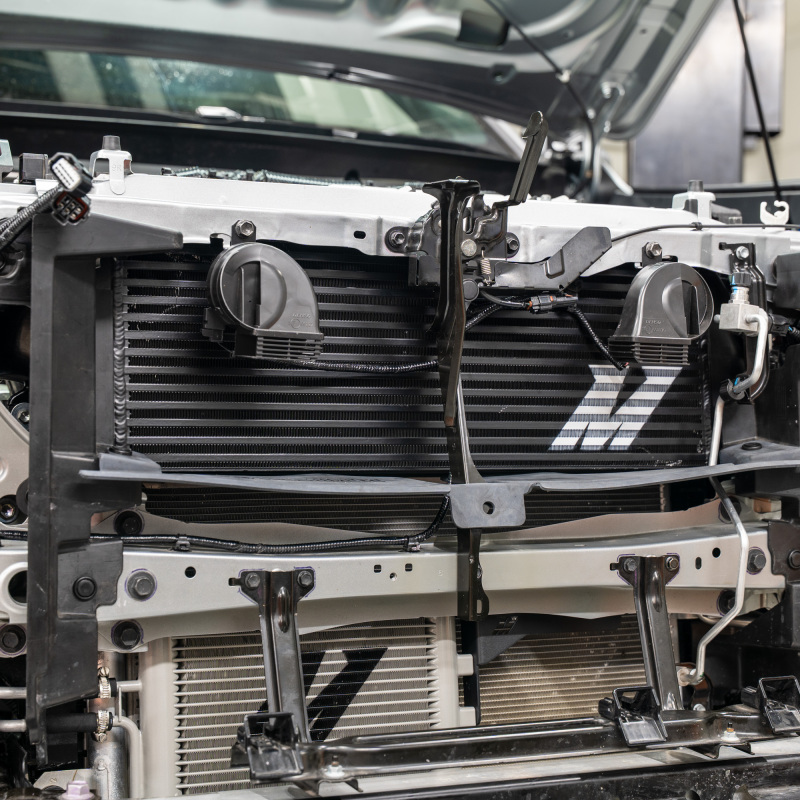

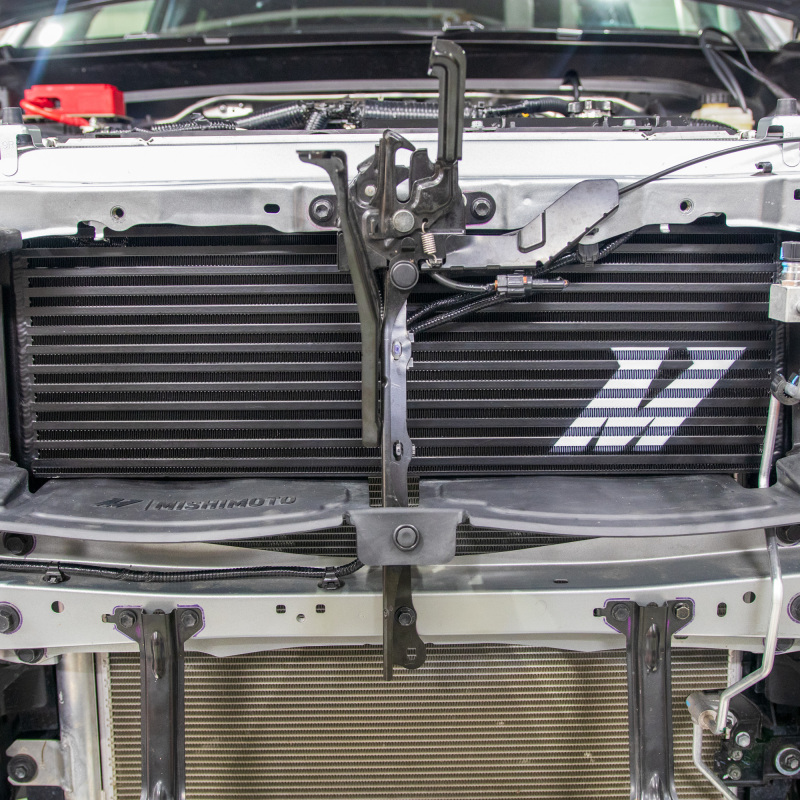

At the center of this forced induction system is a 3.5-inch thick aluminum bar-and-plate core that cuts intake air temperatures by up to 36°F at wide-open throttle while producing 30% lower pressure drop than the stock unit, easing turbocharger strain and helping maintain boost efficiency under load. An included custom shroud channels full airflow across every row of the oversized core so none of that added volume goes to waste, while cast aluminum end tanks, billet aluminum ORB ports, updated mounting bushings, and an included crush washer round out a sealed, long-term installation. Because the core, charge pipes, DuraCore™ silicone couplers, and constant-tension clamps are engineered and tested together as one matched system, this kit avoids the flow mismatches and sealing issues that come from combining components from separate sources — and it preserves Toyota’s adaptive cruise control function with no sensor relocation required.

Vehicle Applications

This kit is a specific fit for the 2024–2026 Toyota Tacoma Limited, SR, SR5, Trailhunter, TRD Off-Road, TRD PreRunner, TRD Pro, and TRD Sport trims, along with the 2024 Tacoma HEV and Tacoma Sport, and the 2025 Tacoma TRD Sport Premium. It also fits the 2024–2026 Toyota Land Cruiser 1958 and Land Cruiser Base trims, plus the 2024 Land Cruiser First Edition. All of these vehicles share the T24A-FTS engine and N400 chassis code; note that installation on the 2024+ Land Cruiser LC250 may require removal of a bracket from the top of the AC condenser.

Features

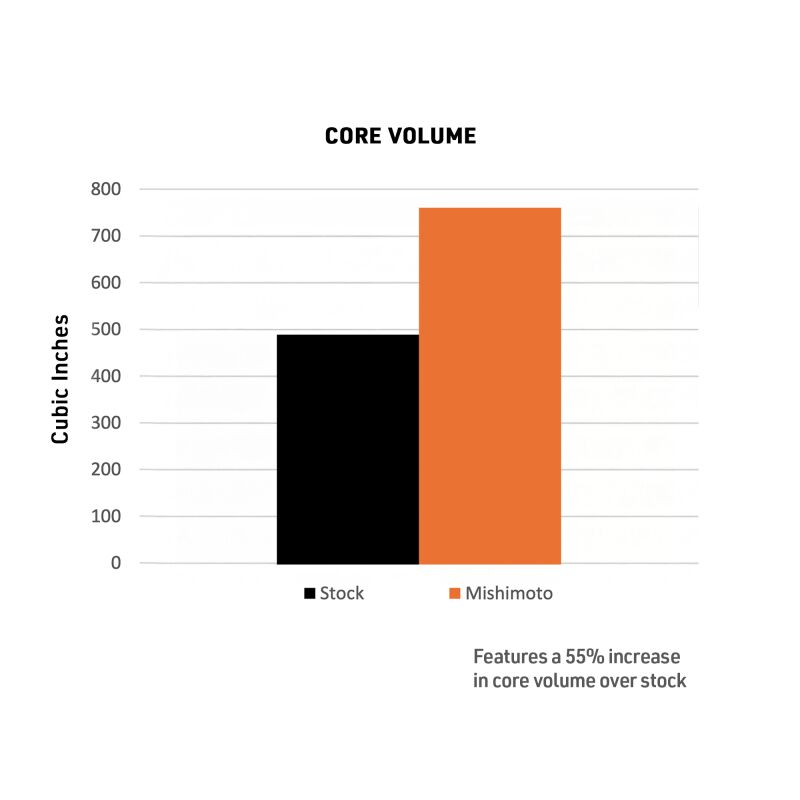

• 55% larger bar-and-plate aluminum core cuts intake air temps by up to 36°F at wide-open throttle
• 30% lower pressure drop than stock reduces turbocharger strain and helps maintain boost efficiency
• Included custom shroud directs full airflow across every row of the core with no trimming required

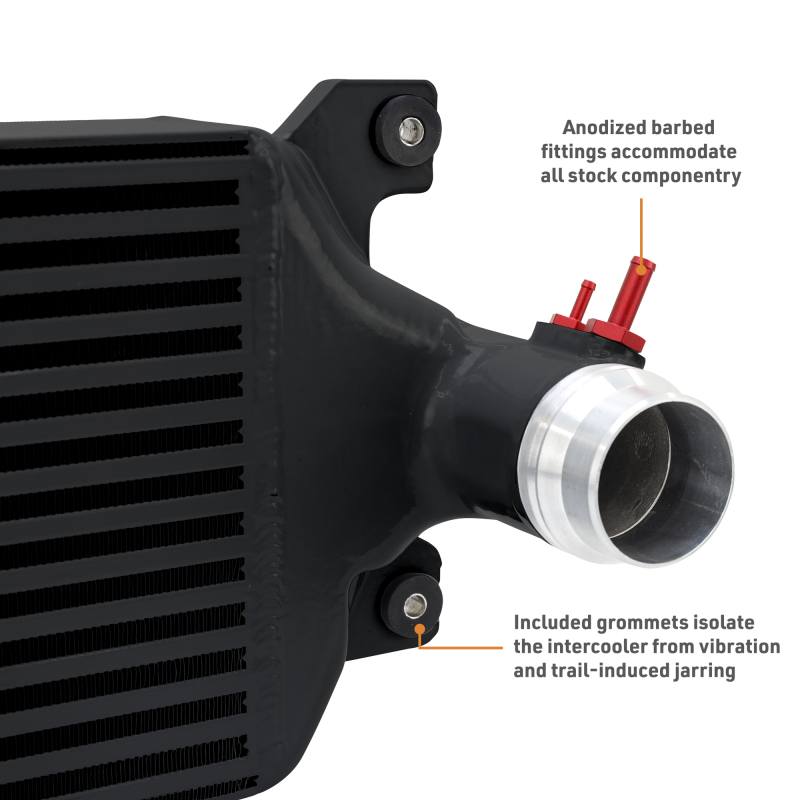

• Cast aluminum end tanks with billet aluminum ORB ports for a sealed, updated construction
• Updated mounting bushings and an included crush washer support a rattle-free, long-term install
• Aluminum charge pipes with a powder-coated Black finish paired with Black DuraCore™ silicone couplers and constant-tension clamps
• Preserves Toyota’s adaptive cruise control with no sensor relocation needed
• Matched as a complete system from intercooler core to throttle body for consistent flow and sealing
• Compatible with OEM and Mishimoto components for future cooling system expansion
• Backed by the Mishimoto Lifetime Warranty

Specifications

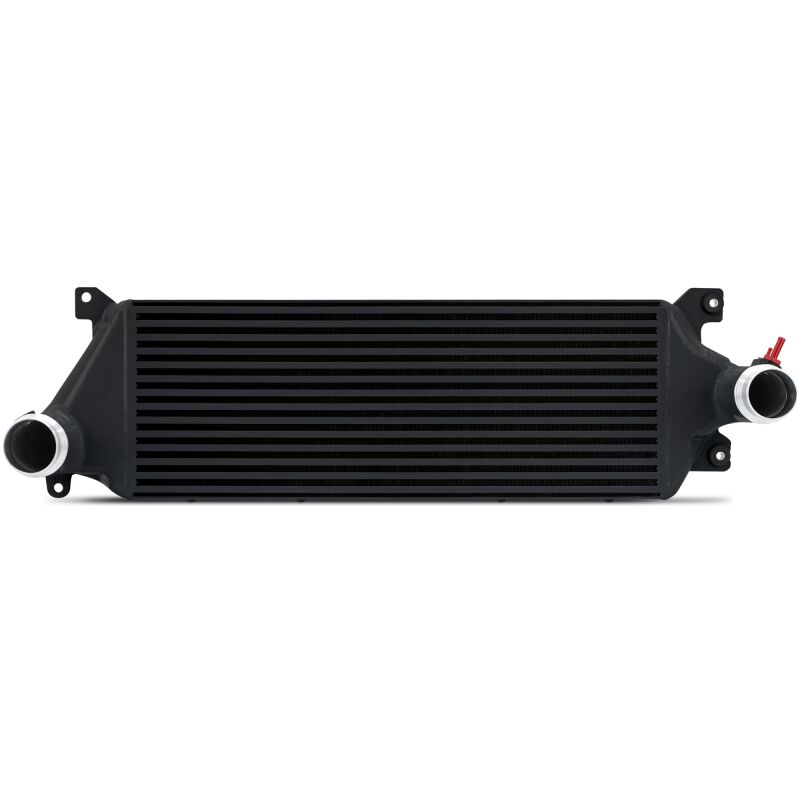

• Core Material: Aluminum
• Core Construction: Bar-and-Plate
• Intercooler Type: Air-to-Air
• Core Height: 8.87 in
• Core Length: 24.13 in
• Core Thickness: 3.5 in
• Inlet Diameter: 2.03 in
• Outlet Diameter: 2.22 in
• Pipe Diameter: 2.5 in (Hot-Side), 3 in (Cold-Side)
• End Tank Material: Aluminum, Cast construction
• Pipe Material: Aluminum, Powder Coated finish
• Pipe/Core Color: Black
• Coupler Material: Silicone, Black
• Hose Clamps Included: Yes
• Maximum Boost Pressure: 50 PSI
• Maximum Recommended Horsepower: 650 HP
• Engine Code: T24A-FTS
• Chassis Code: N400
• Grade Type: Performance

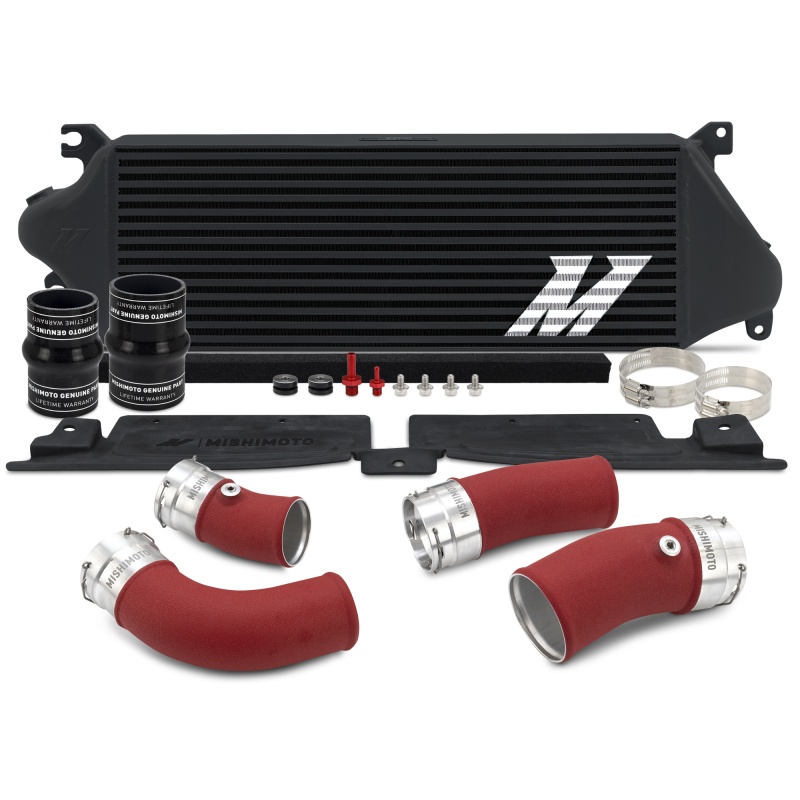

• Includes: Performance Intercooler, 2 Vacuum Fittings, Intercooler Duct, Intercooler Duct Bracket, 2 Hot-Side Intercooler Pipes, 2 Cold-Side Intercooler Pipes, 2 Silicone Couplers, Bill of Materials Notecard, Mishimoto Lifetime Warranty
