Description

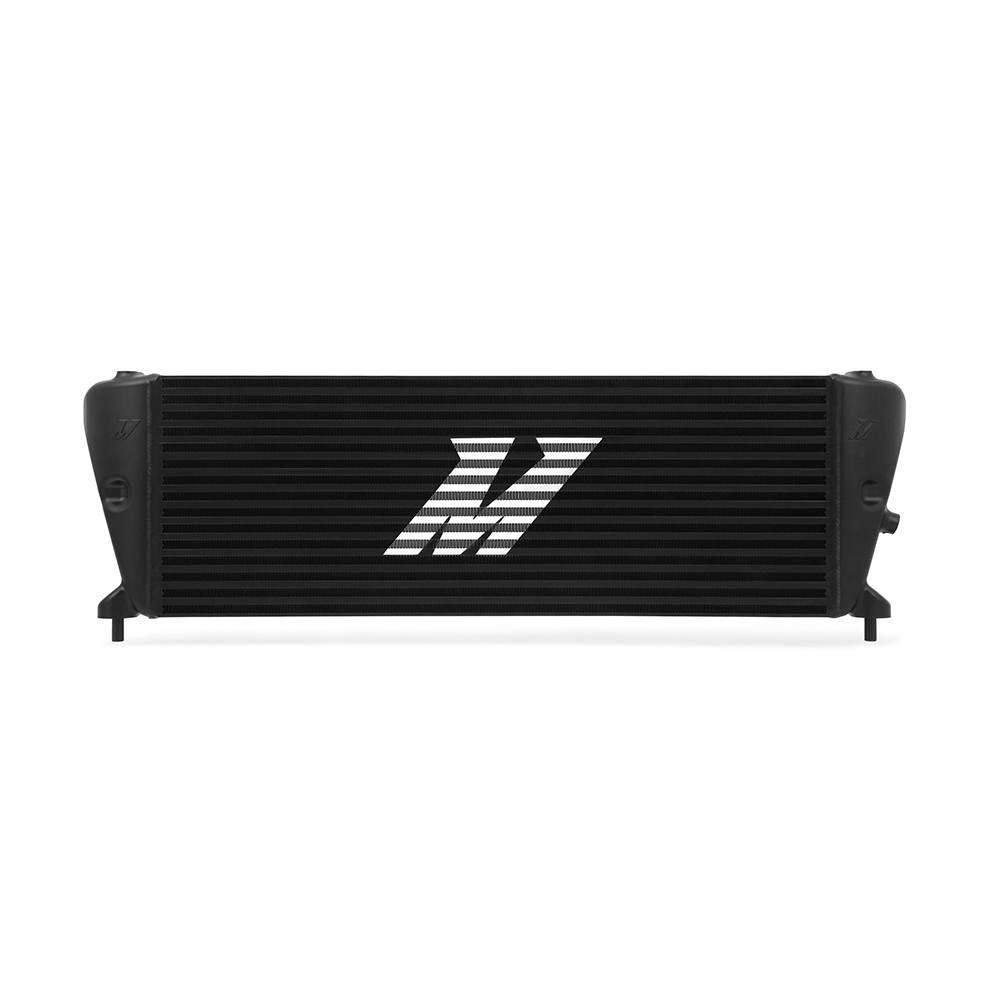

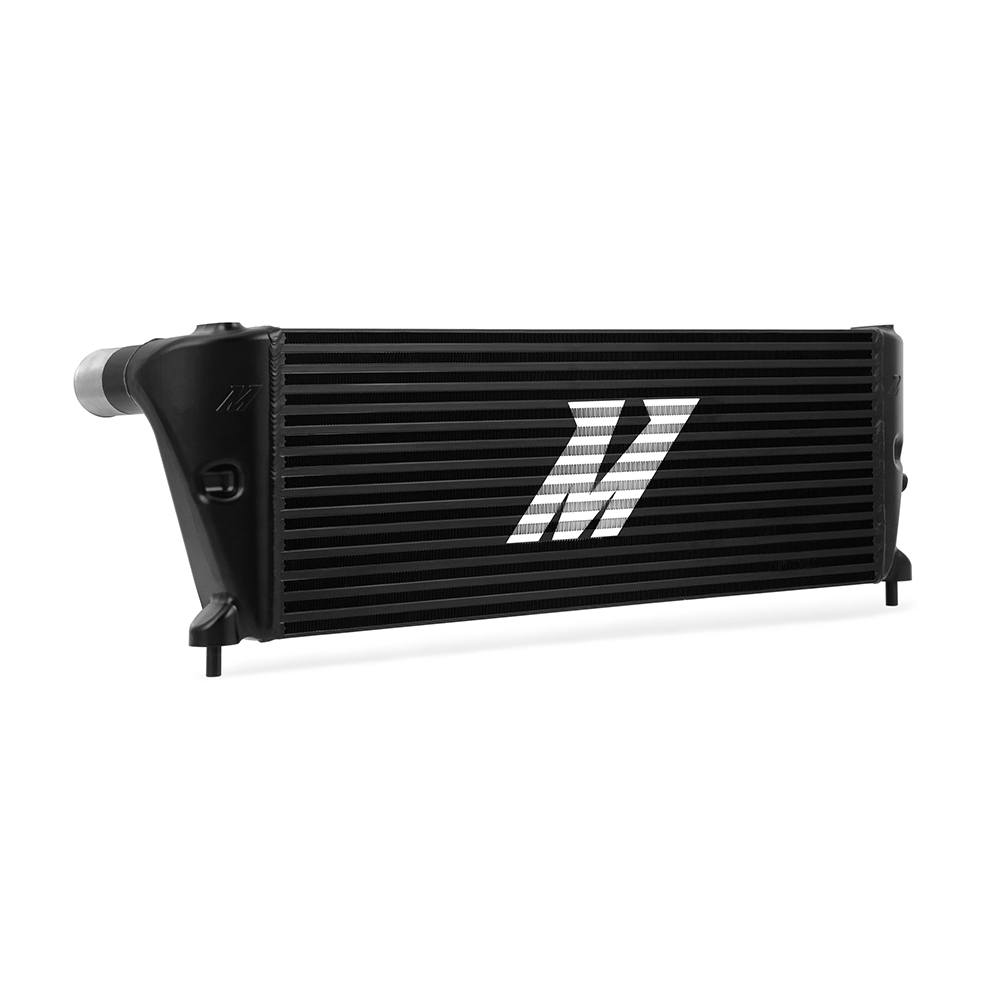

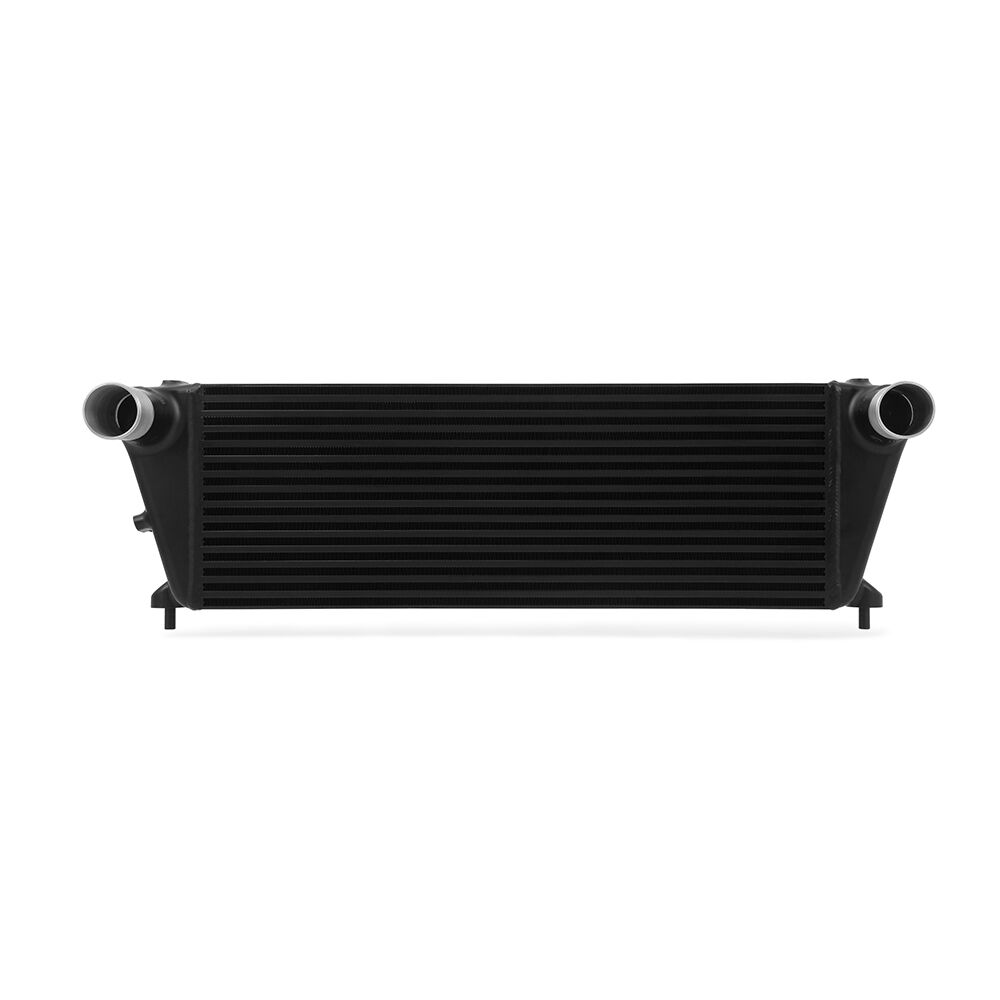

The Mishimoto MMINT-RGR-11KBKP is a performance intercooler kit engineered specifically for the 2011+ Ford Ranger 3.2L diesel, built around a bar-and-plate core that is precision TIG-welded to durable cast-aluminum end tanks. This particular kit ships in the Black Intercooler, Polished Pipes configuration and delivers a 146% increase in core volume and a 159% increase in fin surface area over the stock intercooler, giving this small truck a forced induction system that can keep pace with its capability.
Beyond raw core volume, this Mishimoto performance induction upgrade replaces the factory rubber and plastic intercooler hoses with mandrel-bent aluminum intercooler piping, eliminating harsh bends that restrict airflow and rob performance. The result is a more efficient induction system that resists heat and pressure better than the OEM setup, while an integrated bung on the intercooler can be drilled and tapped for a boost sensor or water-meth injection, giving tuners added flexibility. The kit is compatible with stock or Mishimoto performance intercooler pipes, and every component – from mounting brackets to couplers and clamps – is included for a straightforward installation, all backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This intercooler kit is a direct-fit, specific-application part designed for the 2011 and newer Ford Ranger lineup equipped with the 3.2L Duratorq diesel engine, covering the XL, XLS, XLT, FX4, and Wildtrak trims. Owners of these Ranger diesel trucks looking to upgrade their forced induction system with a purpose-built intercooler and piping kit will find this Mishimoto kit engineered around their exact vehicle.
Features

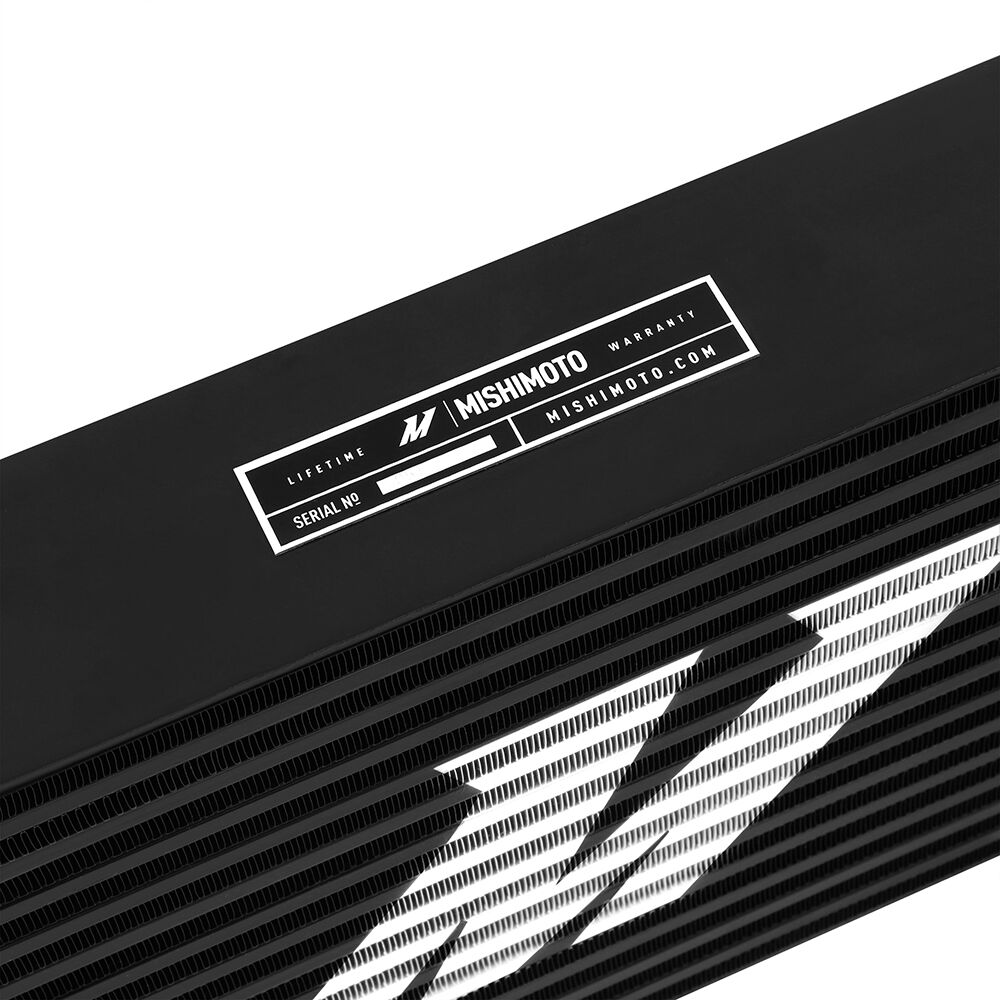

- Bar-and-plate core TIG-welded to cast-aluminum end tanks for increased durability and resistance to heat and pressure
- 146% increase in core volume and 159% increase in fin surface area over the stock intercooler

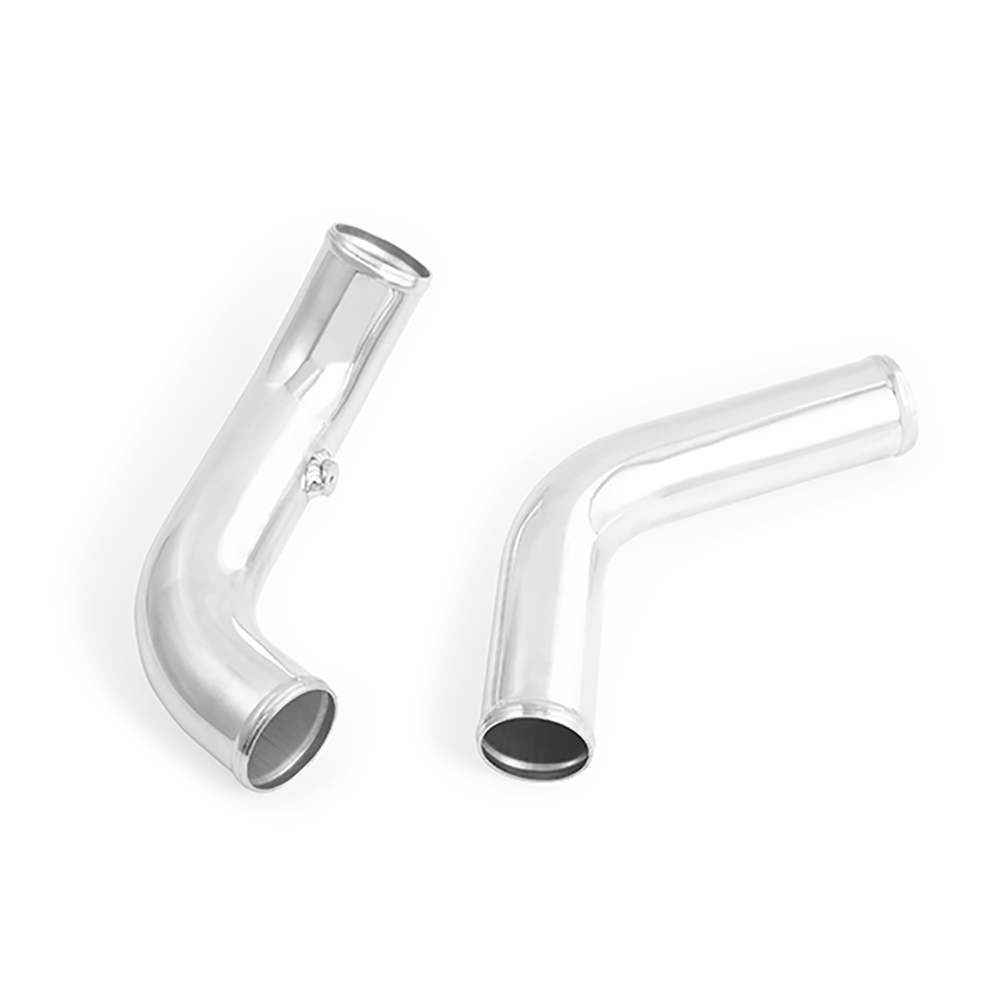

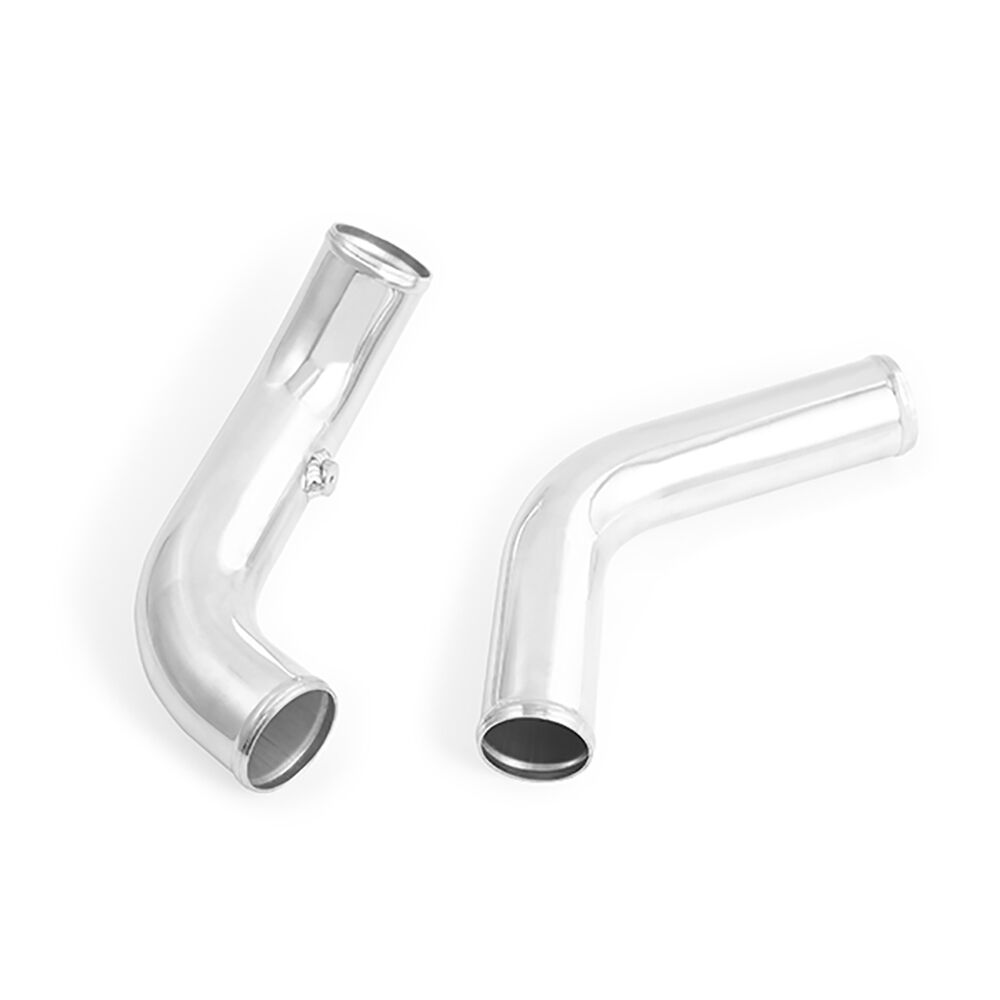

- Mandrel-bent aluminum intercooler piping eliminates harsh bends that impede airflow
- Integrated bung can be drilled and tapped for a boost sensor or water-meth injection
- Compatible with stock or Mishimoto performance intercooler pipes

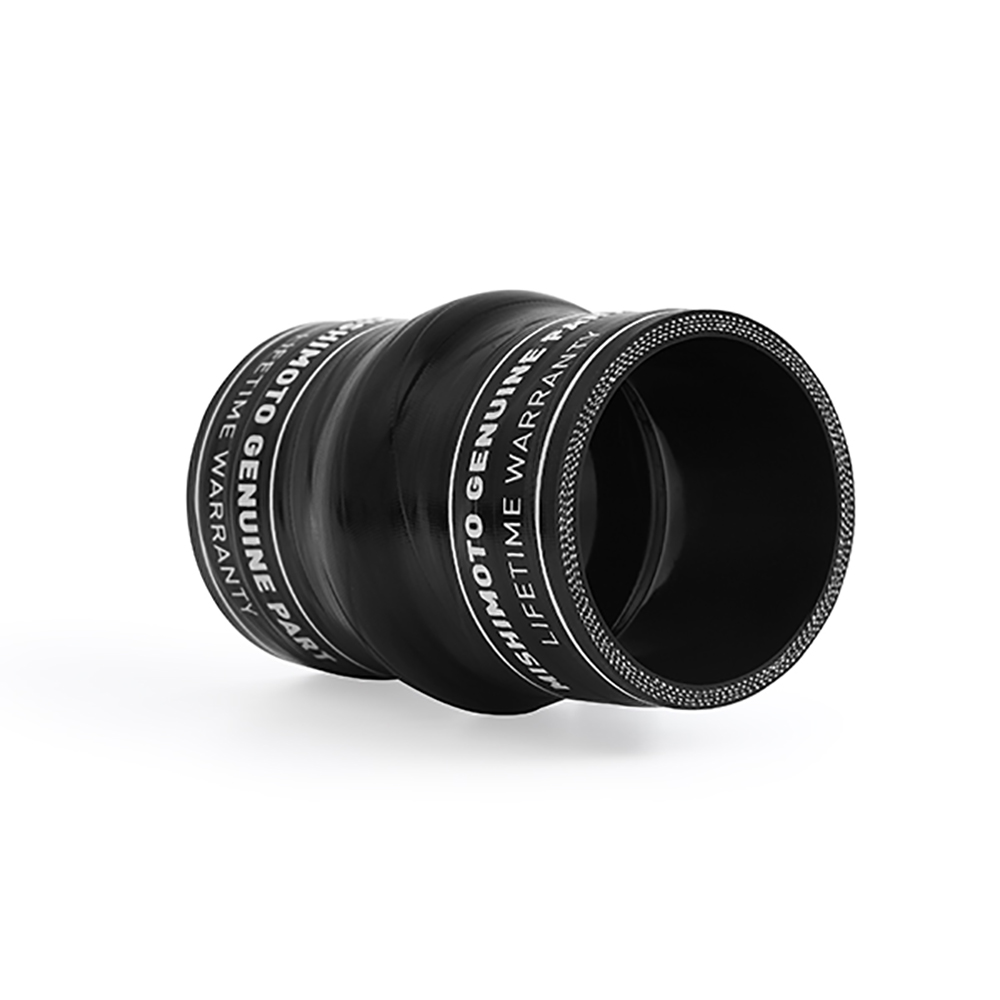

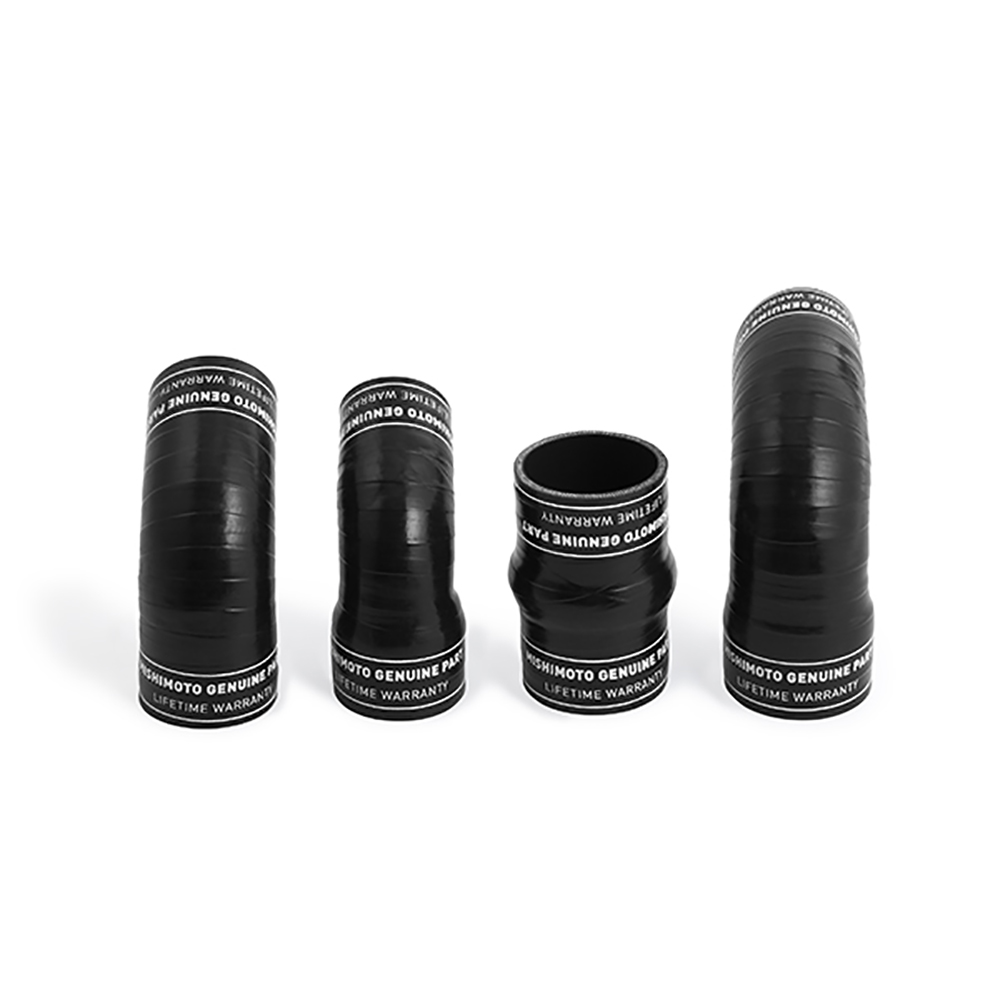

- Includes mounting brackets, DuraCore silicone couplers, and constant-tension worm gear clamps for easy installation
- Direct-fit design for the 2011+ Ford Ranger 3.2L diesel
- Backed by the Mishimoto Lifetime Warranty
- Trimming of the intercooler shrouding is required to fit this intercooler
Specifications
- Brand: Mishimoto
- Part Number: MMINT-RGR-11KBKP
- Product Type: Forced Induction
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Core Height: 9.84 in
- Core Length: 27.56 in
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Finish: Powder Coated
- Inlet Diameter: 2.09 in
- Outlet Diameter: 2.09 in
- Hot Side Pipe Inside Diameter: 2.09 in
- Cold Side Pipe Inside Diameter: 2.09 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Fit Type: Specific
- Grade Type: Performance
- Engine Code: 3.2L Duratorq
- Installation Note: Trimming of the intercooler shrouding is required to fit this intercooler
- Clamp Torque: 11 lb-ft (15NM) recommended for constant-tension worm gear clamps; operating range 11-14 lb-ft (15-20NM); do not exceed 14 lb-ft (20NM)

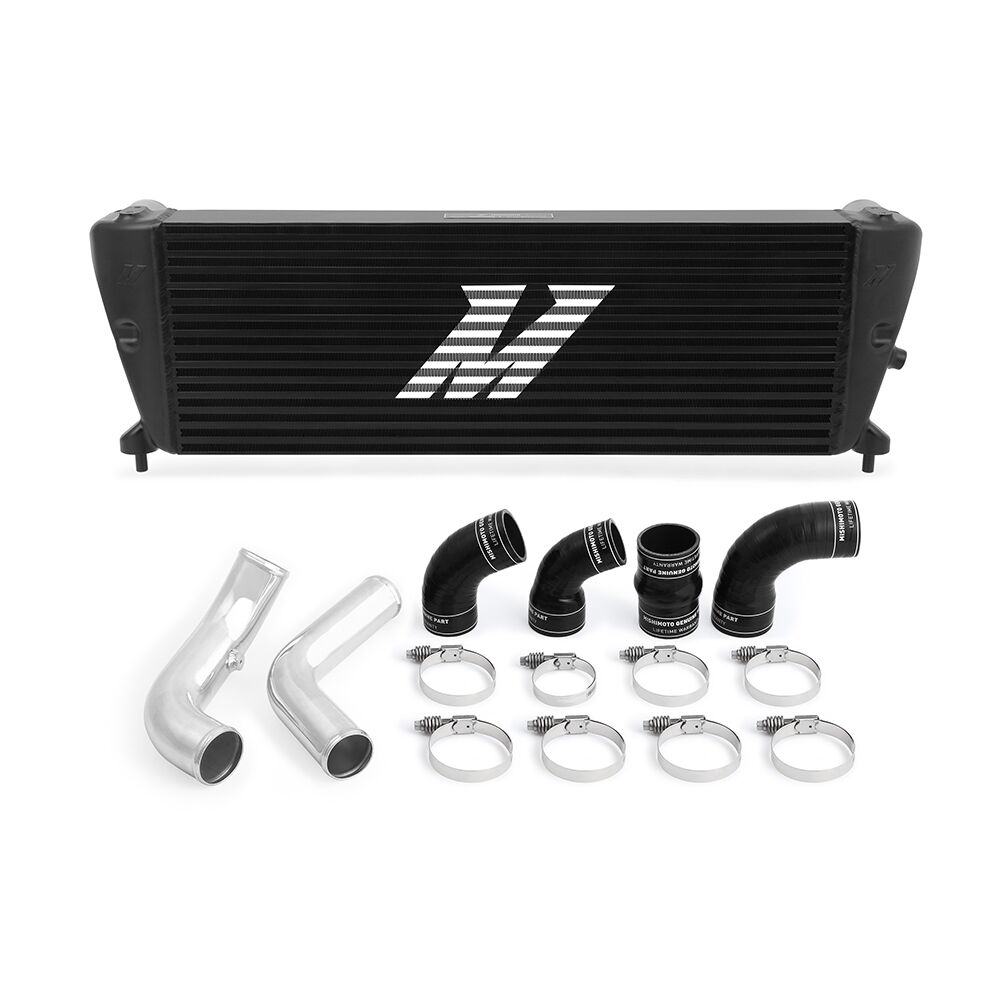

- Kit Includes: (1) Mishimoto Performance Bar-and-Plate Intercooler, (1) Hot-Side Intercooler Pipe, (1) Cold-Side Intercooler Pipe, (2) DuraCore Hot-Side Couplers, (1) DuraCore Cold-Side Coupler, (8) Constant-Tension Worm Gear Clamps, (4) Mounting Brackets, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto intercooler kit fit?
This kit is a direct-fit, specific-application part for the 2011+ Ford Ranger XL, XLS, XLT, FX4, and Wildtrak equipped with the 3.2L Duratorq diesel engine.
What does the Mishimoto intercooler kit include?
The kit includes one Mishimoto Performance Bar-and-Plate Intercooler, one Hot-Side Intercooler Pipe, one Cold-Side Intercooler Pipe, two DuraCore Hot-Side Couplers, one DuraCore Cold-Side Coupler, eight Constant-Tension Worm Gear Clamps, four Mounting Brackets, mounting hardware, and the Mishimoto Lifetime Warranty.
Does installation require any modification to the vehicle?
Yes, trimming of the intercooler shrouding is required to fit this intercooler.
How much does this intercooler improve over the stock unit?
The core delivers a 146% increase in core volume and a 159% increase in fin surface area compared to the stock Ford Ranger 3.2L intercooler.
What warranty is included with this Mishimoto intercooler kit?
This kit is backed by the Mishimoto Lifetime Warranty.
What torque should be used when installing the included hose clamps?
Mishimoto recommends 11 lb-ft (15NM) for the constant-tension worm gear clamps, which have an operating range of 11-14 lb-ft (15-20NM); do not exceed 14 lb-ft (20NM).
