Description
The Mishimoto Performance Intercooler Kit (MMINT-STNGR-18SL) is a purpose-built forced induction upgrade engineered specifically for the Kia Stinger GT’s Lambda II GDI 3.3T engine, replacing the factory tube-and-fin core and plastic end tanks with a TIG-welded bar-and-plate core and cast aluminum end tanks. On the dyno, this kit dropped intercooler outlet temperatures by 29°F on a stock tune and 41°F on a Stage 1 tune, while adding measurable power at the wheels.

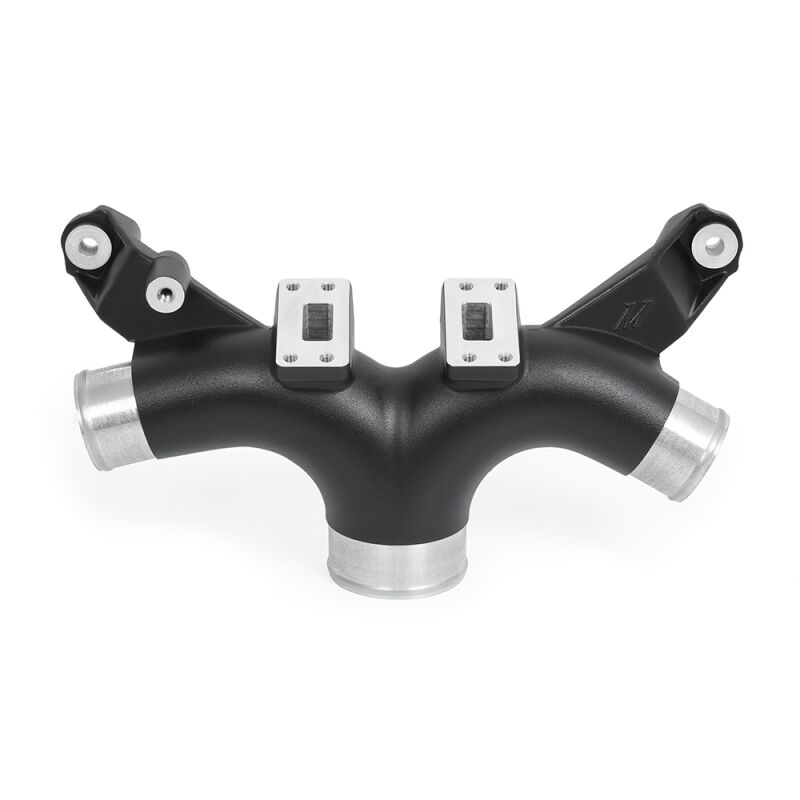

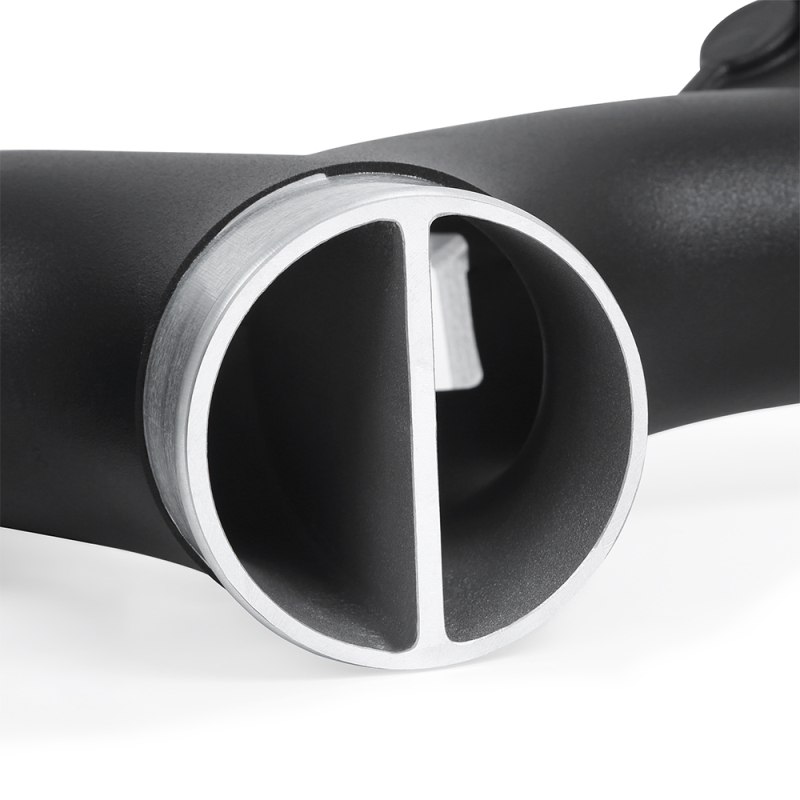

Mishimoto designed this forced induction system upgrade to address the single biggest bottleneck in the Stinger’s stock intercooling path: the OEM core and undersized piping. The redesigned core delivers a 94-percent increase in core volume and a 74-percent increase in external fin surface area compared to the factory unit, while the aluminum piping opens up to a 3-inch inner diameter to keep pressure drop to a minimum. Mishimoto also re-engineered the piping merger manifold, growing the inlets to 2 inches and the outlet to 3 inches for a 51-percent increase in flow straight out of the turbos, all while remaining compatible with the factory recirculation valves. On stock tuning, the kit measured a 29°F reduction in outlet temperature alongside gains of 8 whp and 8 wtq; layered on top of a Stage 1 map tune, outlet temperatures dropped 41°F with an additional 6 whp and 8 wtq. Every piece of this performance induction kit — from the cast aluminum end tanks to the 5-layer silicone couplers — is finished in a micro-wrinkle black powder coat, keeping the engine bay looking OEM+ while the forced induction system underneath does the real work.
Vehicle Applications
This kit is a specific fit for the 2018-2023 Kia Stinger GT, including the GT Limited (2018-2023), GT1 (2018-2022), GT2 (2018-2023), GT Elite (2022-2023), GTS (2019), and Tribute Edition (2023) trims. It also fits the 2019-2025 Genesis G70 3.3T, which shares the Lambda II GDI turbocharged platform (chassis code CK) with the Stinger.
Features
- Direct fit for the 2018-2023 Kia Stinger GT 3.3T
- Includes performance intercooler, piping, cast aluminum merge manifold, and couplers for optimal flow and performance
- Drops intercooler outlet temperature by 29°F on stock tune and 41°F on Stage 1 tune
- Delivers gains of 8 whp and 8 wtq on stock tuning, plus an additional 6 whp and 8 wtq on top of Stage 1 tuning
- 94-percent increase in intercooler core volume
- 74-percent increase in external fin surface area
- 51-percent increase in flow through the piping merger manifold
- 3-inch intercooler piping for increased flow
- Additional bung on the cold-side intercooler pipe that can be drilled and tapped for methanol injection or sensors
- Compatible with stock recirculation valves

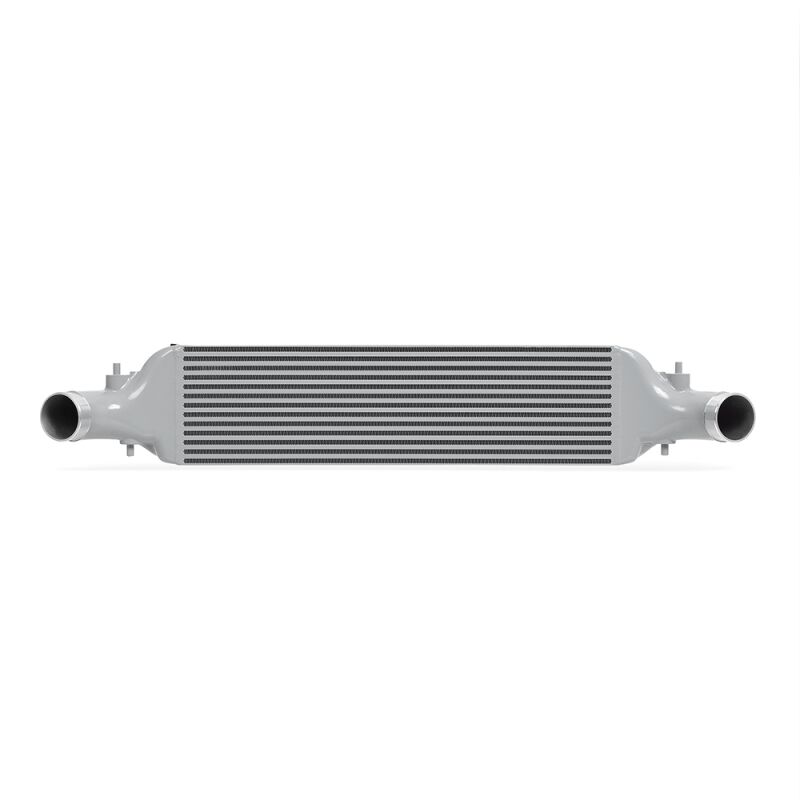

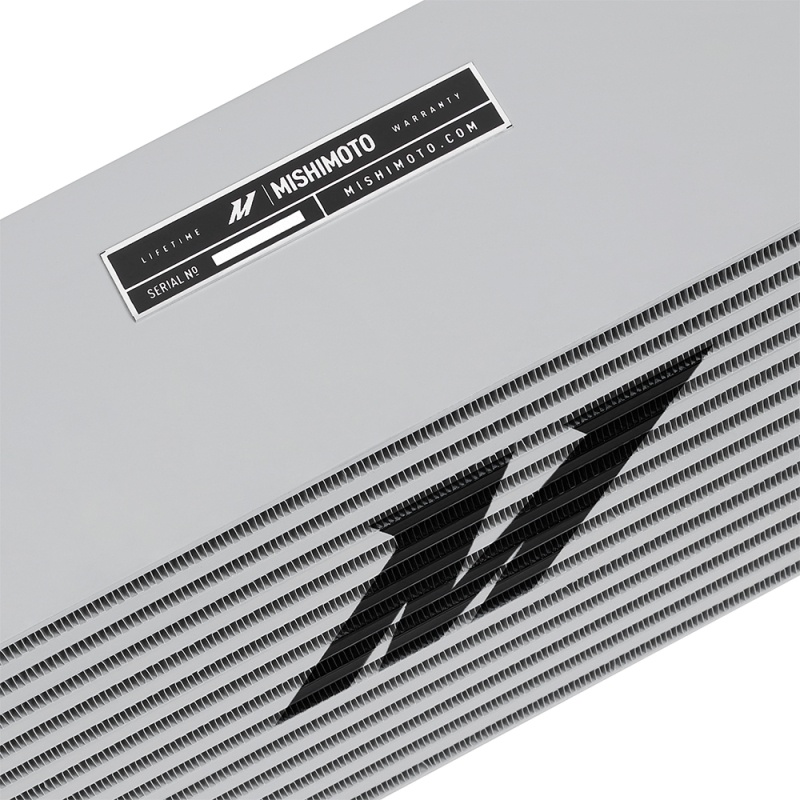

- Bar-and-plate core TIG-welded to cast aluminum end tanks

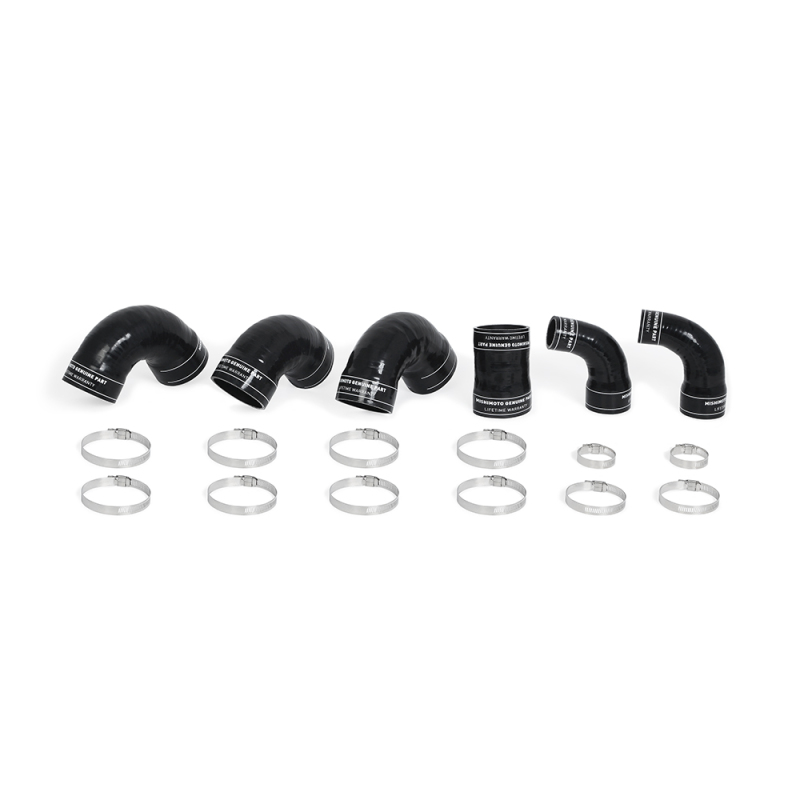

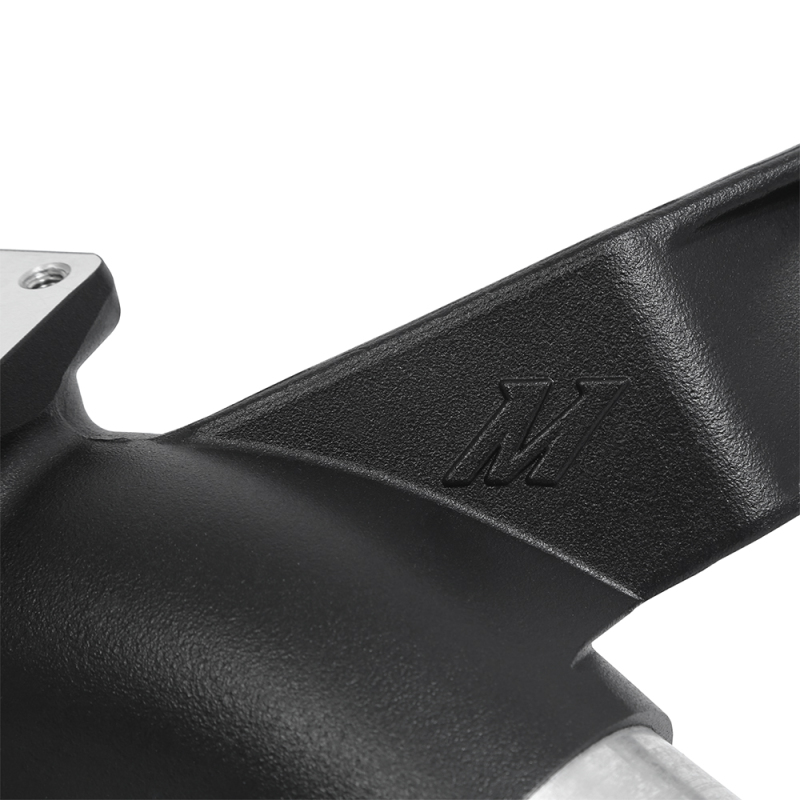

- Micro-wrinkle black powder coat finish with 5-layer silicone couplers
- Covered by the Mishimoto Lifetime Warranty
- Patent No. US D957,465 S
- Installation requires permanent modification to the front air guide shrouding, OEM part number 29135-J5000
Specifications
- Brand: Mishimoto
- Part Number: MMINT-STNGR-18SL
- Product Type: Forced Induction
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver
- Intercooler Type: Air-to-Air
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Pipe Material: Aluminum
- Pipe Color: Silver
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fit Type: Specific
- Engine Codes: Lambda II GDI
- Chassis Codes: CK
- Overall Length: 38.7 in
- Overall Width: 8.1 in
- Overall Height: 7.9 in
- Weight: 31 lbs
- CARB EO Number: #D-759-24

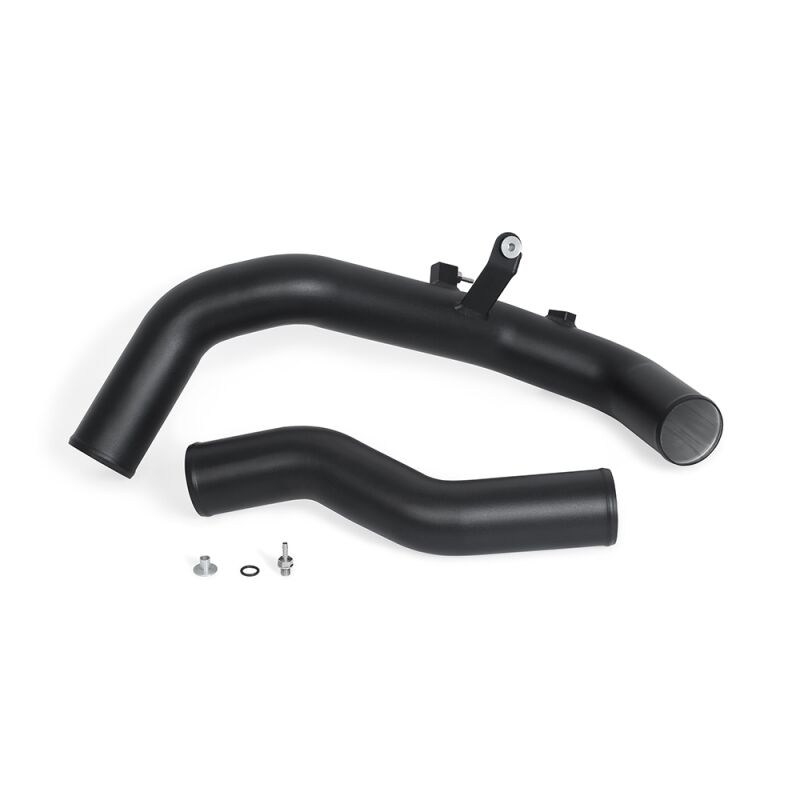

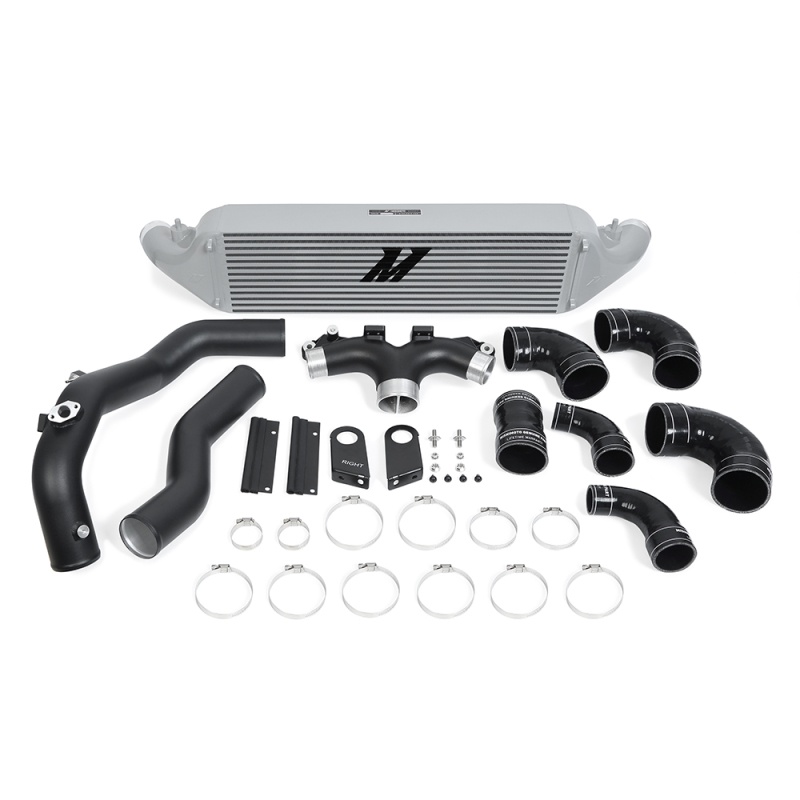

- Kit Includes: (1) Performance Intercooler, (1) Hot-Side Piping Merger Manifold, (1) Hot-Side Intercooler Pipe, (1) Cold-Side Intercooler Pipe, (6) Silicone Couplers, (2) Application-Specific Mounting Brackets, (2) Air Diverters, (4) Mounting Grommets, (8) Heavy-Duty Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-STNGR-18SL intercooler kit?
This kit is a specific fit for the 2018-2023 Kia Stinger GT (including GT Limited 2018-2023, GT1 2018-2022, GT2 2018-2023, GT Elite 2022-2023, GTS 2019, and Tribute Edition 2023) as well as the 2019-2025 Genesis G70 3.3T.
How much does this intercooler kit reduce outlet temperatures?
On a stock tune, Mishimoto recorded a 29°F drop in outlet temperature; on a Stage 1 map tune, the drop increased to 41°F.
What power gains were measured with this kit?
On stock tuning, the kit gained 8 whp and 8 wtq. On top of a Stage 1 tune, it added another 6 whp and 8 wtq.
What does the kit include?
It includes one performance intercooler, a hot-side piping merger manifold, a hot-side intercooler pipe, a cold-side intercooler pipe, six silicone couplers, two application-specific mounting brackets, two air diverters, four mounting grommets, eight heavy-duty worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
Does installation require any permanent modifications?
Yes, installation requires permanent modification to the front air guide shrouding, OEM part number 29135-J5000.
Is this intercooler compatible with the stock recirculation valves?
Yes, the piping merger manifold retains compatibility with the stock recirculation valves.
