Description

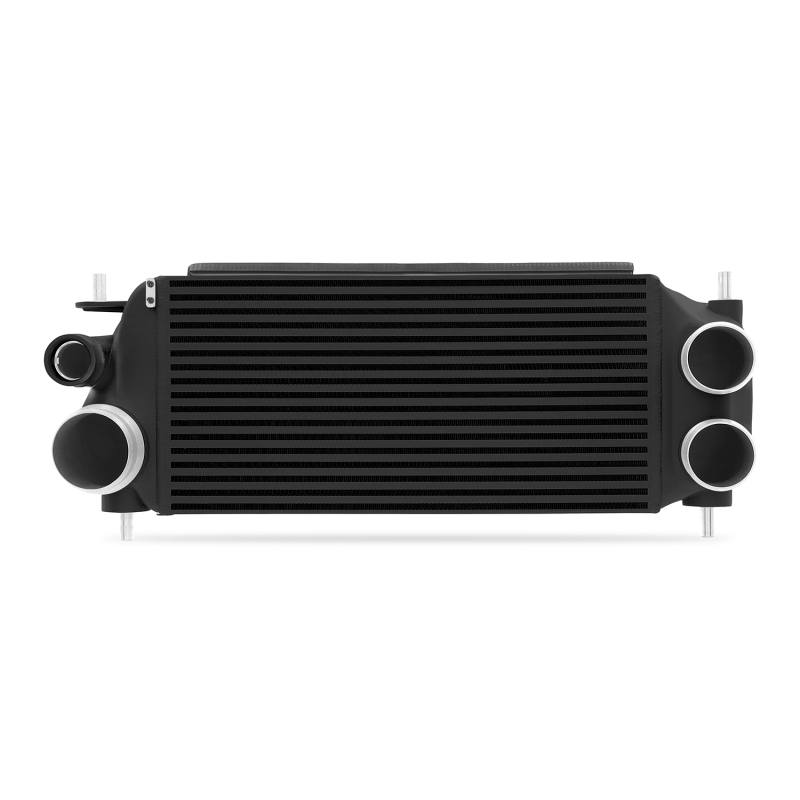

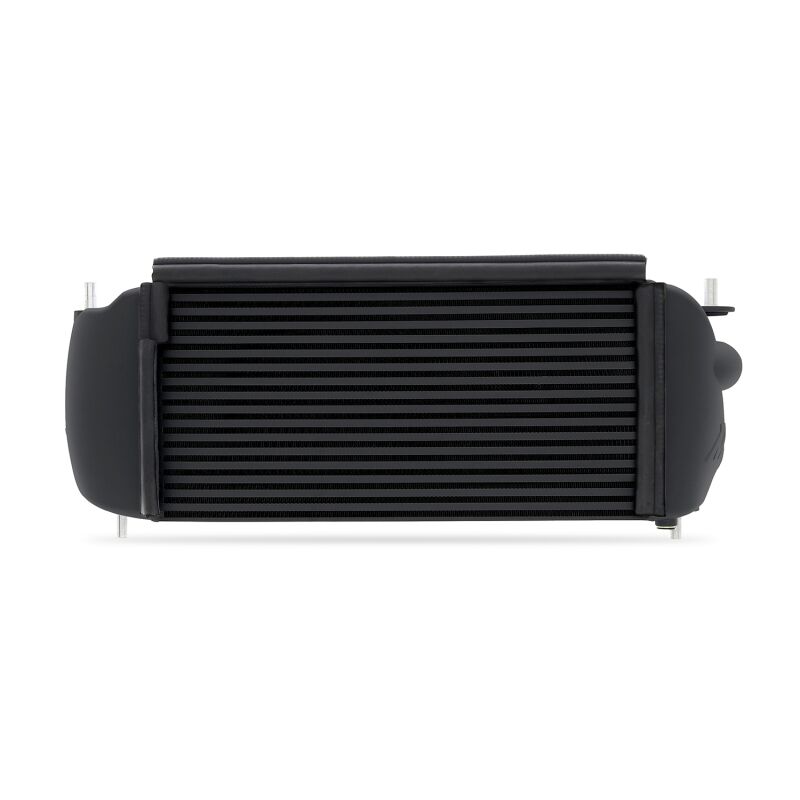

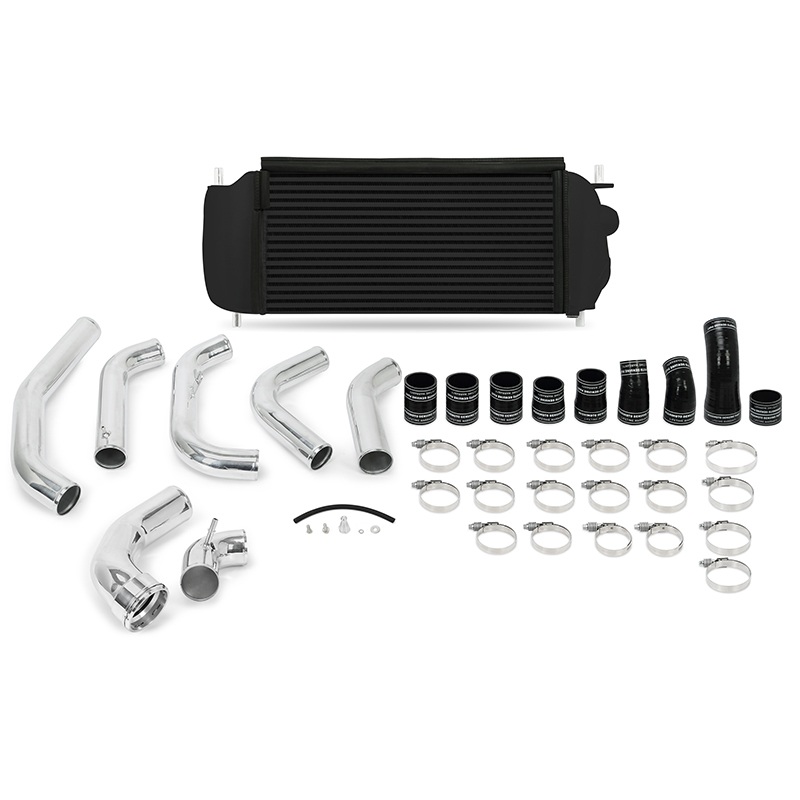

The Mishimoto MMINT-F35T-15KPBK is a direct-fit intercooler and pipe kit engineered specifically for the 2015-2016 Ford F-150 with the 3.5L V6 EcoBoost engine. This kit pairs a Stealth Black Mishimoto intercooler with a full set of polished aluminum piping, replacing the factory plastic piping that restricts airflow to the truck’s twin turbochargers. Built around a bar-and-plate core with cast aluminum end tanks, this forced induction upgrade is designed to move more air, more efficiently, than the factory setup.

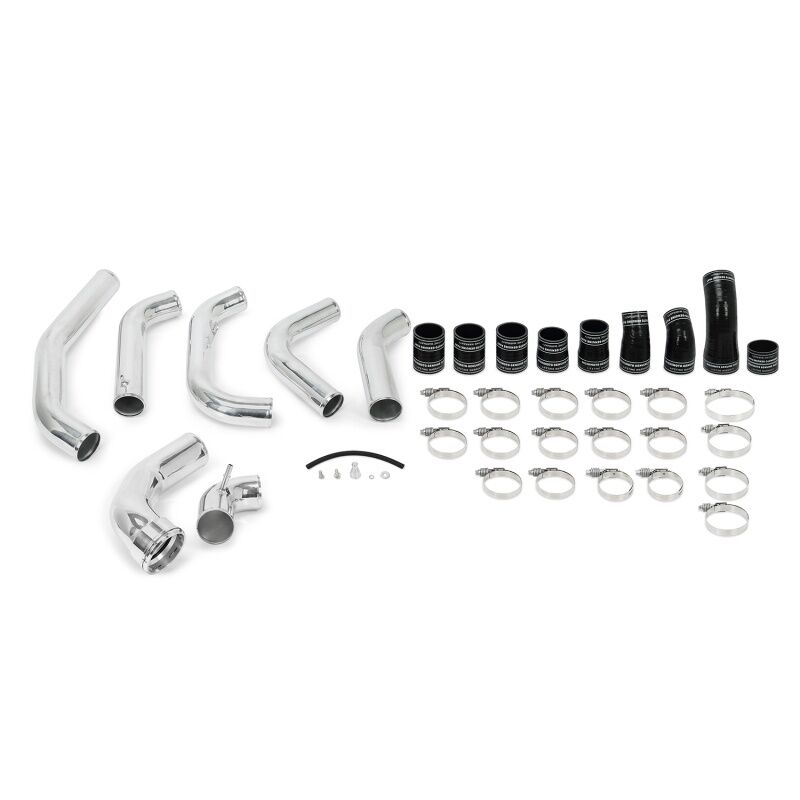

As a forced induction system upgrade, this kit increases intercooler core volume by 77 percent and external fin surface area by 163 percent over the stock unit, giving the induction system more capacity to shed heat before charge air reaches the intake. The included aluminum piping offers a 24-percent larger total internal volume than the factory plastic pipes, while Mishimoto Silicone Boots with DuraCore technology and constant-tension worm gear clamps keep every connection sealed as pipes and boots expand and contract under boost. Together, the intercooler and pipe kit forms a complete performance induction package that lets the 3.5L EcoBoost’s two turbochargers breathe freely, and Mishimoto backs the whole kit with its Lifetime Warranty.
Vehicle Applications
This Mishimoto intercooler and pipe kit is a specific-fit forced induction upgrade built for the 2015-2016 Ford F-150 equipped with the 3.5L V6 EcoBoost engine (chassis code P552). It is confirmed to fit the F-150 XL, XLT, Lariat, King Ranch, and Platinum trims for both the 2015 and 2016 model years, as well as the 2016-only F-150 Limited and F-150 SSV.
Features
- Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
- 24-percent total internal volume increase over the stock intercooler pipes
- Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
- Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temp
- 77-percent increase in internal intercooler core volume
- 163-percent increase in external fin surface area
- All-aluminum, TIG-welded construction
- Fits with stock intercooler fans without modification
- Available with Sleek Silver or Stealth Black intercooler, and polished or wrinkle black powder-coated pipes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 9.4 in
- Core Length: 19.6 in
- Core Thickness: 4.7 in

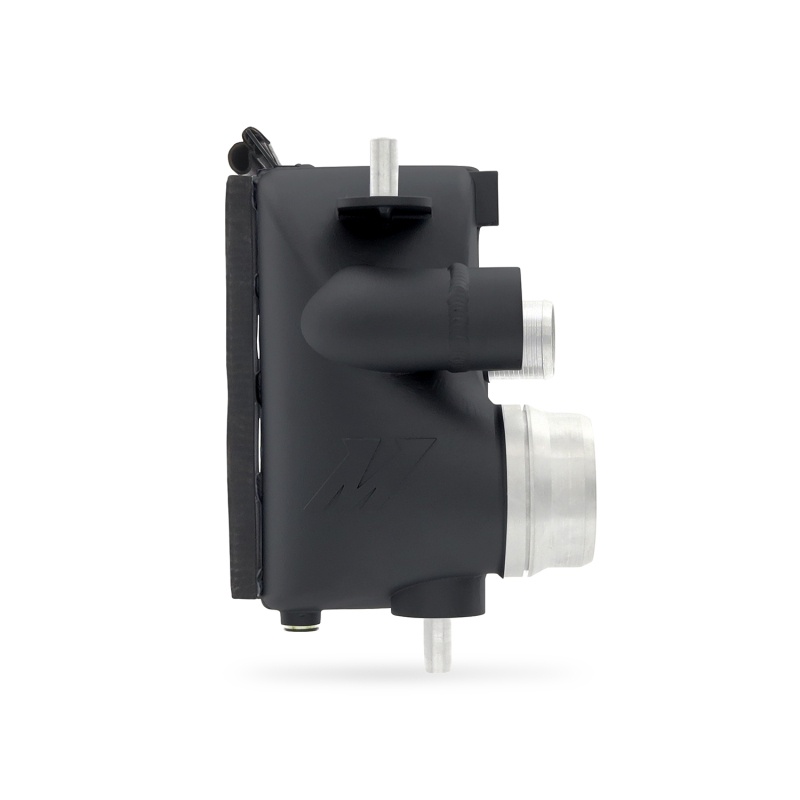

- End Tank Construction: Cast
- End Tank Material: Aluminum
- Intercooler Type: Air-to-Air

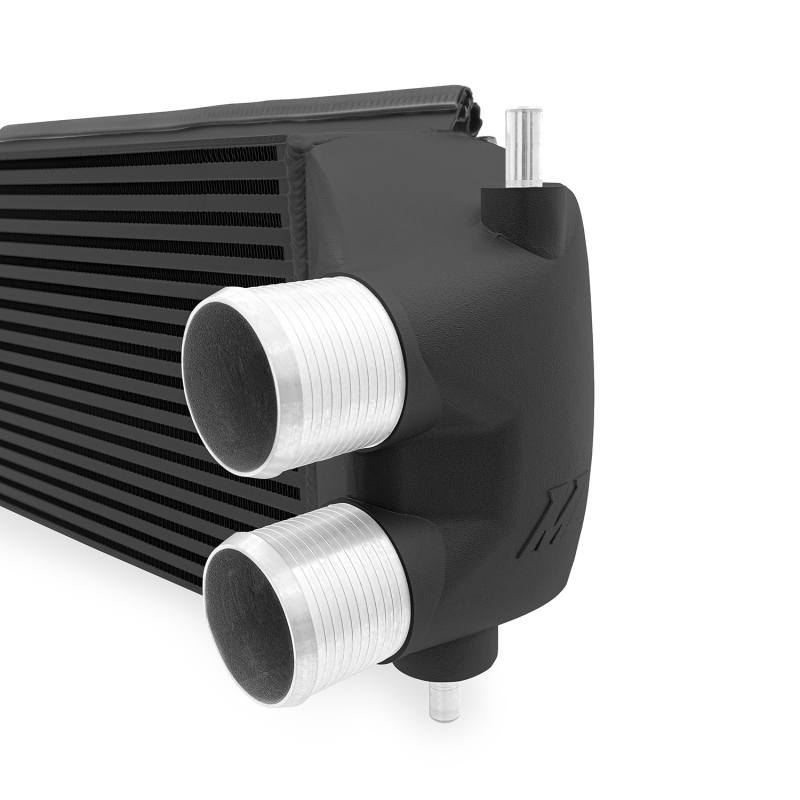

- Inlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Color: Polished
- Coupler Material: Silicone
- Coupler Color: Black
- Core Color: Black
- Maximum Boost Pressure: 50 PSI
- Overall Height: 9.5 in
- Overall Length: 29 in
- Grade Type: Performance
- Engine Codes: 3.5L V6 EcoBoost
- Chassis Code: P552
- CARB EO Number: D-759-6
Frequently Asked Questions
What vehicles does this Mishimoto intercooler and pipe kit fit?
It is a direct fit for the 2015-2016 Ford F-150 3.5L V6 EcoBoost, covering the F-150 XL, XLT, Lariat, King Ranch, and Platinum trims for 2015-2016, plus the 2016-only F-150 Limited and SSV.
How much does the Mishimoto intercooler increase core volume?
It provides a 77-percent increase in internal intercooler core volume and a 163-percent increase in external fin surface area over the stock unit.
What is the maximum boost pressure rating for this kit?
The maximum boost pressure rating is 50 PSI.
What materials are used in this intercooler and pipe kit?
The intercooler features a bar-and-plate aluminum core with cast aluminum end tanks, paired with aluminum piping and Mishimoto Silicone Boots with DuraCore technology.
Does this kit include a warranty?
Yes, this kit is backed by the Mishimoto Lifetime Warranty.
What features does the cold-side piping include?
The cold-side pipe includes a CNC quick-disconnect with a pre-installed O-ring and spring clip for easy installation, plus an additional port that can be drilled and tapped for methanol injection or sensors.
