Description

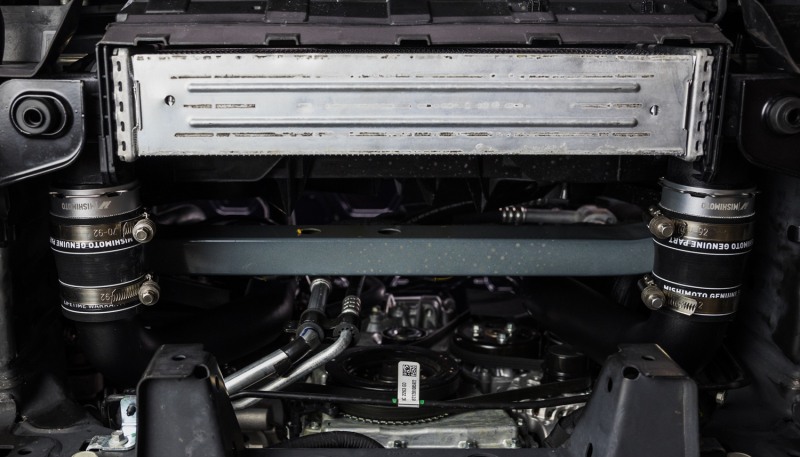

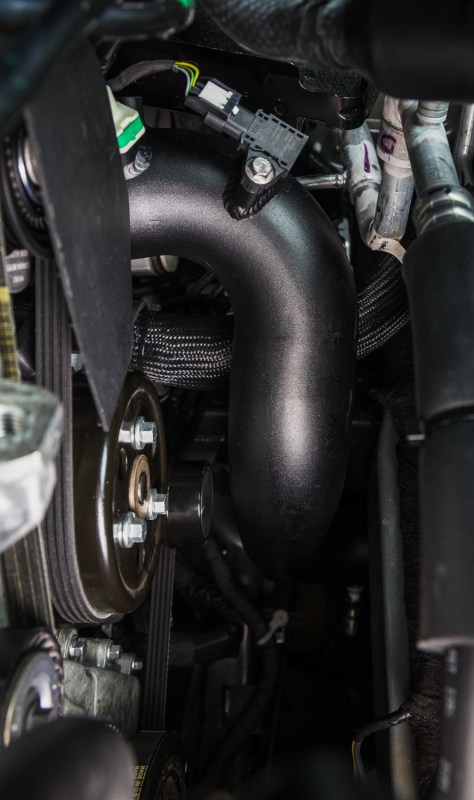

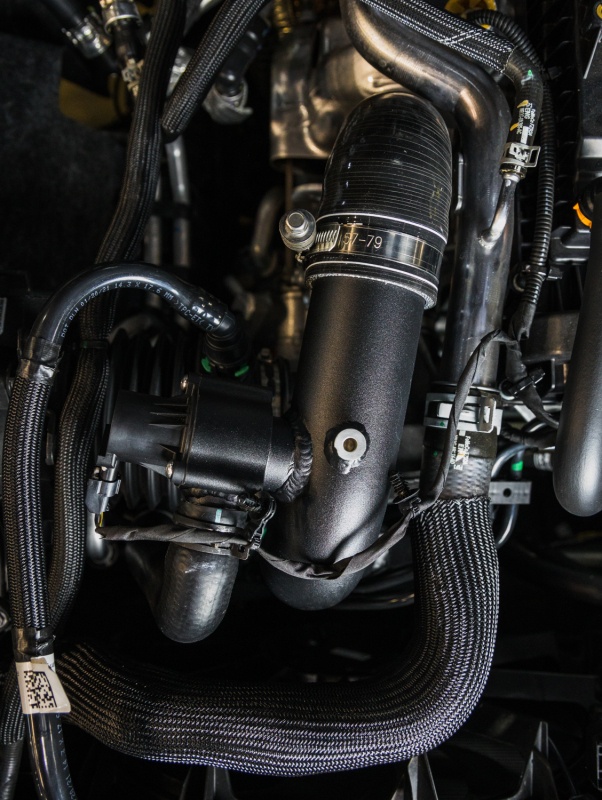

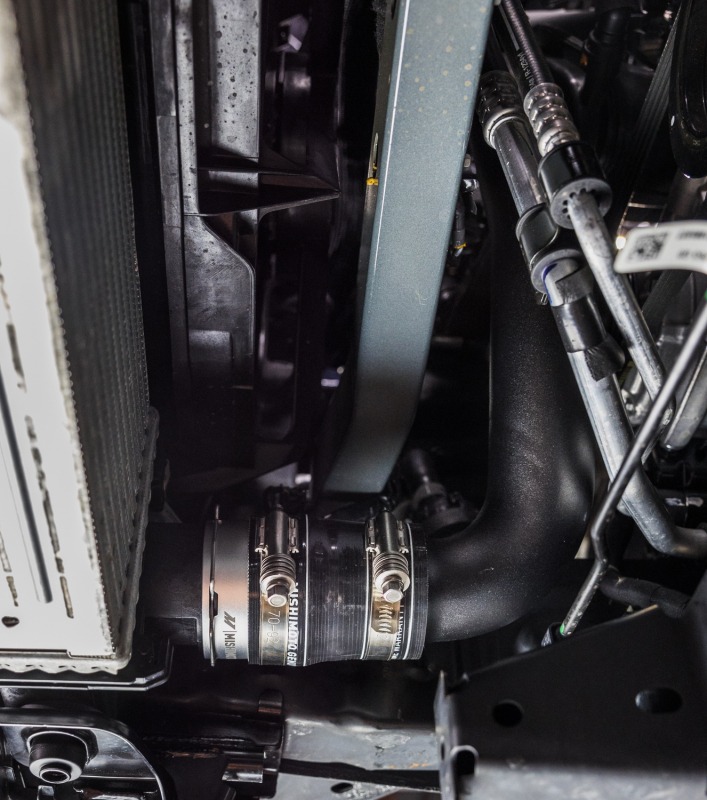

The Mishimoto MMICP-BR23-21USBK is a direct-fit intercooler pipe upgrade kit engineered specifically for owners of the 2021-2024 Ford Bronco 2.3L EcoBoost who have already installed the Mishimoto Stock Location Performance Intercooler. Finished in a stealthy wrinkle black powder coat, this kit swaps the factory plastic charge piping for mandrel-bent aluminum pipes and Mishimoto DuraCore silicone boots, completing the full Mishimoto charge air system on your 2.3L Bronco.
Built around the demands of forced induction, this intercooler pipe kit is designed to let your 2.3L EcoBoost turbo breathe. Mishimoto states the pipes flow up to 61-percent better than the stock plastic piping, while the redesigned charge path is described as up to 60-percent less restrictive than stock, translating into a more efficient induction system and greater power potential for your forced induction setup. CNC-machined aluminum intercooler outlets provide unrestricted flow from the piping into the intercooler, and an additional 1/8-NPT port on the cold-side pipe leaves room to add methanol injection or extra sensors down the road. DuraCore boots, paired with constant-tension worm gear clamps, are built to resist heat, pressure, fuel, and oil so boost pressure reaches its destination instead of leaking past a worn factory coupler.
Vehicle Applications
This kit is built for the Ford Bronco 2.3L EcoBoost (engine code 2.3L EcoBoost, chassis code U725). It fits the Ford Bronco Badlands, Big Bend, and Outer Banks trims from 2021 through 2026, the Ford Bronco Base trim for 2021-2023 and 2025-2026, the Ford Bronco Black Diamond trim from 2021-2024, the Ford Bronco Everglades trim from 2022-2025, and the Ford Bronco Heritage Edition from 2023-2026. Because this pipe kit is designed to pair with the Mishimoto Stock Location Performance Intercooler, it will not fit the factory Bronco intercooler; Bronco owners running the stock intercooler should instead look at Mishimoto part number MMICP-BR23-21.
Features
- Direct fit for 2021-2024 Ford Bronco 2.3L EcoBoost equipped with the Mishimoto Stock Location Intercooler
- Specifically designed for use with the Mishimoto Stock Location Intercooler

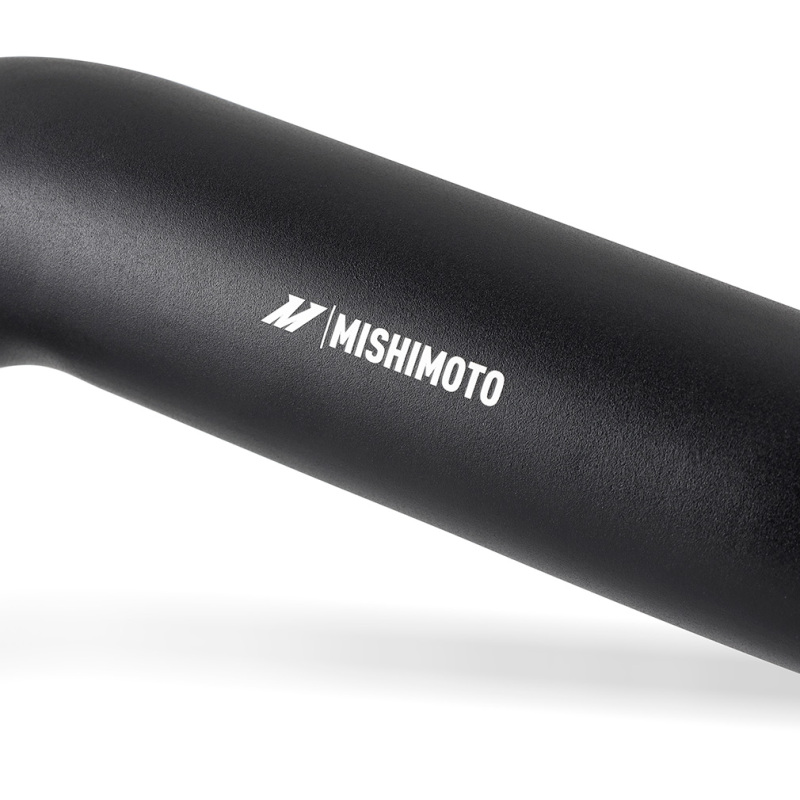

- Mandrel-bent aluminum piping in a black wrinkle powder-coated finish
- Up to 60-percent less restrictive than stock piping for improved flow and power potential
- Flows up to 61-percent better than the factory plastic pipes
- CNC-machined intercooler outlets for unrestricted flow from piping to intercooler

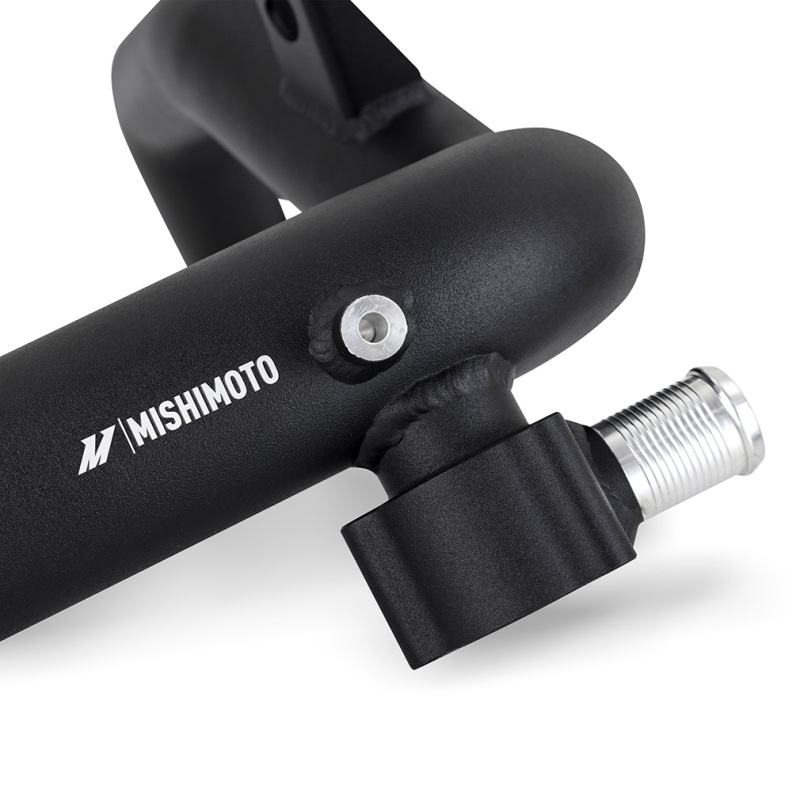

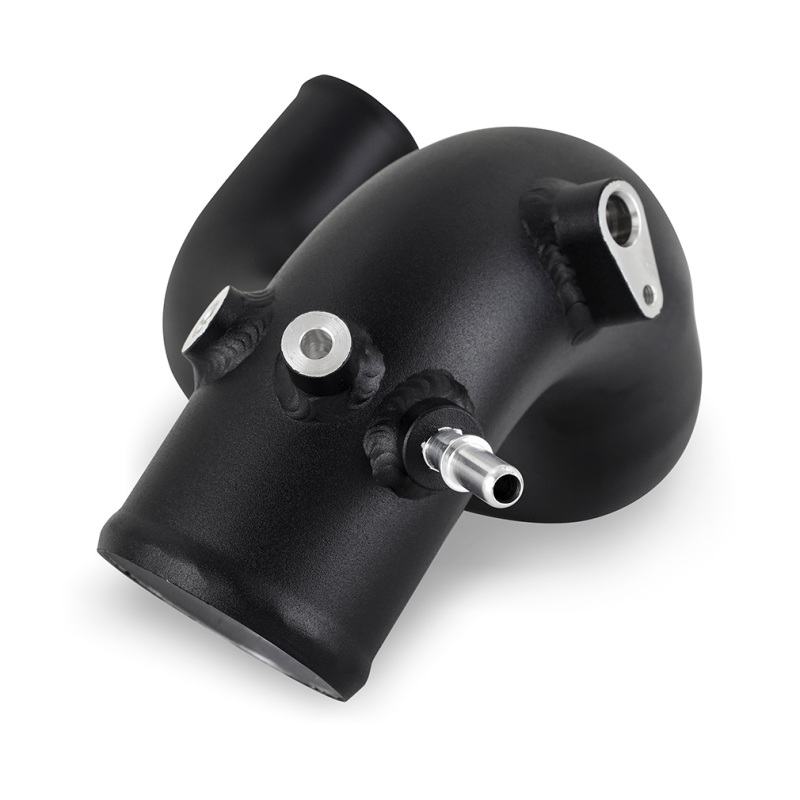

- Additional 1/8-NPT port on the cold-side pipe for methanol injection or extra sensors

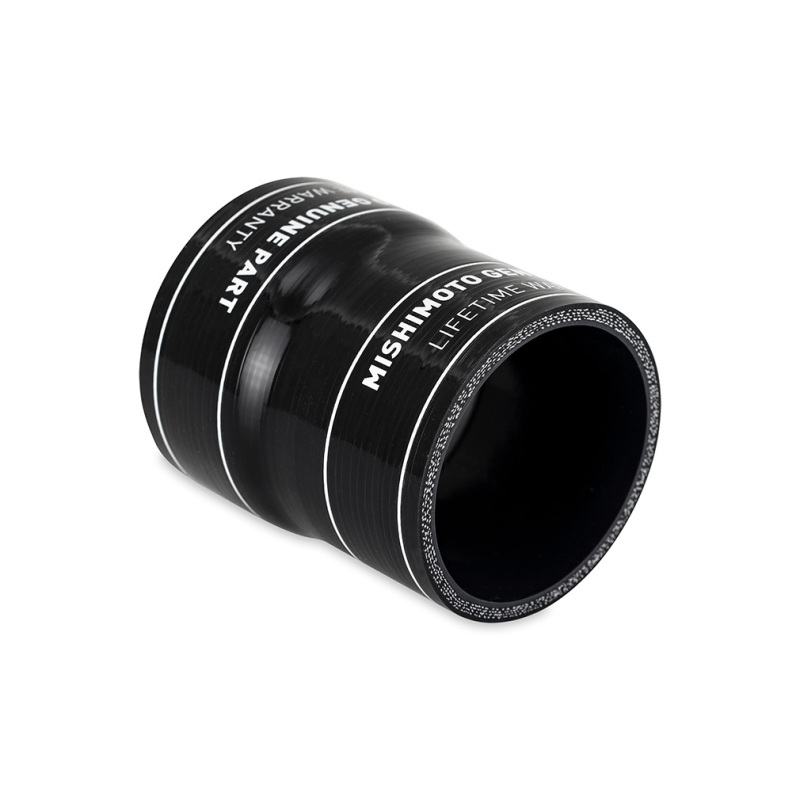

- Mishimoto silicone boots with DuraCore technology for resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps maintain a strong grip as pipes and boots expand and contract
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-BR23-21USBK
- Applications: Ford Bronco 2.3L L4 2021-2024
- Engine Code: 2.3L EcoBoost
- Chassis Code: U725
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Bend Type: Mandrel
- Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes

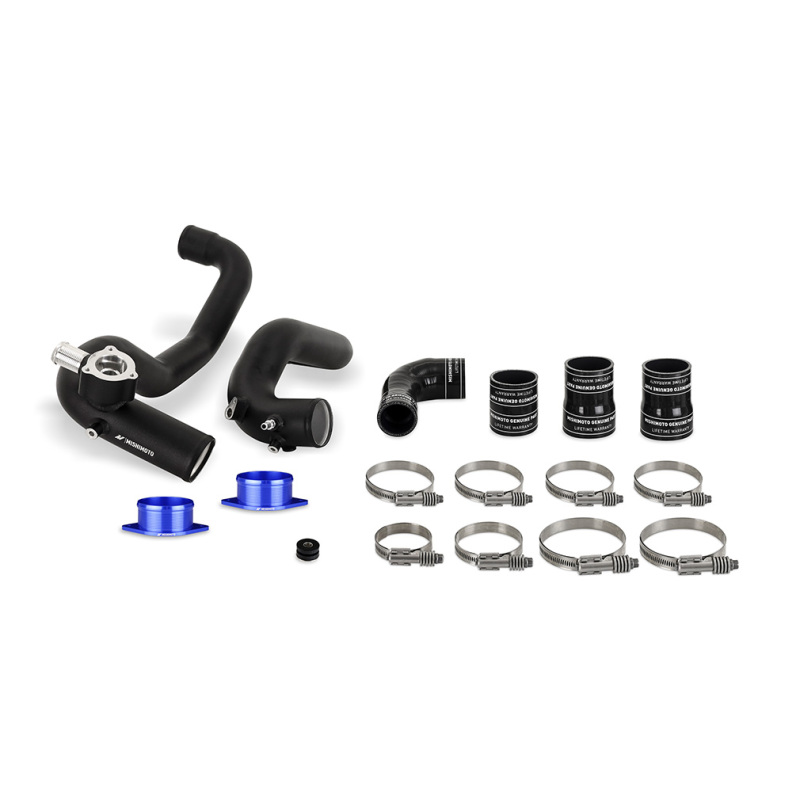

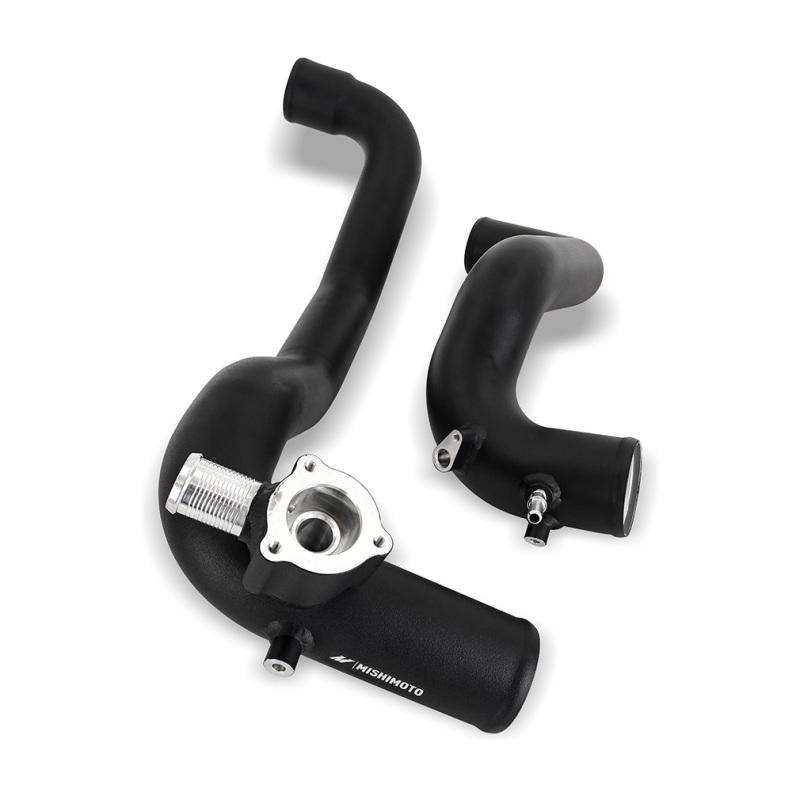

- Kit Includes: (1) Hot-side Pipe, (1) Cold-side Pipe, (4) DuraCore Intercooler Pipe Couplers, (2) CNC quick-disconnects, (8) Constant-Tension Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
- Installation Note: 22 in-lbs (2.5 N-M) recommended for all worm-gear clamps; operating range 18-27 in-lbs (2-3 N-M); do not exceed 27 in-lbs (3 N-M) maximum torque
Frequently Asked Questions
Will this pipe kit fit my stock Ford Bronco intercooler?
No. This kit is intended for use with the Mishimoto Stock Location Performance Intercooler and will not fit the factory Bronco intercooler; for the factory intercooler, Mishimoto offers part number MMICP-BR23-21.
What engines and years does this kit cover?
It is designed for the 2021-2024 Ford Bronco 2.3L EcoBoost, engine code 2.3L EcoBoost, chassis code U725.
What material are the pipes made from and what finish is available on this kit?
The pipes are mandrel-bent aluminum finished in black powder coat.
What is included in the kit?
One hot-side pipe, one cold-side pipe, four DuraCore intercooler pipe couplers, two CNC quick-disconnects, eight constant-tension worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
Does this kit improve airflow over the stock piping?
Yes. Mishimoto states the pipes flow up to 61-percent better than stock and are up to 60-percent less restrictive, helping the 2.3L EcoBoost turbo make the most of its boost potential.
What torque should I use when installing the worm gear clamps?
Mishimoto recommends 22 in-lbs (2.5 N-M) for all worm-gear clamps, with an operating range of 18-27 in-lbs (2-3 N-M), and advises not exceeding 27 in-lbs (3 N-M).
