Description
The Mishimoto Ford Fiesta ST Baffled Oil Catch Can Kit (MMBCC-FIST-14PBE) is purpose-built for the 2014-2019 Fiesta ST’s direct-injection engine, tackling carbon buildup at its source. Mishimoto engineers logged thousands of test miles on a Fiesta ST test vehicle to pinpoint the single most effective catch can location: tied into the vacuum-assisted PCV system, where oil accumulation is far greater under both normal and aggressive driving than it is on the crankcase vent side. The result is a single-can kit built around the Mishimoto 2-Port Compact Baffled Oil Catch Can, engineered specifically for this application rather than adapted from a universal design.

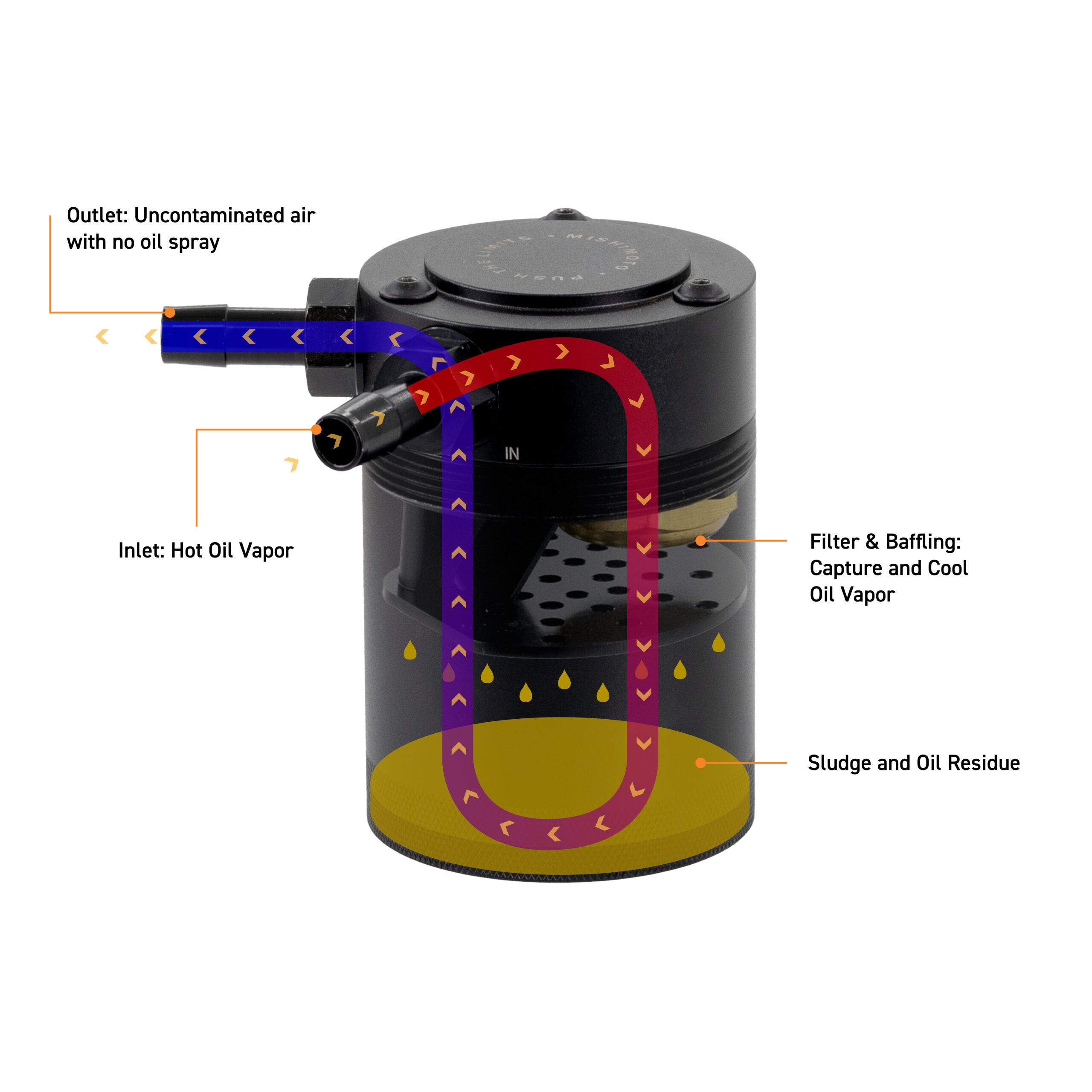

As a critical addition among modern car engine parts, this catch can intercepts oil-laden crankcase vapors before they reach the intake tract, defending the intercooler, intake system, and other components of the automobile engine from oil blow-by. Inside the billet 6061-T6 aluminum can, a 50-micron bronze filter and internal baffle, along with an internal air diverter that turbulates air longer, separate oil from vapor more effectively than a plain catch tank. Because the can is unheated, it captures low-octane oil vapors and contaminated fuel vapors condensed from automobile combustion, and rather than draining that blow-by back into the oil pan like many air-oil-separator systems, this Mishimoto catch can traps it and keeps it out of the engine permanently. For anyone comparing car parts built to fight carbon buildup on the intake valves, this kit helps maintain proper octane levels and reduce the potential for detonation.
Vehicle Applications
This Mishimoto catch can kit is designed as a direct fit for the 2014-2019 Ford Fiesta ST. The included mounting bracket, hoses, and quick-disconnect fittings are application-specific to this vehicle, positioning the can in a serviceable location at the front of the engine bay.
Features
- Single can mounts in-line with the PCV system to separate oil particles using a 50-micron bronze filter

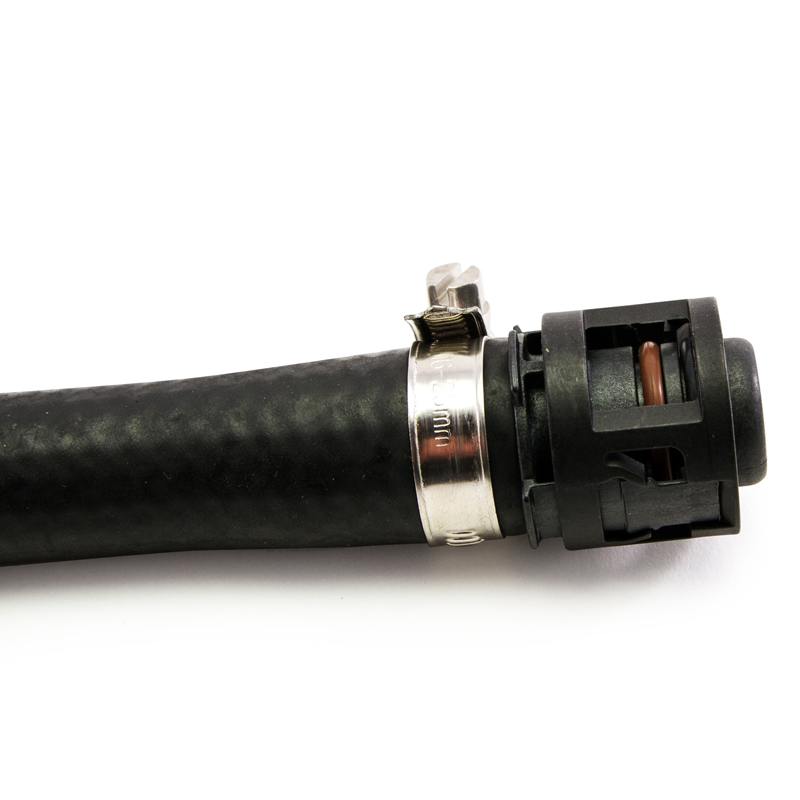

- Silicone hoses include pre-attached stock-style quick-disconnect fittings for plug-and-play installation
- Direct-fit hoses with pre-installed quick-disconnect fittings simplify installation

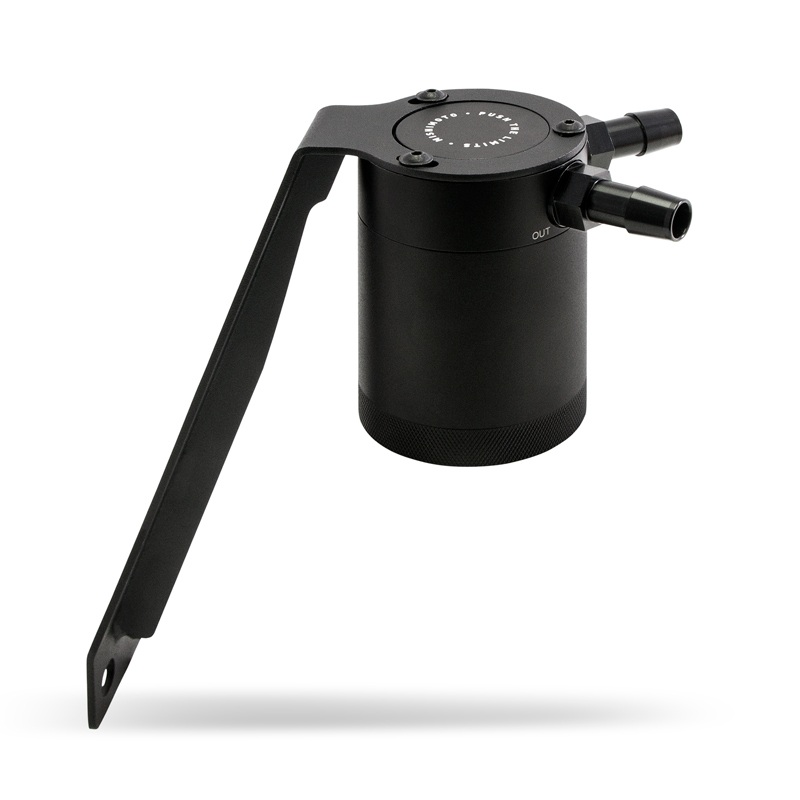

- Application-specific mounting bracket positions the can in a serviceable location at the front of the engine bay
- Billet 6061-T6 aluminum sealed can with two CNC-machined aluminum inlet barb fittings
- Helps defend the intercooler, intake system, and other essential components from oil blow-by
- Reduces carbon buildup on the intake valves
- Helps maintain proper octane levels to reduce potential detonation
- Fully serviceable filter and can, with drain plug included

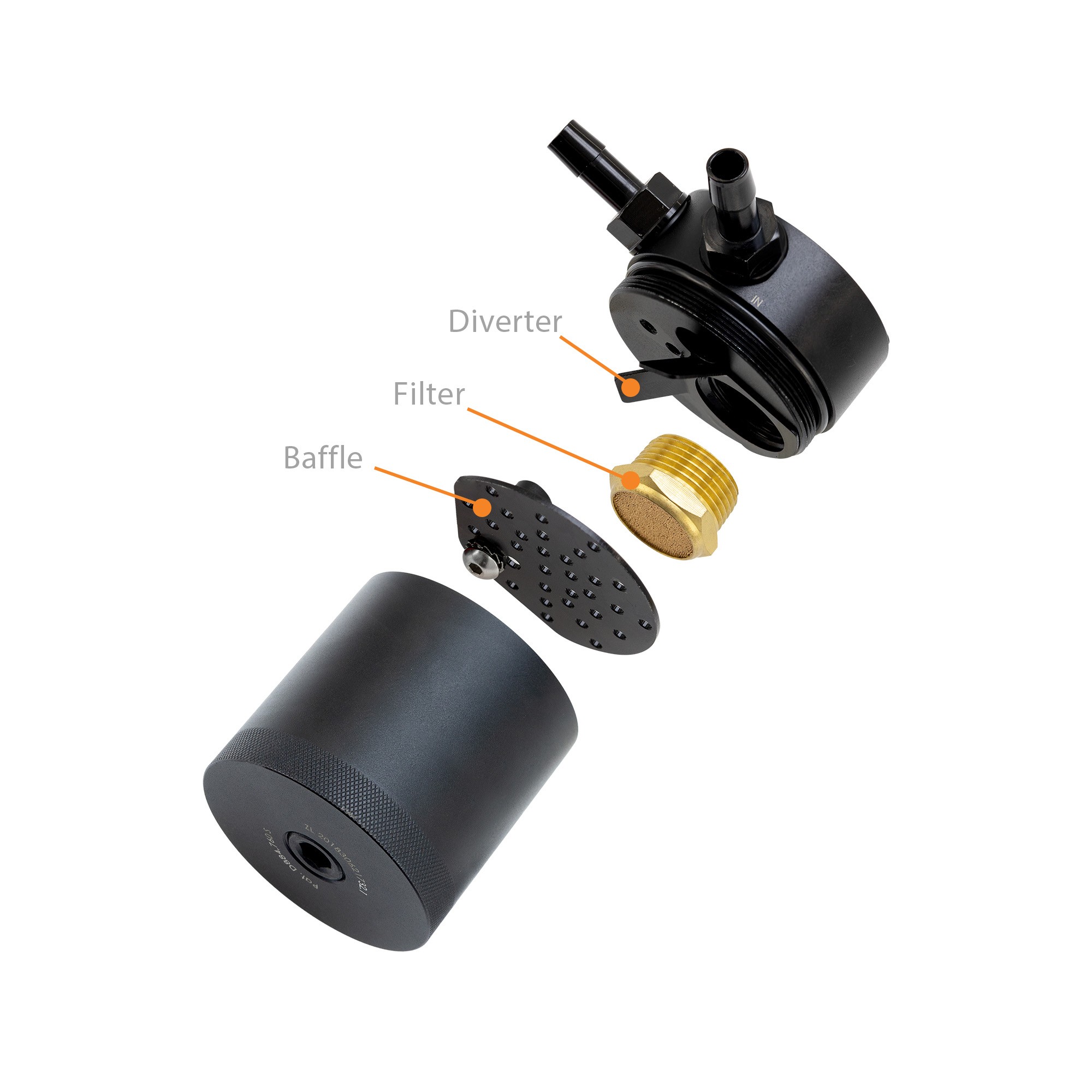

- Internal air diverter turbulates air longer to improve oil separation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Can Material: 6061-T6 Billet Aluminum
- Overall Material: 6061 Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Height: 3.7 in
- Color: Black
- Can Finish: Anodized
- Finish: Powder Coat
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Mounting Bracket Included: Yes
- Patent Nos: US ZL 202120175368.7, US ZL 201830621732.1, US D884,760
Frequently Asked Questions
What vehicles fit MMBCC-FIST-14PBE?
This Mishimoto Baffled Oil Catch Can Kit is designed for the 2014-2019 Ford Fiesta ST.
Where does the catch can mount on the Fiesta ST?
Mishimoto engineers found that tying the catch can into the vacuum-assisted PCV system yields the most oil accumulation, so the kit’s application-specific bracket mounts the single can in a serviceable location at the front of the engine bay.
What filter does the catch can use?
The catch can uses a 50-micron bronze filter along with an internal baffle and air diverter to separate oil from crankcase vapors.
Is the catch can heated?
No. The Mishimoto catch can is not heated, which allows blow-by, including low-octane oil vapors and contaminated fuel vapors, to condense inside rather than draining back into the oil pan as with many AOS systems.
What is the catch can made from?
The can is made from billet 6061-T6 aluminum with an anodized can finish, and it connects via two CNC-machined aluminum inlet barb fittings.
Does this kit include a warranty?
Yes, this Mishimoto catch can kit comes with the Mishimoto Lifetime Warranty.
