Description
The Mishimoto MMOC-MUS-79T oil cooler kit is a direct-fit, 19-row oil cooler built specifically for the Fox Body Ford Mustang, mounting in the front bumper for maximum airflow. This Silver Cooler, Thermostatic option pairs a silver-finished cooler with a thermostatic sandwich plate for added control over oil temperature, and the whole kit installs in less than two hours.
The Fox Body Mustang is known for its lightweight chassis and powerful drivetrain, but high-powered NA, turbocharged, and supercharged setups generate an abundance of unwanted underhood heat that accelerates oil breakdown and engine wear. This Mishimoto oil cooler kit is engineered to protect against that heat, delivering a dramatic temperature drop with minimal pressure loss so your oil stays cooler under load. Because it adds more than .5 qt to your total oil capacity and routes through a large 19-row core, it gives your Mustang meaningfully more thermal margin than the stock setup, and as with every Mishimoto cooling product, it’s backed by the Mishimoto lifetime warranty.
Vehicle Applications
This Mishimoto oil cooler kit is a direct fit for Fox Body Ford Mustangs across a wide span of trims and model years. Coverage includes the Mustang Base (1979-1984), Ghia (1979-1982), Cobra (1981), Turbo GT (1983), GL and GLX (1982-1983), L (1982-1984), GT (1982-1993), GT-350 20th Anniversary (1984), SVO (1984-1986), LX (1984-1993), and the 1993 SVT Cobra and SVT Cobra R. The kit is engineered around the Fox chassis and the 302 ci / 4.9L engine code.
Features

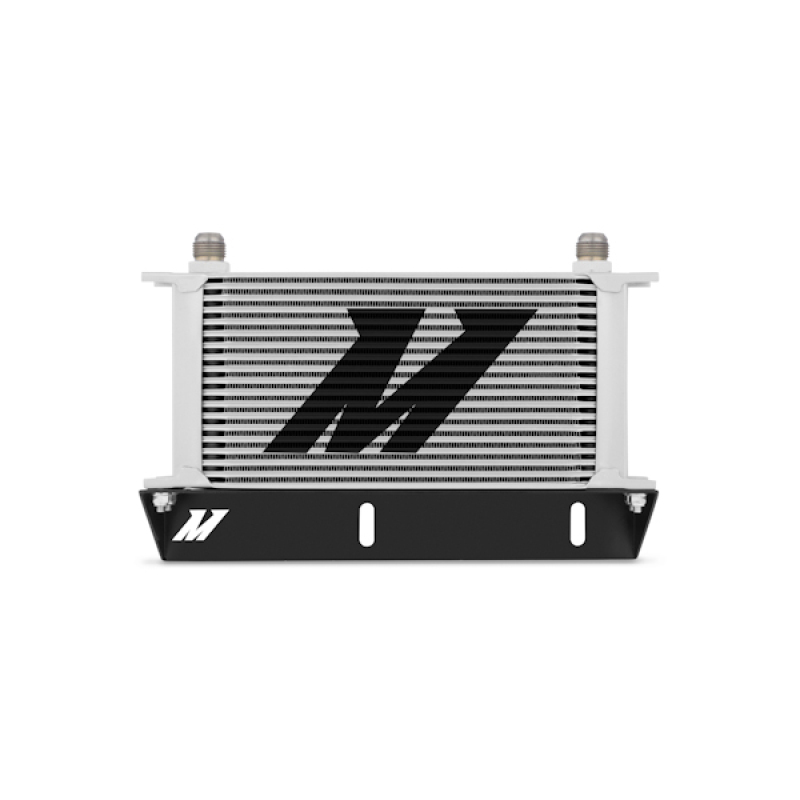

- Large 19-row oil cooler that mounts in the front bumper for maximum airflow and cooling efficiency
- Delivers a dramatic temperature drop with minimal pressure loss

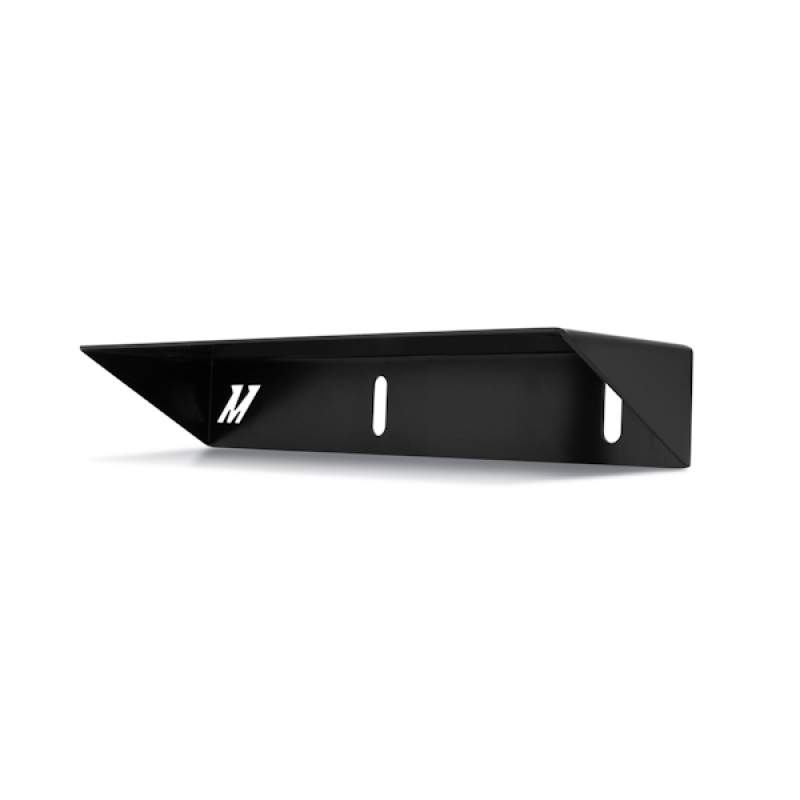

- Direct fit for the Fox Body Mustang with an application-specific mounting bracket
- Adds more than .5 qt to total oil capacity
- Preassembled stainless steel braided lines with 45-degree and 90-degree -10AN fittings

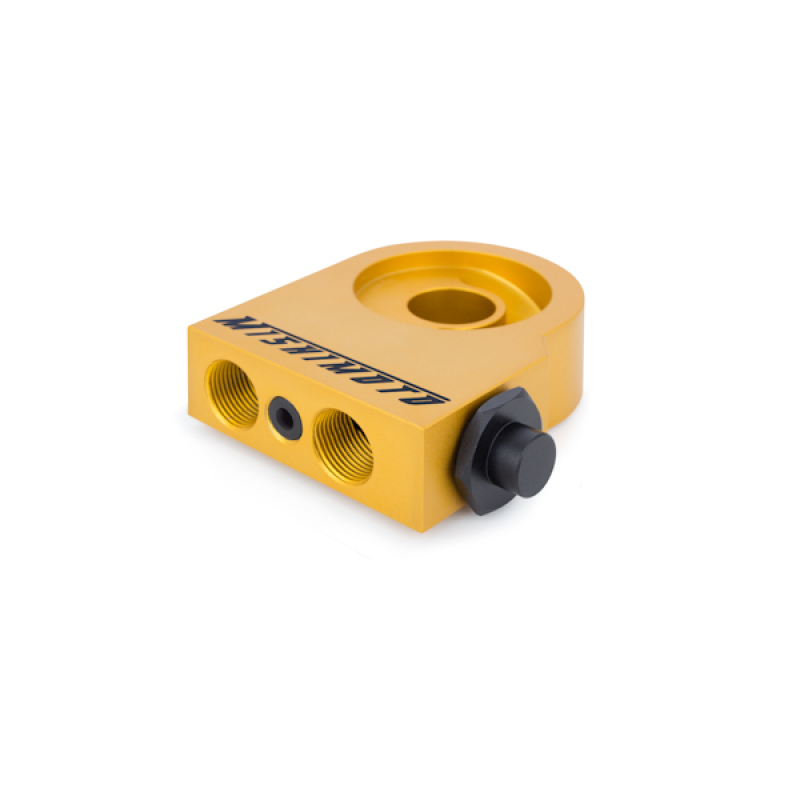

- Available with a thermostatic sandwich plate for additional oil temperature control (this Silver Cooler, Thermostatic option includes it)
- AN Flare, male inlet and outlet fittings
- Choice of Stealth Black or Sleek Silver cooler finishes
- Includes all mounting hardware for a clean installation
- Backed by the Mishimoto lifetime warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-MUS-79T
- Product Type: Cooling
- Option: Silver Cooler, Thermostatic
- Core Row Quantity: 19
- Core Height: 5.43 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Color / Core Color: Silver
- Grade Type: Performance
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Engine Codes: 302 ci / 4.9L
- Chassis Codes: Fox
- Recommended torque for straight fittings and banjo bolts: 15-25 lb-ft (do not exceed 35 ft-lb)

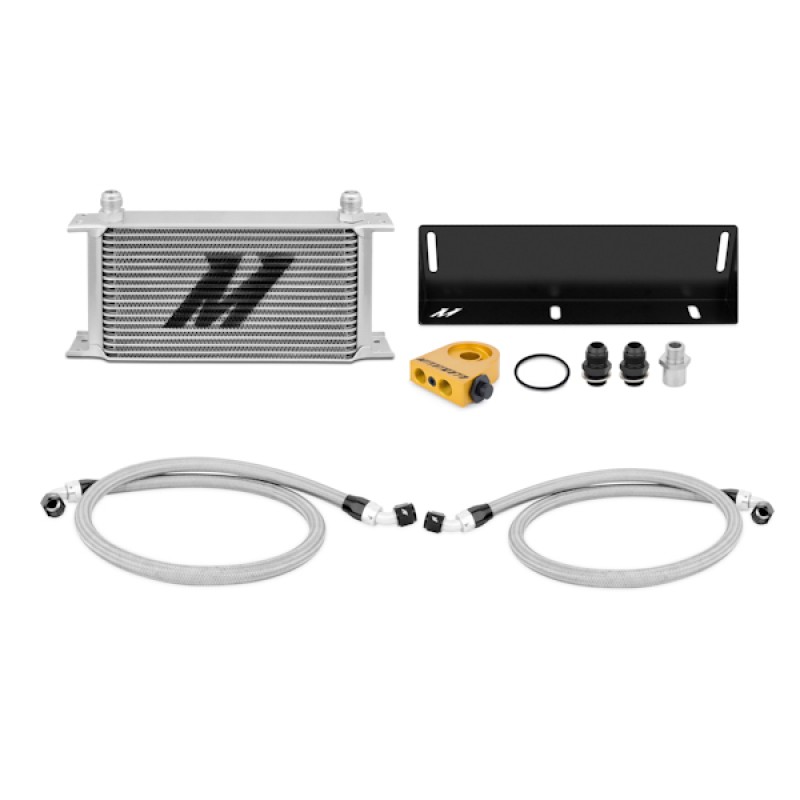

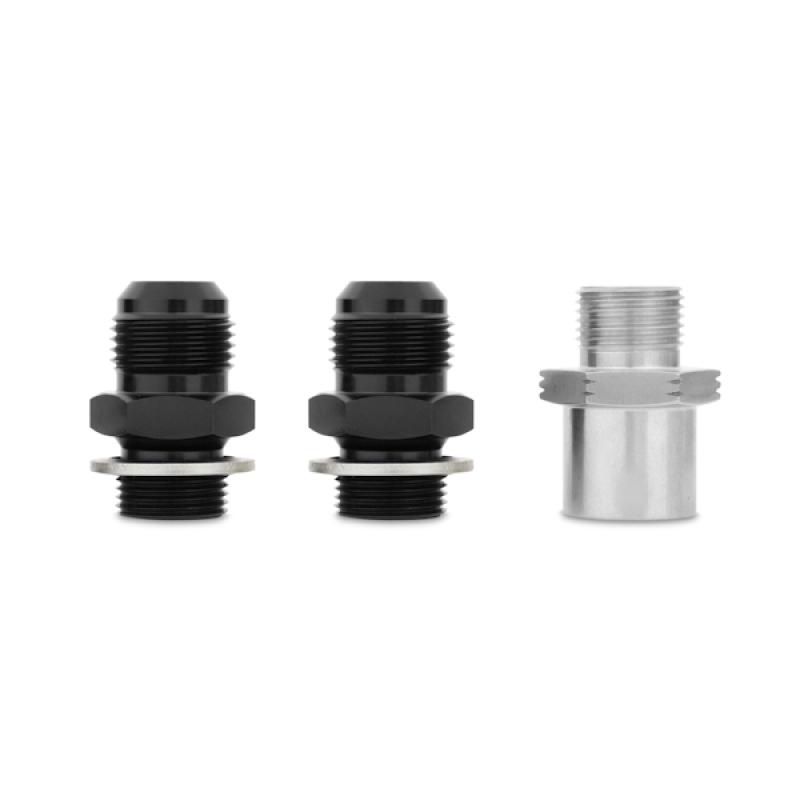

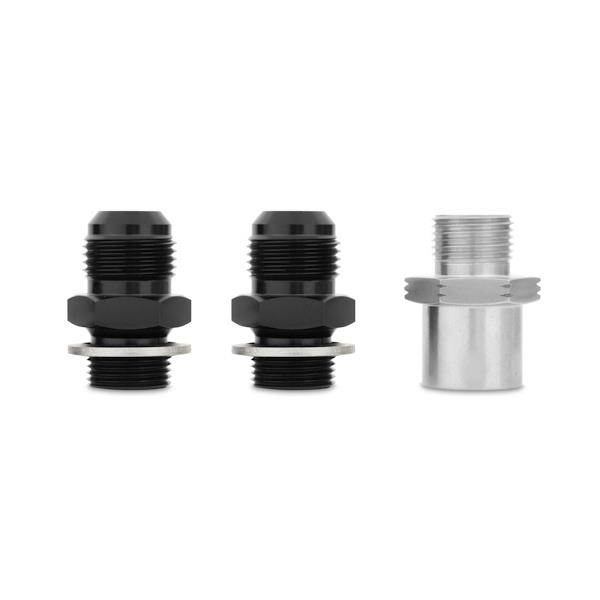

- Kit Includes: application-specific mounting bracket, 19-row oil cooler, 3ft 5in stainless steel braided hose with 45-degree and 90-degree -10AN fittings, 4ft 1in stainless steel braided hose with 45-degree and 90-degree -10AN fittings, M20 thermostatic sandwich plate, 3/4 x 16 stainless steel sandwich plate adapter, M20 x -10AN straight fittings, mounting hardware set, and the Mishimoto lifetime warranty
Frequently Asked Questions
What vehicles does this Mishimoto oil cooler kit fit?
It is a direct fit for the Fox Body Ford Mustang, covering the Base (1979-1984), Ghia (1979-1982), Cobra (1981), Turbo GT (1983), GL and GLX (1982-1983), L (1982-1984), GT (1982-1993), GT-350 20th Anniversary (1984), SVO (1984-1986), LX (1984-1993), and the 1993 SVT Cobra and SVT Cobra R.
How long does the Mishimoto oil cooler kit take to install?
According to Mishimoto, the kit can be installed in less than two hours.
Does this kit include a thermostatic sandwich plate?
Yes, this option is the Silver Cooler, Thermostatic version, which includes an M20 thermostatic sandwich plate for additional oil temperature control.
Will this kit change my oil capacity?
Yes, the kit adds more than .5 qt to your total oil capacity.
What is included with the Mishimoto oil cooler kit?
The kit includes an application-specific mounting bracket, a 19-row oil cooler, a 3ft 5in stainless steel braided hose and a 4ft 1in stainless steel braided hose (each with 45-degree and 90-degree -10AN fittings), an M20 thermostatic sandwich plate, a 3/4 x 16 stainless steel sandwich plate adapter, M20 x -10AN straight fittings, a mounting hardware set, and the Mishimoto lifetime warranty.
What warranty comes with this Mishimoto oil cooler kit?
This kit is backed by the Mishimoto lifetime warranty.
