Description

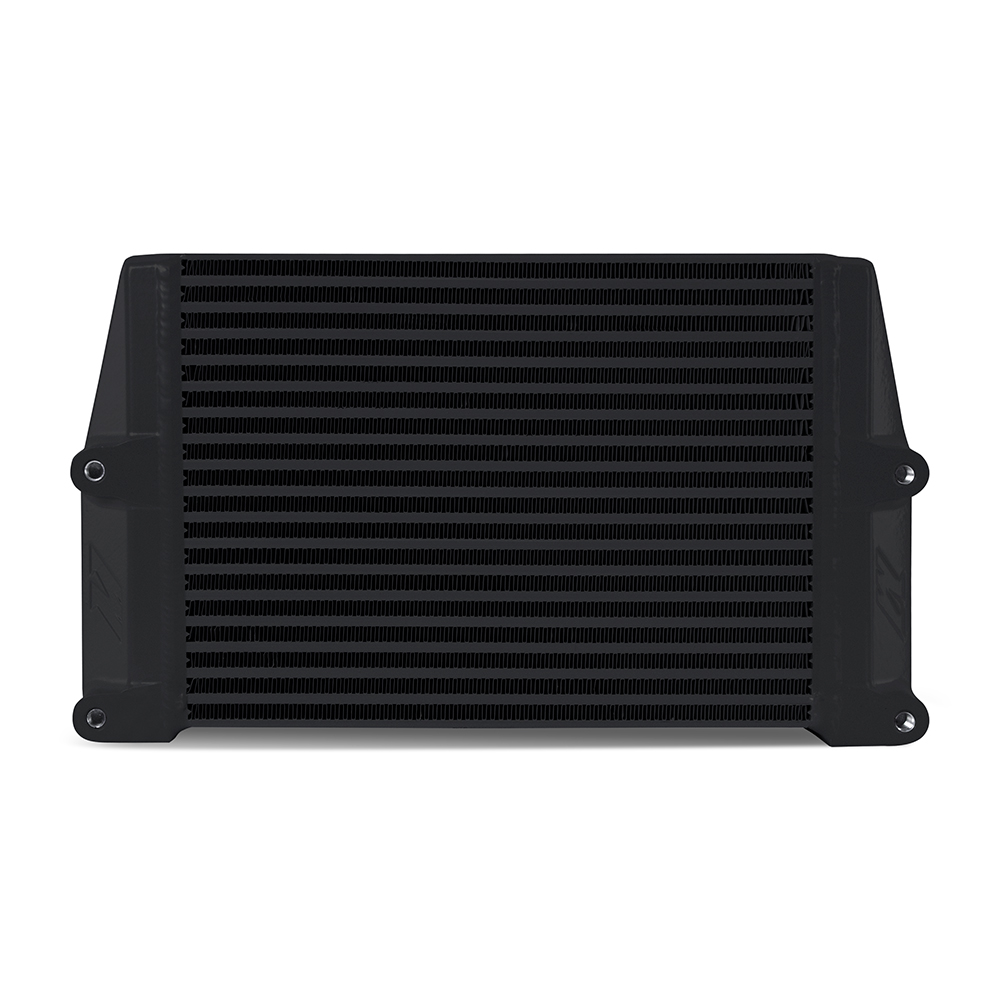

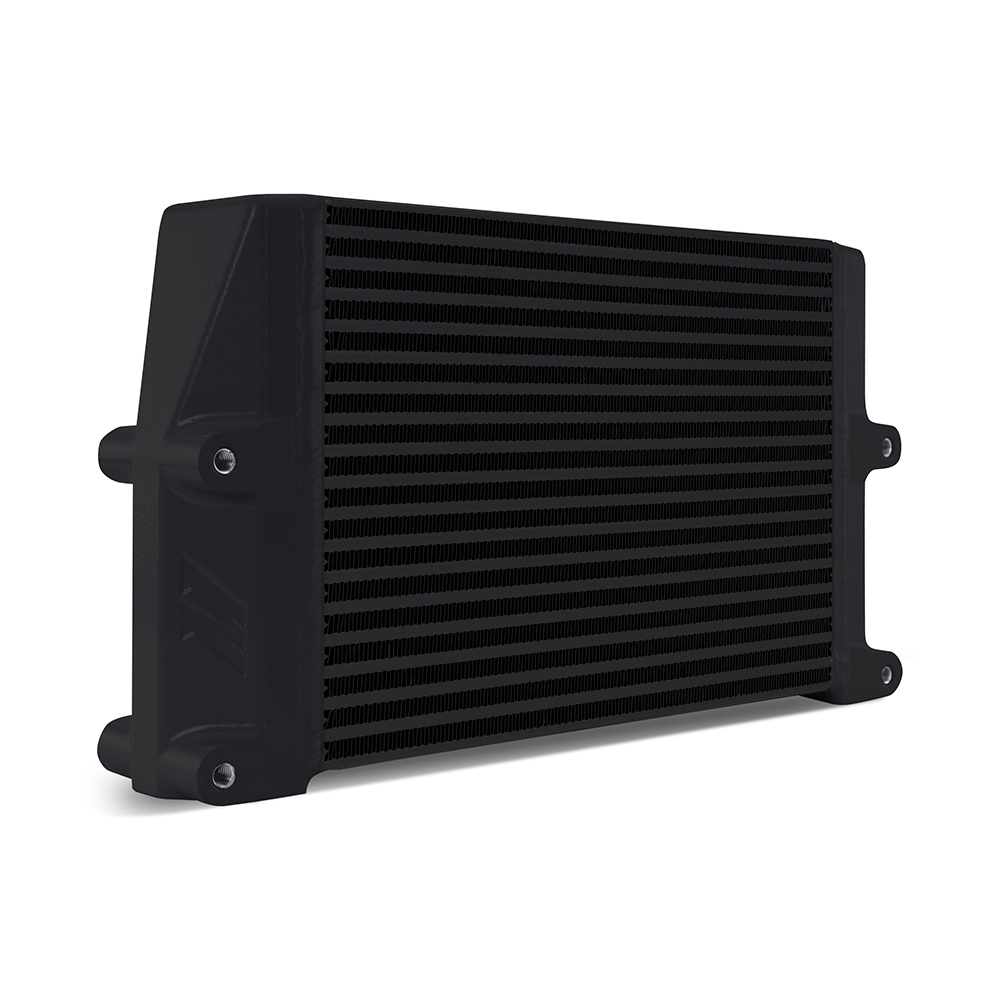

The Mishimoto MMOC-SSO-10BK is a heavy-duty, 17-row bar-and-plate fluid cooler finished in black powder coat, purpose-built for street, track, or trail builds that demand serious thermal control. With a 1.4-quart capacity and a core measuring 10in long, 7.5in tall, and 2.5in thick, this cooler is engineered to keep oil, coolant, or transmission fluid running cool when conditions get extreme.
This Mishimoto cooler works as a versatile oil cooler, trans cooler, or transmission fluid cooler for any high-performance application. Turbulated fins inside the core circulate fluid evenly so the entire surface area is put to work, while large -16 ORB ports deliver the flow demanding engines need. The cast-aluminum end tanks are precision TIG welded to the bar-and-plate core, giving this universal transmission fluid cooler the durability to handle both racing abuse and daily-driven stress. Whether you’re building a dedicated oil cooler kit or upgrading your cooling setup for a high-output engine, this Mishimoto cooler is designed to hold up.
Vehicle Applications
This is a universal Mishimoto fluid cooler, meaning it isn’t tied to a single make, model, or engine platform. Instead, its bar-and-plate core, -16 ORB threaded ports, and eight M8 flush mounting points with steel threaded inserts are designed to be adapted to a custom bracket on virtually any street, track, or trail build where an oil, coolant, or transmission cooler is needed.
Features
- Universal fit for any high-performance application
- 17-row core measures 10in long, 7.5in tall, and 2.5in thick for ample cooling capacity
- 1.4-quart fluid capacity for increased cooling potential
- Bar-and-plate core construction for extreme durability and cooling
- Turbulated fins circulate fluid throughout the core for even, efficient cooling

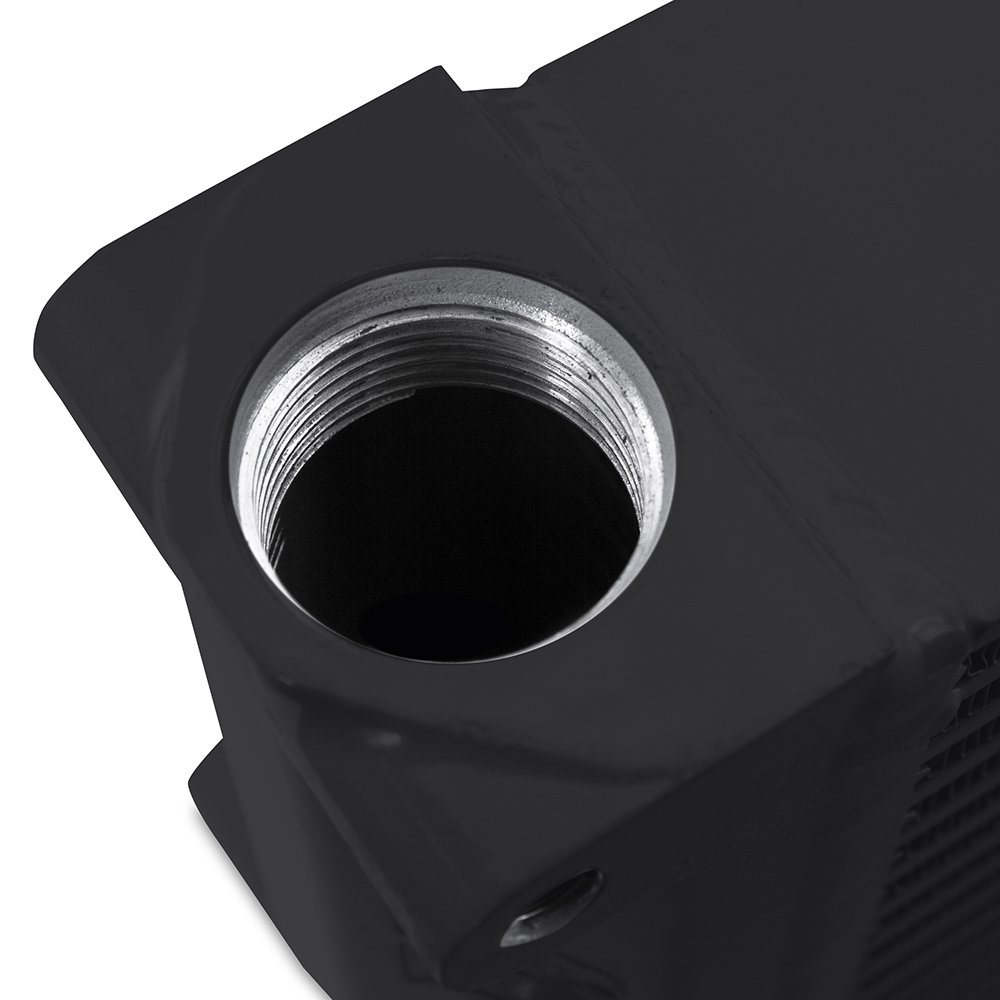

- -16 ORB female threaded inlet and outlet for high flow and versatility
- Cast-aluminum end tanks precision TIG welded to the core for maximum durability
- Eight M8 flush mounting holes with steel threaded inserts secure the cooler to any custom bracket
- Same-side inlet and outlet for easy line routing
- Available in durable stealth black powder coat

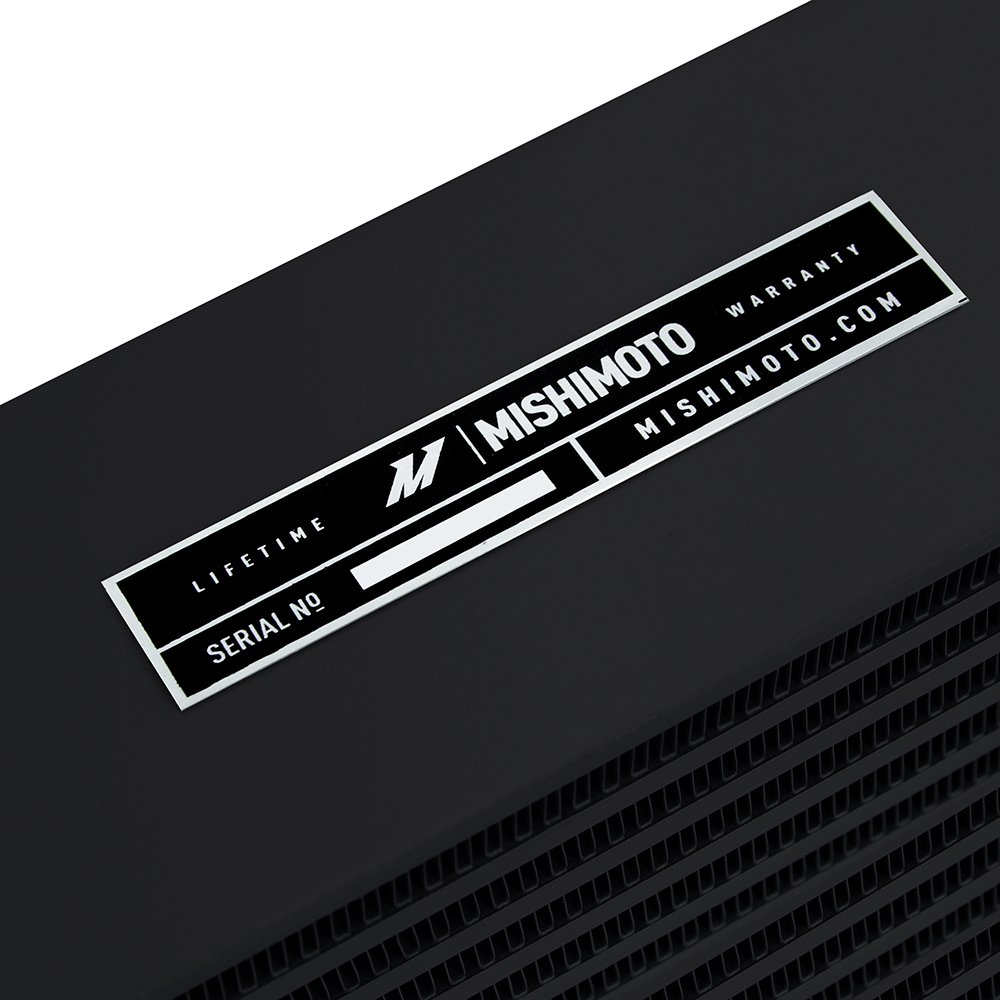

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-SSO-10BK
- Finish: Black powder coat
- Core Type: Bar-and-Plate
- Core Row Quantity: 17
- Core Height: 7.79in
- Core Width: 10.47in
- Core Thickness: 2.55in
- Overall Length: 13.85in
- Overall Width: 2.55in
- Overall Height: 7.79in
- Fluid Capacity: 1.4 quarts
- Inlet Fitting Type: -16 ORB / AN Flare
- Outlet Fitting Type: -16 ORB / AN Flare
- Inlet/Outlet Fitting Gender: Male
- Inlet Outside Diameter: 1.313in
- Outlet Outside Diameter: 1.313in
- Grade Type: Performance
- Includes: Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What fluids can this Mishimoto cooler handle?
This Mishimoto heavy-duty fluid cooler is designed to keep oil, coolant, or transmission fluid cool in even the most extreme situations.
What size is the core on this Mishimoto cooler?
The 17-row core is 10in long, 7.5in tall, and 2.5in thick with a 1.4-quart fluid capacity.
What type of fittings does this cooler use?
It features large -16 ORB ports with AN Flare fitting type and male gender fittings, with an inlet and outlet outside diameter of 1.313in, for ample flow on demanding engines.
How is the Mishimoto fluid cooler mounted?
The end tanks feature eight M8 flush mounting points with steel threaded inserts for a secure connection to any custom bracket.
Does this fluid cooler include a warranty?
Yes, this Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler is backed by the Mishimoto Lifetime Warranty.
What does this cooler kit include?
It includes the Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler and the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
