Description

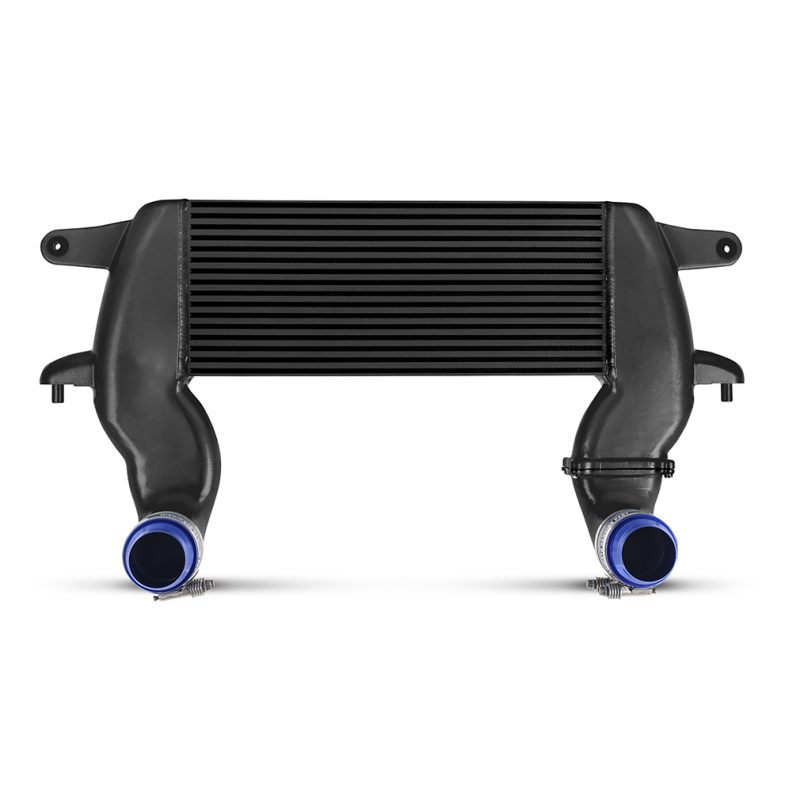

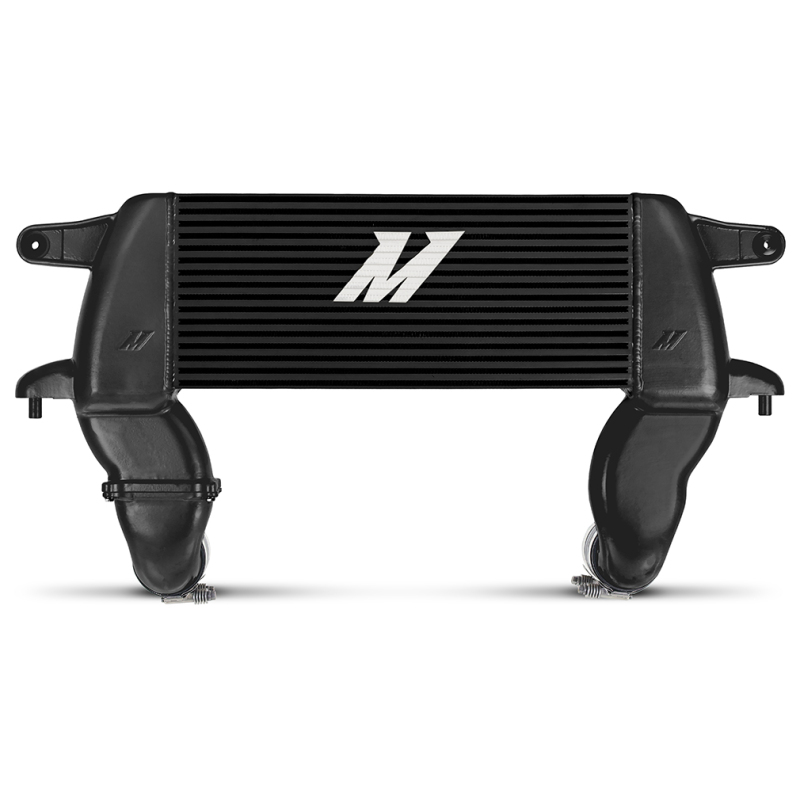

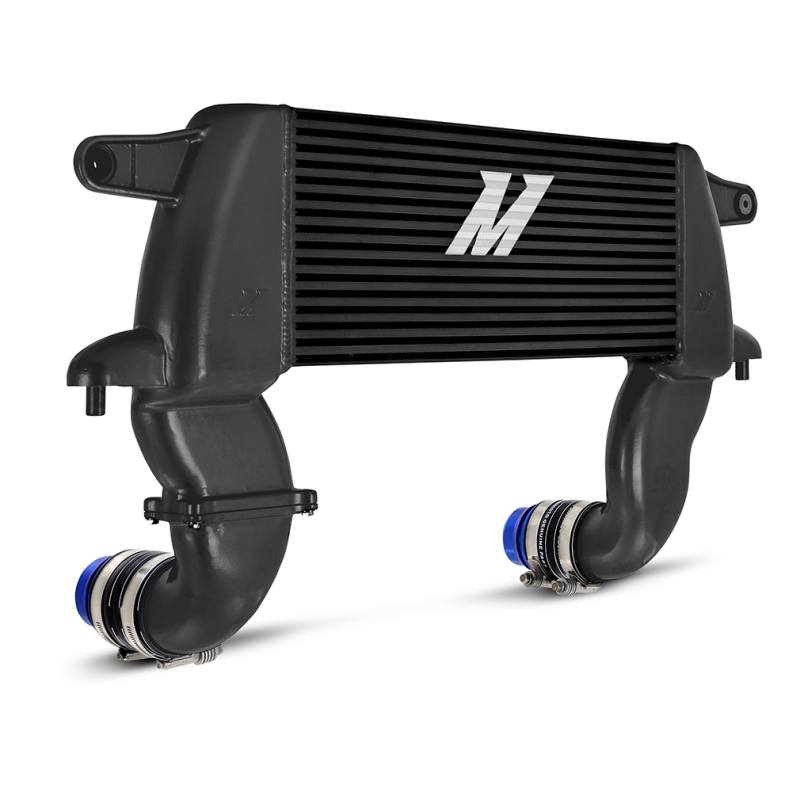

The Mishimoto High-Mount Intercooler (MMINT-BR-21HBK) is a purpose-built forced induction upgrade engineered specifically for the 2021+ Ford Bronco’s 2.3L and 2.7L EcoBoost engines. Rather than keeping the factory tube-and-fin core low in the bumper, Mishimoto relocated this bar-and-plate intercooler to the upper grille, giving it a 3.1-inch-thick core with precision TIG-welded cast aluminum end tanks that stand up to heat, pressure, and trail debris far better than the stock unit.
This forced induction system upgrade is about more than durability — it’s a genuine induction system performance piece. With a 49-percent increase in core volume and a 93-percent increase in external fin surface area, this high-mount intercooler drops outlet temperatures significantly and frees up the front bumper for winches, lights, and other off-road accessories. Whether you’re chasing measurable performance induction gains or simply want a more heat-resistant induction engine cooling path for repeated trail runs, this Mishimoto forced induction component is built to keep pulling in cooler, denser air run after run.
Vehicle Applications
This intercooler is a specific fit for the Ford Bronco lineup powered by the 2.3L or 2.7L EcoBoost engine, covering the Badlands, Big Bend, and Outer Banks trims from 2021–2026; the Base trim from 2021–2023; the Black Diamond and Wildtrak trims from 2021–2024; the Everglades trim from 2022–2024; the First Edition from 2021; the Heritage Edition from 2023–2026; and the Heritage Limited Edition from 2023–2024. It does not fit the Raptor Bronco with the 3.0L EcoBoost engine.
Features
- Direct fit for 2021+ Ford Bronco 2.3L and 2.7L EcoBoost models
- Relocates the intercooler to the upper grille for improved airflow, entry/exit angle, and clearance around winches, lights, and off-road accessories
- Dyno-proven gains of up to 4.5 hp and 10.8 lb-ft torque on the 2.3L EcoBoost, or 8.0 hp and 10.2 lb-ft torque on the 2.7L EcoBoost
- Reduces outlet temperatures by up to 21 degrees (2.3L EcoBoost) or 15.5 degrees (2.7L EcoBoost) versus the stock intercooler
- In trail simulation heat-soak testing, outlet temperatures remained 20 degrees cooler than stock after six back-to-back dyno runs
- Included ducting delivers ample airflow through the relocated core
- Detachable inlet simplifies installation
- Bar-and-plate core design with TIG-welded cast aluminum end tanks for increased pressure tolerance and reliability

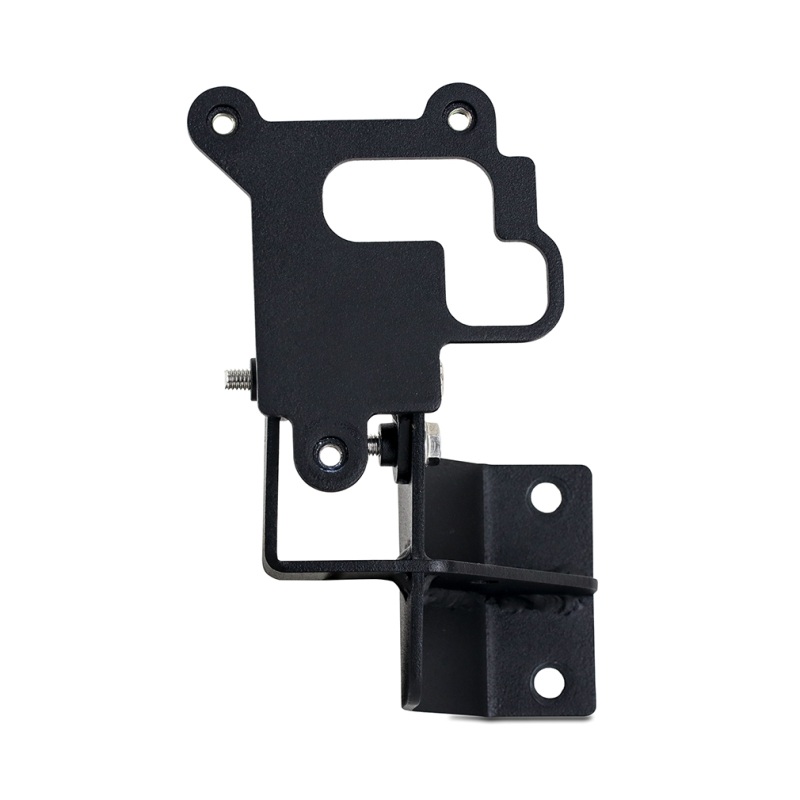

- Retains adaptive cruise control functionality via an included relocation bracket and does not interfere with 360-degree cameras
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Core Length: 21.26 in
- Core Height: 8.8 in
- Core Thickness: 3.15 in
- Overall Length: 35.82 in
- Overall Width: 6.15 in
- Overall Height: 18.6 in
- Grade Type: Performance
- Inlet/Outlet Fitting Gender: Male
- Universal or Specific Fit: Specific

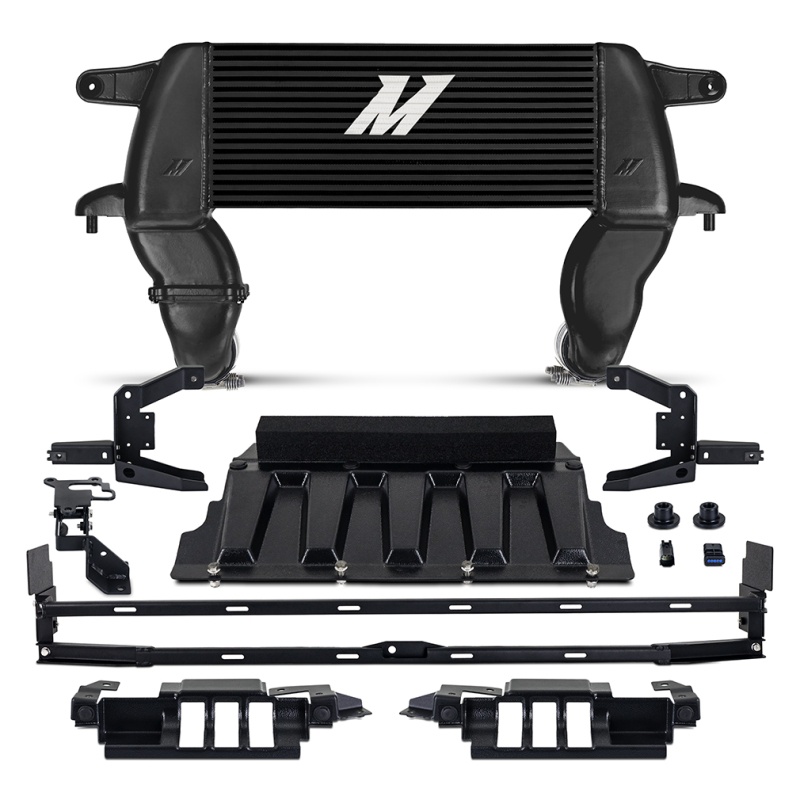

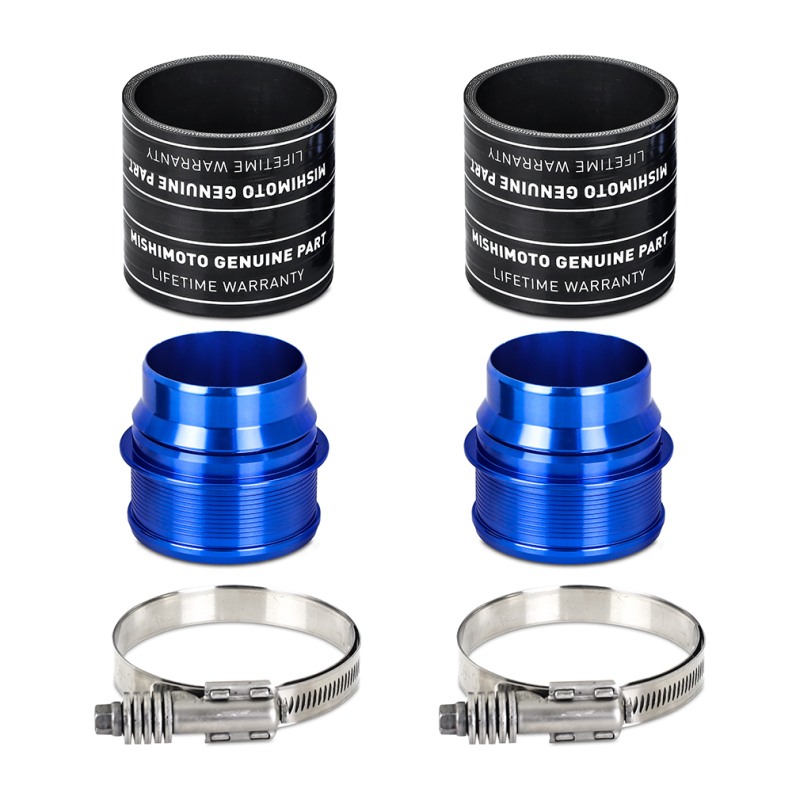

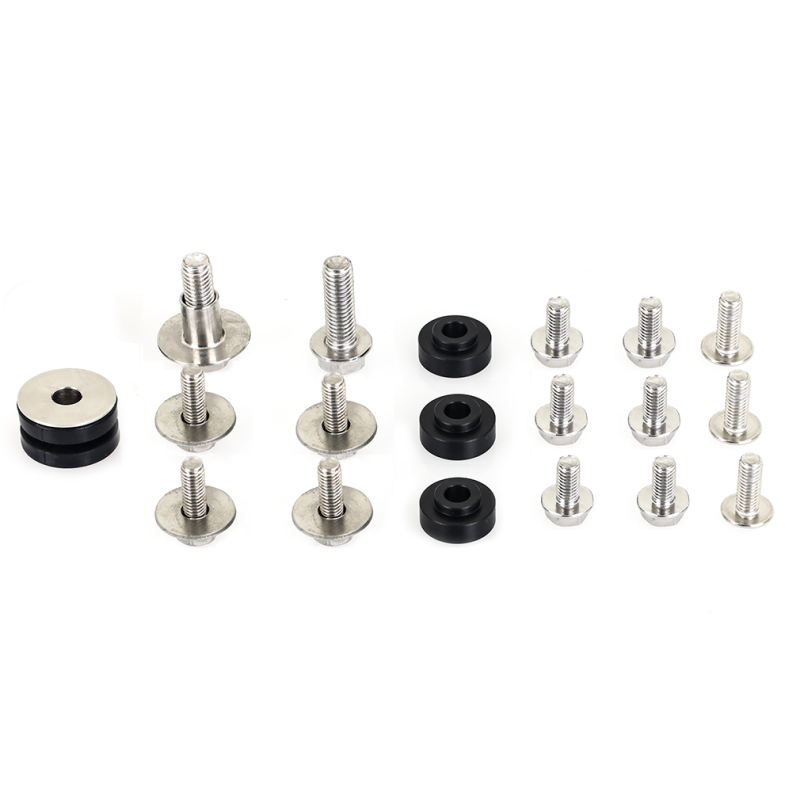

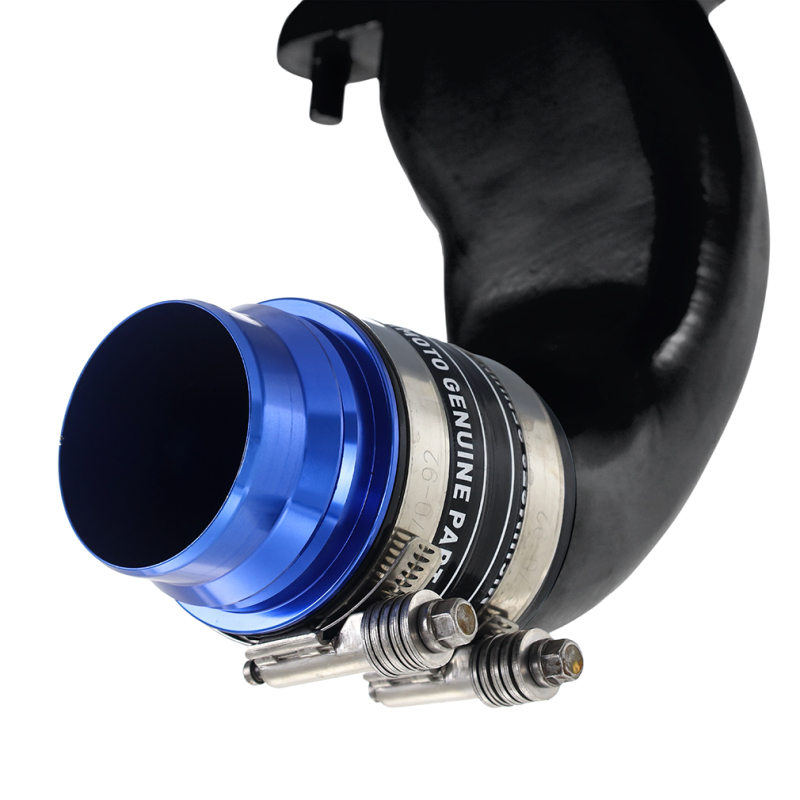

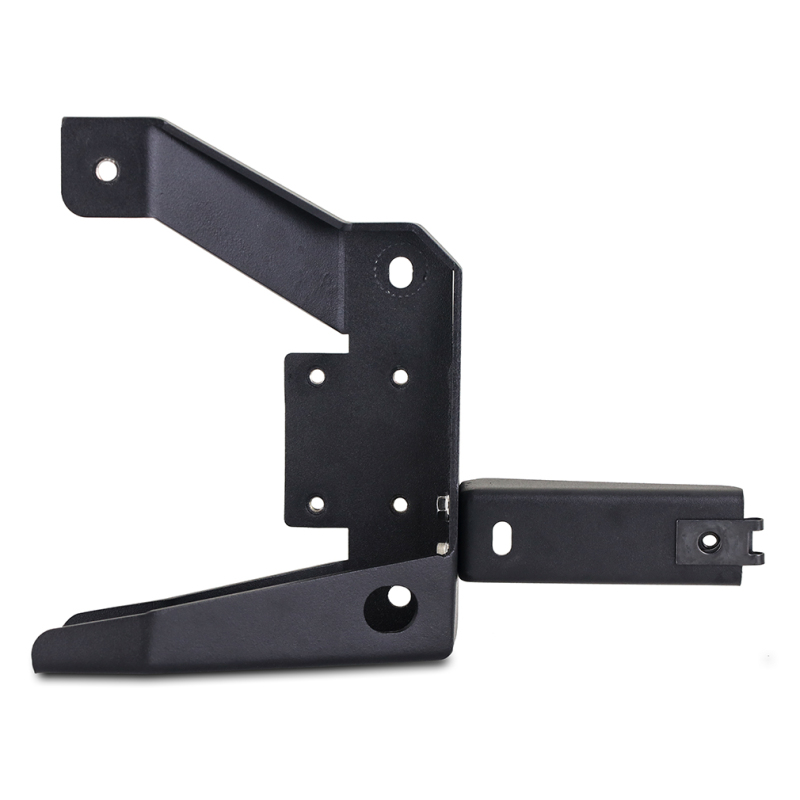

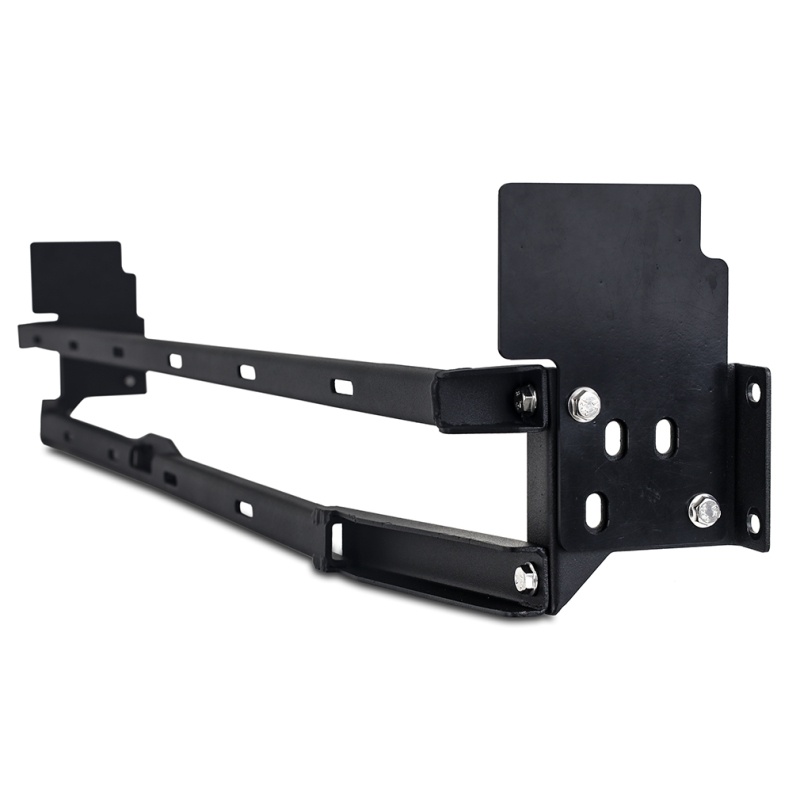

- Includes: Mishimoto High-Mount Intercooler, (2) Silicone Couplers, (2) CNC-Machined Intercooler Pipe Adapters, (4) Worm Gear Clamps, (2) Grille Shutter Connectors, Intercooler Ducting, Mounting Brackets and Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which Ford Bronco models does this Mishimoto intercooler fit?
It is a specific fit for 2021–2026 Badlands, Big Bend, and Outer Banks; 2021–2023 Base; 2021–2024 Black Diamond and Wildtrak; 2022–2024 Everglades; 2021 First Edition; 2023–2026 Heritage Edition; and 2023–2024 Heritage Limited Edition, all with the 2.3L or 2.7L EcoBoost engine.
Does this intercooler fit the Bronco Raptor?
No. This intercooler does not fit the Raptor Bronco with the 3.0L EcoBoost engine.
Will this intercooler affect adaptive cruise control or the 360-degree cameras?
Adaptive cruise control functionality is retained using an included relocation bracket, though it may function to a lesser degree compared to the stock intercooler setup. The 360-degree cameras are unaffected.
What performance gains does the Mishimoto High-Mount Intercooler provide?
Dyno testing showed gains of up to 4.5 hp and 10.8 lb-ft of torque on the 2.3L EcoBoost, and up to 8.0 hp and 10.2 lb-ft of torque on the 2.7L EcoBoost, along with outlet temperature reductions of up to 21 degrees (2.3L) and 15.5 degrees (2.7L) over stock.
What is included with the Mishimoto MMINT-BR-21HBK kit?
The kit includes the Mishimoto High-Mount Intercooler, two silicone couplers, two CNC-machined intercooler pipe adapters, four worm gear clamps, two grille shutter connectors, intercooler ducting, mounting brackets and hardware, and the Mishimoto Lifetime Warranty.
What warranty comes with this intercooler?
This Mishimoto High-Mount Intercooler is backed by the Mishimoto Lifetime Warranty.
