Description
The Mishimoto High-Mount Intercooler Kit (MMINT-BR27-21HKBKSL) is a forced induction upgrade engineered specifically for the 2021+ Ford Bronco 2.7L EcoBoost. Rather than simply swapping a core, Mishimoto relocated the entire intercooler to the upper grille, combining a high-mount intercooler with a performance intercooler pipe kit so the 2.7L EcoBoost can breathe the coldest, densest air possible.

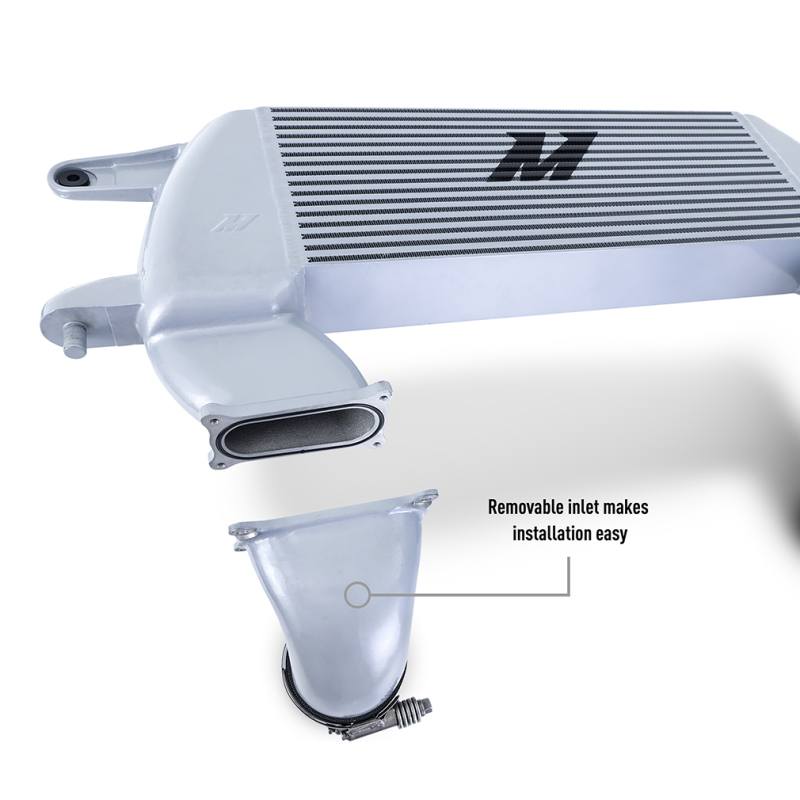

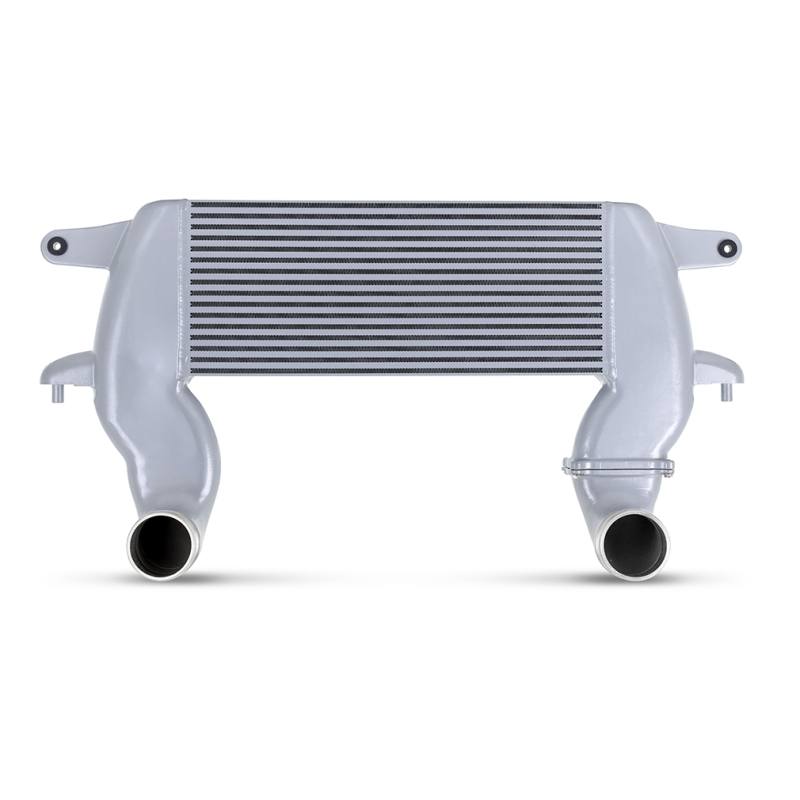

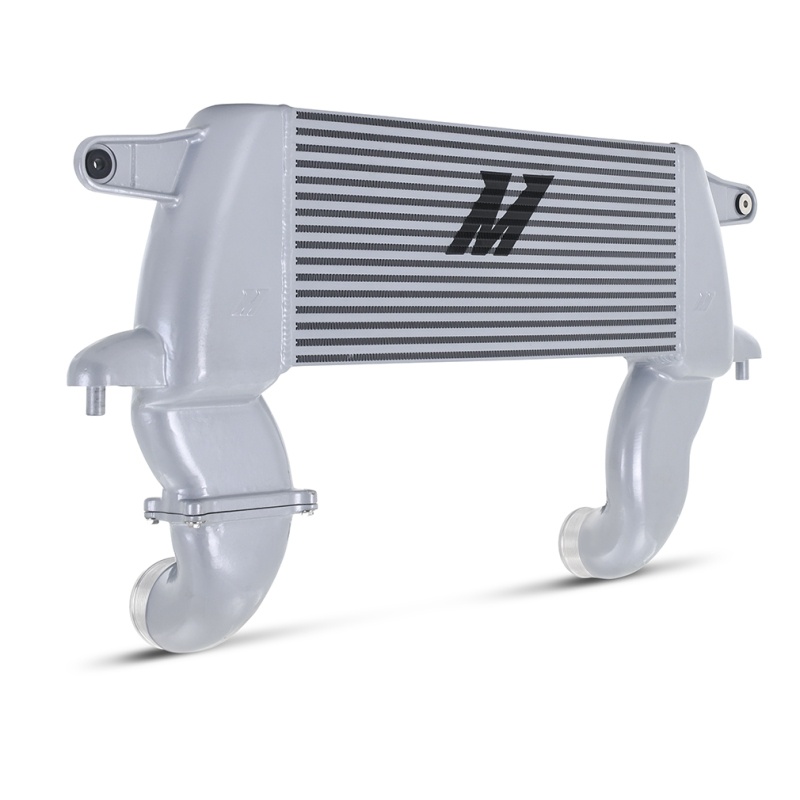

This forced induction system was built to solve two problems at once: heat soak and restriction. The 3.1-inch-thick bar-and-plate core is precision TIG welded to cast aluminum end tanks, giving this induction system 49-percent greater core volume and 93-percent greater external fin surface area than the factory unit, which translates into 21-degree cooler outlet temperatures. The factory’s weak plastic piping is replaced with cast and mandrel-bent aluminum pipes and Mishimoto Silicone Boots with DuraCore technology, cutting pipe restriction by up to 34.2 percent. Together, this performance induction upgrade produced dyno-proven gains of up to 11.6 HP and 13.7 lb-ft of torque on the stock tune, while the upper-grille mounting position improves airflow and trail clearance even with winches, light bars, or larger bumpers installed.
Vehicle Applications
This is a specific-fit kit engineered for the 2021+ Ford Bronco V6 2.7L Turbo, identified by engine code 2.7L EcoBoost and chassis code U725. Coverage spans the Bronco Badlands (2021–2026), Base (2021–2023), Big Bend (2021–2024), Black Diamond (2021–2024), First Edition (2021), Heritage Edition (2024–2026), Heritage Limited Edition (2023–2024), Outer Banks (2021–2026), Stroppe Edition (2025–2026), and Wildtrak (2021–2024).
Features
- High-mount relocation improves airflow, clearance, and trail entry/exit angle while protecting the intercooler from obstacles
- 3.1-inch-thick bar-and-plate core with 49-percent greater core volume and 93-percent greater external fin surface area than stock
- Cast aluminum end tanks, TIG welded to the core for durability, pressure tolerance, and heat soak resistance

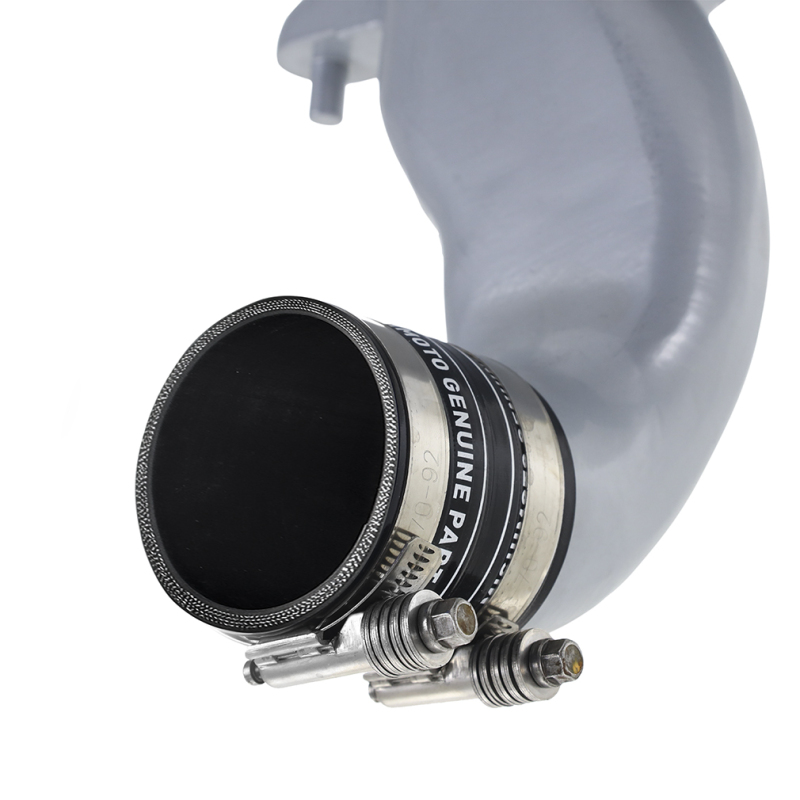

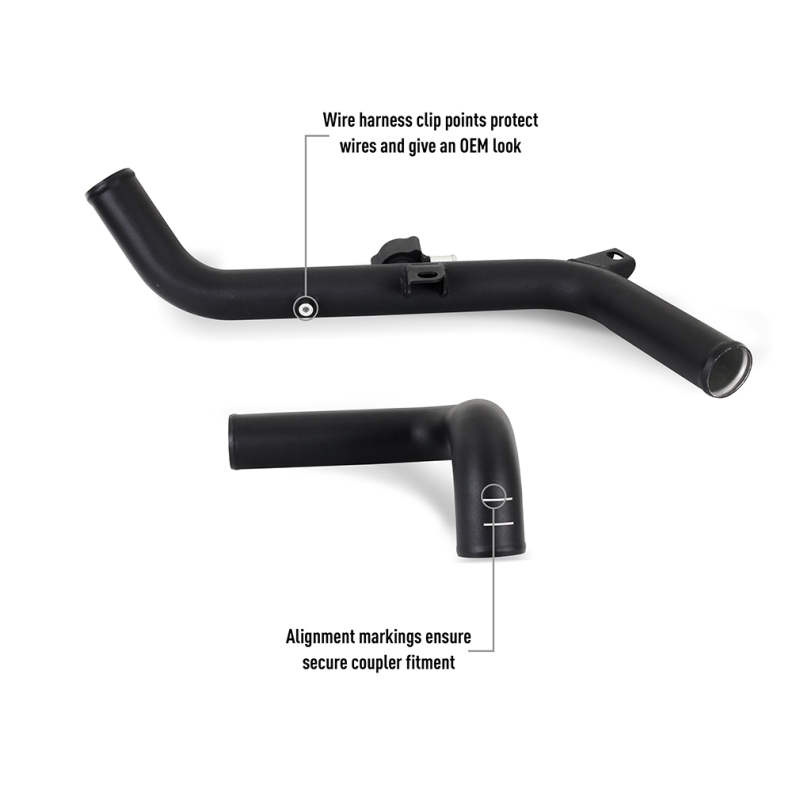

- Cast and mandrel-bent aluminum intercooler piping with Mishimoto Silicone Boots featuring DuraCore technology
- Up to 34.2-percent less pipe restriction and 21-degree cooler outlet temperatures than the stock intercooler
- Dyno-proven gains of up to 11.6 HP and 13.7 lb-ft of torque on the stock tune

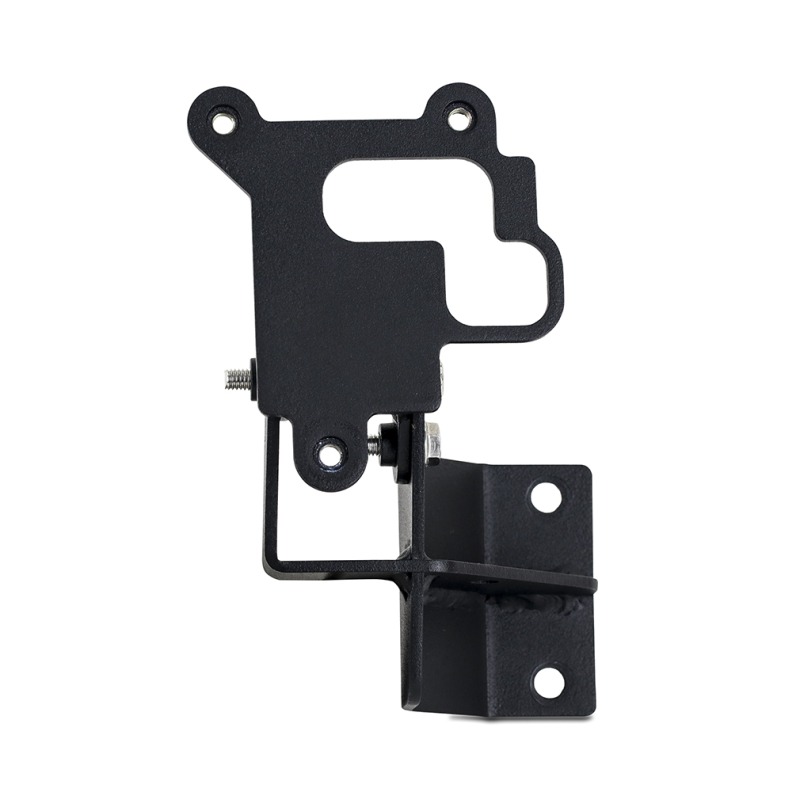

- Includes an adaptive cruise control sensor relocation bracket set; 360-degree cameras are unaffected (adaptive cruise control may function to a lesser degree than the stock setup)

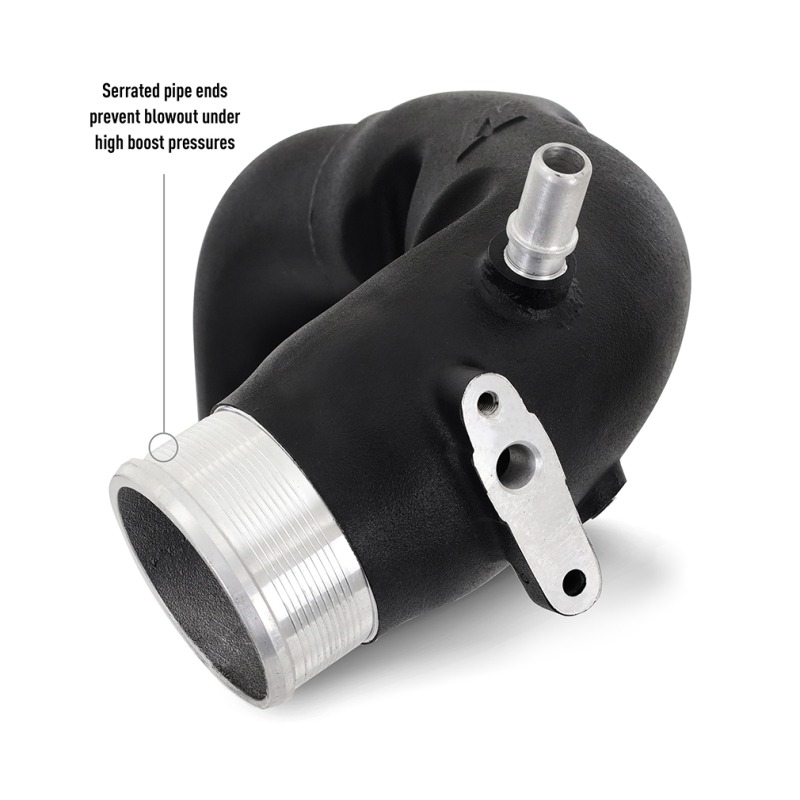

- 1/8-NPT port on the cold-side pipe for methanol injection or additional sensors
- Available with a stealth black or sleek silver intercooler paired with micro-wrinkle black powder coated pipes
- Patent pending design backed by the Mishimoto Lifetime Warranty
- Includes all necessary mounting hardware and heavy-duty stainless-steel worm gear clamps for installation
Specifications
- Brand: Mishimoto
- Part Number: MMINT-BR27-21HKBKSL
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Height: 8.8 in
- Core Length: 21.26 in
- Core Thickness: 3.15 in
- Core Color Options: Silver or Black
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Inlet Diameter: 3.15 in
- Outlet Diameter: 3.15 in
- Hot Side Pipe Inside Diameter: 3.15 in
- Cold Side Pipe Inside Diameter: 3.15 in
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Weight: 65.1 lbs
- Vehicle Application: 2021+ Ford Bronco V6 2.7L Turbo
- Engine Code: 2.7L EcoBoost
- Chassis Code: U725

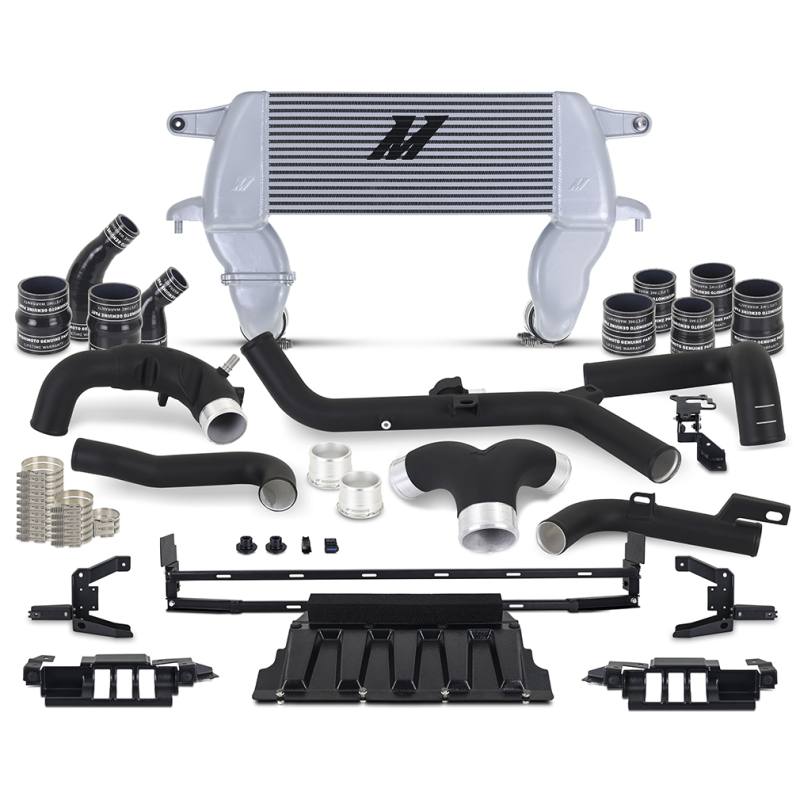

- Includes: (1) High-Mount Intercooler, (3) Intercooler Mounting Brackets, (3) Intercooler Ducts, (1) ACC Sensor Relocation Bracket Set, (2) Grille Shutter Delete Plugs, (4) Hot Side Intercooler Pipes, (2) Cold-Side Intercooler Pipes, (9) Intercooler Pipe Boots, (18) Heavy-Duty Stainless-Steel Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto intercooler kit fit?
It is a specific fit for the 2021+ Ford Bronco V6 2.7L Turbo (2.7L EcoBoost, chassis code U725), covering the Badlands (2021–2026), Base (2021–2023), Big Bend (2021–2024), Black Diamond (2021–2024), First Edition (2021), Heritage Edition (2024–2026), Heritage Limited Edition (2023–2024), Outer Banks (2021–2026), Stroppe Edition (2025–2026), and Wildtrak (2021–2024).
What performance gains does this kit produce?
On the stock tune, testing showed gains of up to 11.6 HP and 13.7 lb-ft of torque, along with a 21-degree reduction in outlet temperature and up to 34.2-percent less pipe restriction compared to the stock intercooler.
Will this kit affect my adaptive cruise control or cameras?
The kit includes an ACC sensor relocation bracket set, and 360-degree cameras are unaffected; however, adaptive cruise control may function to a lesser degree compared to the stock intercooler setup.
What color options are available?
The kit is available with a stealth black or sleek silver intercooler, paired with micro-wrinkle black powder coated pipes.
Does this kit include a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
What is included in the box?
The kit includes the high-mount intercooler, intercooler mounting brackets, intercooler ducts, an ACC sensor relocation bracket set, grille shutter delete plugs, hot- and cold-side intercooler pipes, intercooler pipe boots, heavy-duty stainless-steel worm gear clamps, and mounting hardware.
