Description

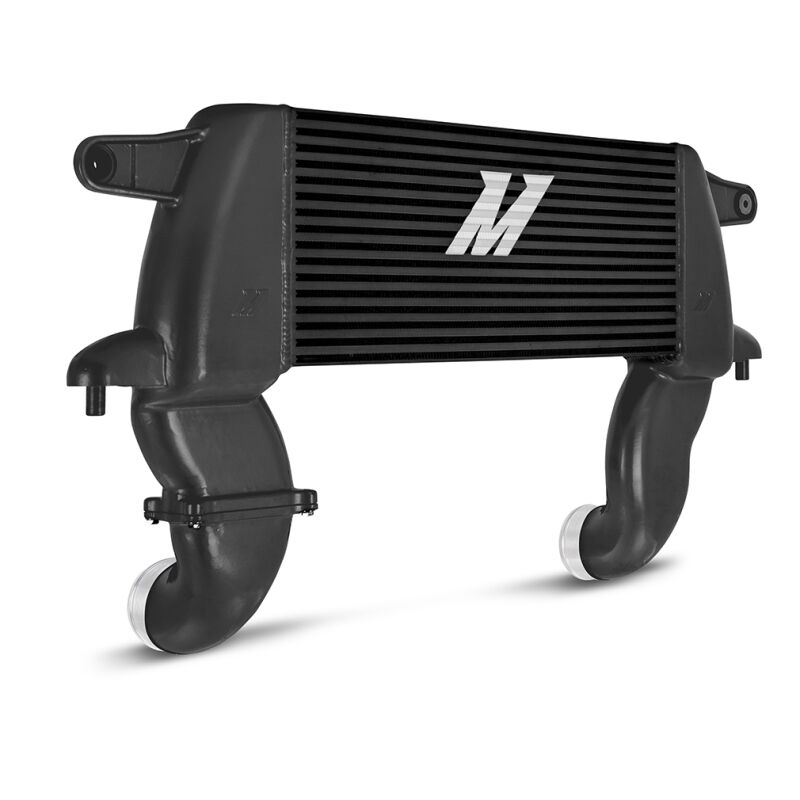

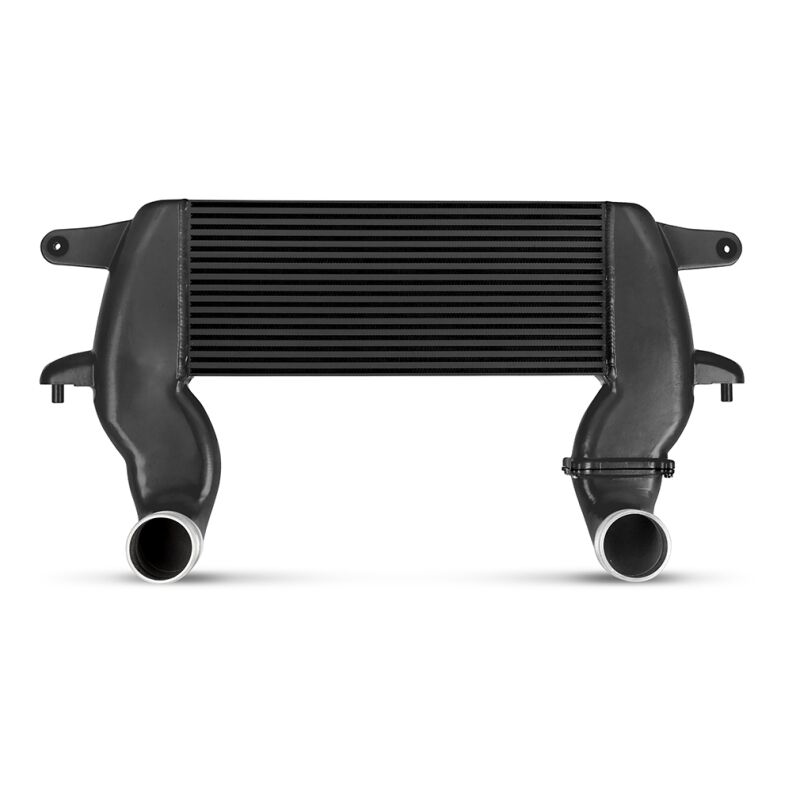

The Mishimoto MMINT-BR27-21HKBKBK is a high-mount intercooler kit purpose-built for the 2021+ Ford Bronco’s 2.7L EcoBoost V6, pairing a relocated bar-and-plate intercooler with a complete performance intercooler pipe kit finished in stealth black. Rather than sitting behind the front bumper, this intercooler is relocated to the upper grille so it can pull in the coldest, densest air available at all times, even with winches, light bars, or larger bumpers installed. It’s a forced induction upgrade engineered for Bronco owners who want more capability from their turbocharged engine without giving up trail durability.
As a forced induction component, the intercooler sits at the heart of the 2.7L EcoBoost’s induction system, cooling compressed air before it reaches the engine so the turbos can make the most of every pound of boost. Mishimoto’s high-mount core offers 49-percent greater core volume and 93-percent greater external fin surface area than the factory unit, resulting in outlet temperatures 21 degrees cooler than stock. Paired with the included intercooler pipe kit, which reduces flow restriction by up to 34.2 percent versus the stock plastic piping, this performance induction system lets the 2.7L EcoBoost breathe freely, delivering dyno-proven gains of 11.6 HP and 13.7 lb-ft of torque on the stock tune. Cast and mandrel-bent aluminum piping and Mishimoto Silicone Boots with DuraCore technology replace the factory’s weak plastic components, adding long-term resistance to heat, pressure, fuel, and oil throughout the induction system.
Vehicle Applications
This kit is a specific fit for the 2021+ Ford Bronco built with the 2.7L EcoBoost V6 (chassis code U725). Coverage includes the Badlands and Outer Banks trims from 2021 through 2026, Base models from 2021 through 2023, the Big Bend, Black Diamond, and Wildtrak trims from 2021 through 2024, the 2021 First Edition, Heritage Limited Edition models from 2023 through 2024, Heritage Edition trims from 2024 through 2026, and the Stroppe Edition from 2025 through 2026.
Features
- Direct fit for 2021+ Ford Bronco 2.7L EcoBoost

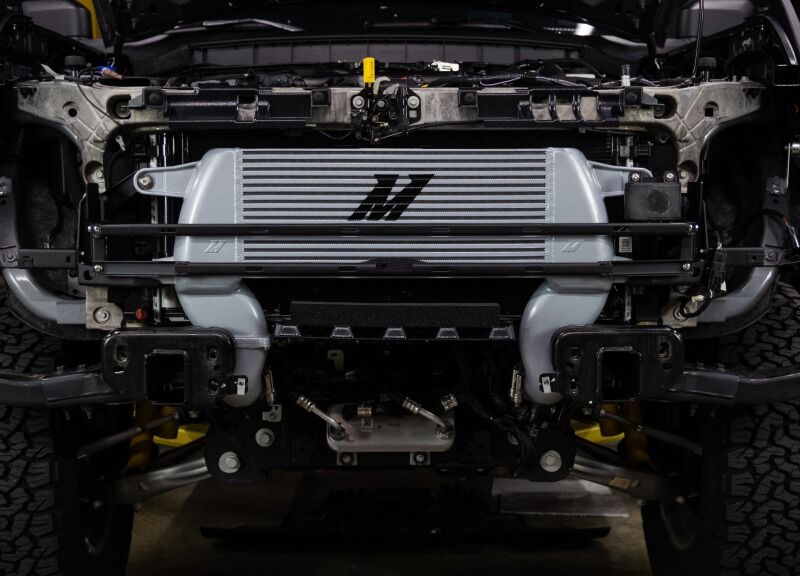

- Relocates intercooler to the upper grille for better airflow around winches, lights, and other off-road accessories
- Dyno-proven max gains of 11.6 HP and 13.7 lb-ft of torque

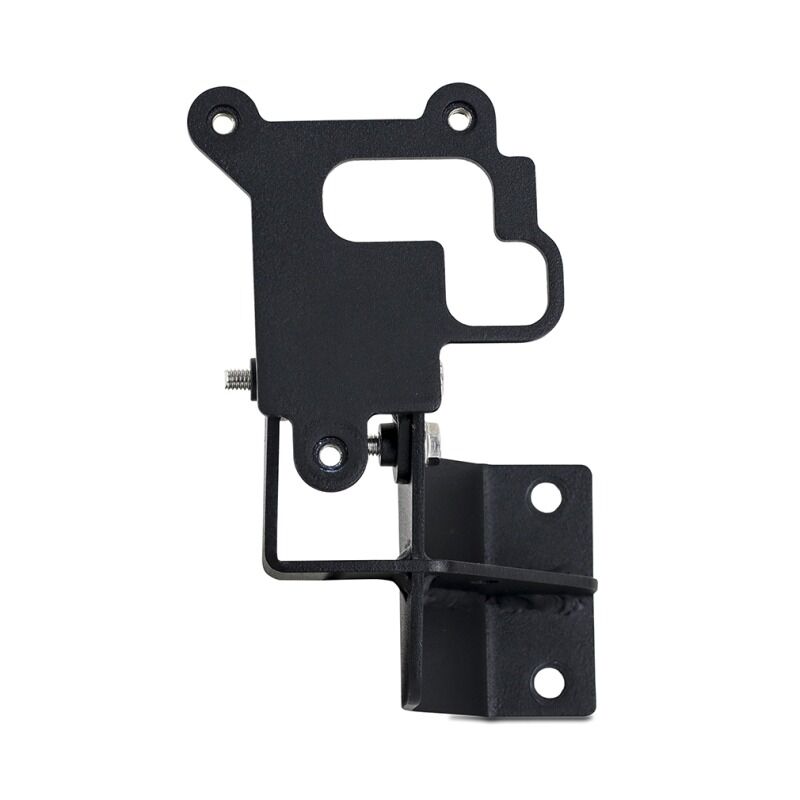

- Includes an adaptive cruise control relocation bracket and does not interfere with 360-degree cameras
- 21-degree reduction in outlet temperature versus the stock intercooler
- Intercooler pipes are up to 34.2-percent less restrictive than stock
- Improved clearance and entry/exit angle while keeping the intercooler protected from trail obstacles
- 49-percent greater core volume for high-efficiency cooling
- Durable bar-and-plate core construction

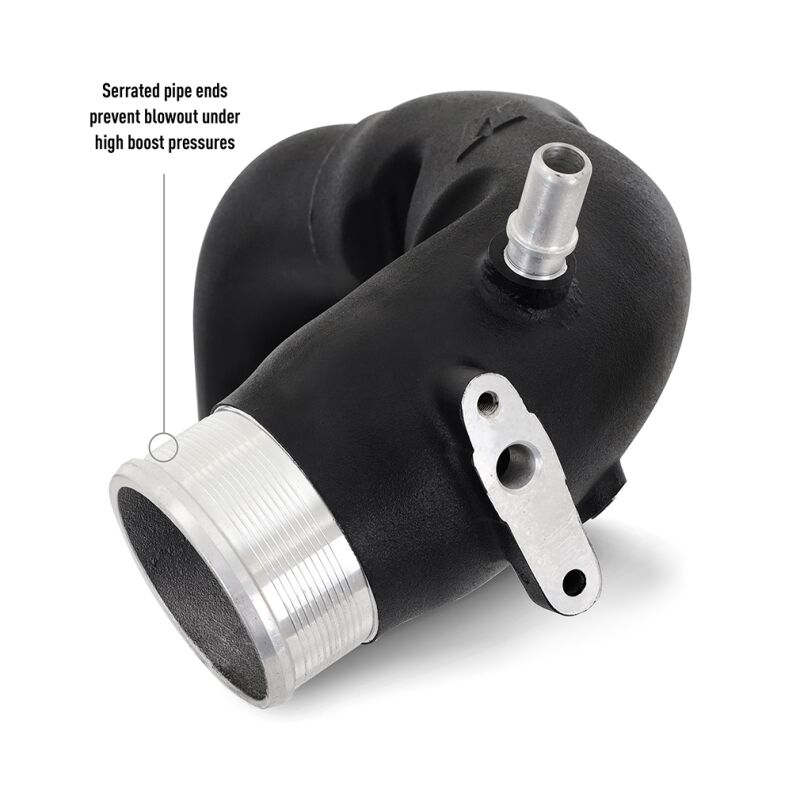

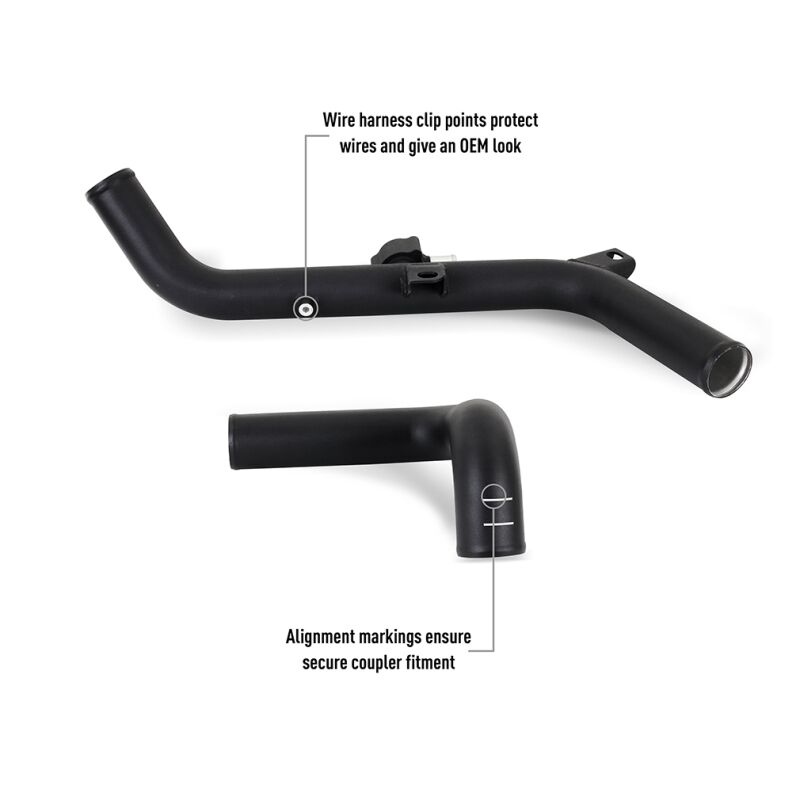

- Replaces weak plastic stock pipes with cast and mandrel-bent aluminum piping
- Cast-aluminum end tanks for increased pressure tolerance and reliability
- 1/8-NPT port on the cold-side pipe for methanol injection or additional sensors

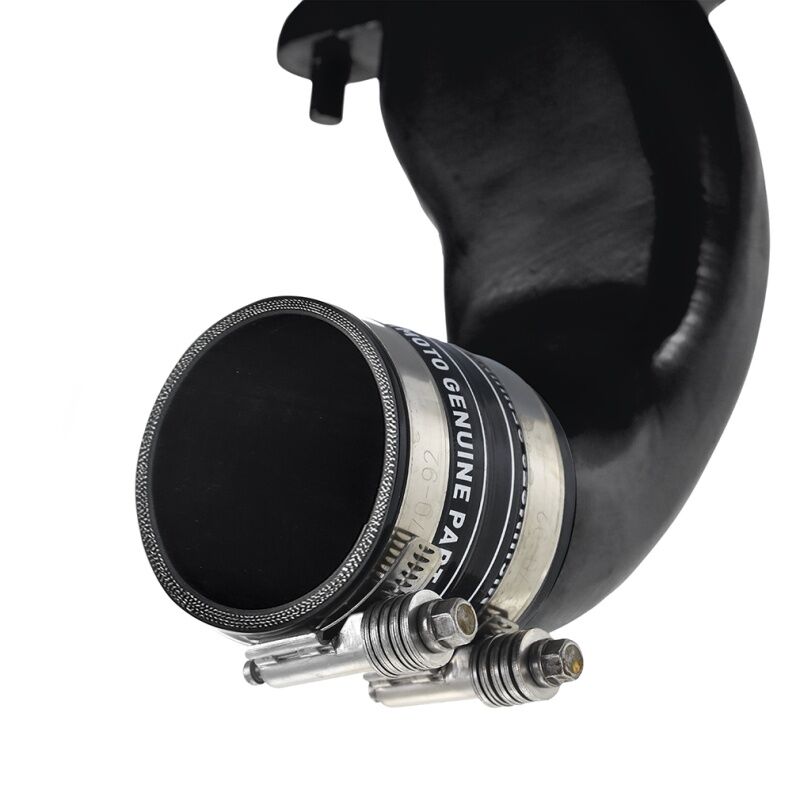

- Mishimoto Silicone Boots with DuraCore technology for resistance to heat, pressure, fuel, and oil
- Patent pending design
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Core Height: 8.8 in
- Core Length: 21.26 in
- Core Thickness: 3.15 in
- Inlet Diameter: 3.15 in
- Outlet Diameter: 3.15 in
- Hot Side Pipe Inside Diameter: 3.15 in
- Cold Side Pipe Inside Diameter: 3.15 in
- Intercooler Type: Air-to-Air
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Black
- Coupler Material: Silicone
- Coupler Color: Black
- Core Color: Black
- Hose Clamps Included: Yes
- Weight: 65.1 lbs
- Applications: 2021+ Ford Bronco V6 2.7L Turbo
- Engine Codes: 2.7L EcoBoost
- Chassis Codes: U725

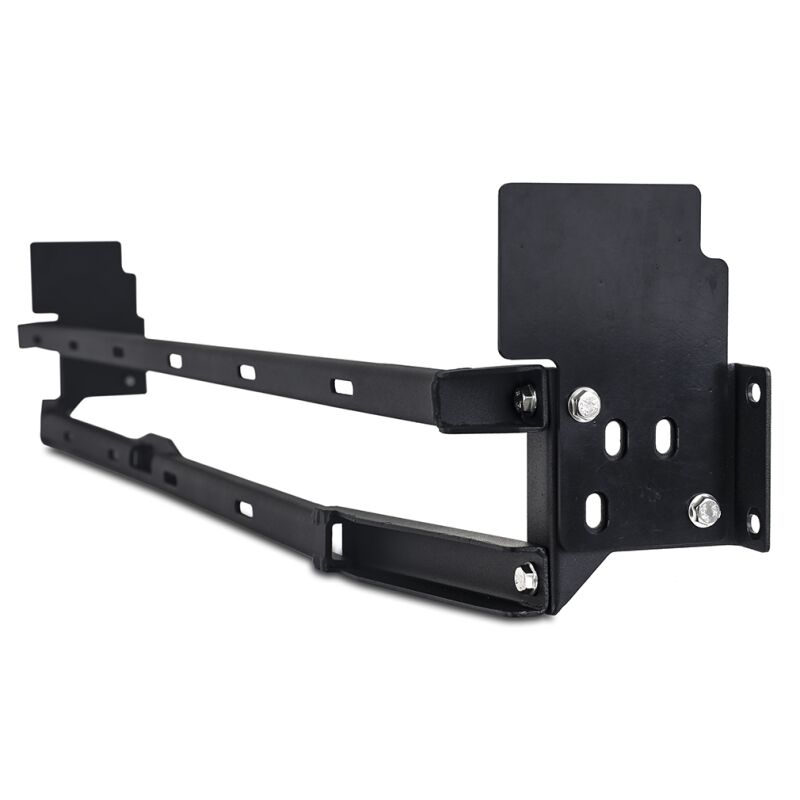

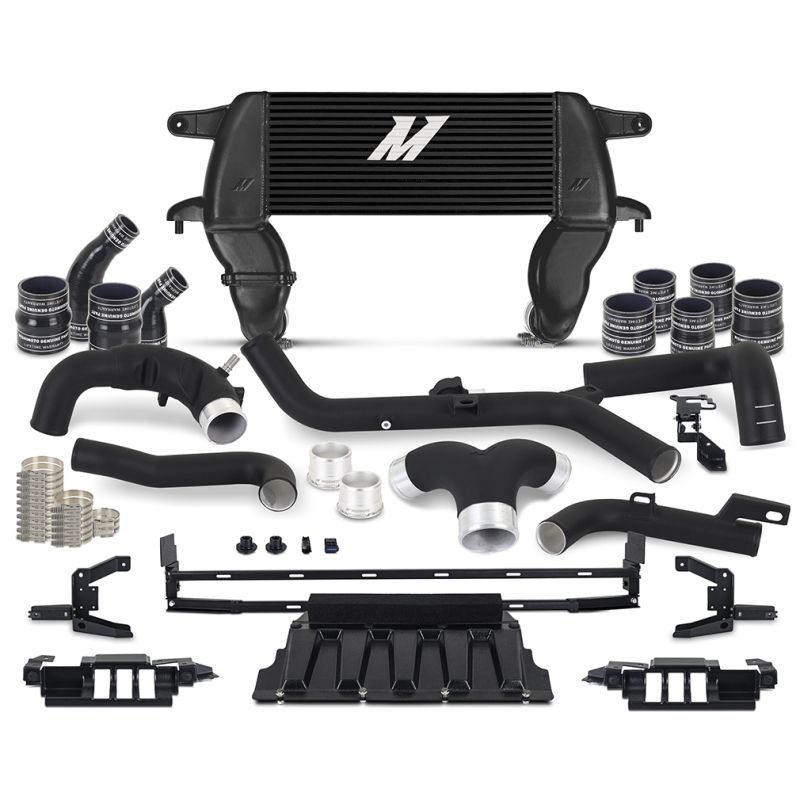

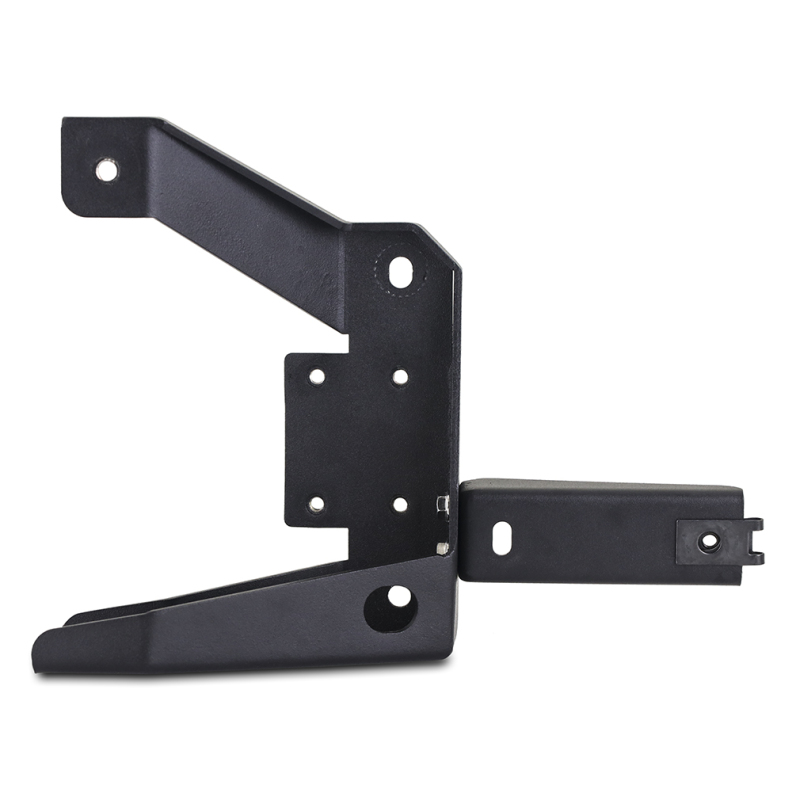

- Kit Includes: High-Mount Intercooler, (3) Intercooler Mounting Brackets, (3) Intercooler Ducts, ACC Sensor Relocation Bracket Set, (2) Grille Shutter Delete Plugs, (4) Hot Side Intercooler Pipes, (2) Cold-Side Intercooler Pipes, (9) Intercooler Pipe Boots, (18) Heavy-Duty Stainless-Steel Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this intercooler kit fit?
It is a specific fit for the 2021+ Ford Bronco 2.7L EcoBoost, covering Badlands and Outer Banks (2021–2026), Base (2021–2023), Big Bend, Black Diamond, and Wildtrak (2021–2024), the 2021 First Edition, Heritage Limited Edition (2023–2024), Heritage Edition (2024–2026), and Stroppe Edition (2025–2026).
How much power does this kit add?
On the stock tune, the kit produces dyno-proven gains of 11.6 HP and 13.7 lb-ft of torque.
What is the intercooler core made of?
It uses a bar-and-plate aluminum core precision TIG welded to cast aluminum end tanks, with a core thickness of 3.15 inches.
Will this affect adaptive cruise control or the 360-degree cameras?
Functionality of adaptive cruise control is retained using a relocation bracket, though it may function to a lesser degree compared to the stock intercooler setup; 360-degree cameras are unaffected.
What’s included in the kit?
The kit includes the high-mount intercooler, three intercooler mounting brackets, three intercooler ducts, an ACC sensor relocation bracket set, two grille shutter delete plugs, four hot side intercooler pipes, two cold-side intercooler pipes, nine intercooler pipe boots, eighteen heavy-duty stainless-steel worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
What color options are available?
This kit is available with a stealth black or sleek silver intercooler paired with micro-wrinkle black powder coated pipes; this listing is the black intercooler with black pipes option.
