Description

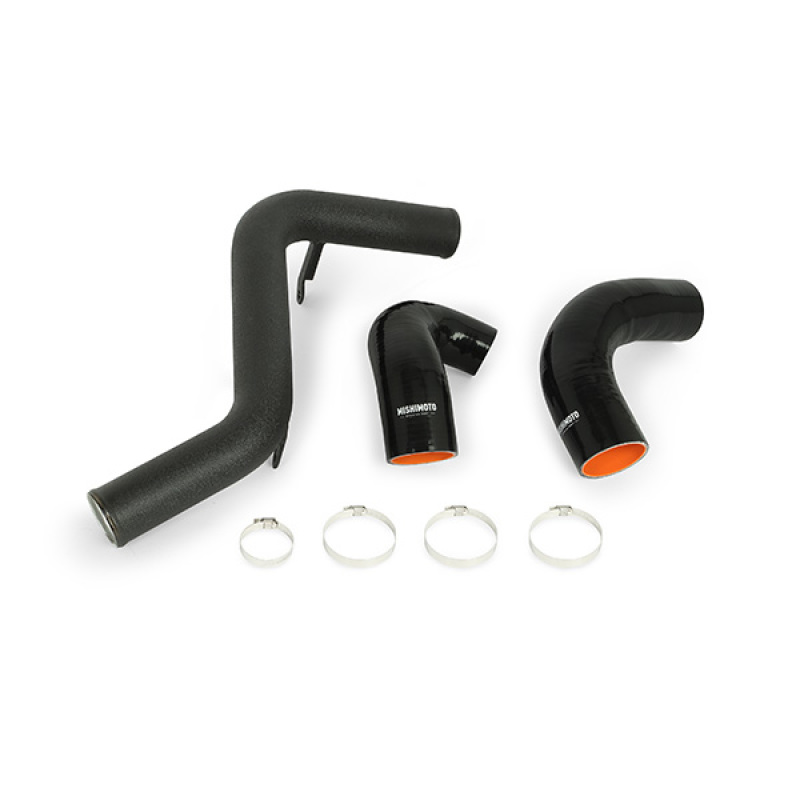

The Mishimoto MMICP-FOST-13HWBK is a wrinkle black powder-coated, mandrel-bent aluminum hot-side intercooler pipe built specifically to replace the restrictive factory hot-side piping on the 2013-2018 Ford Focus ST. Where the stock pipe is choked down with tight bends, a narrow inner diameter, and muffling equipment, this Mishimoto forced induction pipe opens up the path from turbo to intercooler with a straighter, larger-diameter route.
As part of Mishimoto’s forced induction system lineup, this hot-side pipe is engineered to reduce turbulence and improve flow through your Focus ST’s induction system. The kit increases pipe diameter to 2.5 inches, delivering a 14-percent increase in volume and 26-percent greater flow versus the stock hot-side pipe. Mishimoto also swaps out the factory’s degradation-prone rubber couplers for silicone couplers built with 5 layers of heat-resistant fibers and wire reinforcement, so the piping and connections can handle sustained heat cycling in a performance induction setup.
Vehicle Applications
This hot-side intercooler pipe is a direct fit for the 2013-2018 Ford Focus ST. No other vehicles, model years, or trims are covered by this application.
Features
- Direct fit for the 2013-2018 Ford Focus ST
- 26-percent greater flow than the stock hot-side pipe
- 14-percent increase in volume over the stock hot-side pipe
- 2.5-inch mandrel-bent aluminum piping reduces bends found in the factory setup
- Includes Mishimoto silicone couplers built with 5 layers of heat-resistant fibers and wire reinforcement
- Includes Mishimoto high-torque worm gear clamps
- Available in polished or wrinkle black powder-coating finishes
- Backed by Mishimoto’s Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-FOST-13HWBK
- Finish: Wrinkle Black Powder Coated
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Bend Type: Mandrel
- Outlet Diameter: 2.5 in
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- CARB EO Number: D-759-6
- Kit Includes: (1) Aluminum Intercooler Pipe, (2) Silicone Couplers, (4) High-Torque Worm Gear Clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles fit the Mishimoto MMICP-FOST-13HWBK hot-side intercooler pipe?
This pipe is a direct fit for the 2013-2018 Ford Focus ST.
What material and finish does this pipe use?
The pipe is constructed from mandrel-bent aluminum with a 2.5-inch outlet diameter and is available in a polished finish or, as with this part number, a wrinkle black powder coat.
What is included in the kit?
The kit includes (1) aluminum intercooler pipe, (2) silicone couplers, and (4) high-torque worm gear clamps, and is covered under Mishimoto’s Lifetime Warranty.
How much more flow does this pipe provide over the stock hot-side pipe?
It provides 26-percent greater flow and a 14-percent increase in volume compared to the stock hot-side pipe.
Does this intercooler pipe have a CARB EO number?
Yes, it carries CARB EO Number D-759-6.
What torque setting should be used for the included clamps?
Mishimoto recommends 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM); do not exceed the maximum torque rating of 35 in-lbs (4NM).
