Description

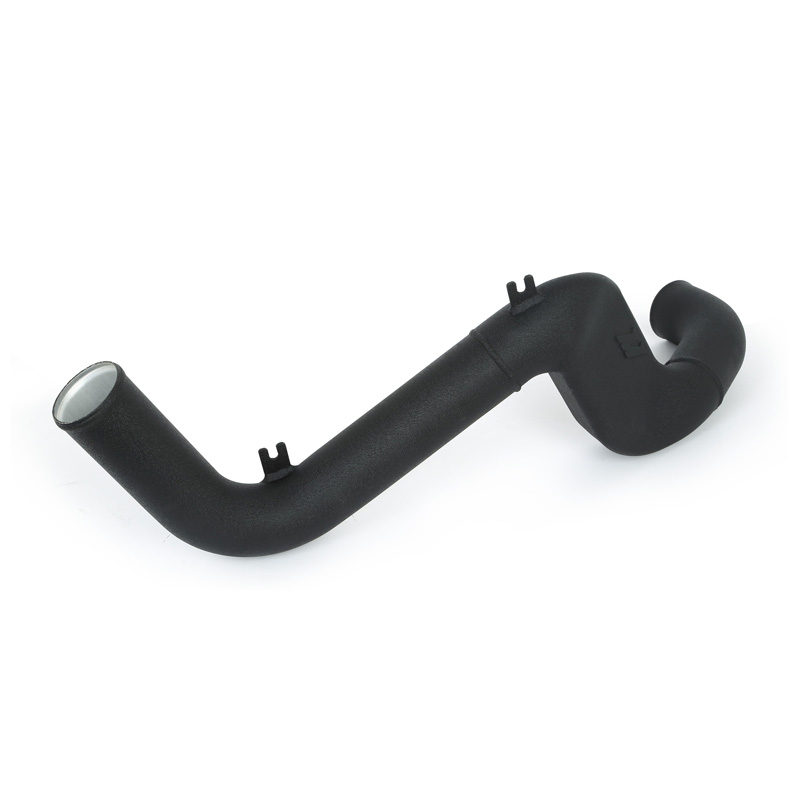

The Mishimoto Hot-Side Intercooler Pipe (MMICP-RS-16HWBK) is a purpose-built forced induction component engineered specifically for the 2016-2018 Ford Focus RS. Unlike a standard cylindrical replacement pipe, this cast, mandrel-shaped piece was designed to solve a real problem on the RS platform: airflow loss to the front PTU that contributes to drivetrain overheating under hard driving. By retaining the factory ducting shape in its cast mid-section, this pipe keeps that critical cooling path intact while still upgrading the core induction path.
As a forced induction upgrade, this hot-side pipe increases internal volume by 40 percent over the stock pipe and delivers an average of 45 percent less pressure drop, all while keeping 2.5-inch inlet and outlet diameters that match the turbo and intercooler connections. Whether you’re focused on a more efficient induction system, reduced turbo lag, or simply want your forced induction setup to run cooler and more consistently, this pipe is built to move air with less restriction than the factory piece. Mishimoto pairs the aluminum pipe with 5-ply, wire-reinforced silicone couplers rated for high heat resistance and enough flexibility to absorb engine movement, so the whole induction system stays sealed and secure even as the powertrain shifts under load.
Vehicle Applications
This Hot-Side Intercooler Pipe is a direct-fit part for the 2016-2018 Ford Focus RS (chassis code C346) equipped with the 2.3L EcoBoost GTDi I4 engine. It installs without modification and fits without removing the lower cross bar, and it works with both the factory Focus RS intercooler and the Mishimoto Focus RS intercooler.
Features
- Direct fit for the 2016-2018 Ford Focus RS
- Cast mid-section retains factory ducting to maintain airflow to the front PTU
- 40-percent increase in internal volume compared to the stock hot-side pipe
- 45-percent less pressure drop than the stock hot-side pipe

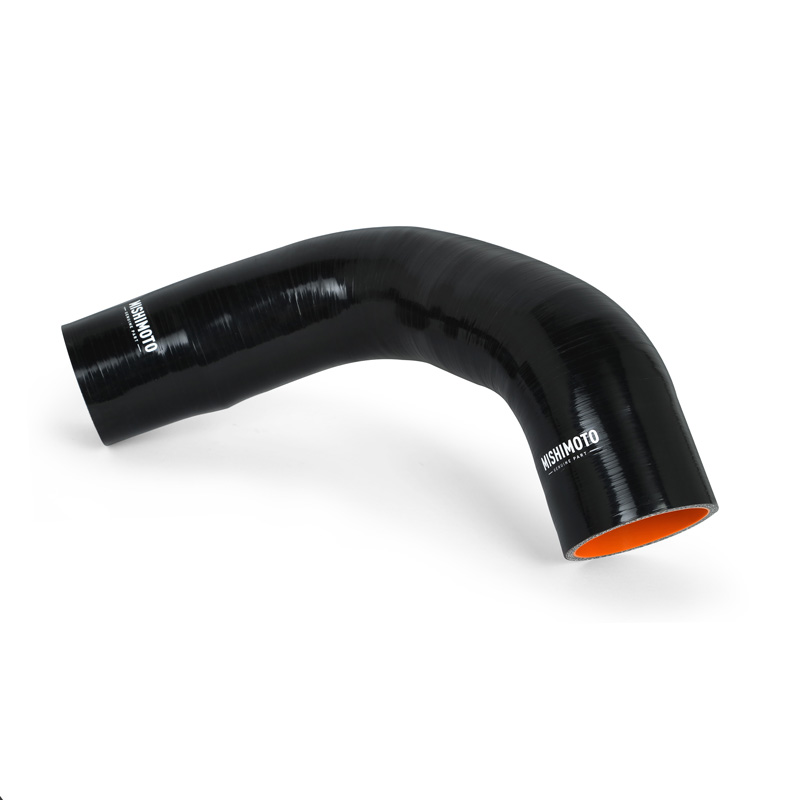

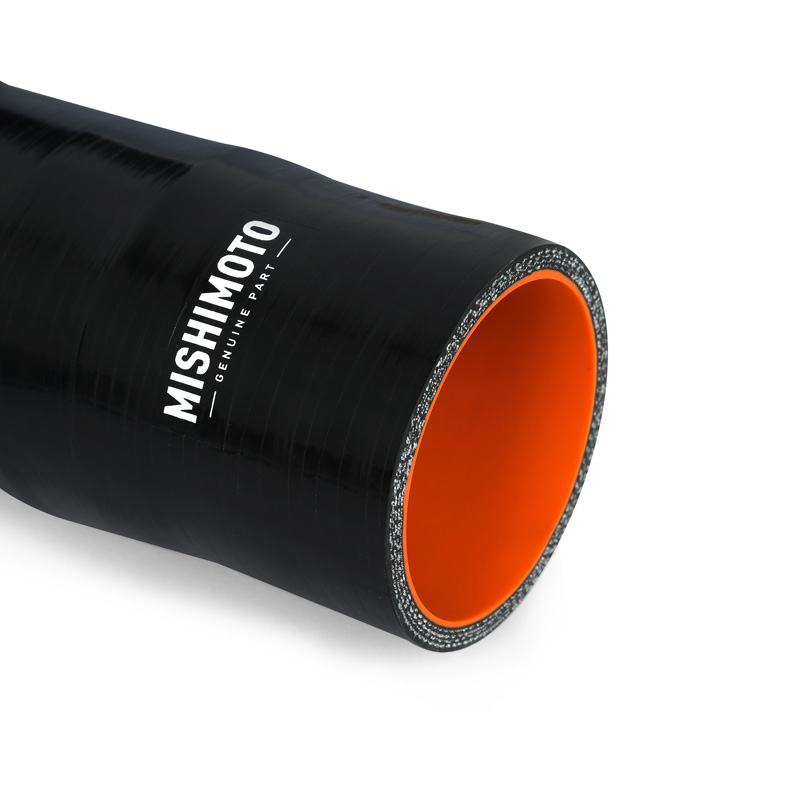

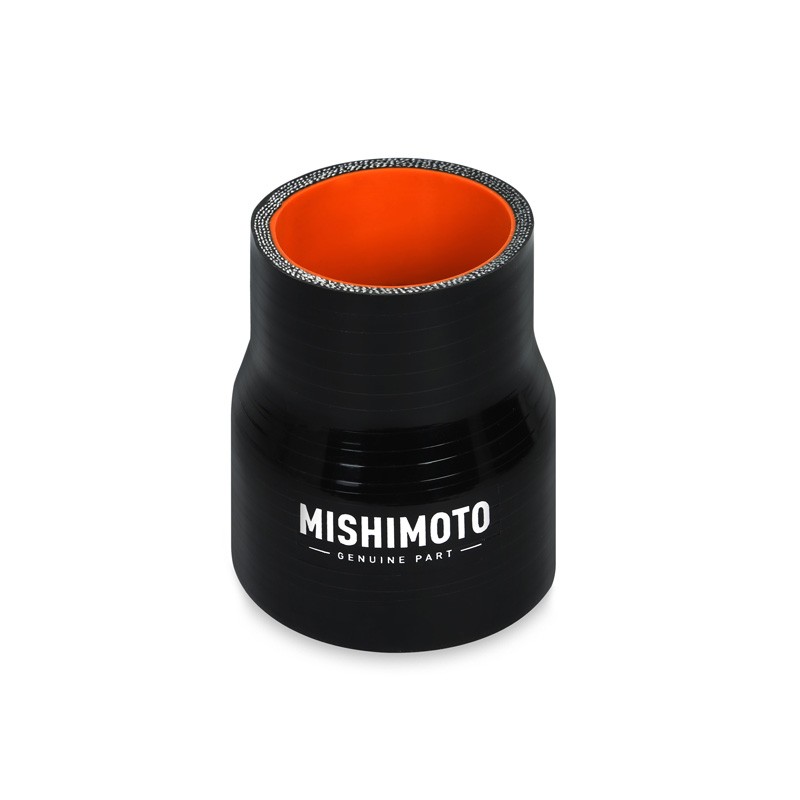

- 5-ply, wire-reinforced silicone couplers absorb the stresses of engine movement
- Improves heat and pressure tolerance
- Fits without removing the lower cross bar
- Available in a Wrinkle Black powder-coated finish
- Compatible with both the stock and Mishimoto Focus RS intercoolers
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Pipe Material: Aluminum
- Finish: Powder Coated
- Pipe Color: Black
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: T-Bolt
- Clamps Included: Yes
- Hot Side Pipe Inside Diameter: 2.5 in
- Cold Side Pipe Inside Diameter: 2.5 in
- Inlet Diameter: 2.5 in
- Outlet Diameter: 2.5 in
- Overall Length: 28.5 in
- Applications: 2016+ Ford Focus RS
- Engine Codes: 2.3L EcoBoost GTDi I4
- Chassis Codes: C346

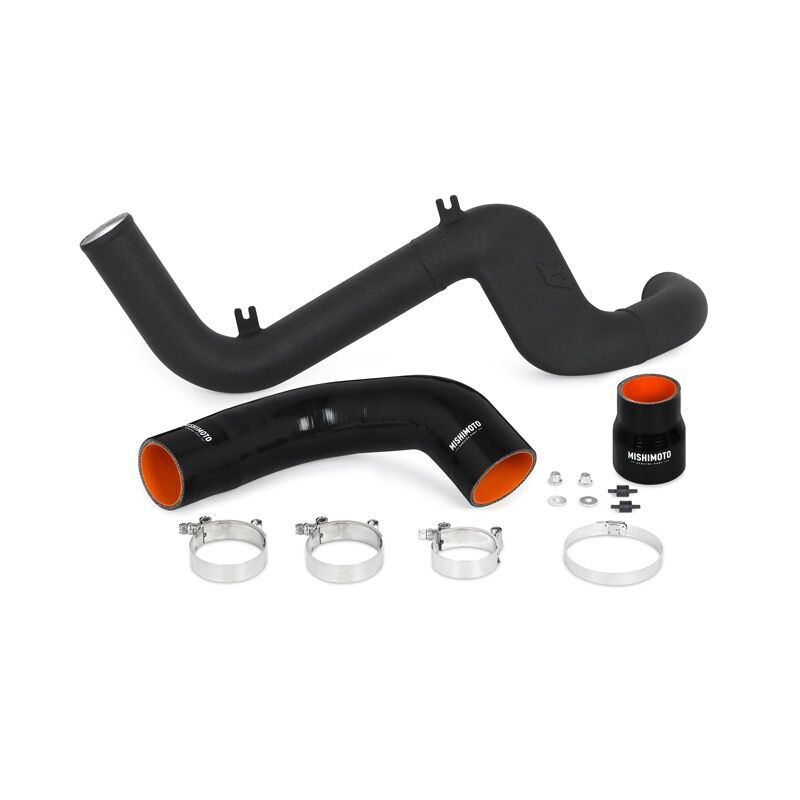

- Includes: (1) Hot-Side Intercooler Pipe, (2) Silicone Couplers, (2) Rubber Isolators, (3) Constant-Tension T-Bolt Clamps, (1) High-Torque Worm Gear Clamp, Hardware, Mishimoto Lifetime Warranty
- Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps; operating range is 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles does the Mishimoto MMICP-RS-16HWBK Hot-Side Intercooler Pipe fit?
This pipe is a direct fit for the 2016-2018 Ford Focus RS (chassis code C346) with the 2.3L EcoBoost GTDi I4 engine.
How much does this pipe improve airflow over the stock hot-side pipe?
It increases internal volume by 40 percent over stock and maintains an average of 45 percent less pressure drop than the stock hot-side pipe.
What are the inlet and outlet diameters of this intercooler pipe?
Both the hot-side and cold-side pipe inside diameters are 2.5 inches, matching the 2.5-inch inlet and outlet.
Does installation require removing the lower cross bar?
No, the pipe is designed to fit without removing the lower cross bar.
What is included with this Mishimoto Hot-Side Intercooler Pipe kit?
The kit includes (1) Hot-Side Intercooler Pipe, (2) Silicone Couplers, (2) Rubber Isolators, (3) Constant-Tension T-Bolt Clamps, (1) High-Torque Worm Gear Clamp, mounting hardware, and the Mishimoto Lifetime Warranty.
Will this pipe work with both the stock and Mishimoto intercoolers?
Yes, it fits both the stock Focus RS intercooler and the Mishimoto Focus RS intercooler.
