Description
The Mishimoto MMICP-F150-11HP Hot-Side Intercooler Pipe Kit is purpose-built for the 3.5L V6 EcoBoost platform, replacing the factory’s restrictive plastic piping with mandrel-bent aluminum tubing and Mishimoto’s DuraCore-equipped silicone couplers. This forced induction pipe kit is engineered to eliminate the tight, flow-choking bends found in the stock hot-side charge piping, delivering a 10-percent increase in average airflow and a 41-percent gain in internal volume compared to the factory setup.
As a dedicated forced induction system upgrade, this kit strengthens the reliability of your truck’s induction system while improving how efficiently compressed air travels from the turbochargers to the intercooler. The Constant-Tension T-Bolt clamps included in the kit maintain a secure, accurate seal on every coupler, while the DuraCore silicone boots resist heat, pressure, fuel, and oil far better than the stock rubber couplers, reducing the risk of leaks or blowouts under boost. For shoppers focused on forced induction reliability and performance induction gains, pairing this hot-side pipe kit with Mishimoto’s matching 2011-2014 F-150 EcoBoost cold-side intercooler pipe kit can add up to 15 more horsepower and 21 ft/lbs more torque, and combining both with Mishimoto’s performance intercooler further improves the entire charge-air system.
Vehicle Applications
This hot-side intercooler pipe kit is a direct fit for the 2011-2014 Ford F-150 equipped with the 3.5L V6 EcoBoost engine, covering FX2, FX4, King Ranch, Lariat, Platinum, XL, and XLT trims across those model years, plus the Limited trim for 2013-2014 and the Tremor for 2014. Coverage extends to the 2015-2017 Ford Expedition and Expedition EL in King Ranch, Limited, Platinum, XL, and XLT trims, with the SSV trim covered for 2016-2017, as well as the Expedition Max Limited and XL for 2015-2017 and the Expedition Max Platinum for 2016-2017. It also fits the 2015-2017 Lincoln Navigator lineup, including the Base (2015-2016), L (2015), L Reserve (2015-2017), L Select (2016-2017), Reserve (2015-2017), and Select (2016-2017), all equipped with the 3.5L V6 EcoBoost engine and chassis code P415.
Features
- Direct fit for the 2011-2014 Ford F-150 3.5L EcoBoost
- 41-percent greater internal volume than stock
- 10-percent greater flow than stock
- 2.5-in aluminum intercooler pipes replace weak stock plastic pipes
- No trimming of the engine cover or modifications necessary for installation
- Includes all boots necessary for easy installation, including couplers to the intercooler

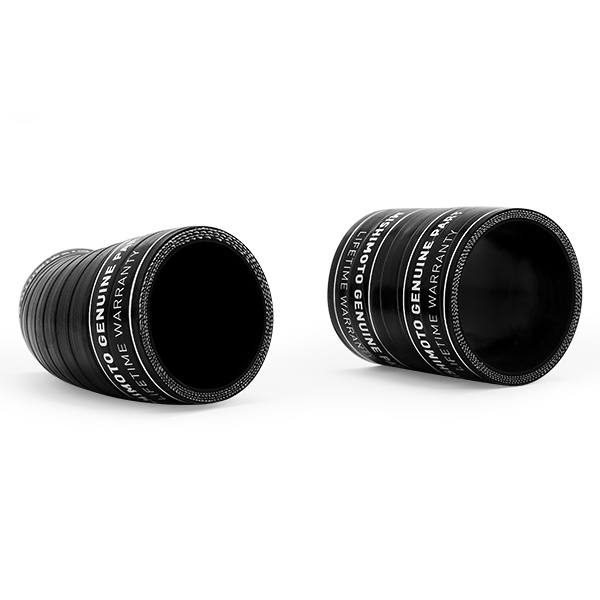

- Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
- Max gains of 15whp/21wtq when using Mishimoto’s full kit
- Available in polished or wrinkle black powder-coated finish
- Backed by the Mishimoto Lifetime Warranty
Specifications

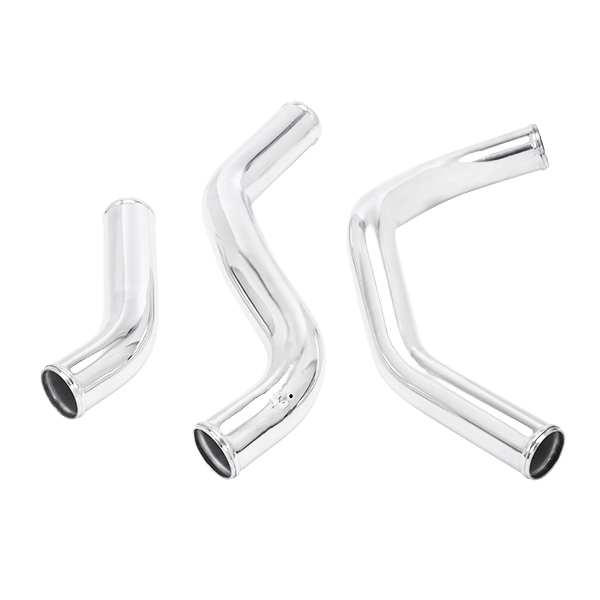

- Pipe Material: Aluminum, mandrel-bent
- Finish: Polished or wrinkle black
- Coupler Material: Silicone with DuraCore technology
- Coupler Color: Black
- Clamp Type: Constant-Tension T-Bolt
- Clamp Quantity: 10
- Hot-Side Pipe Inside Diameter: 2.1 in
- Cold-Side Pipe Inside Diameter: 2.1 in
- Inlet: 2.1 in
- Outlet: 2.36 in
- Engine Code: 3.5L V6 EcoBoost
- Chassis Code: P415
- CARB EO Number: D-759-6

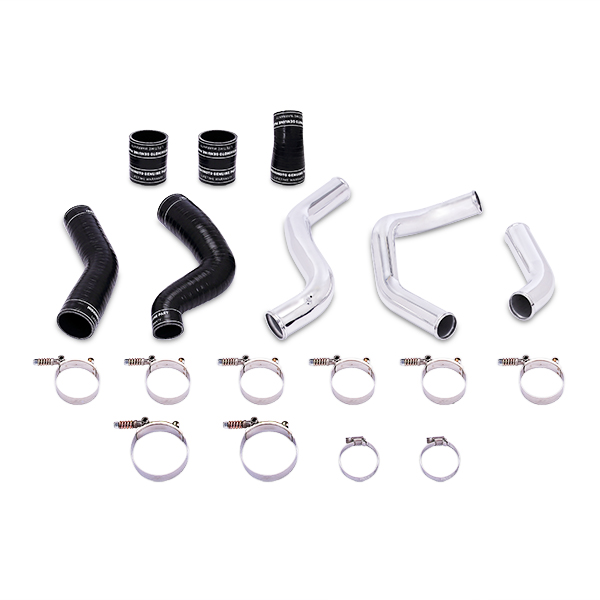

- Kit Includes: (3) Aluminum Intercooler Pipes, (5) Silicone Boots w/ DuraCore Technology, (2) High-Torque Worm Gear Clamps, (8) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
- Installation Torque: 27 in-lbs (3NM) recommended for T-bolt and constant-tension T-bolt clamps; operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles does the Mishimoto MMICP-F150-11HP hot-side intercooler pipe kit fit?
It fits the 2011-2014 Ford F-150 (FX2, FX4, King Ranch, Lariat, Platinum, XL, XLT for 2011-2014; Limited for 2013-2014; Tremor for 2014), the 2015-2017 Ford Expedition and Expedition EL (King Ranch, Limited, Platinum, XL, XLT for 2015-2017; SSV for 2016-2017), the Expedition Max (Limited and XL for 2015-2017; Platinum for 2016-2017), and the 2015-2017 Lincoln Navigator lineup (Base 2015-2016, L 2015, L Reserve 2015-2017, L Select 2016-2017, Reserve 2015-2017, Select 2016-2017), all with the 3.5L V6 EcoBoost engine.
What material and finish options does this pipe kit use?
The pipes are mandrel-bent aluminum, available in polished or wrinkle black powder-coated finish, paired with black silicone couplers featuring DuraCore technology.
How does this kit improve airflow compared to stock?
It increases average airflow by 10 percent and internal volume by 41 percent when compared to the stock hot-side piping.
What clamps come with the kit?
The kit includes 10 clamps total: eight Constant-Tension T-Bolt clamps and two high-torque worm gear clamps.
How much power can this kit add?
Paired with Mishimoto’s matching 2011-2014 F-150 EcoBoost cold-side intercooler pipe kit, the full setup can add up to 15 more horsepower and 21 ft/lbs more torque.
What is included in the box?
The kit includes (3) aluminum intercooler pipes, (5) silicone boots with DuraCore technology, (2) high-torque worm gear clamps, (8) Constant-Tension T-Bolt clamps, and the Mishimoto Lifetime Warranty.
