Description

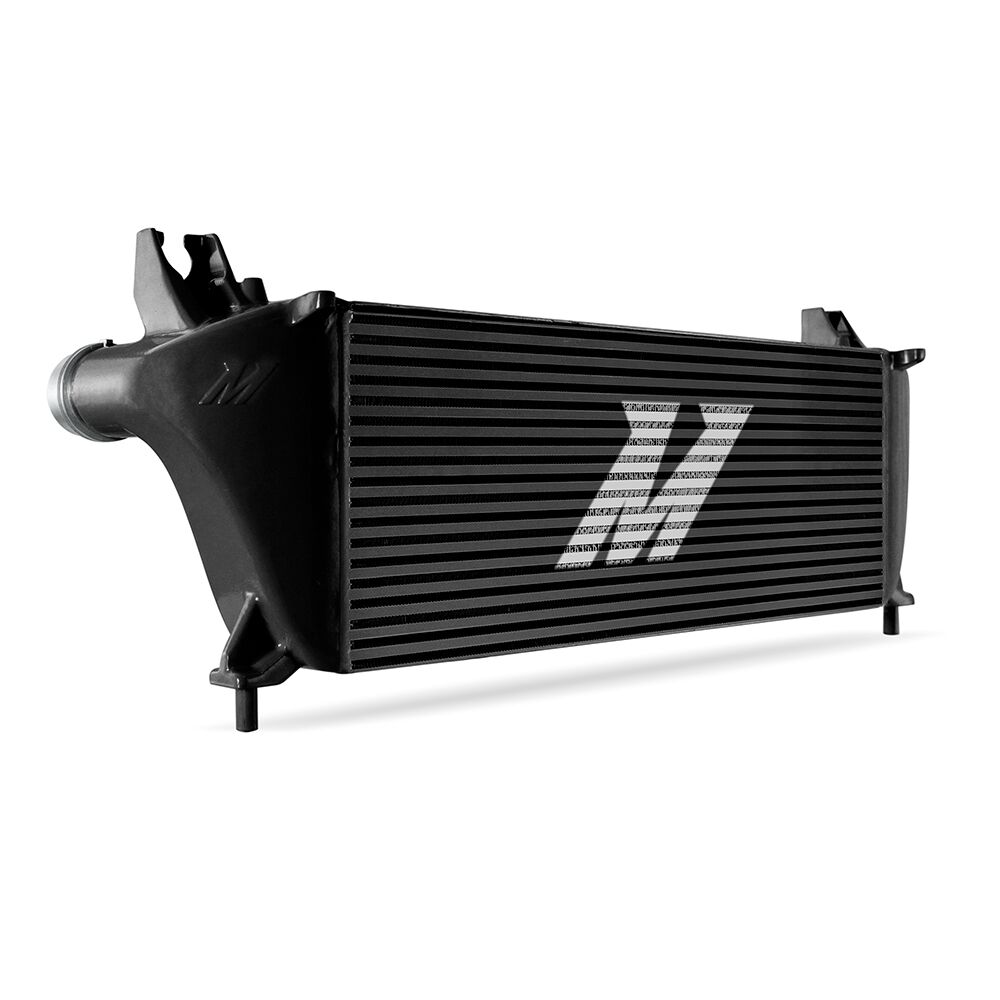

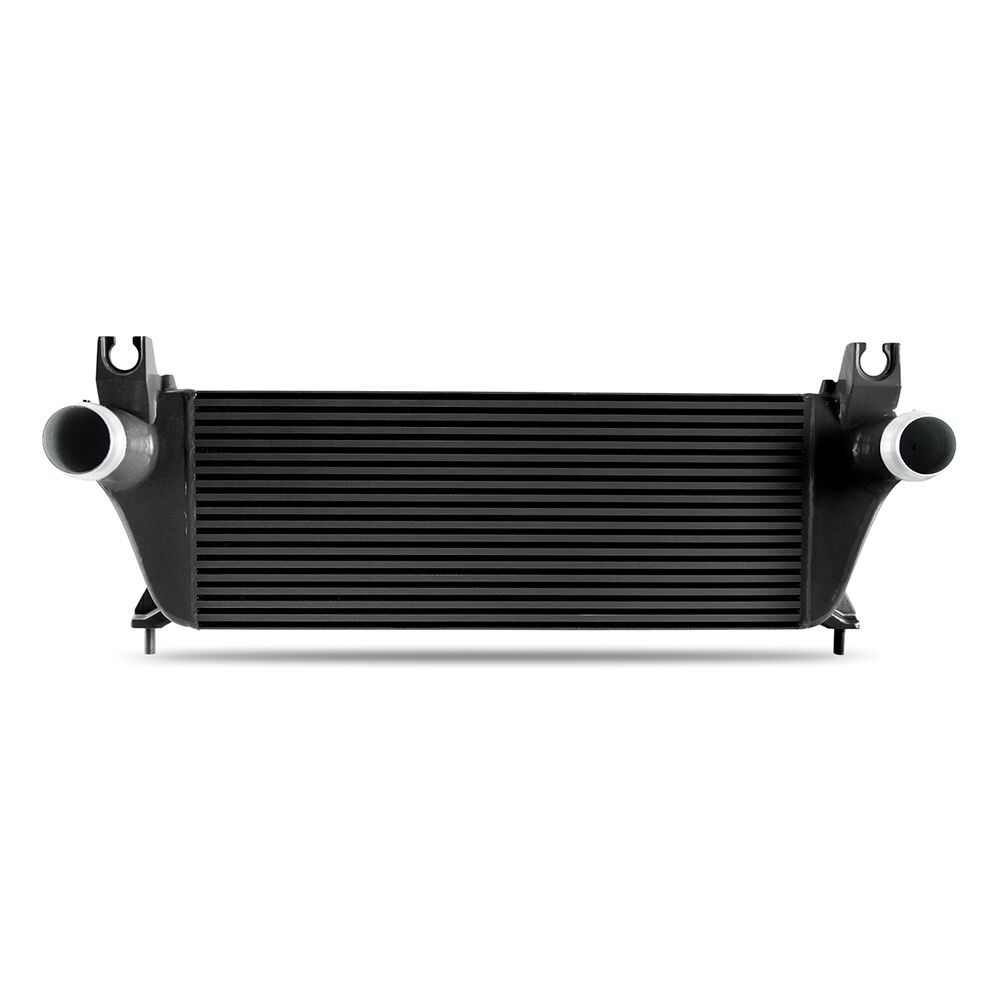

The Mishimoto MMINT-RGR-19BK is a purpose-built performance intercooler engineered specifically for the 2019-2023 Ford Ranger 2.3L EcoBoost. Its black bar-and-plate core is precision TIG-welded to cast-aluminum end tanks, replacing the factory tube-and-fin core and plastic end tanks with a design built for durability against heat, pressure, and trail debris. Protected under Patent No. US D957,461 S, this intercooler represents Mishimoto’s dedicated forced induction solution for the Ranger platform.
As part of Mishimoto’s Forced Induction lineup, this intercooler is a specific-fit performance induction upgrade, not a universal piece, meaning every dimension of the induction system was designed around the Ranger’s factory packaging. Compared to the stock intercooler, this unit is 24-percent less restrictive, offers a 46-percent increase in core volume, and delivers a 49-percent increase in fin surface area, all while maintaining less pressure drop from inlet to outlet than the factory piece. Mishimoto reports a 7°F reduction in outlet temperature over the stock intercooler, and when paired with the Mishimoto intercooler pipes, this forced induction upgrade produced dyno-proven gains of 13.6 whp and 13.9 lb-ft of torque.
Vehicle Applications
This intercooler is a specific fit for the 2019-2023 Ford Ranger 2.3L EcoBoost across the T6 chassis. Coverage includes the Ranger Lariat, XL, and XLT trims for model years 2019 through 2023, as well as the Ranger Wildtrak trim for the 2023 model year.
Features
- Bar-and-plate core built specifically for the Ranger’s 2.3L EcoBoost cooling needs

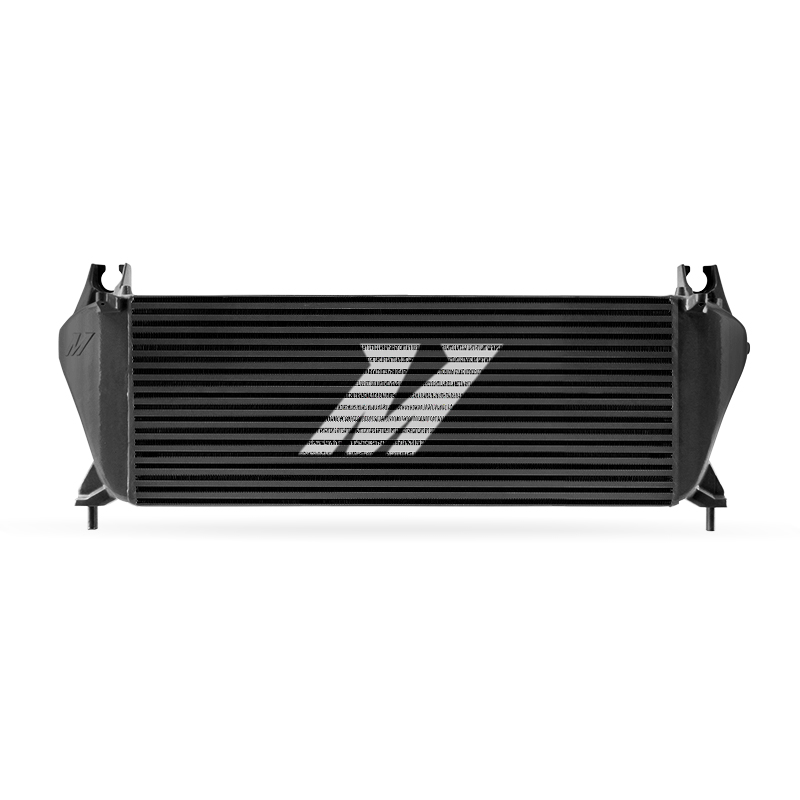

- Cast-aluminum end tanks precision TIG-welded to the core for increased pressure tolerance and reliability
- 24-percent less restrictive than the stock intercooler with less pressure drop from inlet to outlet
- 46-percent increase in core volume and 49-percent increase in fin surface area for greater cooling efficiency
- 7°F reduction in outlet temperature compared to the stock intercooler
- Dyno-proven gains of 13.6 whp and 13.9 lb-ft of torque when paired with the Mishimoto intercooler pipes
- Integrated bung that can be drilled and tapped for a boost sensor or water-meth injection

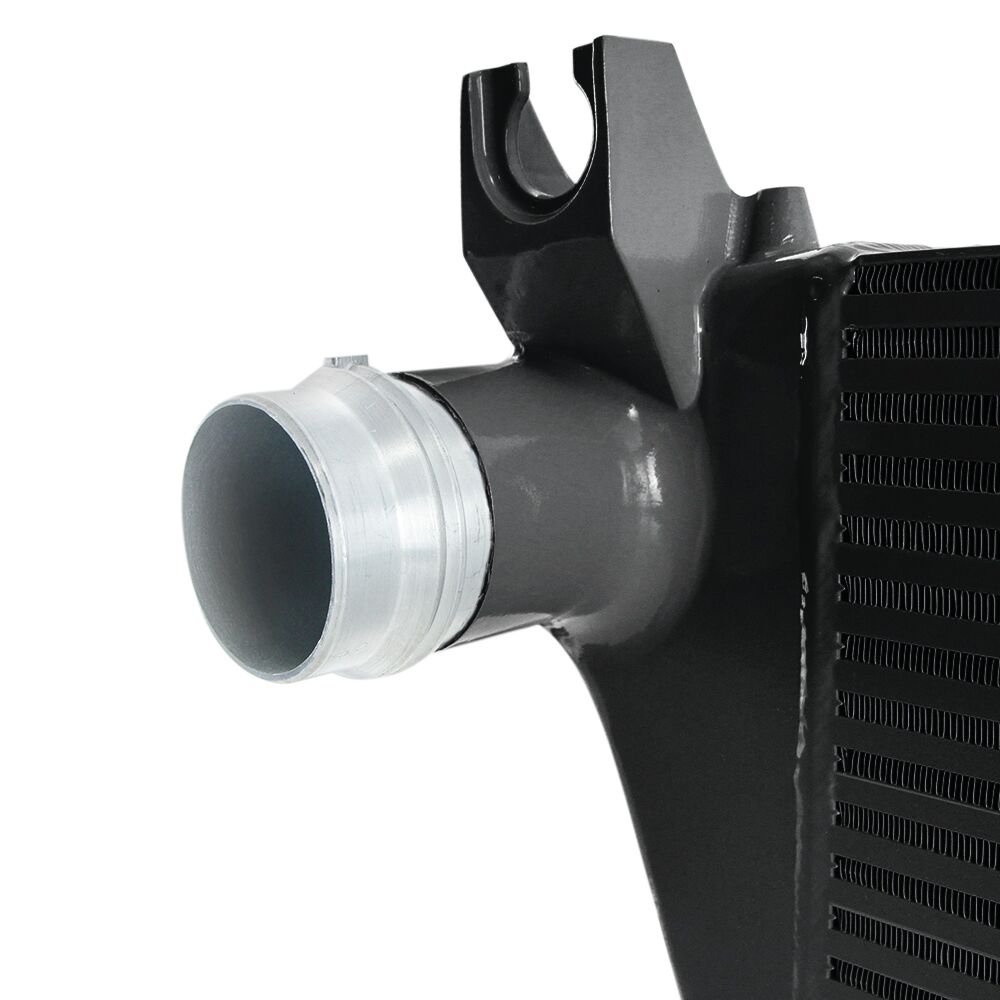

- CNC-machined quick-disconnect inlet and outlet for straightforward installation
- Compatible with stock or Mishimoto performance intercooler pipes
- Does not interfere with active grille shutters or adaptive cruise control
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Core Thickness: 3.54 in
- Core Length: 24 in
- Inlet Outside Diameter: 2.18 in
- Outlet Outside Diameter: 2.65 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Inlet Tank Material: Aluminum
- Chassis Codes: T6
- Engine Codes: 2.3L EcoBoost
- Includes: (1) Mishimoto Performance Bar-and-Plate Intercooler, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto intercooler fit?
This intercooler is a specific fit for the 2019-2023 Ford Ranger 2.3L EcoBoost, covering the Lariat, XL, and XLT trims from 2019-2023 and the Wildtrak trim for 2023.
How much power gain can I expect from this intercooler?
Mishimoto reports dyno-proven gains of 13.6 whp and 13.9 lb-ft of torque when this intercooler is combined with the Mishimoto intercooler pipes.
What is the intercooler core made of?
It uses a bar-and-plate aluminum core that is precision TIG-welded to cast-aluminum end tanks.
Can I add a boost sensor or water-meth injection to this intercooler?
Yes, the intercooler includes an integrated bung that can be drilled and tapped for a boost sensor or water-meth injection.
Does this intercooler interfere with the grille shutters or adaptive cruise control?
No, this intercooler does not interfere with active grille shutters or adaptive cruise control.
What is included with this intercooler and what warranty applies?
It includes one Mishimoto Performance Bar-and-Plate Intercooler and mounting hardware, backed by the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
