Description

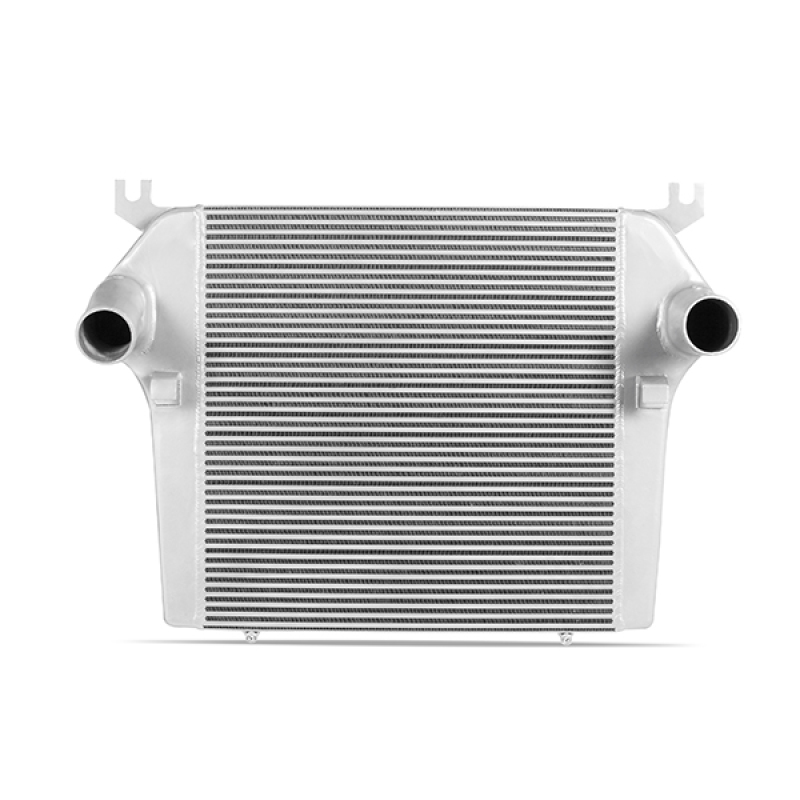

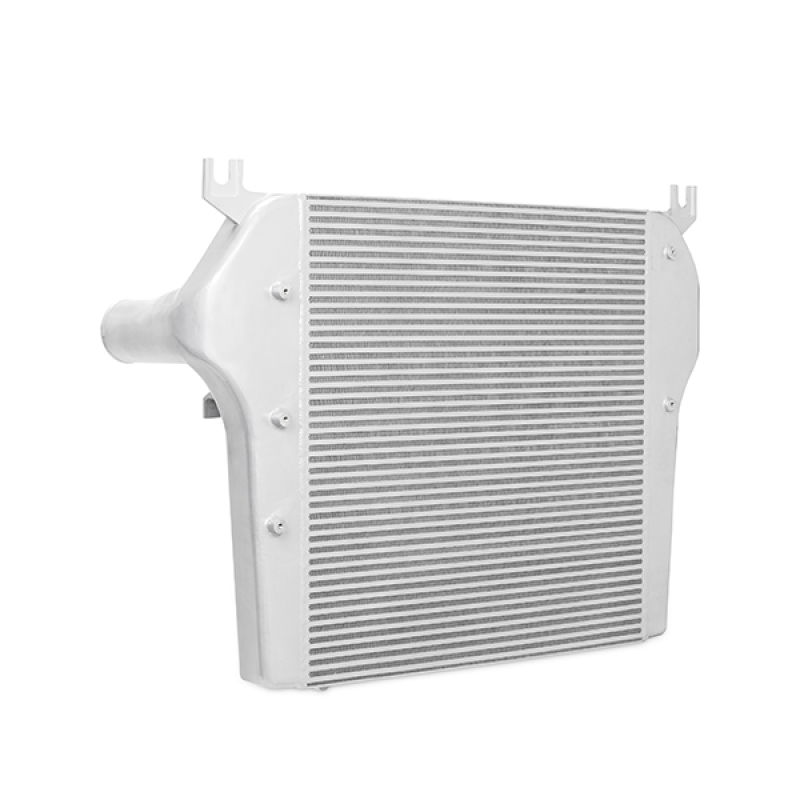

The Mishimoto MMINT-RAM-10KSL is a performance intercooler kit engineered specifically for the Dodge/Ram 6.7L Cummins platform, built around a bar-and-plate aluminum core with cast aluminum end tanks. This forced induction upgrade replaces the factory intercooler and its restrictive plastic piping with a direct-fit assembly designed to improve airflow, substantially decrease air-charge temperatures, and reduce EGTs so your truck is supported at any power level.
At the heart of this induction system is a core that offers 52-percent greater internal volume than the stock unit and a 3-inch core thickness that is 100-percent thicker than factory, paired with internal fins engineered for maximum heat transfer with minimal pressure drop. Strategically shaped end tanks improve airflow through the core, while the included aluminum piping is mandrel-bent and polished to eliminate the restrictive bends found in the weak factory plastic cold-side pipe and undersized hot-side pipe. Mishimoto Silicone Boots with DuraCore technology and Constant-Tension T-bolt Clamps complete the seal points, giving this performance induction kit a durable, direct-fit installation in the stock intercooler location.
Vehicle Applications
This Mishimoto intercooler kit is a specific fit for the 2010-2012 Dodge Ram 2500 (Laramie, SLT, ST, SXT, and TRX trims for 2010; Laramie, Laramie Longhorn, Outdoorsman, SLT, and ST for 2011-2012; SXT for 2011 only) and the 2009-2012 Dodge Ram 3500 (Laramie, SLT, ST, and SXT for 2009-2010; Laramie, Laramie Longhorn, SLT, and ST for 2011-2012; SXT for 2011 only), all equipped with the 6.7L Cummins engine.
Features
- Direct fit, mounts in the stock location
- Bar-and-plate core construction with cast aluminum end tanks
- 52-percent greater internal volume than stock
- 3-inch core is 100-percent thicker than stock
- End tanks strategically designed for optimal airflow
- Internal fins designed for maximum heat transfer with minimal pressure drop
- Aluminum intercooler pipes replace the weak factory plastic cold-side pipe and small-diameter hot-side pipe
- Provides improved airflow and lowers intake air temperatures
- Mandrel-bent polished aluminum pipe eliminates restrictive bends
- Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant Tension T-bolt Clamps
- Available in Silver or Stealth Black intercooler options
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 26.7 in
- Core Length: 26.3 in
- Core Thickness: 3.15 in
- Core Color: Silver
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Inlet Diameter: 3.5 in
- Outlet Diameter: 3.5 in
- Hot Side Pipe Inside Diameter: 3.5 in
- Cold Side Pipe Inside Diameter: 3.5 in
- Pipe Material: Aluminum
- Pipe Color: Silver
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Overall Height: 28.75 in
- Overall Length: 38.75 in
- Overall Width: 11 in
- Grade Type: Performance

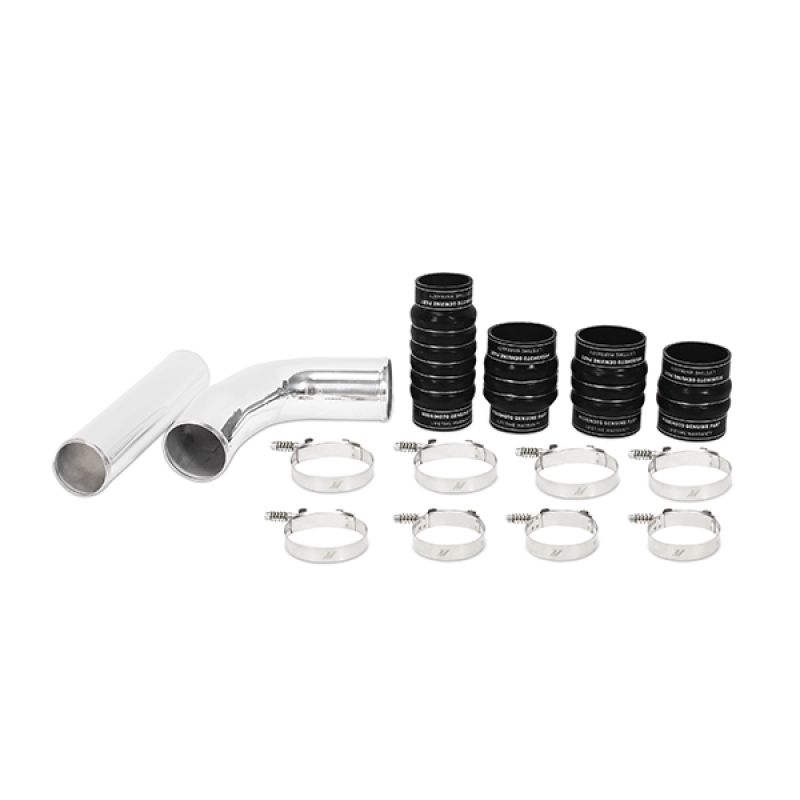

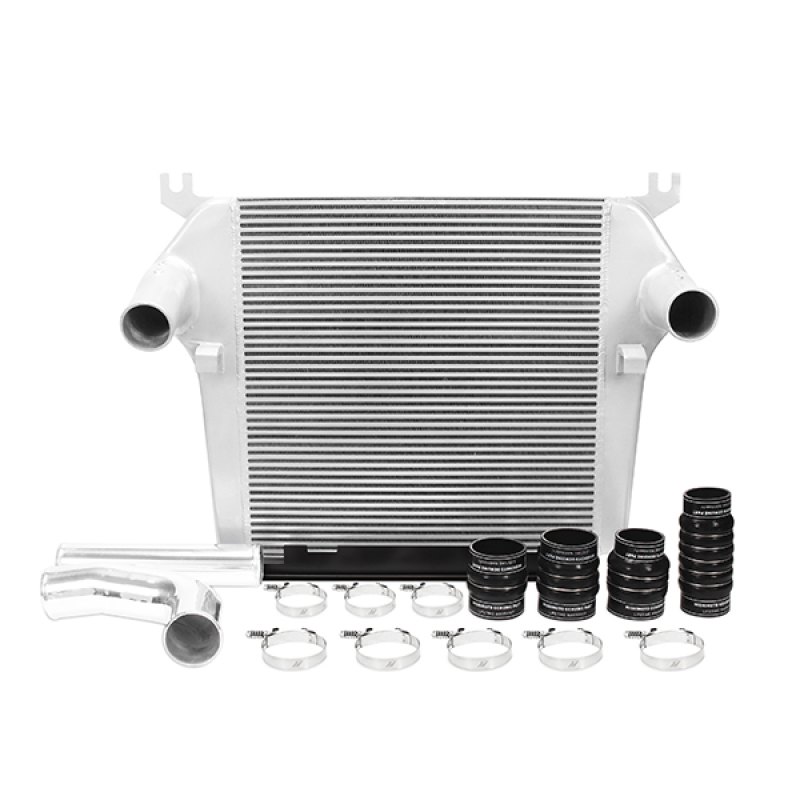

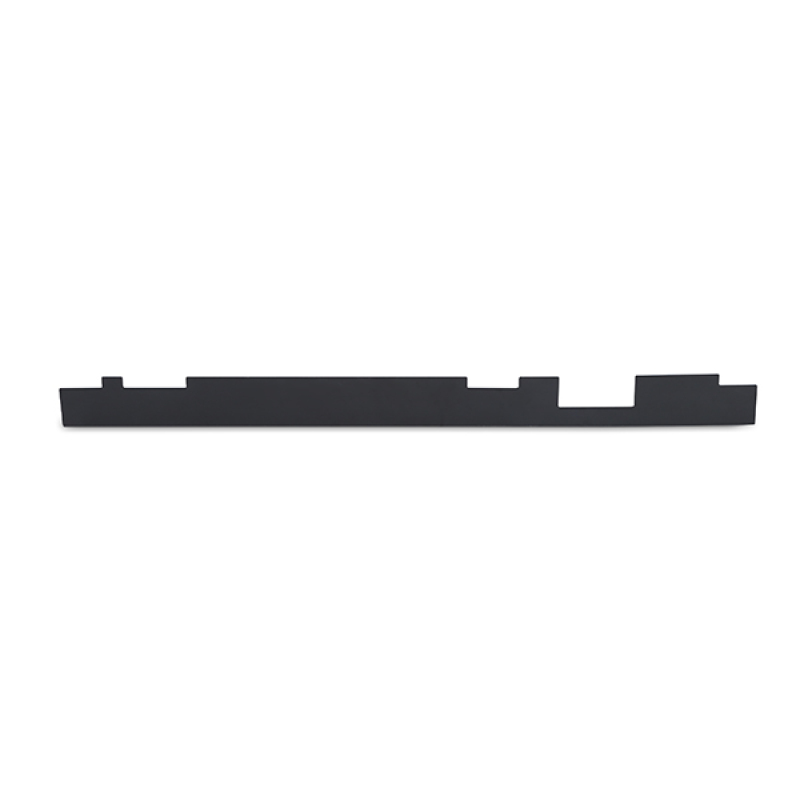

- Kit Includes: (1) Mishimoto Intercooler, (1) Air Diversion Panel, (4) Silicone Boots with DuraCore Technology, (8) Constant-Tension T-Bolt Clamps, (2) Aluminum Pipes, (2) Aluminum Mishimoto M Logo Badges, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-RAM-10KSL intercooler kit fit?
It is a specific fit for the 2010-2012 Dodge Ram 2500 and 2009-2012 Dodge Ram 3500, both equipped with the 6.7L Cummins engine, across the Laramie, Laramie Longhorn, Outdoorsman, SLT, ST, SXT, and TRX trims as applicable by year.
What is included with this intercooler kit?
The kit includes one Mishimoto intercooler, one air diversion panel, four Silicone Boots with DuraCore Technology, eight Constant-Tension T-Bolt Clamps, two aluminum pipes, two aluminum Mishimoto M logo badges, and the Mishimoto Lifetime Warranty.
Is there anything special to know before installing this intercooler?
Disconnecting the AC lines is necessary to remove the stock intercooler, and it’s recommended to have a certified AC repair shop properly evacuate the refrigerant first. Relocation of the power steering cooler may also be needed for H.O. (High Output) models.
What core and pipe materials are used?
The core uses bar-and-plate aluminum construction with cast aluminum end tanks, and the included pipes are aluminum with a powder-coated silver finish.
What color options are offered for this Mishimoto intercooler?
This intercooler kit is available in Silver or Stealth Black options.
Does this kit come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
