Description

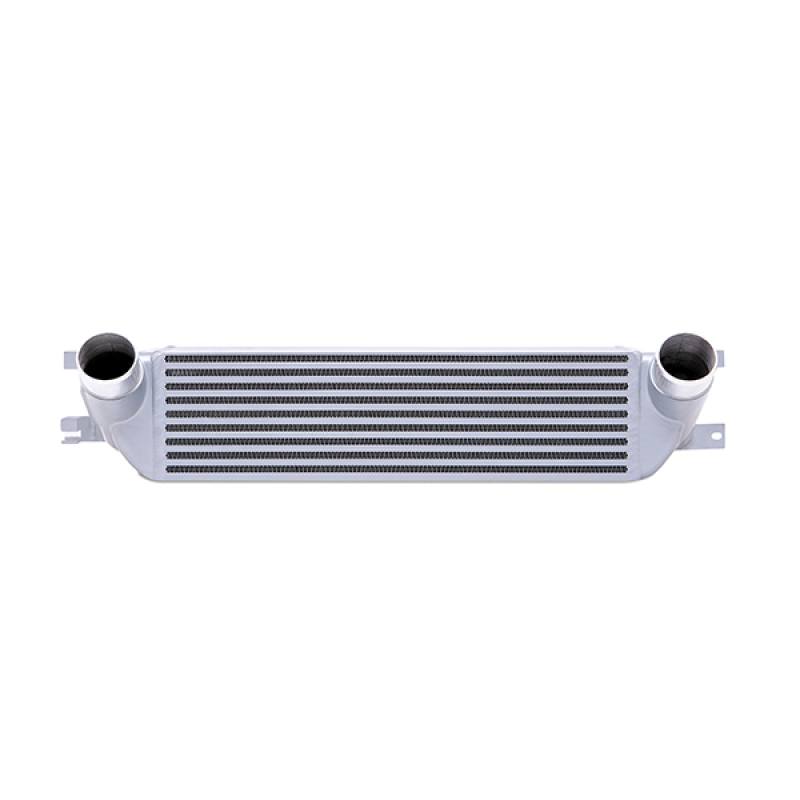

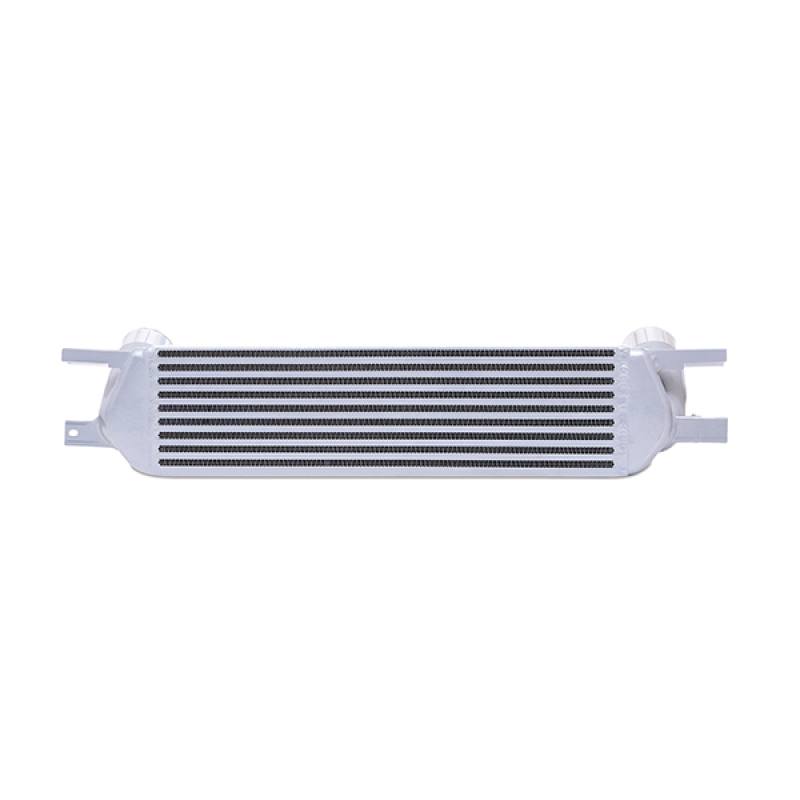

The Mishimoto MMINT-MUS4-15KPSL is a direct-fit, bar-and-plate performance intercooler kit engineered specifically for the turbocharged 2.3L EcoBoost engine found in the S550-chassis Ford Mustang. Built to combat the rapid heat soak that plagues the stock tube-and-fin cooler during hard track laps or aggressive street driving, this Mishimoto forced induction upgrade delivers a 35 F (19.45 C) reduction in intake air temperature while installing in the stock location with no vehicle modification required.
As a purpose-built forced induction system, this kit goes beyond a simple core swap: it replaces the entire intercooler piping circuit with both hot-side and cold-side pipes and couplers in one package. The core itself sees a 58-percent increase in overall size, a 25-percent increase in internal core volume, and a 165-percent increase in external fin surface area compared to stock, giving your Mustang’s induction engine consistently cooler, denser charge air run after run. Cast, CFD-tested aluminum end tanks with an in-tank air diverter on the hot side optimize airflow through the core, while precision TIG-welding ties the bar-and-plate construction together for a durable, performance-induction-grade cooler rated to support up to 550 horsepower.
Vehicle Applications
This intercooler kit is a specific-fit unit engineered for the 2015-2023 Ford Mustang EcoBoost and 2015-2023 Ford Mustang EcoBoost Premium, both built on the S550 chassis around the 2.3L EcoBoost engine. It mounts in the factory intercooler location, working around the stock active grille shutters and avoiding any airflow blockage to the radiator or AC condenser, so there’s no need to remove the front bumper cover during the roughly two-hour installation.
Features
- Direct fit for the 2015-2023 Ford Mustang EcoBoost with no modification required
- 35 F (19.45 C) reduction in intake air temperature
- 58-percent increase in core size versus the factory intercooler
- 25-percent increase in internal core volume and 165-percent increase in external fin surface area
- Replaces both hot-side and cold-side intercooler pipes and couplers
- Cast aluminum end tanks with an in-tank air diverter for optimal flow through the core
- Mounts in the stock location, preserving airflow to the radiator and AC condenser
- Retains the stock active grille shutters for ideal aerodynamics
- Bar-and-plate core construction with all-aluminum, TIG-welded end tanks
- 2.5-in hot-side and 2.75-in cold-side mandrel-bent aluminum piping to eliminate restrictive bends
- CNC-machined BPV flange on the hot-side pipe for quick install of stock or stock-style BPVs
- Four-layer silicone couplers with heat-resistant embedded fibers
- Stainless steel T-bolt clamps included for reliable, consistent holding power
- Installs in under two hours without removing the front bumper cover
- Available in Stealth Black or Sleek Silver core finish, with polished silver or wrinkle black pipe finish options
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-MUS4-15KPSL
- Product Type: Forced Induction
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver
- Core Height: 5.75 in
- Core Thickness: 2.76 in
- Core Length: 21.06 in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Inlet Diameter: 2.56 in
- Outlet Diameter: 2.56 in
- Hot Side Pipe Inside Diameter: 2.56 in
- Cold Side Pipe Inside Diameter: 2.56 in
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Maximum Horsepower: 550
- Overall Height: 6.8 in
- Overall Length: 30.3 in
- Chassis Code: S550
- Engine Code: 2.3L EcoBoost
- CARB EO Number: D-759-23

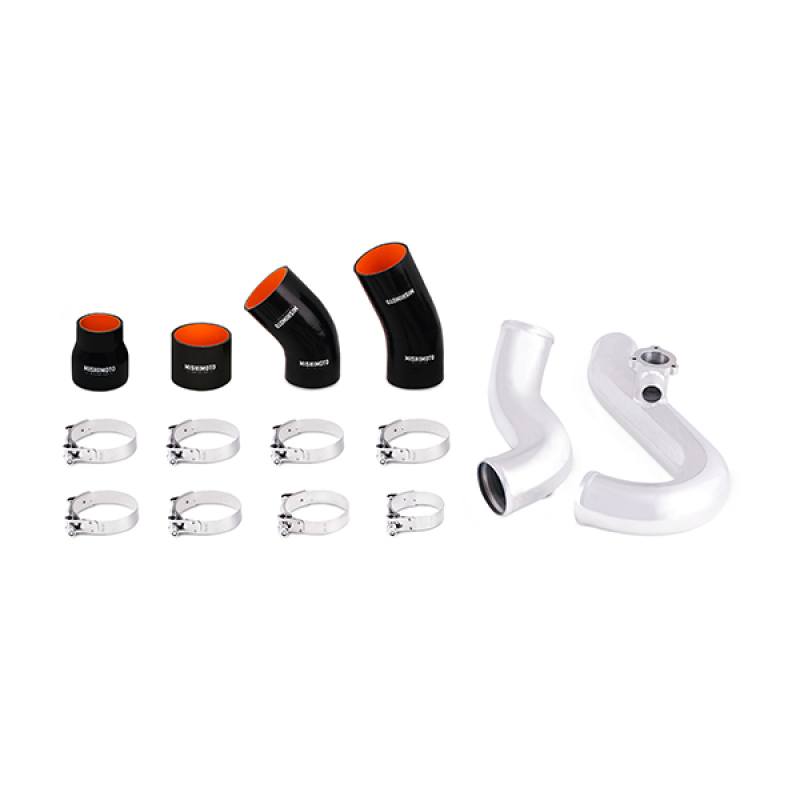

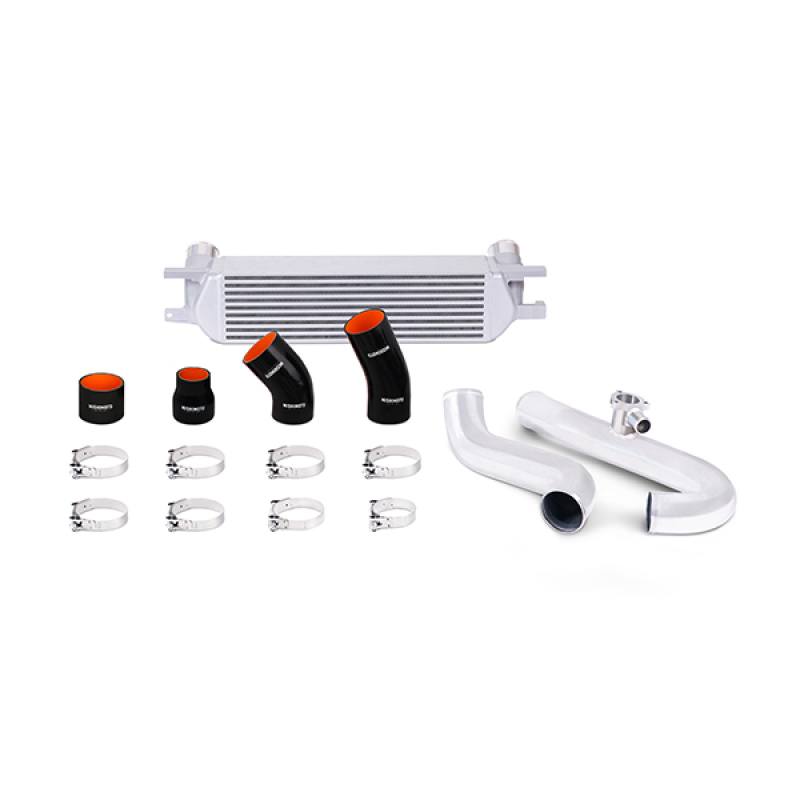

- Kit Includes: (1) Mishimoto Intercooler, (1) Aluminum Pipe w/ CNC-Machined NPT Bung, (1) Aluminum Pipe w/ CNC-Machined BPV Flange, (4) Silicone Couplers, (1) 2.0-in T-bolt Clamp, (4) 2.75-in T-bolt Clamps, (3) 3.0-in T-bolt Clamps, (1) M6 x 1.0 x 20mm Flange Bolt, (1) M4 x 0.7 x 12mm Button Head Bolt, (1) M4 Lock Washer, (1) MAP Sensor O-Ring, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does this Mishimoto intercooler kit fit?
This intercooler kit is a specific fit for the 2015-2023 Ford Mustang EcoBoost and 2015-2023 Ford Mustang EcoBoost Premium, both built on the S550 chassis with the 2.3L EcoBoost engine.
How much does this intercooler reduce intake air temperatures?
The Mishimoto Mustang EcoBoost Performance Intercooler reduces intake air temperatures by 35 F (19.45 C) with minimal pressure loss.
How much larger is the core compared to the stock intercooler?
The core features a 58-percent increase in size, a 25-percent increase in internal core volume, and a 165-percent increase in external fin surface area compared to the factory unit.
Does this kit require modification or removal of the front bumper?
No. This intercooler is a direct-fit unit that requires no modification to the Mustang and installs in under two hours without removing the front bumper cover.
What finish options are available for this intercooler kit?
The intercooler core is available in Stealth Black or Sleek Silver finish, and the piping is available with a polished silver or wrinkle black finish.
What is the maximum horsepower rating for this intercooler?
This intercooler is rated for a maximum of 550 horsepower.
