Description

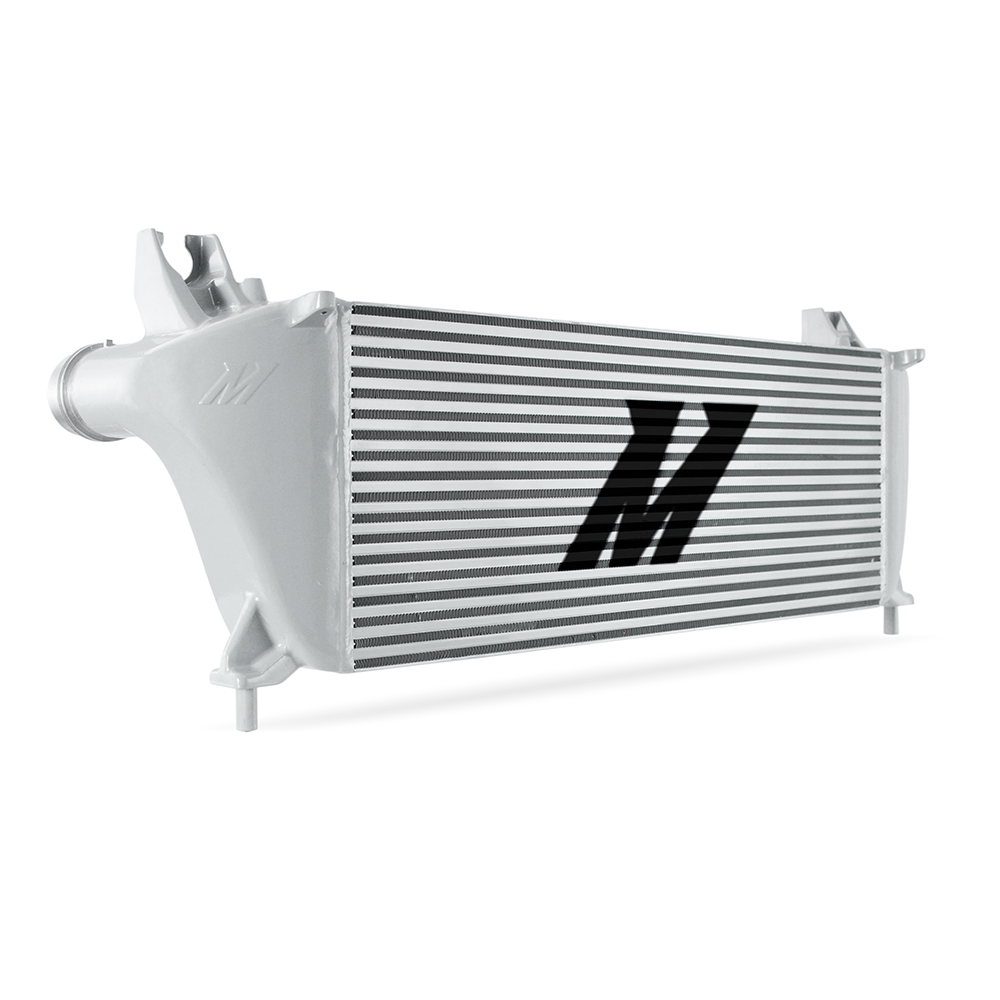

The Mishimoto MMINT-RGR-19KSLP Performance Intercooler Kit is purpose-built for the 2019-2023 Ford Ranger 2.3L EcoBoost, pairing a bar-and-plate intercooler core with mandrel-bent aluminum pipes to deliver dyno-proven gains of 13.6 whp and 13.9 lb-ft of torque. Every core is TIG-welded to cast-aluminum end tanks, giving this forced induction upgrade the durability to handle heat, boost pressure, and off-road debris that the factory Ranger intercooler was never designed to withstand.
As a dedicated forced induction system upgrade, this Mishimoto intercooler kit is engineered to move more air with less restriction, which is the foundation of any effective performance induction strategy. The bar-and-plate core is 24-percent less restrictive than the stock intercooler while delivering a 46-percent increase in core volume, and the accompanying aluminum intercooler pipes eliminate the restrictive bends found on the factory piping to improve flow by 25.6-percent on the hot side and 16.6-percent on the cold side. Testing also showed a 7°F reduction in outlet temperature compared to the stock intercooler. Bungs on the intercooler end tank and cold-side pipe can be drilled and tapped for a boost sensor or water-meth injection, letting Ranger owners further tailor their induction system as builds progress, and CNC-machined quick-disconnect fittings at the inlet and outlet keep installation straightforward.
Vehicle Applications
This Mishimoto intercooler kit is a specific fit for the 2019-2023 Ford Ranger 2.3L EcoBoost, covering the Ranger XL, XLT, and Lariat trims across all model years from 2019 through 2023, as well as the 2023 Ranger Wildtrak. It is engineered around the T6 chassis and the 2.3L EcoBoost engine code, and it does not interfere with the Ranger’s active grille shutters or adaptive cruise control.
Features

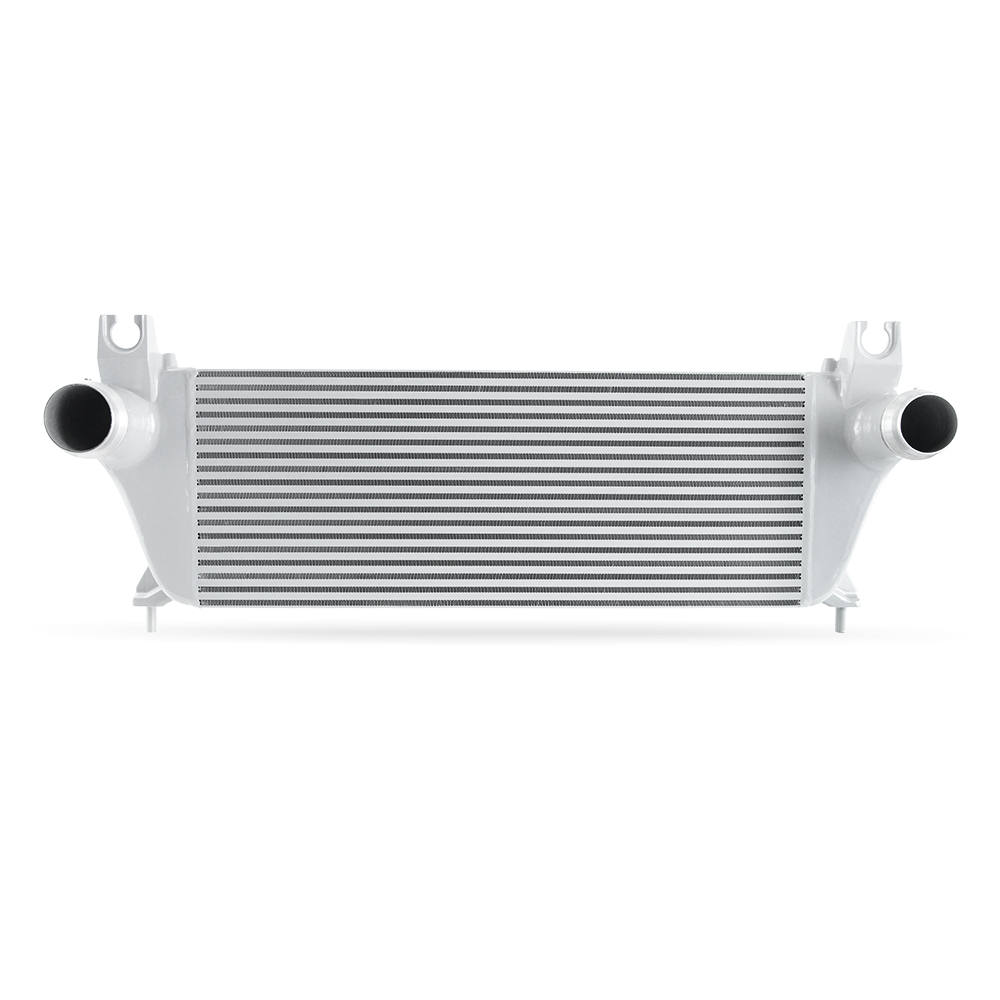

- Bar-and-plate intercooler core TIG-welded to cast-aluminum end tanks
- 24-percent less restrictive than the stock intercooler with a 46-percent increase in core volume
- Mandrel-bent aluminum intercooler pipes with a polished finish, improving flow 25.6-percent on the hot side and 16.6-percent on the cold side
- Dyno-proven gains of 13.6 whp and 13.9 lb-ft of torque with a 7°F reduction in outlet temperature versus stock
- Integrated bungs on the intercooler end tank and cold-side pipe for a boost sensor or water-meth injection

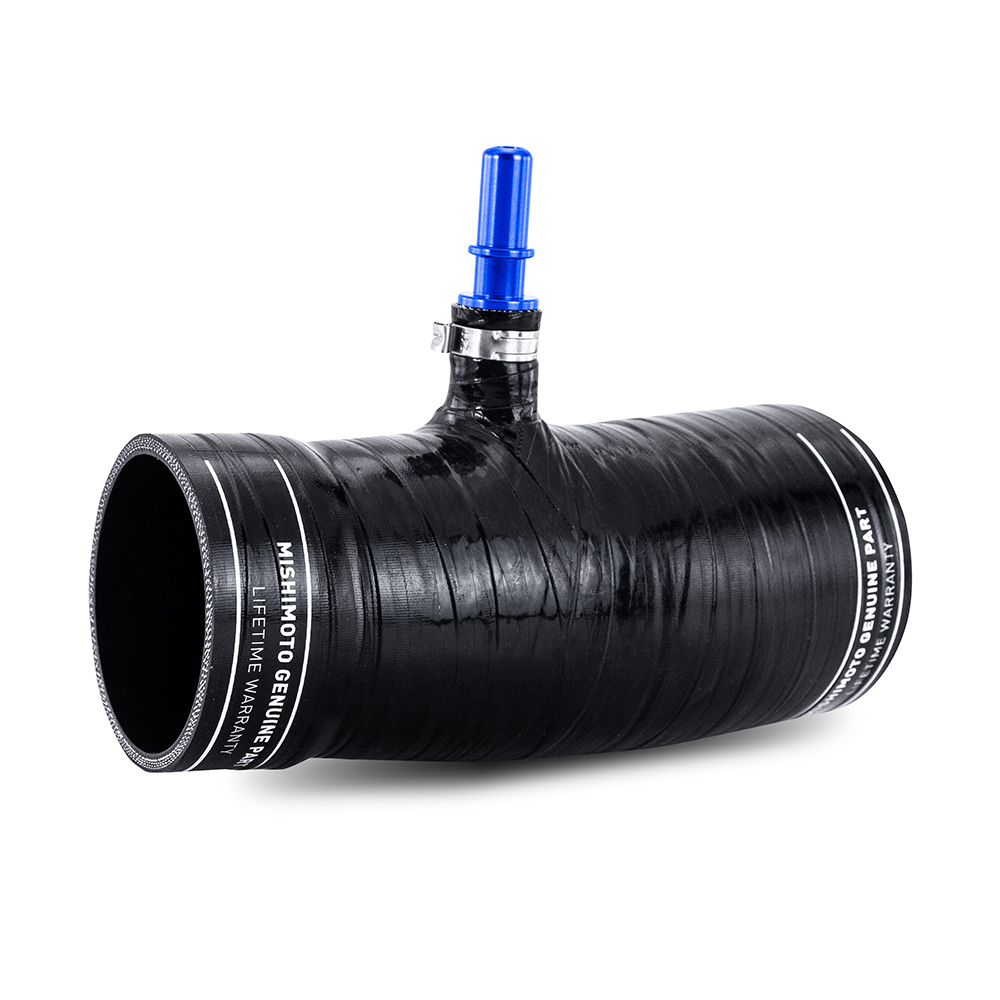

- Mishimoto Silicone Boots with DuraCore technology and high-torque worm gear clamps for consistent holding power

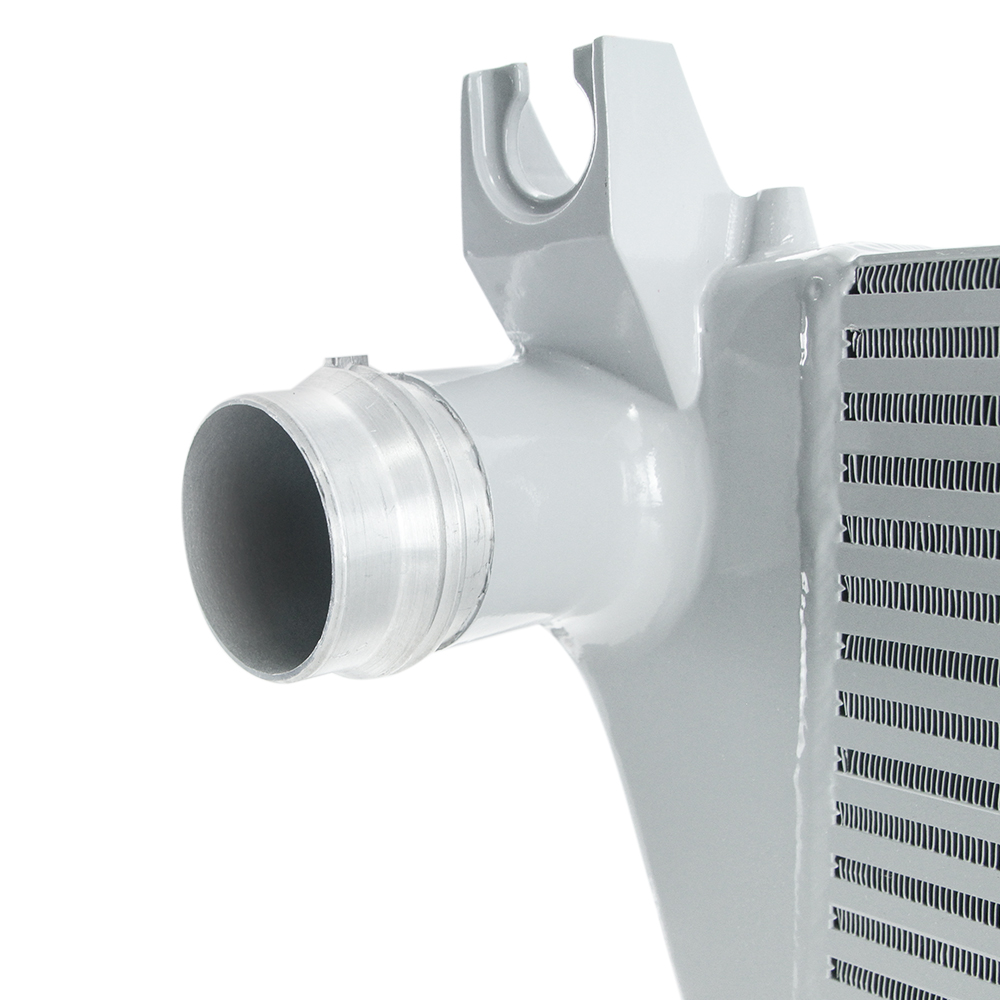

- CNC-machined quick-disconnect inlet and outlet for simplified installation
- Does not interfere with active grille shutters or adaptive cruise control
- Patent No. US D957,461 S
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Part Number: MMINT-RGR-19KSLP
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver
- Core Height: 12 in
- Core Length: 24 in
- Core Thickness: 3.54 in
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Inlet Diameter: 2.18 in
- Outlet Diameter: 2.65 in
- Hot Side Pipe Inside Diameter: 2.18 in
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Engine Codes: 2.3L EcoBoost
- Chassis Codes: T6
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-RGR-19KSLP intercooler kit?
It’s a specific fit for the 2019-2023 Ford Ranger 2.3L EcoBoost, including the XL, XLT, and Lariat trims for 2019-2023 and the Wildtrak trim for 2023.
What kind of performance gains does this intercooler kit produce?
Mishimoto reports dyno-proven gains of 13.6 whp and 13.9 lb-ft of torque, along with a 7°F reduction in outlet temperature compared to the stock intercooler.
What is the core construction of this intercooler?
The intercooler uses a bar-and-plate aluminum core that is TIG-welded to cast-aluminum end tanks, and it reduces restriction by 24 percent while increasing core volume by 46 percent over the stock intercooler.
Does this kit include the intercooler pipes and couplers?

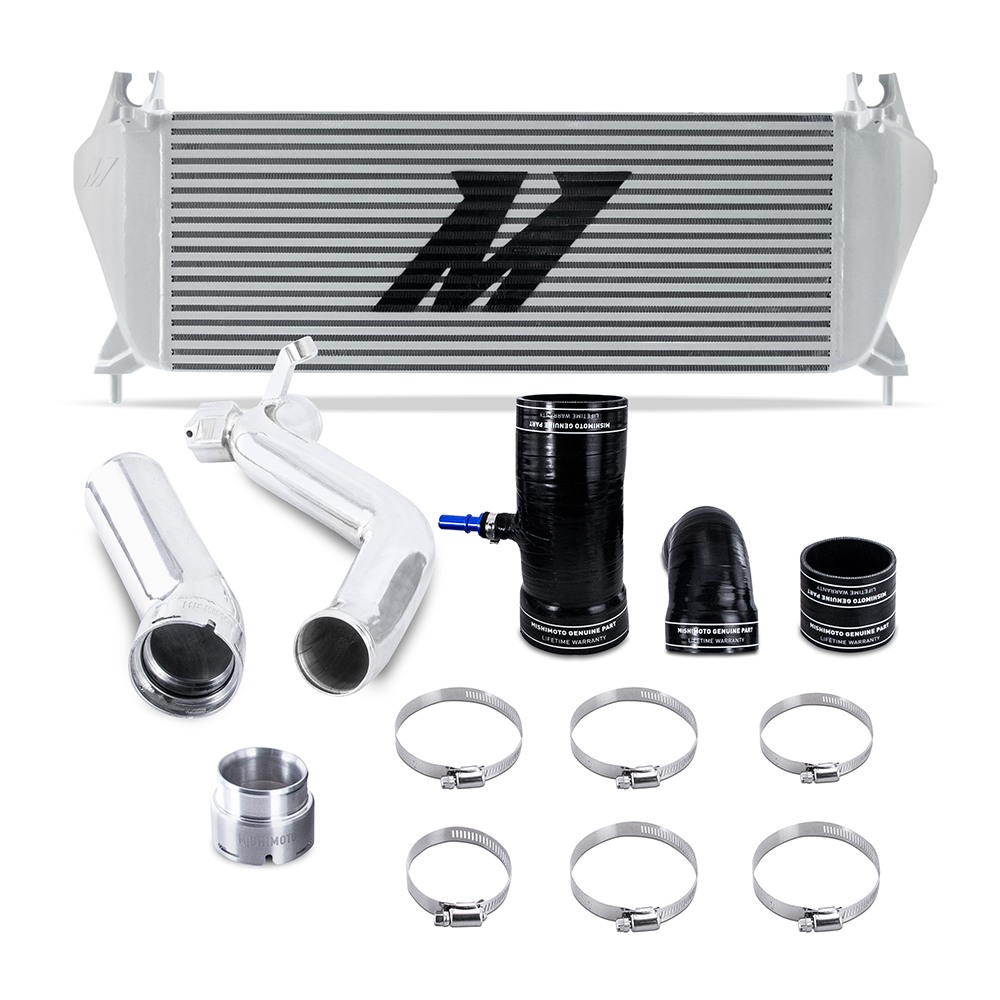

Yes. The kit includes the Mishimoto bar-and-plate intercooler, an aluminum hot-side intercooler pipe, an aluminum cold-side intercooler pipe, a CNC-machined aluminum hot-side pipe adapter, two DuraCore hot-side couplers, one DuraCore cold-side coupler, six high-torque worm gear clamps, bypass valve mounting hardware, and intercooler mounting hardware.
Can this intercooler be used with a boost sensor or water-meth injection?
Yes, the intercooler end tank and cold-side pipe feature integrated bungs that can be drilled and tapped for a boost sensor or water-meth injection.
What warranty does Mishimoto provide on this intercooler kit?
This Mishimoto Performance Intercooler Kit is backed by the Mishimoto Lifetime Warranty.
