Description
The Mishimoto Intercooler Pipe and Boot Kit (MMICP-F2D-99KWBK) replaces the factory intercooler piping on 1999-2003 Ford 7.3L Powerstroke Super Duty trucks with a pair of mandrel-bent aluminum pipes covering both the hot and cold sides of the intercooler. As part of Mishimoto’s forced induction lineup, the kit pairs those pipes with Mishimoto Silicone Boots featuring DuraCore technology and Constant-Tension T-bolt clamps, reinforcing the intercooler piping and induction system against the punishment of daily towing and hauling.
Powerstroke turbodiesels generate serious boost pressure to deliver the torque these Super Duty trucks are known for, and any weak point in the forced induction system can bleed away performance or invite leaks over time. Mishimoto engineered this pipe and boot kit to reinforce that path from turbo to intercooler and intercooler to intake, using mandrel-bent aluminum tubing built for durability. The included Mishimoto Silicone Boots use DuraCore technology, a synthetic inner layer that offers greater resistance to heat, pressure, fuel, and oil than standard silicone, helping prevent leaks and blowouts throughout the induction system. Mishimoto Constant-Tension T-bolt clamps hold everything together with accurate, consistent clamping force, and the kit is available in a polished or wrinkle-black powder-coated finish to match your build. For best performance, Mishimoto recommends pairing this pipe kit with the Mishimoto Ford 7.3L Powerstroke Performance Intercooler.
Vehicle Applications
This intercooler pipe and boot kit is built for 1999-2003 Ford F-250, F-350, F-450, and F-550 Super Duty trucks equipped with the 7.3L Powerstroke, covering the XL, XLT, and Lariat trims across that full 1999-2003 span. Coverage also extends to the 2003 Ford F-350 Super Duty King Ranch, the 2003 Ford F-450 Super Duty Base trim, and the 2001-2003 Ford F-550 Super Duty Base trim. On the SUV side, this kit fits the 2000-2003 Ford Excursion XLT and Limited, as well as the 2003 Ford Excursion Eddie Bauer.
Features
- Direct fit for the 7.3L Powerstroke, 1999-2003

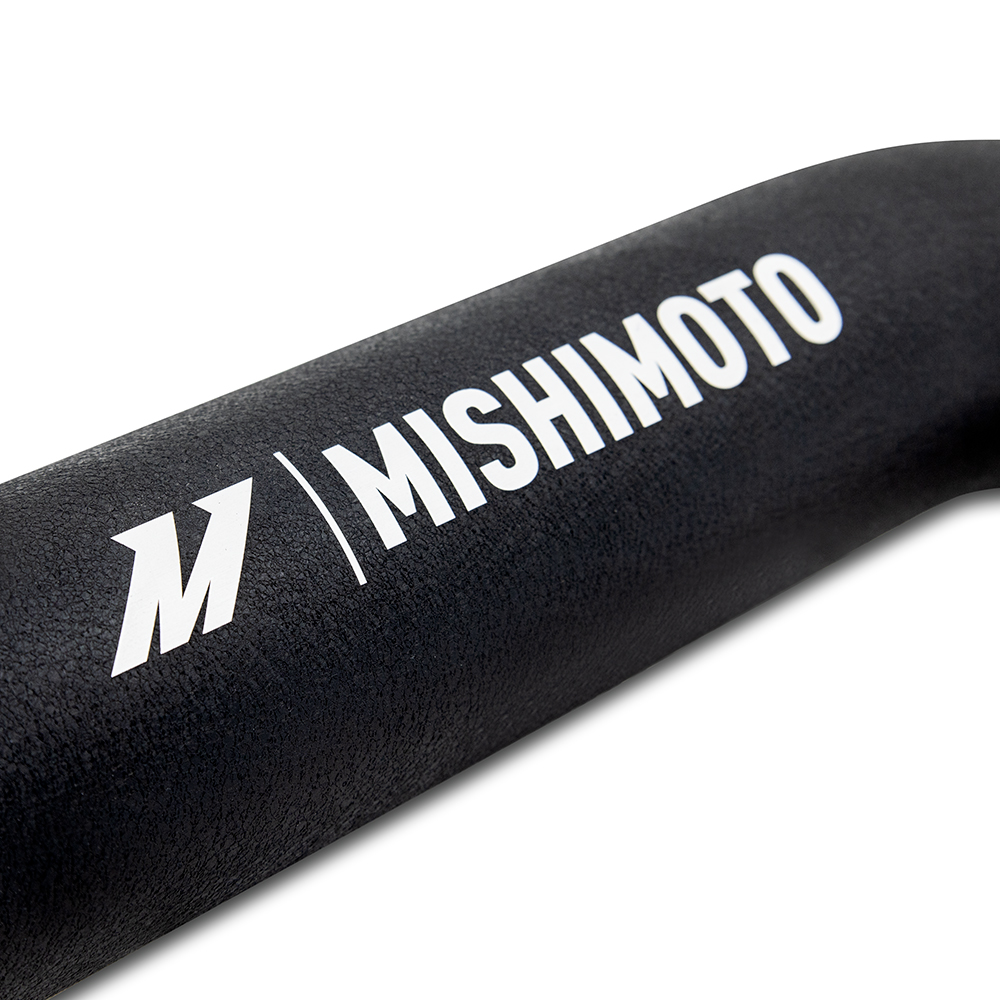

- Mandrel-bent aluminum pipes for the intercooler’s hot and cold sides

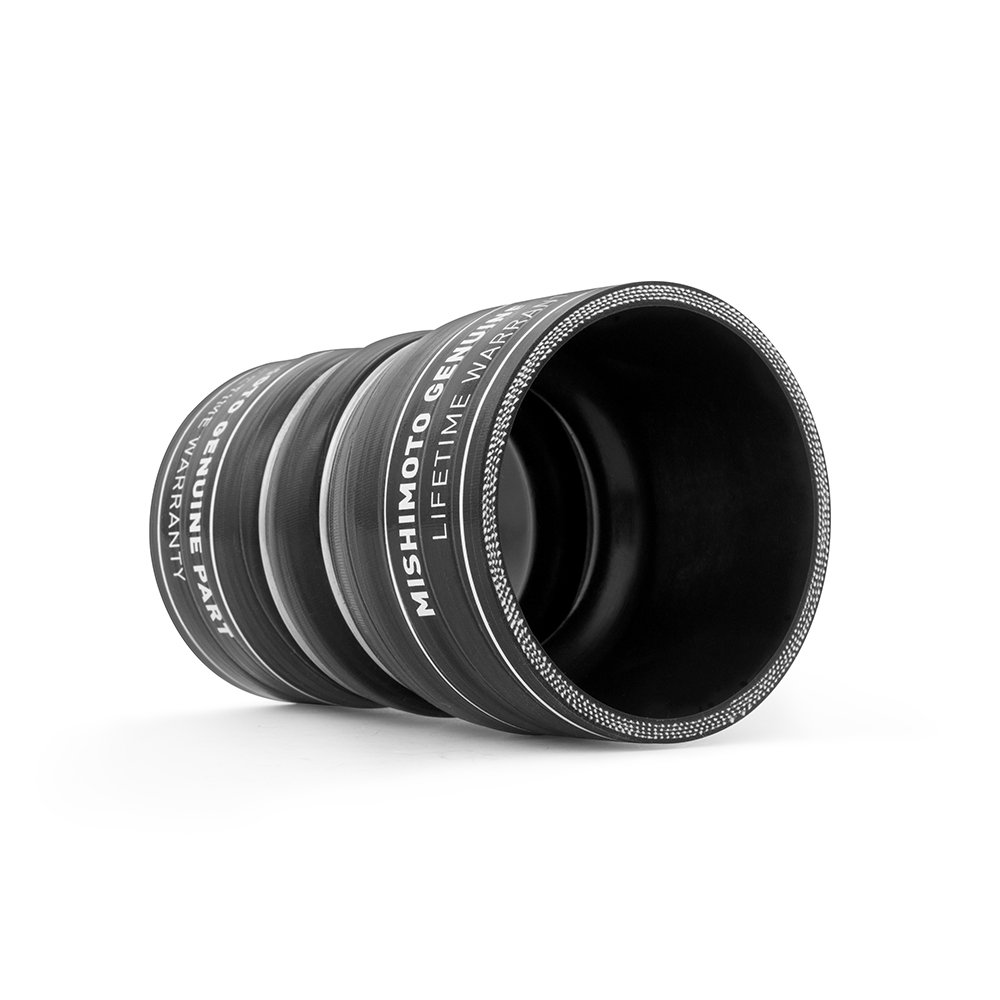

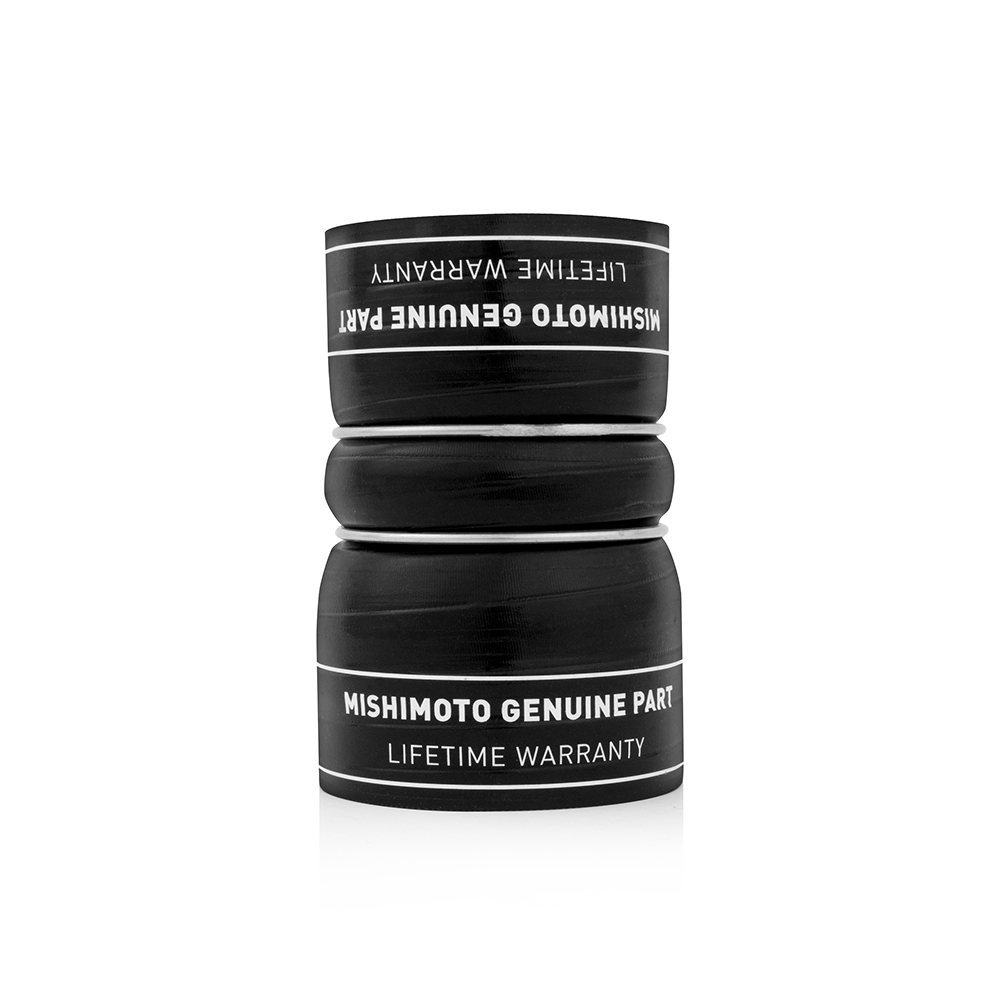

- Includes Mishimoto Silicone Boots with DuraCore Technology
- Includes Mishimoto Constant-Tension T-bolt Clamps for accurate, consistent holding power
- Installs in under one hour
- Available in a polished or wrinkle-black powder-coated finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: T-Bolt
- Clamps Included: Yes
- Finish: Powder Coated (available in Polished or Wrinkle-Black)

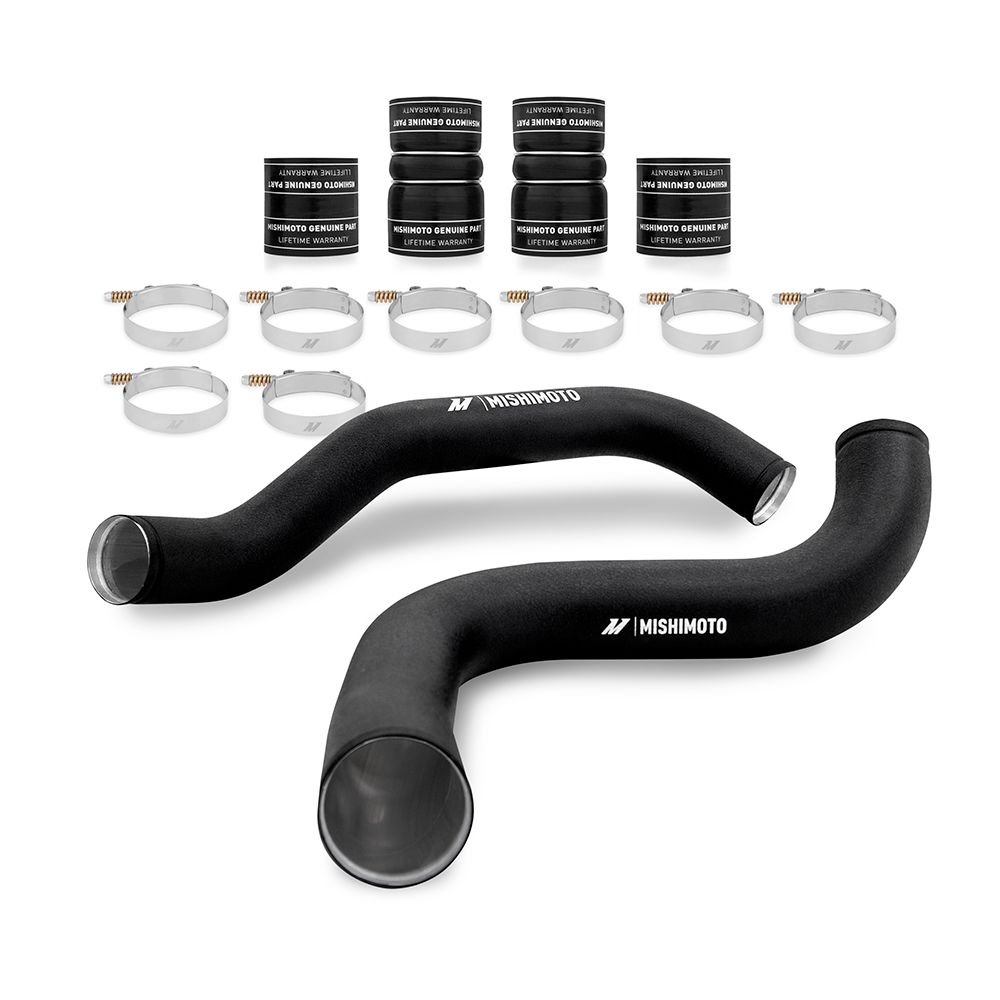

- Kit Includes: (2) Intercooler Pipes, (4) Silicone Boots with DuraCore Technology, (8) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
- Installation Torque: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps; operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What does the Mishimoto Intercooler Pipe and Boot Kit (MMICP-F2D-99KWBK) include?
The kit includes (2) Intercooler Pipes, (4) Silicone Boots with DuraCore Technology, (8) Constant-Tension T-Bolt Clamps, and the Mishimoto Lifetime Warranty.
Which vehicles fit this Mishimoto pipe and boot kit?
It fits 1999-2003 Ford F-250, F-350, F-450, and F-550 Super Duty trucks (XL, XLT, Lariat trims, plus the 2003 F-350 King Ranch, 2003 F-450 Base, and 2001-2003 F-550 Base), as well as the 2000-2003 Ford Excursion XLT and Limited and the 2003 Excursion Eddie Bauer.
What finishes are available for this kit?
The kit is available in a polished or wrinkle-black powder-coated finish.
What is DuraCore technology?
DuraCore is the synthetic material that forms the innermost layer of Mishimoto Silicone Diesel Boots, providing superior resistance to heat, pressure, fuel, and oil compared to normal silicone, which helps prevent leaks and blowouts.
What clamp torque should I use during installation?
Mishimoto recommends 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM); do not exceed the maximum torque rating of 35 in-lbs (4NM).
Should this pipe kit be paired with another Mishimoto product?
For best performance, Mishimoto recommends pairing this pipe and boot kit with the Mishimoto Ford 7.3L Powerstroke Performance Intercooler.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
