Description
Mishimoto’s Dodge 6.7L Cummins Intercooler Pipe and Boot Kit (MMICP-RAM-13BK) replaces the factory intercooler piping on eligible Ram trucks with mandrel-bent, polished aluminum pipes engineered to eliminate the restrictive bends built into the stock hot-side and cold-side routing. Mishimoto’s engineers increased the pipe diameter to open up airflow, and every kit ships with DuraCore silicone boots and Constant-Tension T-bolt clamps to keep the system sealed under boost.
As a forced induction upgrade developed specifically for the 6.7L Cummins application, this kit targets two of the biggest limitations in the stock induction system: restrictive pipe geometry and boots that break down under heat and pressure. The 3-inch mandrel-bent polished aluminum piping is routed to improve airflow through the forced induction system, while Mishimoto’s DuraCore boots — built around a synthetic innermost layer that resists heat, pressure, fuel, and oil better than standard silicone — help prevent the leaks and blowouts common with worn factory couplers. By reducing pipe restriction and boot failure points, this performance induction kit is designed to reduce stress on the turbo. It’s built to work exclusively with the Mishimoto Dodge 6.7L Cummins Performance Intercooler, making it a natural companion for that intercooler installation.
Vehicle Applications
This Mishimoto intercooler pipe and boot kit is engineered for the 2013-2018 Ram 2500 and Ram 3500, the 2013 Ram 4000, and the 2013-2018 Ram 4500 and Ram 5500. It is designed to work with, and only fits alongside, the Mishimoto Dodge 6.7L Cummins Performance Intercooler.
Features

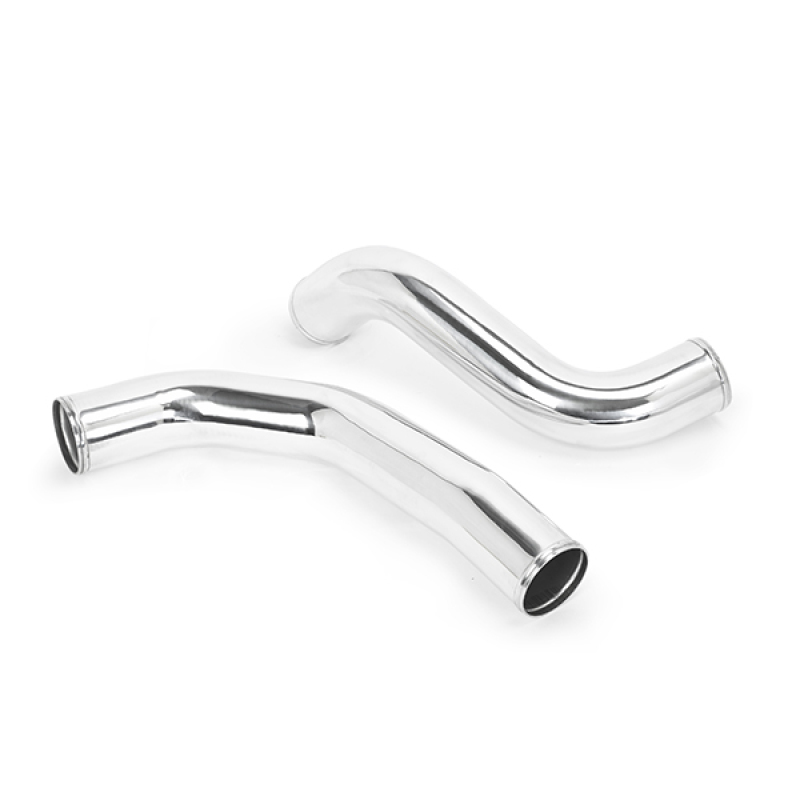

- Mandrel-bent, polished aluminum intercooler pipes that eliminate restrictive factory bends
- 3-inch mandrel-bent polished aluminum piping for improved airflow
- Includes hot-side and cold-side intercooler pipes and boots

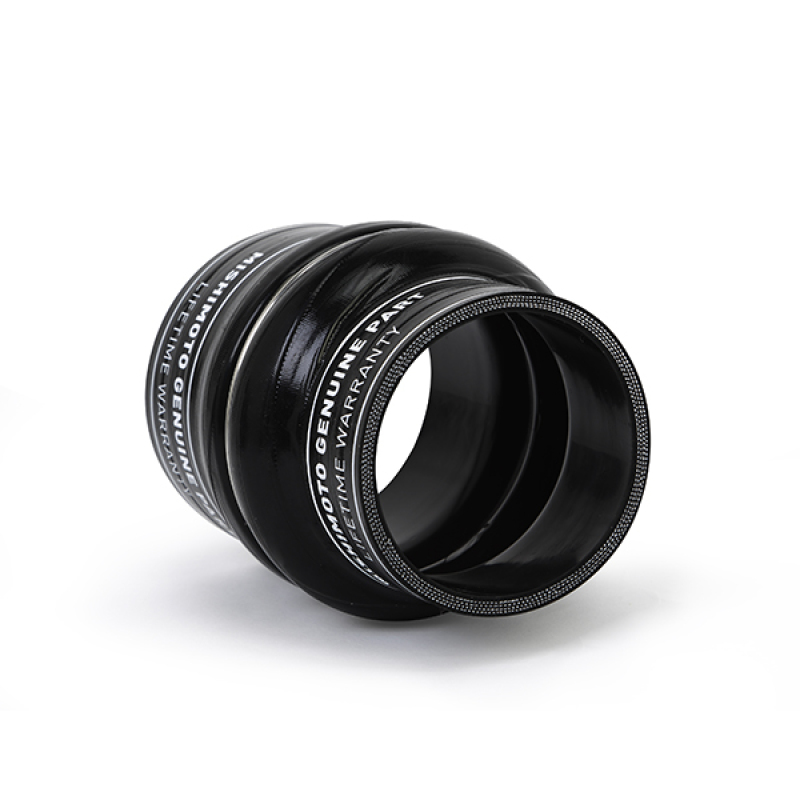

- Mishimoto DuraCore silicone boots offer superior resistance to heat, pressure, fuel, and oil
- Includes Mishimoto Constant-Tension T-bolt clamps
- Designed to reduce turbo stress and extend turbo life
- Only fits with the Mishimoto Dodge 6.7L Cummins Performance Intercooler

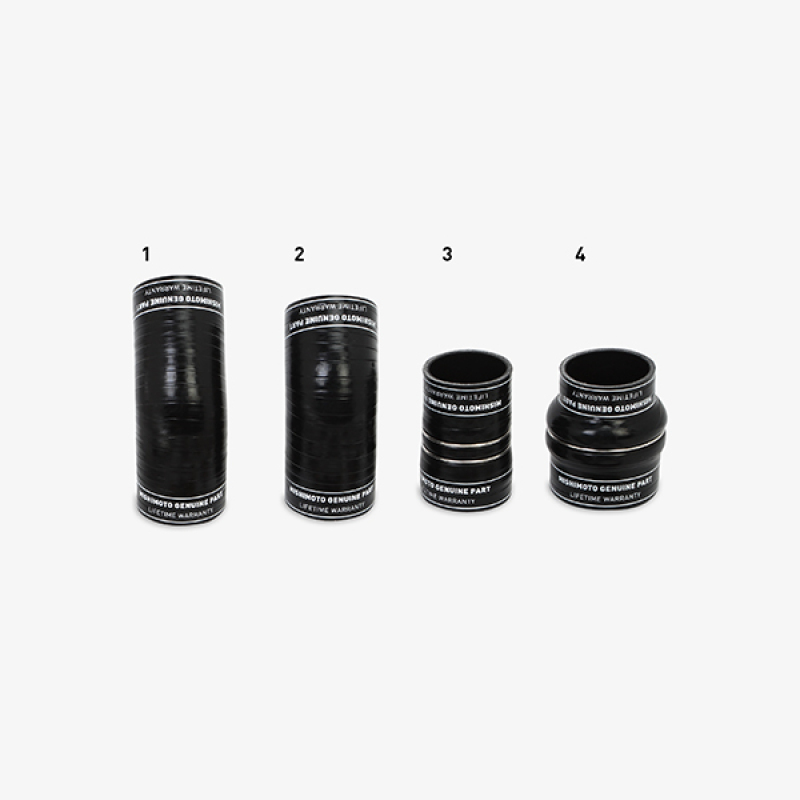

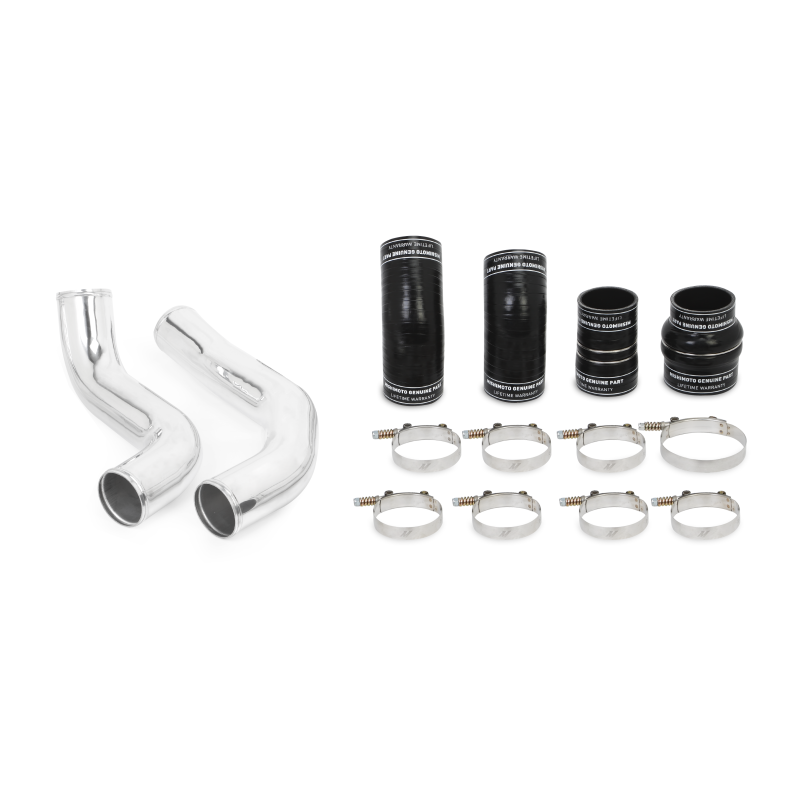

- Kit includes (2) aluminum pipes, (4) silicone boots with DuraCore technology, (8) Constant-Tension T-bolt clamps, and (2) aluminum Mishimoto M logo badges
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-RAM-13BK
- Product Type: Forced Induction
- Finish: Polished
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: T-Bolt
- Clamps Included: Yes
- CARB EO Number: D-759-22
- Recommended clamp torque: 27 in-lbs (3NM), operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles does this Mishimoto intercooler pipe kit fit?
It fits the 2013-2018 Ram 2500, 2013-2018 Ram 3500, 2013 Ram 4000, and 2013-2018 Ram 4500 and Ram 5500.
Does this kit work with the factory intercooler?
No, this kit is designed to only fit with the Mishimoto Dodge 6.7L Cummins Performance Intercooler.
What is included with the Mishimoto intercooler pipe and boot kit?
The kit includes (2) aluminum pipes, (4) silicone boots with DuraCore technology, (8) Constant-Tension T-bolt clamps, (2) aluminum Mishimoto M logo badges, and the Mishimoto Lifetime Warranty.
What clamp torque is recommended for installation?
27 in-lbs (3NM) is recommended for all T-bolt and Constant-Tension T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
What is Mishimoto DuraCore technology?
DuraCore is the synthetic material that makes up the innermost layer of Mishimoto silicone diesel boots, providing superior resistance to heat, pressure, fuel, and oil compared to normal silicone, which helps prevent leaks and blowouts.
Is this intercooler pipe kit covered by a warranty?
Yes, it is covered by the Mishimoto Lifetime Warranty.
