Description
The Mishimoto MMICP-DMAX-17KWBK intercooler pipe and boot kit replaces the restrictive factory piping on the 2017-2019 Chevrolet/GMC 6.6L Duramax L5P with a direct bolt-on, 3-inch aluminum pipe system that eliminates the stock hot-side resonator and its tight bends entirely. Where the factory L5P pipes measure a choked 2.5 inches in diameter, this Mishimoto forced induction upgrade opens the entire path to 3 inches with smooth, mandrel-bent transitions.
Built for shops and DIYers looking to unlock more airflow from their induction system without sacrificing reliability, this kit combines aluminum pipes with Mishimoto silicone boots featuring DuraCore technology for superior resistance to heat, pressure, fuel, and oil versus standard silicone. Constant-tension T-bolt clamps deliver accurate, consistent holding power at every connection, while a CNC-machined quick-disconnect fitting on the cold-side pipe with a new O-ring and spring clip ensures a secure, leak-free fit. Combined, the Mishimoto forced induction pipe kit is up to 55-percent less restrictive than the factory setup, giving your L5P’s induction system real room to breathe without requiring additional tuning.
Vehicle Applications
This kit is a direct-fit, bolt-on solution for the 2017-2019 Chevrolet Silverado 2500 HD and 3500 HD, as well as the 2017-2019 GMC Sierra 2500 HD and 3500 HD, all equipped with the 6.6L Duramax L5P engine. No cutting, splicing, or additional tuning is required to install.
Features
- Direct fit for 2017-2019 Chevrolet/GMC 6.6L Duramax L5P

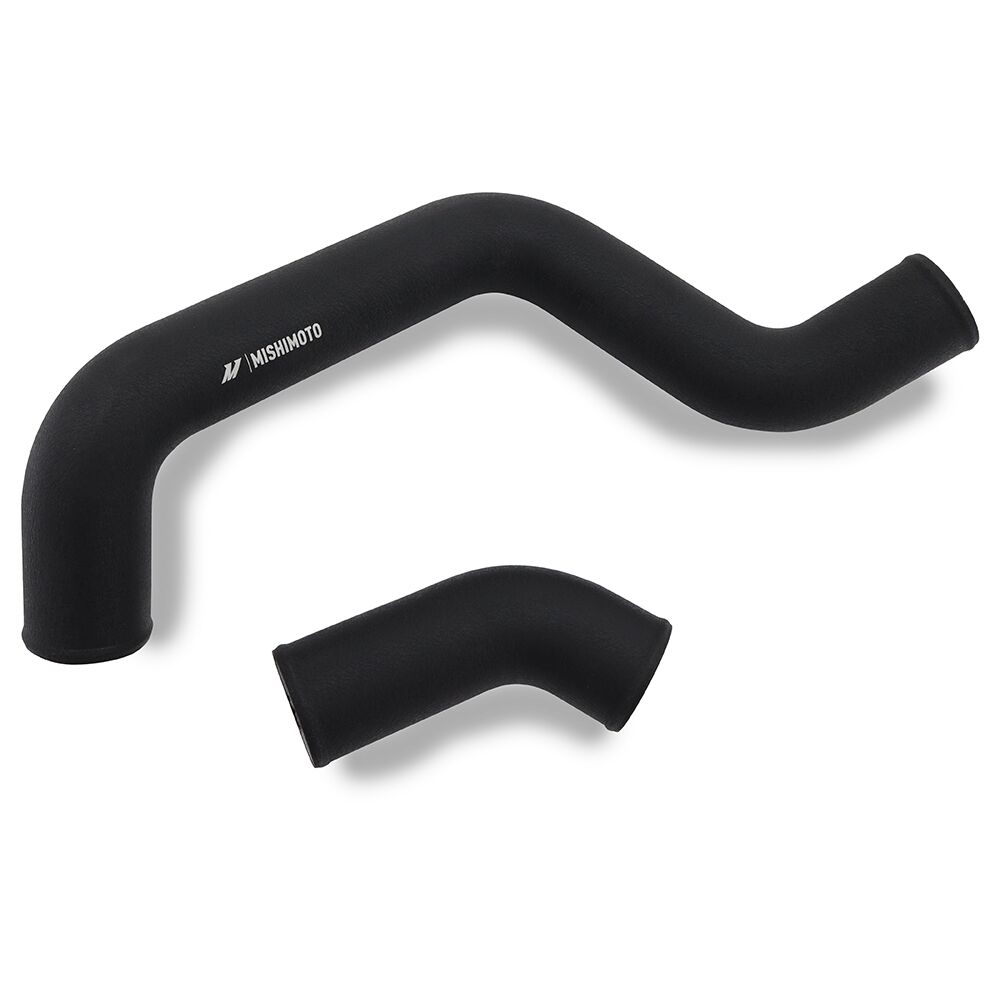

- 3.0-in mandrel-bent aluminum pipes eliminate restrictive factory bends
- Up to 55-percent less restrictive than stock piping
- Hot-side pipe eliminates the stock resonator for maximum flow

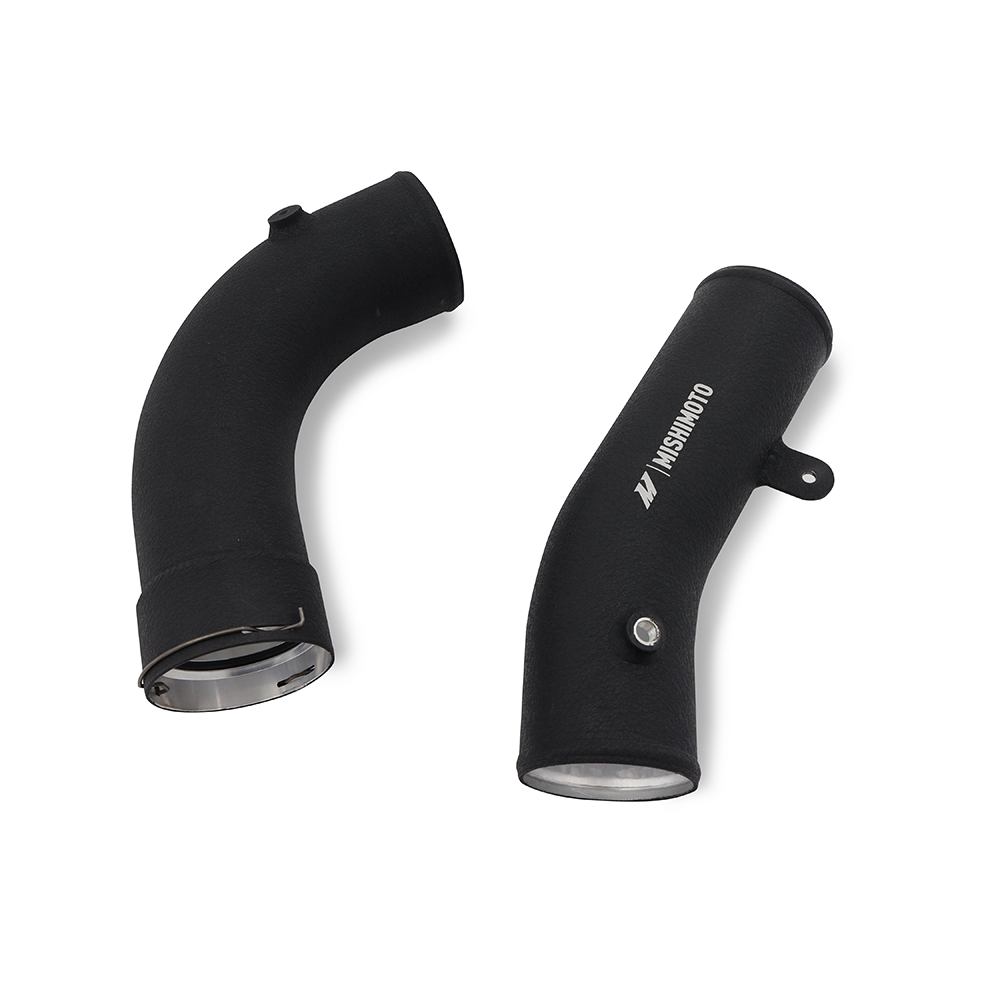

- Includes new quick-disconnect O-ring and spring clip on the cold-side pipe

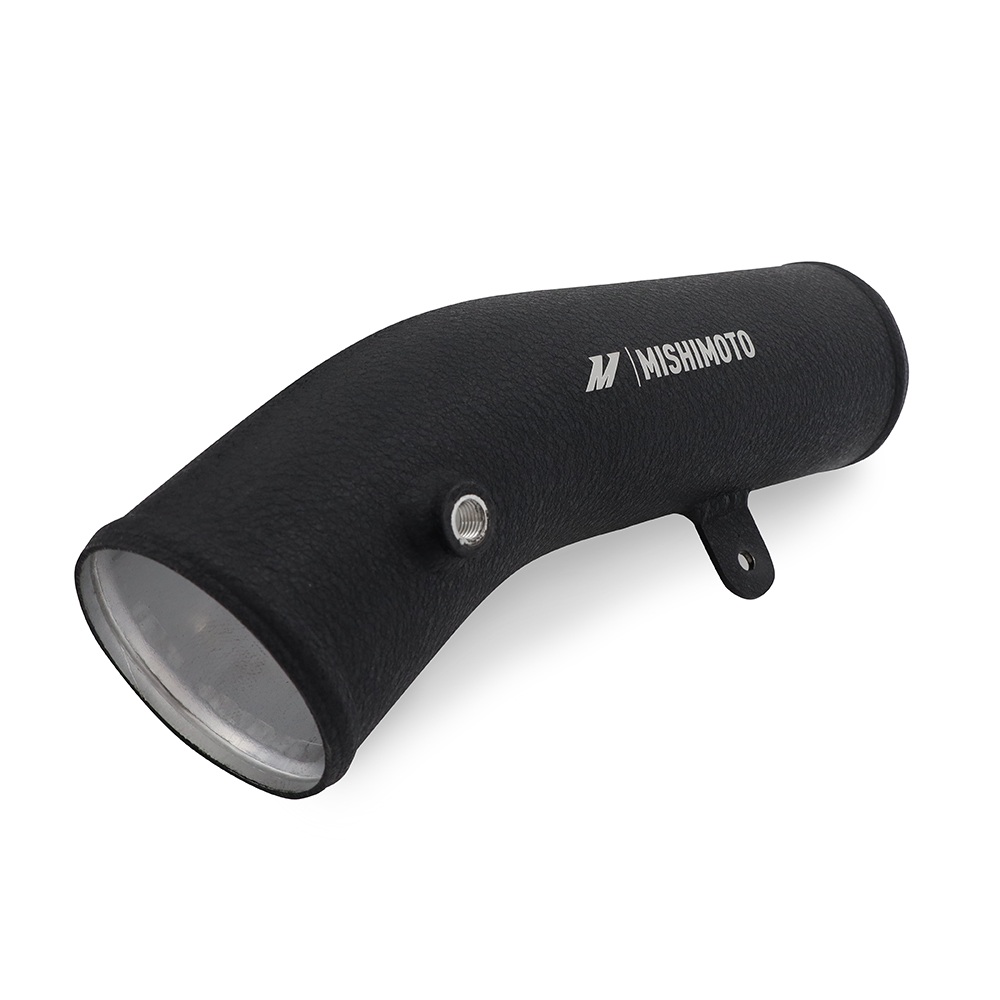

- CNC-machined quick-disconnect ensures a precise, leak-free fit
- Retains the factory temp sensor harness mounting location for safe, secure wire routing
- Internal bead roll ensures a secure connection between coupler and throttle valve
- Additional bungs can be drilled and tapped for sensors
- Requires no additional tuning

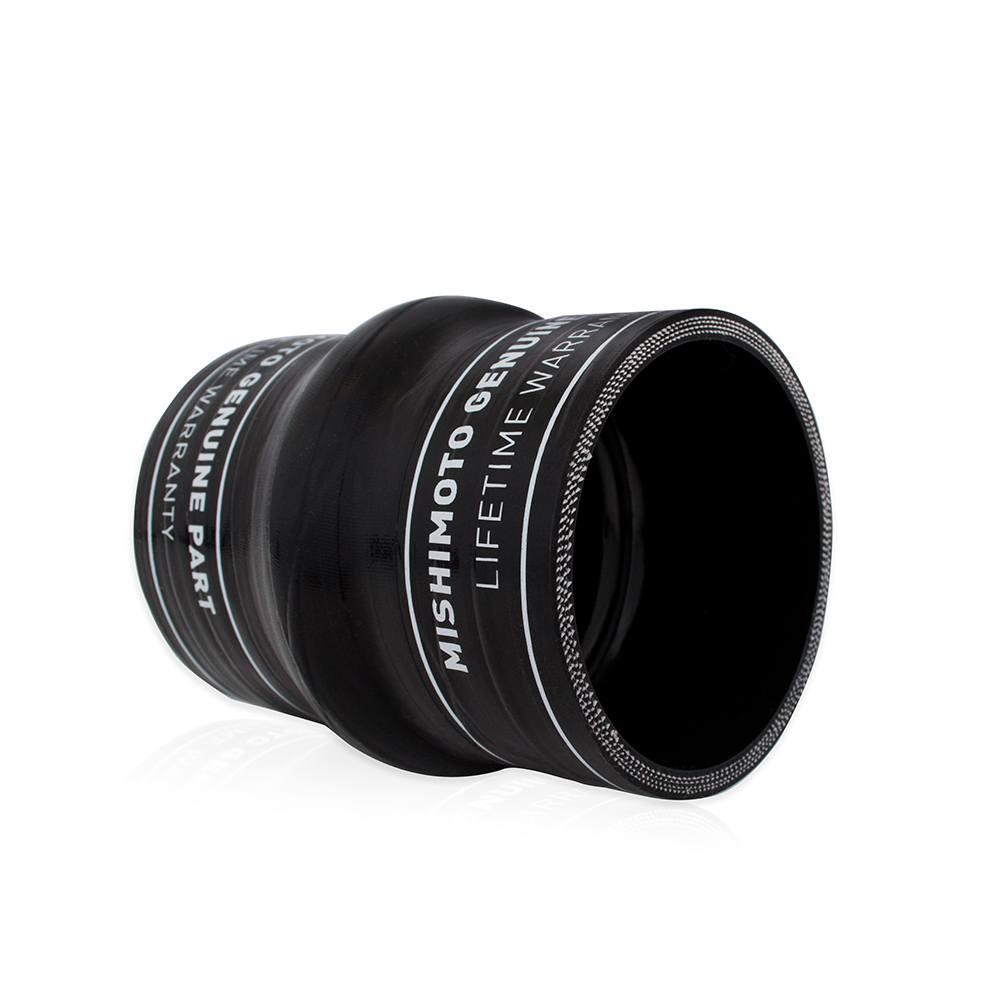

- Silicone boots feature Mishimoto DuraCore technology for added resistance to heat, pressure, fuel, and oil
- Constant-tension T-bolt clamps provide accurate, consistent holding power
- Available in polished or wrinkle-black powder coated finish
Specifications
- Pipe Material: Aluminum
- Pipe Diameter: 3 inches throughout
- Pipe Bend Type: Mandrel
- Clamp Type: Constant-Tension T-Bolt
- Clamp Quantity: 10
- Coupler Material: Silicone with DuraCore technology
- Coupler Color: Black
- Finish Options: Polished or Wrinkle-Black Powder Coated

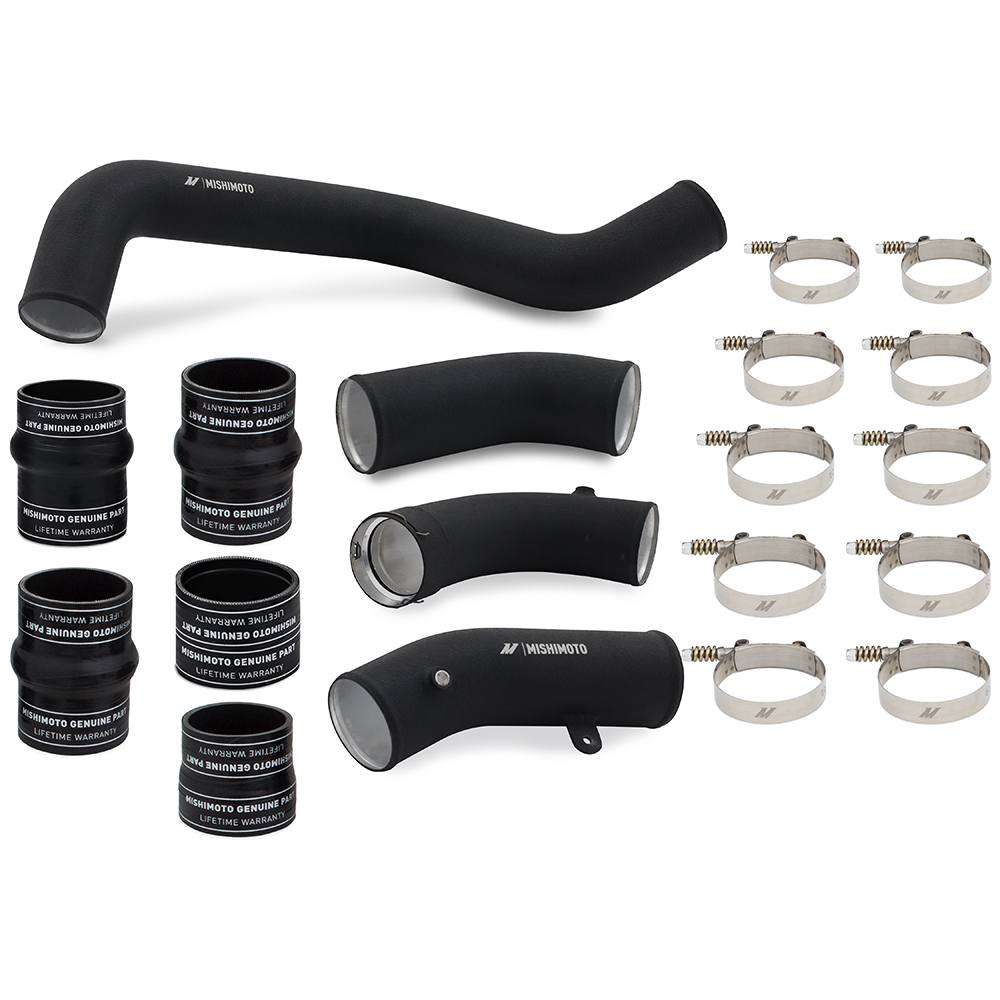

- Kit Includes: (3) Aluminum Intercooler Pipes, (1) Aluminum Intercooler Pipe w/ O-Ring and Spring Clip, (5) Silicone Boots with DuraCore Technology, (10) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
- Installation Torque: 27 in-lbs (3NM) recommended for T-bolt and constant-tension T-bolt clamps; operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles does this Mishimoto intercooler pipe kit fit?
This kit is a direct fit for the 2017-2019 Chevrolet Silverado 2500 HD and 3500 HD and the 2017-2019 GMC Sierra 2500 HD and 3500 HD, all equipped with the 6.6L Duramax L5P engine.
What diameter are the Mishimoto intercooler pipes compared to stock?
The Mishimoto pipes are 3 inches in diameter throughout, compared to the factory L5P pipes which measure a restrictive 2.5 inches.
How much less restrictive are these pipes than the factory setup?
Combined, the Mishimoto intercooler pipes are up to 55-percent less restrictive than the stock L5P piping.
What finishes are available for this kit?
This kit is available in a polished or a wrinkle-black powder coated finish.
Does installing this kit require additional tuning?
No, this Mishimoto intercooler pipe and boot kit requires no additional tuning.
What does the kit include?
The kit includes (3) aluminum intercooler pipes, (1) aluminum intercooler pipe with O-ring and spring clip, (5) silicone boots with DuraCore technology, (10) constant-tension T-bolt clamps, and the Mishimoto Lifetime Warranty.
