Description
The Mishimoto MMINT-F27T-15KBSL is a direct-fit intercooler and pipe kit purpose-built for the 2015-2017 Ford F-150 2.7L V6 EcoBoost, pairing a Sleek Silver bar-and-plate intercooler with wrinkle black powder-coated aluminum piping. Where the factory setup relies on plastic tubing, Mishimoto replaces it with free-flowing aluminum pipes and Mishimoto Silicone Boots featuring DuraCore technology, giving this twin-turbo forced induction system the durability and flow it needs to perform.
This kit was engineered to let the 2.7L EcoBoost’s forced induction hardware breathe. The pipes offer a 38-percent increase in total internal volume over the stock plastic pipes, while the intercooler itself delivers a 77-percent increase in internal core volume and a 163-percent increase in external fin surface area compared to the factory unit, contributing to a 10F (5.5C) reduction in intake air temperature. DuraCore boots resist heat, pressure, fuel, and oil, and constant-tension worm gear clamps keep a firm seal as the aluminum piping expands and contracts under boost, so the induction system stays leak-free from turbo to throttle body. A CNC quick-disconnect fitting with pre-installed O-ring and spring clip on the cold-side pipe also simplifies installation.
Vehicle Applications
This Mishimoto intercooler and pipe kit is a specific fit for the 2015-2017 Ford F-150 Lariat, XL, and XLT equipped with the 2.7L V6 EcoBoost engine (chassis code P552). It is not intended for other F-150 engine options or model years outside this range.
Features
- Direct-fit design for 2015-2017 Ford F-150 2.7L EcoBoost
- 38-percent increase in total internal pipe volume over stock plastic piping
- Cold-side pipe includes a CNC quick-disconnect flange with pre-installed O-ring and spring clip
- Mishimoto Silicone Boots with DuraCore technology resist heat, pressure, fuel, and oil
- Constant-tension worm gear clamps maintain grip as pipes and boots expand and contract
- 10F (5.5C) reduction in intake air temperature
- 77-percent increase in internal intercooler core volume and 163-percent increase in external fin surface area
- All-aluminum, TIG-welded intercooler construction with cast end tanks
- Intercooler finished in Sleek Silver paired with wrinkle black powder-coated pipes on this kit
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 9.4 in
- Core Thickness: 4.7 in
- Core Length: 19.6 in
- Core Color: Silver
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Inlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 50 PSI
- Overall Height: 9.5 in
- Overall Length: 29 in
- Grade Type: Performance
- Engine Codes: 2.7L V6 EcoBoost
- Chassis Codes: P552
- CARB EO Number: D-759-6
Frequently Asked Questions
Which vehicles does this kit fit?
It is a specific fit for the 2015-2017 Ford F-150 Lariat, XL, and XLT with the 2.7L V6 EcoBoost engine.
What comes in the box?

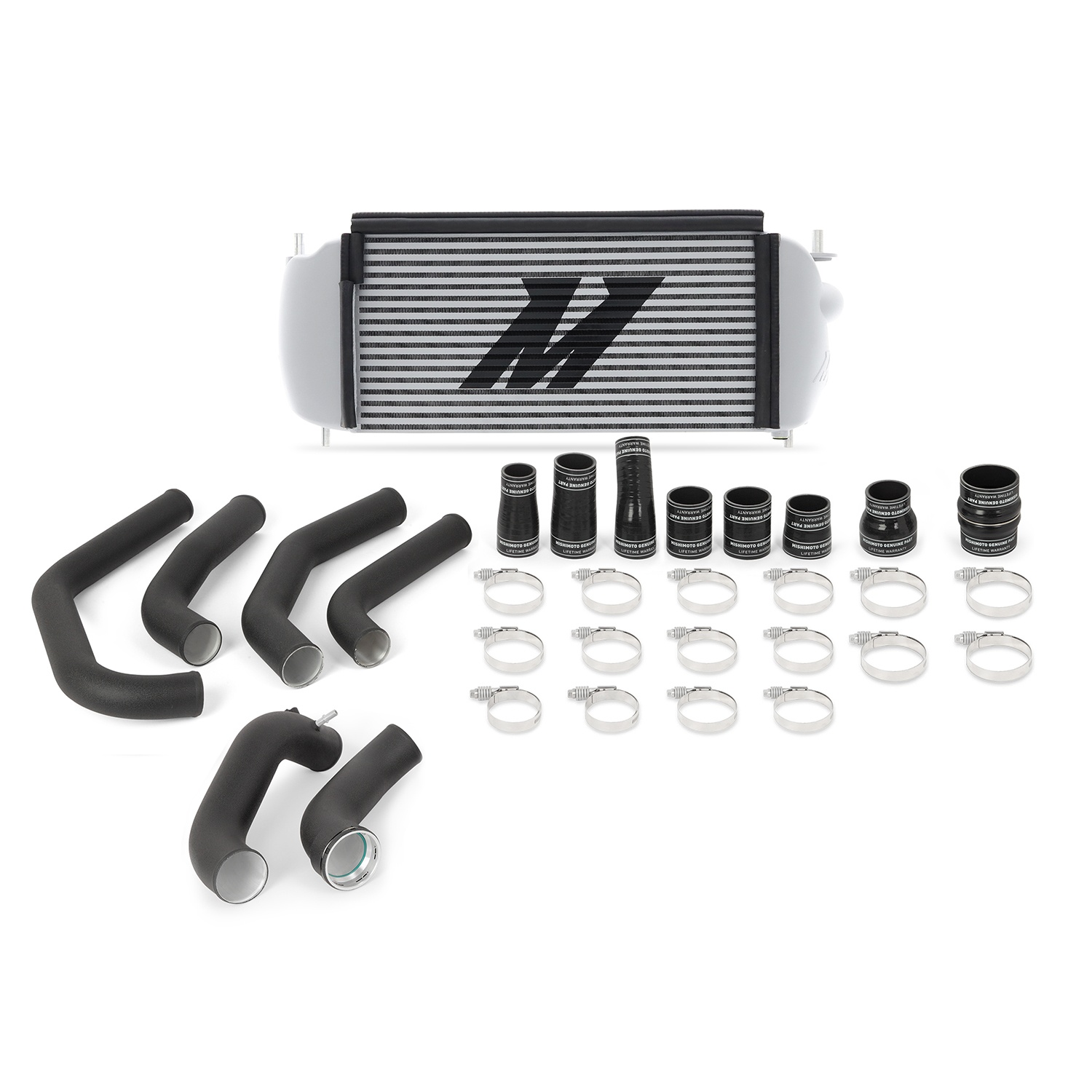

The kit includes one Mishimoto intercooler with assembled rubber trim, one aluminum pipe with a CNC quick-disconnect flange, one aluminum pipe with a CNC IAT sensor housing, four additional aluminum intercooler pipes, eight silicone boots with DuraCore technology, two high-torque worm gear clamps, fourteen constant-tension T-bolt clamps, and mounting hardware.
Does this kit lower intake air temperatures?
Yes, Mishimoto states a 10F (5.5C) reduction in intake air temperature with this intercooler.
What color combination does this specific kit come in?
This kit pairs a Sleek Silver intercooler with wrinkle black powder-coated pipes; other color combinations are also offered.
What is the maximum boost pressure rating?
The kit is rated for a maximum boost pressure of 50 PSI.
What warranty is included?
This kit is backed by the Mishimoto Lifetime Warranty.
